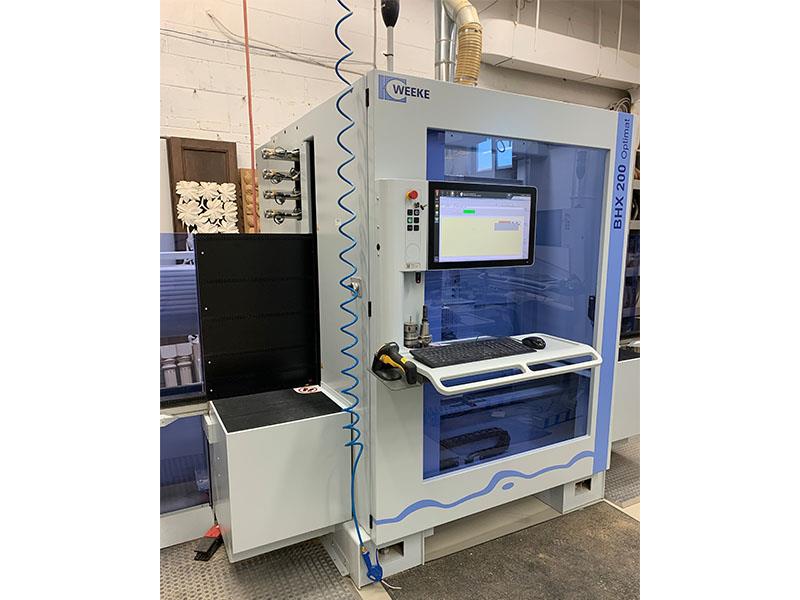

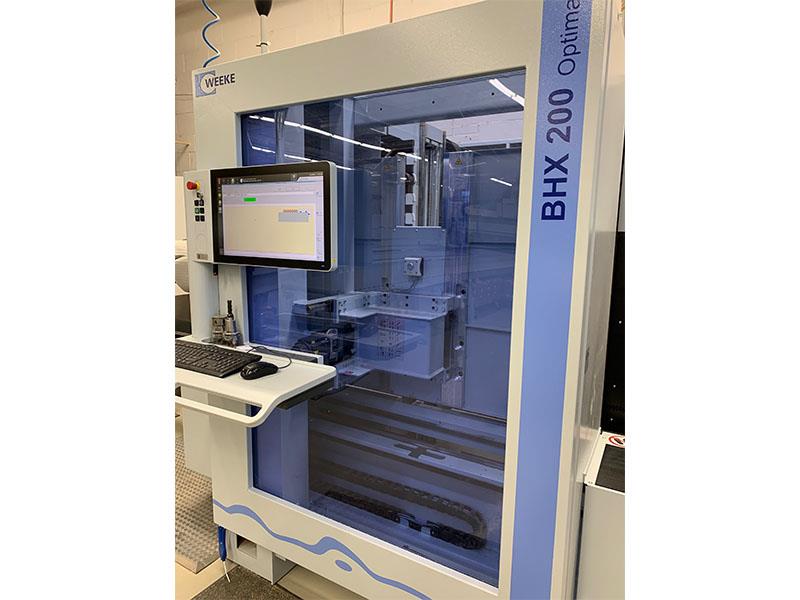

Weeke #BHX-200, CNC Vertical Machining Center, 120" X, 49" Y, 3.1" thickness, Weeke Powertouch, 600 Volt, 2017

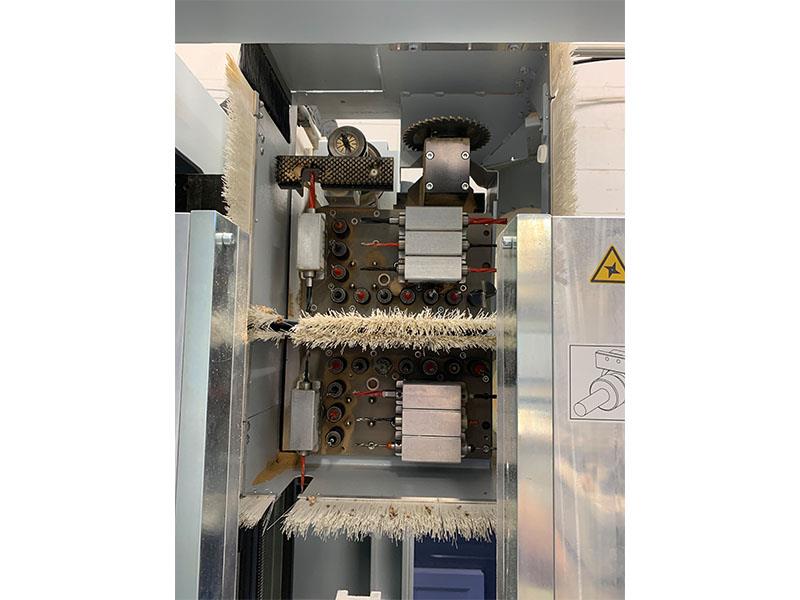

WEEKE BHX 200 OPTIMAT CNC MACHINING CENTER (VERTICAL W/ATC). -- Specifications:Flexible "Vertical" Machining Center with "ATC" that uses less than 5 meter of valuable floor space in addition to an innovative panel handling system. -- Working Cap.:Max. workable part size for "X" axis is 120" (3,050 mm), "Y" axis 49.2" (1,250 mm), and max. part thickness 3.1" (80 mm).Min. worktable part size for "X" axis is 7.8" (200 mm), "Y" axis 2" (50 mm), min. part thickness of 0.31" (8 mm). Automatic infeed & outfeed from the LH or RH side. -- Positioning Speed:The BHX 200 can reach movement speeds of 164 FPM (50 MPM) in "X" & "Y" axis & 50 FPM (15 MPM) in "Z" axis with total safety, providing an unmatched working capacity. -- Boring unit:(1) 3 HP (2.3 kW), variable speed from 1,500 - 7,500 RPM motor, Split Head, (20) independent Vertical spindles, with (14) spindles in "X" axis & (6) spindles in "Y" axis.(16) Split Head, Horizontal spindles, with (6+6) in "X" axis & (2+2) in "Y" axis; Boring block has "QUICK CHANGE" spindle system, -- Operator Interface:Weeke "POWERTOUCH" + Windows + WoodWOP 6.1 + operating system; "IntelCore 2 DUO" Processor;17" TFT Monitor; international keyboard, soft-touch keypad & industrial mouse; RS-232 Serial ports, USB ports; modem, Ethernet connection.Real-time multitask processing; programs can be transferred via diskette or downloading by wire is possible. -- Complete with:Pneumatic part clamping devices; sound enclosure and complete set of safety devices. -- Options Include:(1) NC controlled 0 - 90 "X/Y" grooving saw; 9,000 RPM, saw blade dia. 100 mm;(1) 13.4 HP (10 kW) Electro spindle router with HSK F3 adaptor, variable speed from 6,000 - 24,000 RPM.(1) 4-position ATC tool rack mounted on the side of the machine base.(1) Barcode Scanner.(1) AC unit for Electrical cabinet. -- Actual Model is WEEKE BHX 200 OPTIMAT
