Voith Fourdrinier, 110" paper machine, 2002

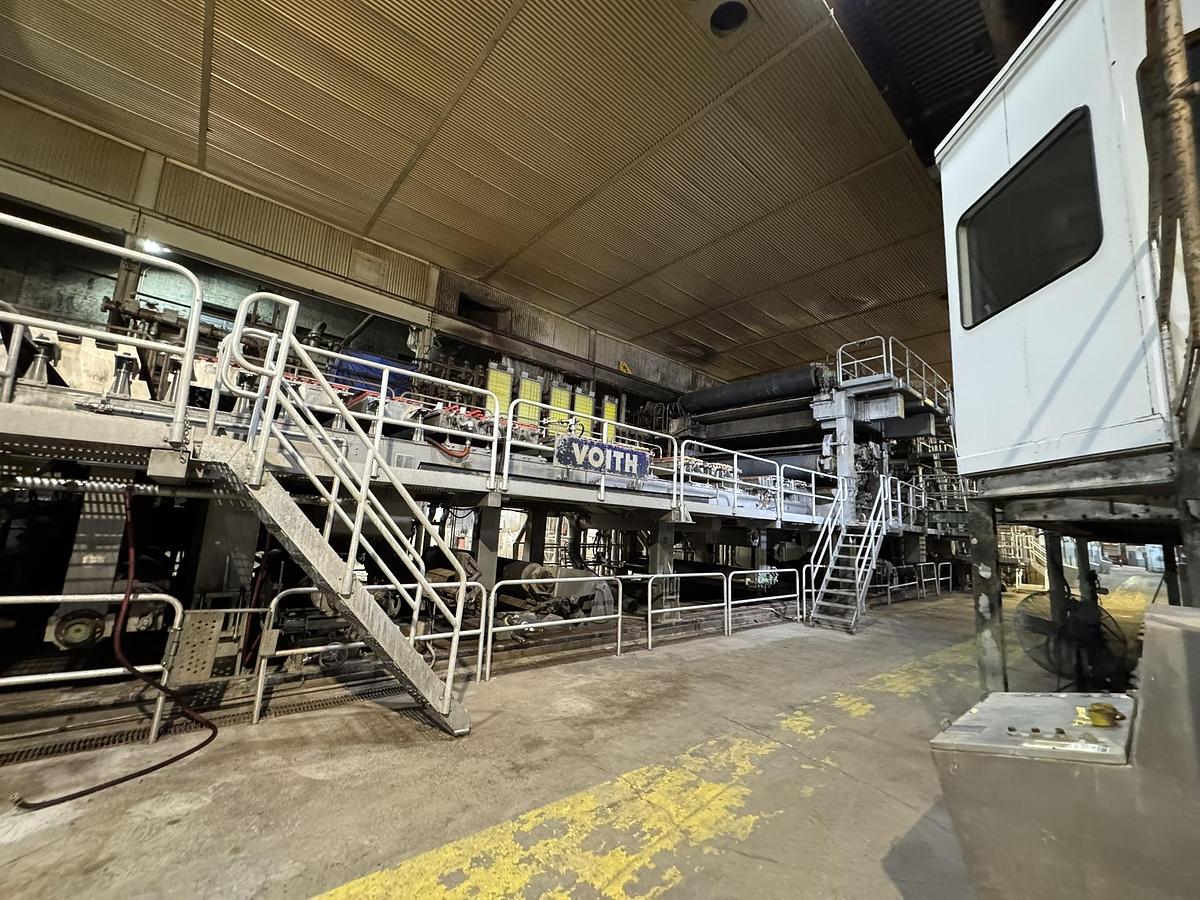

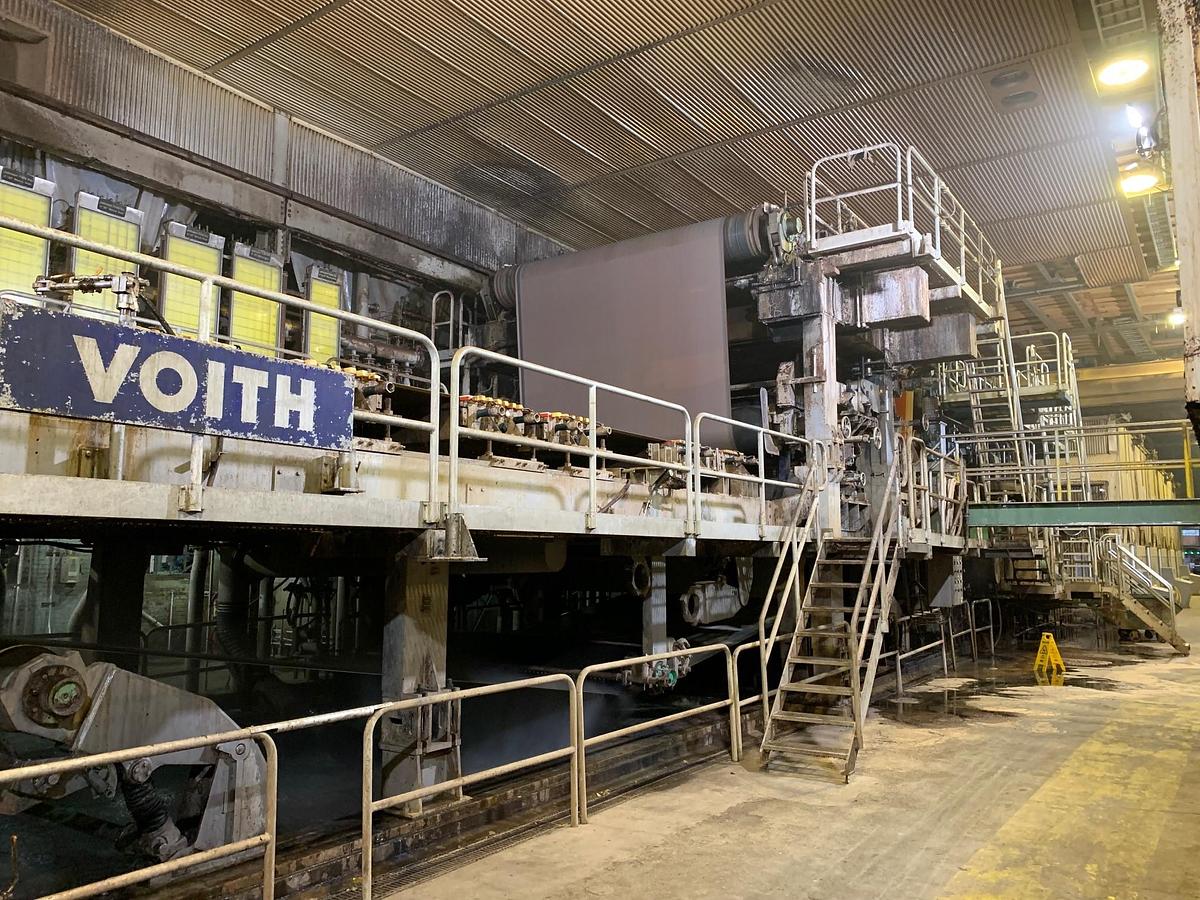

110" (2.8M) Voith Fourdrinier Paper Machine 2002 (LBM)
Trim Width: 110" (2.8M)
Application: Linerboard, Medium, Tube & Core Stock
Complete ABB AC drive upgrade installed 2019
Left Hand Machine (From Headbox to Winder Motors on left)
General Specifications
Manufacture Year: 2002
Basis Weight Range: 200600 g/m
Linerboard Range: 33# to 70# (per 1,000 sq ft)
Tube & Core Stock: 17 pt to 30 pt
Wire Width: 134"
Design Speed: 2,000 FPM (610 m/min)
Operating Speed: 1,500 FPM
Daily Production: Reported 375420 TPD
Drive System: Fully updated to allow future 2,000 FPM capability (some motors/gearboxes may need replacement)
Approach Flow System:
Voith 08 screen
(2) Voith Model 0403 screens
Fan Pump: Sulzer SS ZPP 10
Wet End & Forming Section

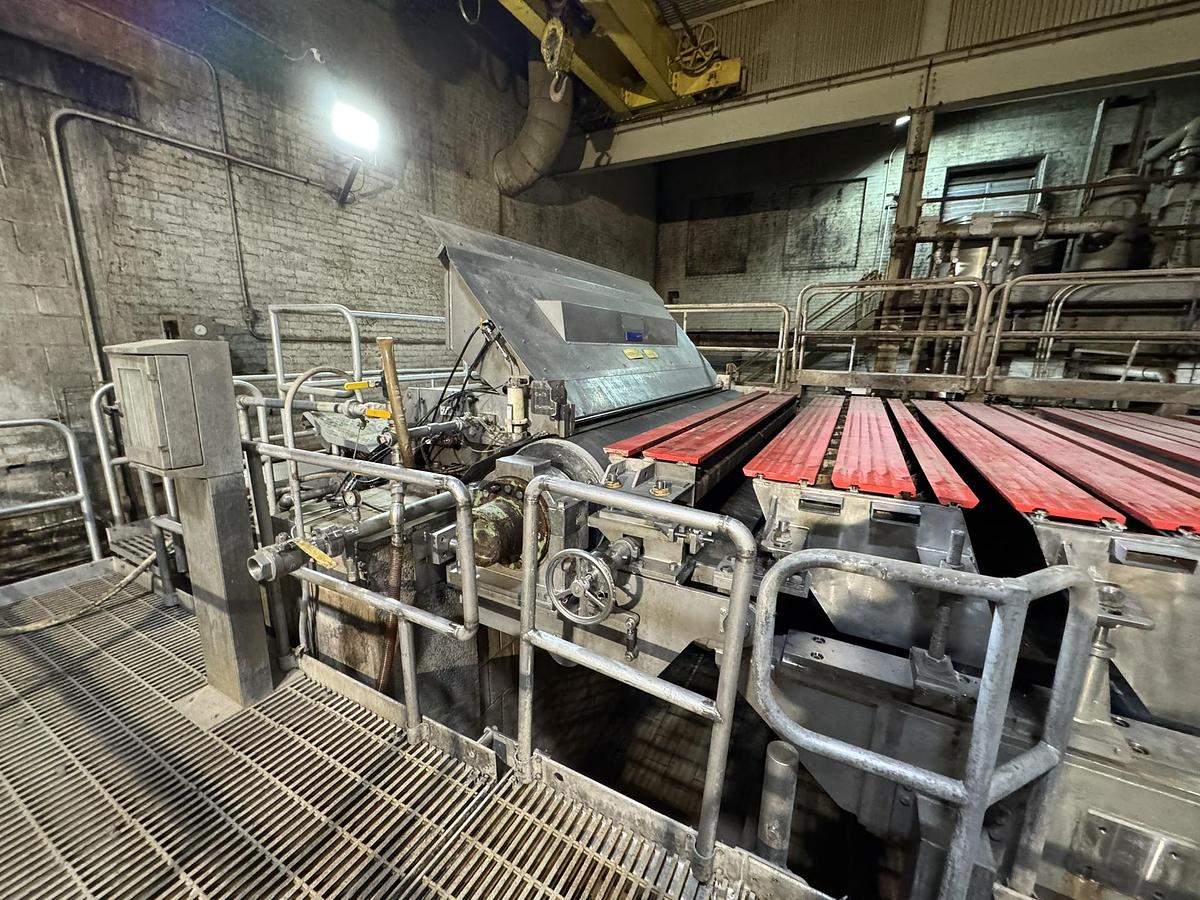

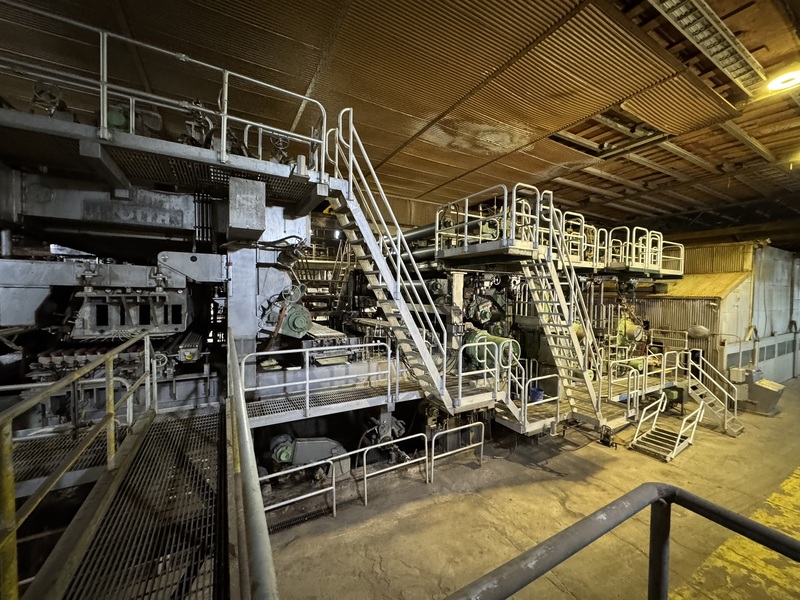

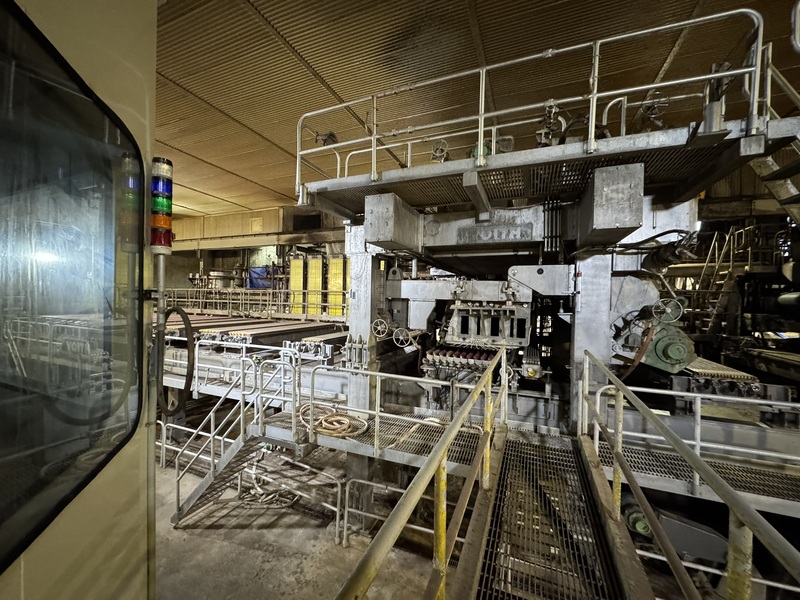

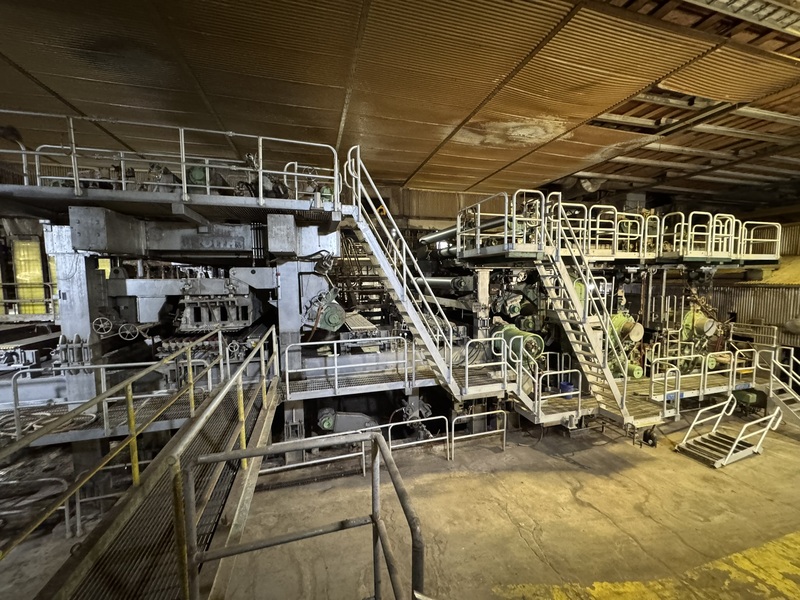

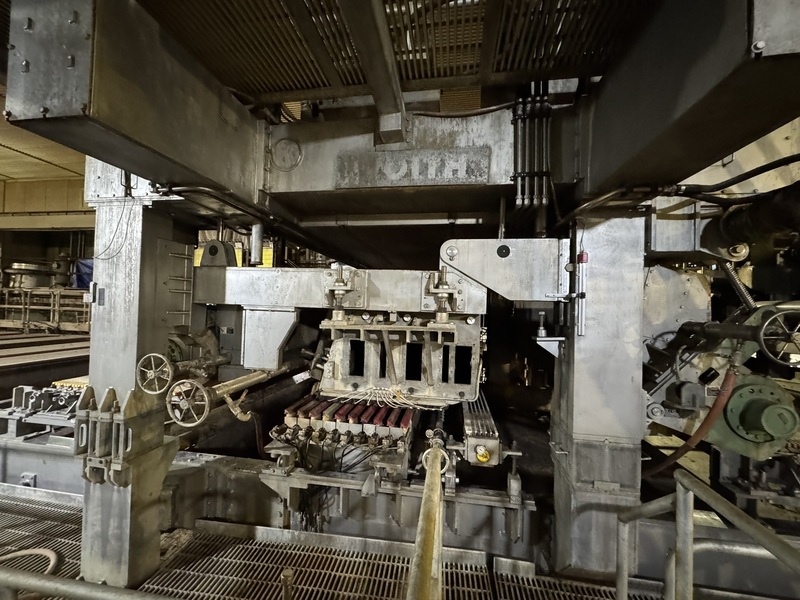

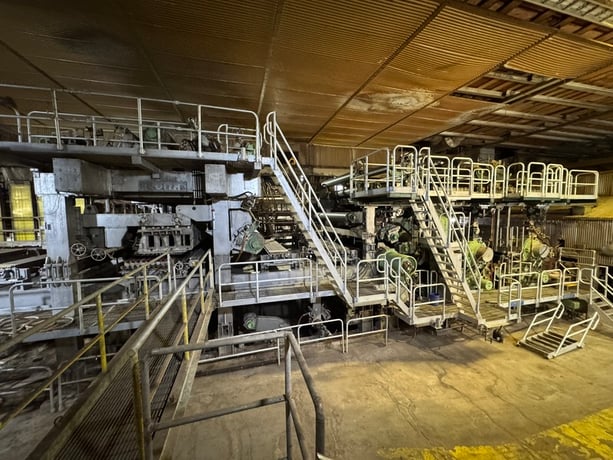

Headbox: Voith MasterJet F / Hydraulic with DuoFormer D top dewatering unit

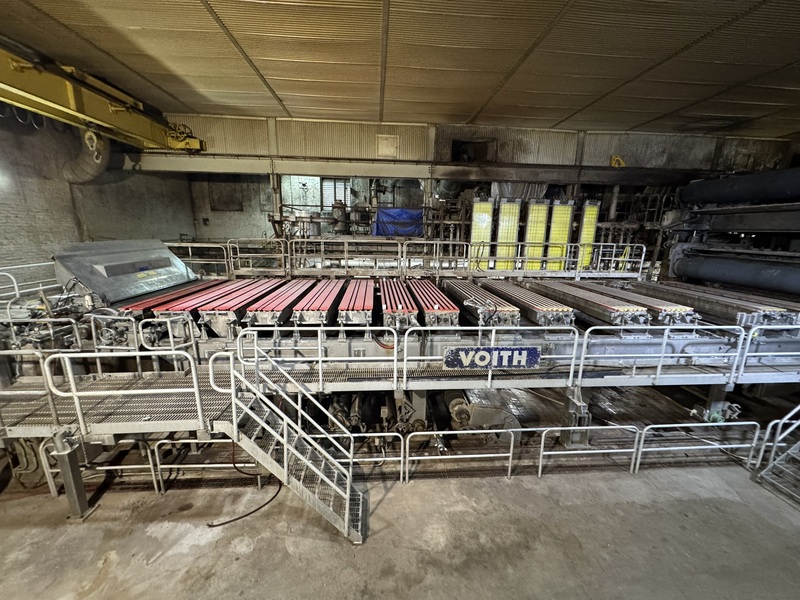

Fourdrinier Table: Voith 960" from breast roll centerline to couch roll

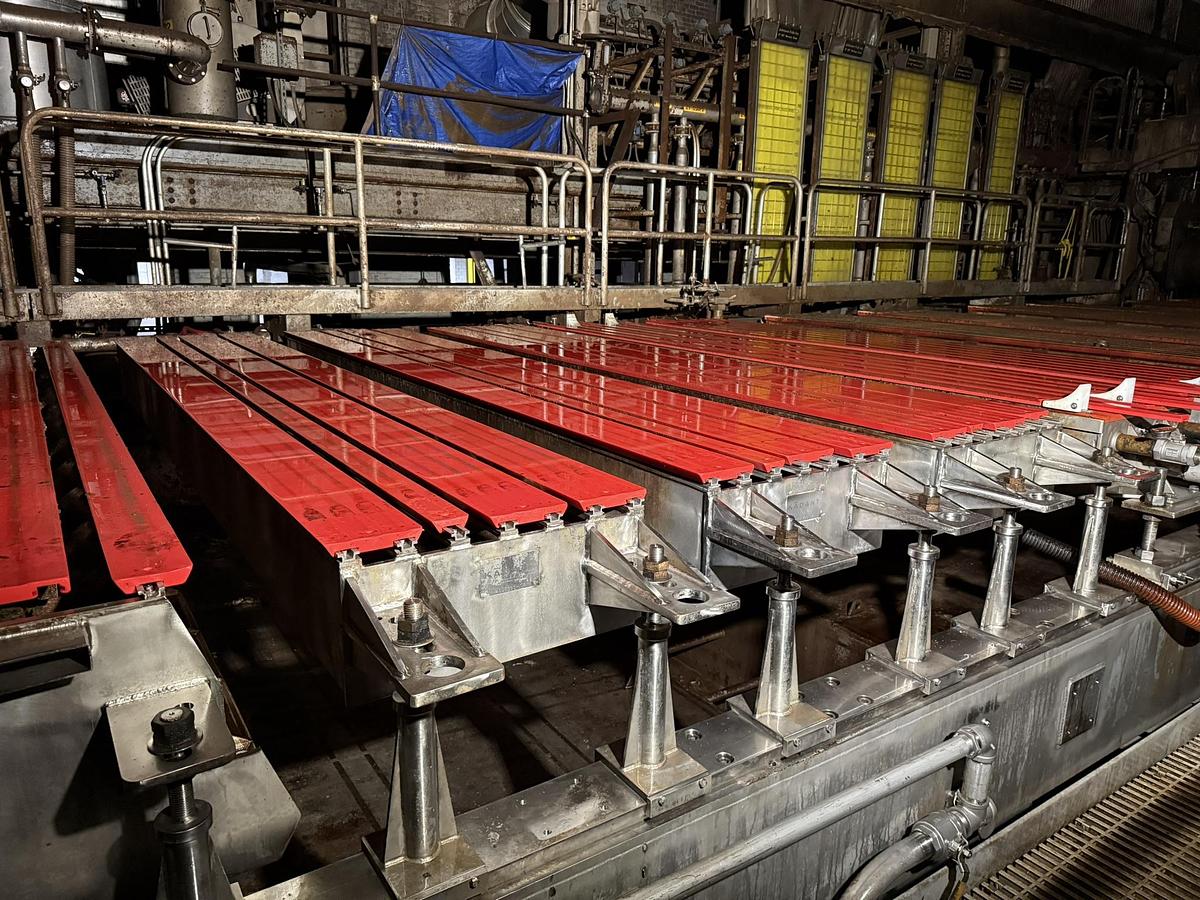

Voith table has been rebuilt to Vacuum boxes

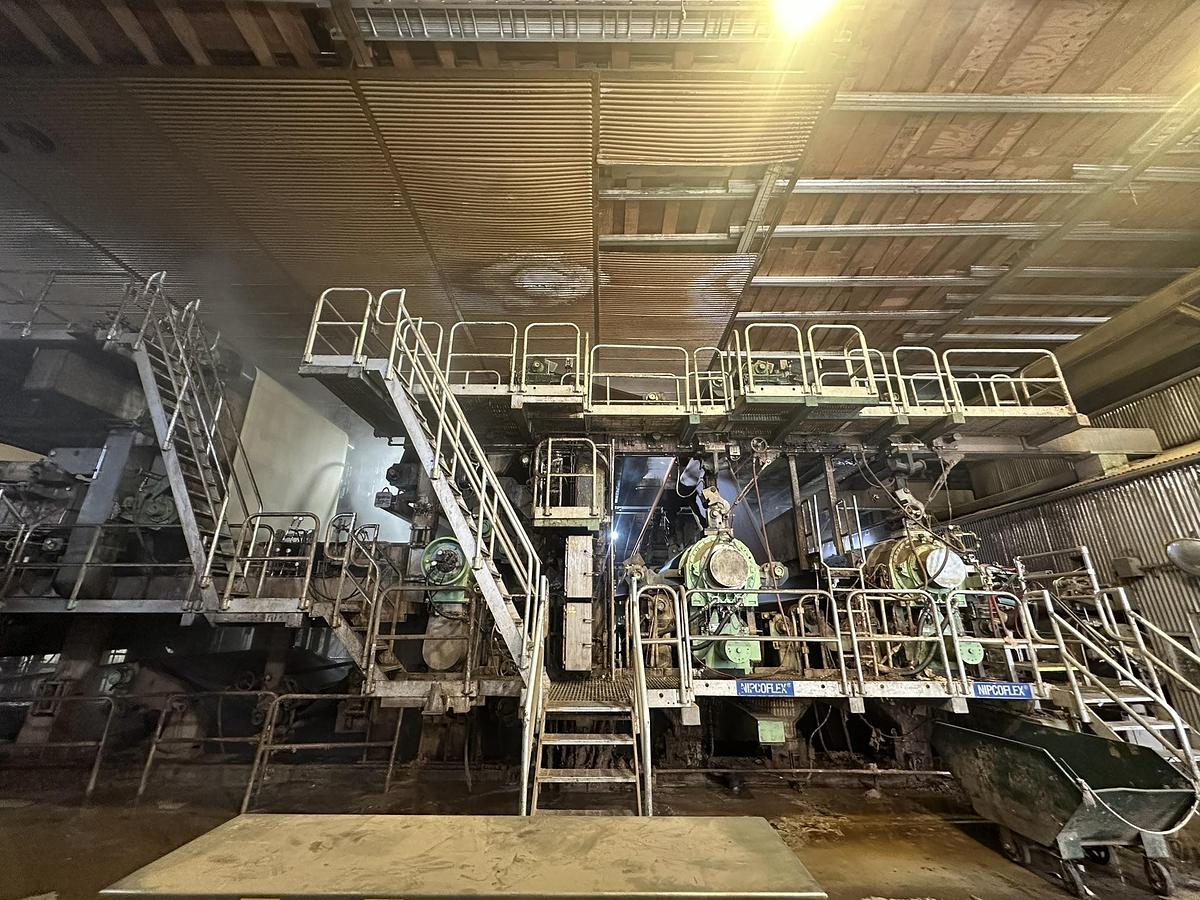

Voith Tandem NipcoFlex Shoe Press:
1st Press: Double felted
2nd Press: Single felted
Press Load: 5,200 PLI each
Entire press frames replaced with stainless steel in 2022
Spare smoothing roll and blind drilled roll
Dryer Section
Total Dryers: 34
Dryer Size: 72" (1.8M) diameter, 150 PSI at 450F
Configuration: 3 sections
Felts: Top and bottom
All ropes on dryers
Pocket ventilation on all dryers
Calendar Section
Rebuild Year: 2011
1000 PLI
Controlled crown roll
Swimming roll
Reel & Winder Systems
Reel Section
Horizontal track reel
Voith JUD turn-up system installed 2020
Mantech auto tail threading system (2022) from last press to reel
Rewinder
Beloit M-24 two-drum slitter rewinder
Shaftless 60" rewind. Rated 4500 FPM
Updated Dienes automatic knife positioning (2013)
Siemens DC winder Drives and Control system installed 2013
Vacuum System
Nash 904S2 series pumps
Nash M2 series pumps
Included Spare Parts
Major rolls
Suction boxes & table elements
Main bearings
Drive shafts & drive motors
Gearboxes
Fan pump assembly
Additional spare rolls, felts, clothing, and parts
Additional Machine Available (For Parts)
A second, identical machine is on site, including:
Air-pad headbox
Fourdrinier table
Dual shoe presses
(40) Dryers: 72" (1.8M) diameter, 150 PSI at 450F
Status: Plant closed May 2025 due to corporate consolidation
Documentation: Complete documentation available on site
Additional Asset: Identical second machine available for parts
