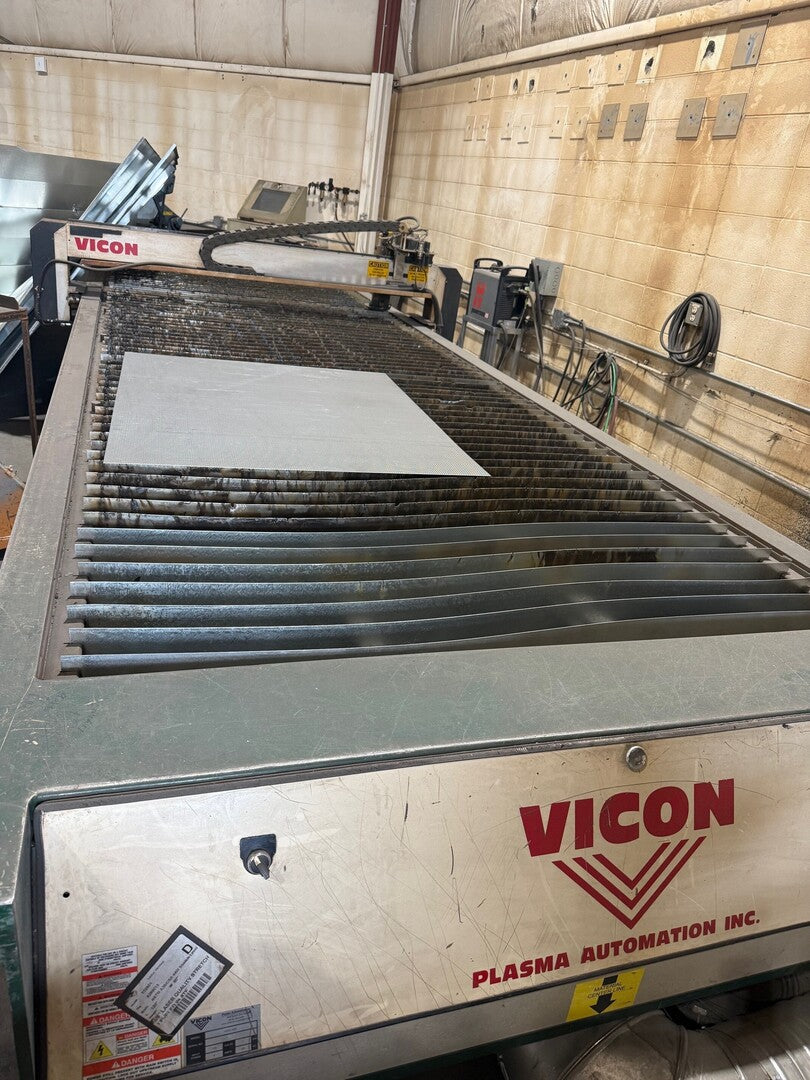

Vicon #HVAC-520, CNC Plasma Cutting System, 5' x 20' cutting area, 28-gauge to 1/2" thick plate, Hypertherm PowerMax 85, 8 amps, 115 Volts, 1PH

Estimated monthly payment valid upon approved credit.

Request Formal Quote

SKU: 152744

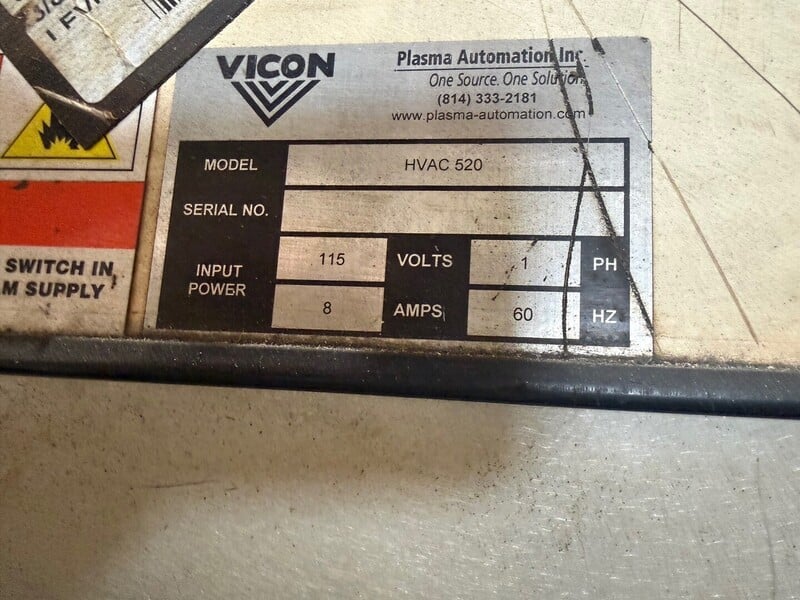

Model: HVAC 520
Condition: Used
General Specifications:
Table Size: 5' x 20'
CNC: Yes
Electrical Specifications:
Amps: 8 amps
Voltage: 115 volts
Phase: Single-phase
Made In: UNITED STATES
Dimensions: 35.00 (H) x 100.00 (W) x 288.00 (L) inches
Additional Description:

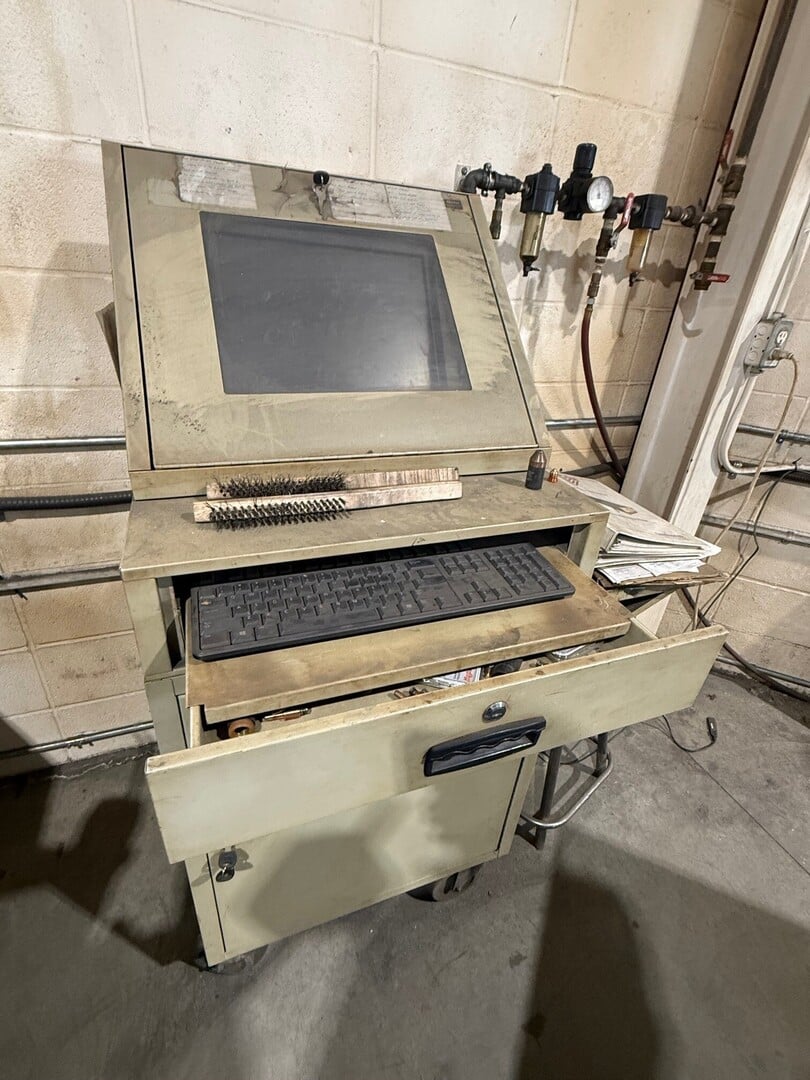

- Come with Hypertherm PowerMax 85A power supply and has Vicon's Revision2 V 3.4 Vicon cutting system controller
- A Complete System Consisting of the Cutting Table, PC Controller, Cutting Software, Plasma Power Supply, and Liner Router Cutting System

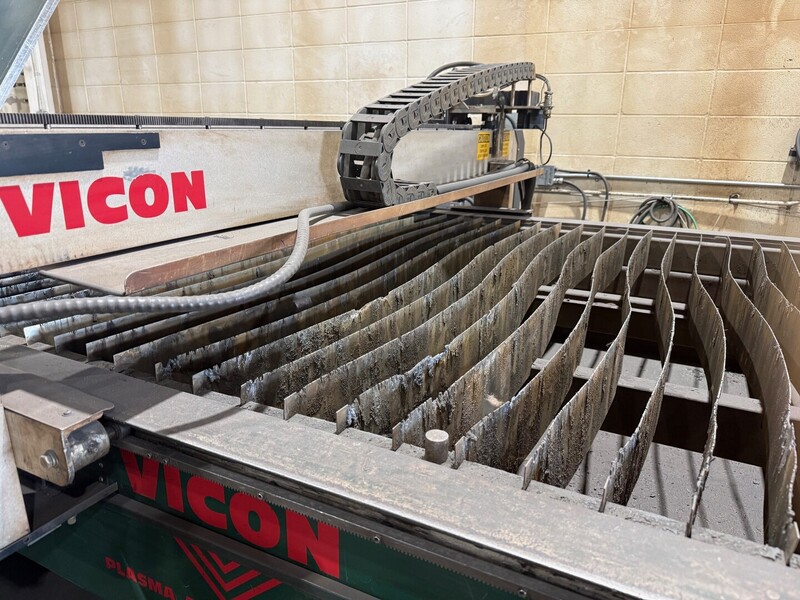

- A Unique One Piece Cutting Table - No assembly is required, no rails

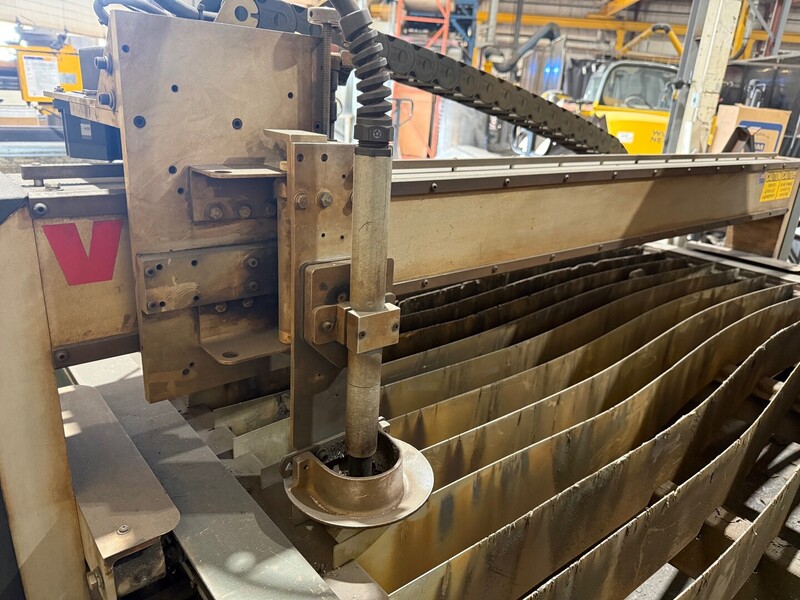

- Dual Rack & Pinion Drive
- Automatic Exhaust Signal for customer supplied ventilation system
Effective Cutting Area: 5' x 20' (standard)
Material Capacity: 28-gauge to 1/2" thick plate
Hypertherm PowerMax 85:
- Input voltages:
200-480 V, 1-PH, 50/60 Hz
200-600 V, 3-PH, 50/60 Hz
- Input current @12.2 kW:
200/208/240/480 V, 1-PH, 70/68/58/29 A
200/208/240/480/600 V, 3-PH, 42/40/35/18/17 A
- Output current: 25-85 A
- Rated output voltage: 143 VDC
- Duty cycle @ 40C (104F):
60% @ 85 A, 230-600 V, 3-PH
60% @ 85 A, 480 V, 1-PH
50% @ 85 A, 240 V, 1-PH
50% @ 85 A, 200-208 V, 3-PH
40% @ 85 A, 200-208 V, 1-PH
100% @ 66 A, 230-600 V, 1/3-PH
- Open circuit voltage (OCV): 305 VDC
