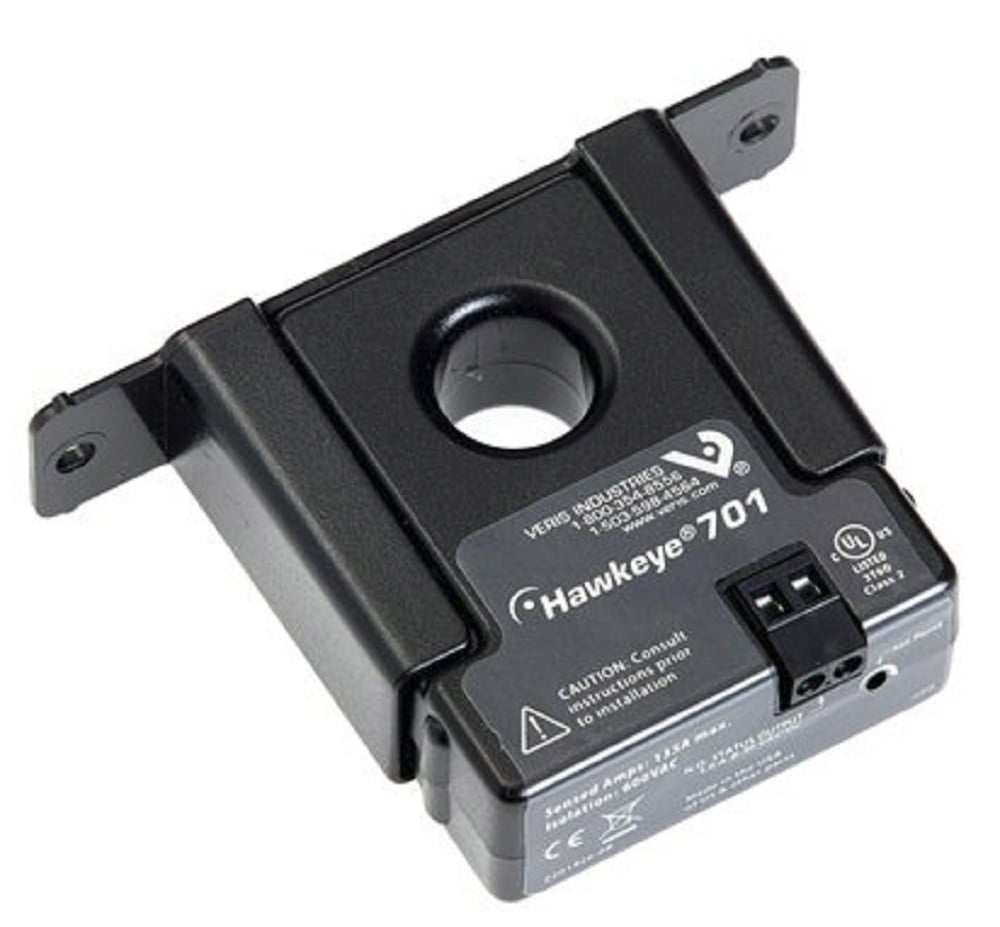

Veris Industries H701 Hawkeye Adjustable Trip Current Switch

$73 USD

Request Formal Quote

Veris Industries H701 Hawkeye Adjustable Trip Current Switch - H701 current switch offers high performance, with a wide array of amperage range options. This product can accurately detect belt loss, coupling shear, or other mechanical failure on loads from 1/5 to 100HP. APPLICATIONS: Detecting belt loss, coupling shear, and mechanical failure. Verifying lighting circuit and other electrical service run times. Monitoring status of industrial process equipment. Monitoring status of critical motors (compressor, fuel, etc.). Small size...fits easily inside small enclosures. 1 Amp status output for increased application flexibility. SERIES SPECS: Sensor Power Induced from monitored conductor. Insulation Class 600VAC RMS (UL), 300VAC RMS (CE). Frequency Range 50/60 Hz. Temperature Range -15 to 60C (5 to 140F). Humidity Range 10-90% RH, non-condensing. Hysteresis 10% (typical). Terminal Block Maximum Wire Size 14 AWG. Terminal Block Torque (nominal) 4 in-lbs. Agency Approvals UL 508 open device listing CE: EN61010-1:2001-02, CAT III, deg. 2, basic insulation. Do not use the LED status indicators as evidence of applied voltage.For applications requiring double or reinforced insulation, please contact the factory. - Veris - Veris Industries - H701 - Hawkeye 701
