Vapor Power #Hi-R-Temp, 8.6 MMBTU Gas-Fired Hot Water Heater ASME/CRN, Siemens LMV5x Controls, Stainless Stack Included #ESK-VP86, 2021 Only 4 Hrs on Clock. COIL TESTED

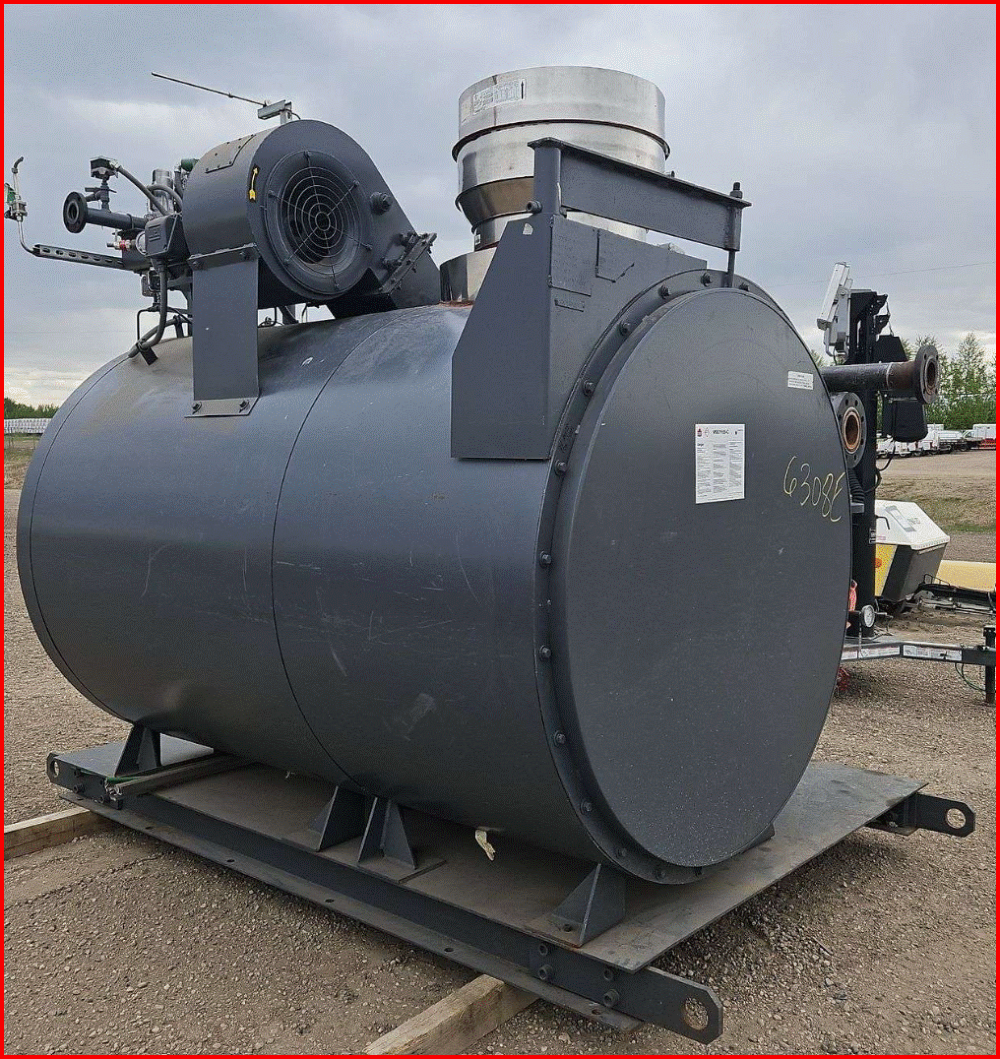

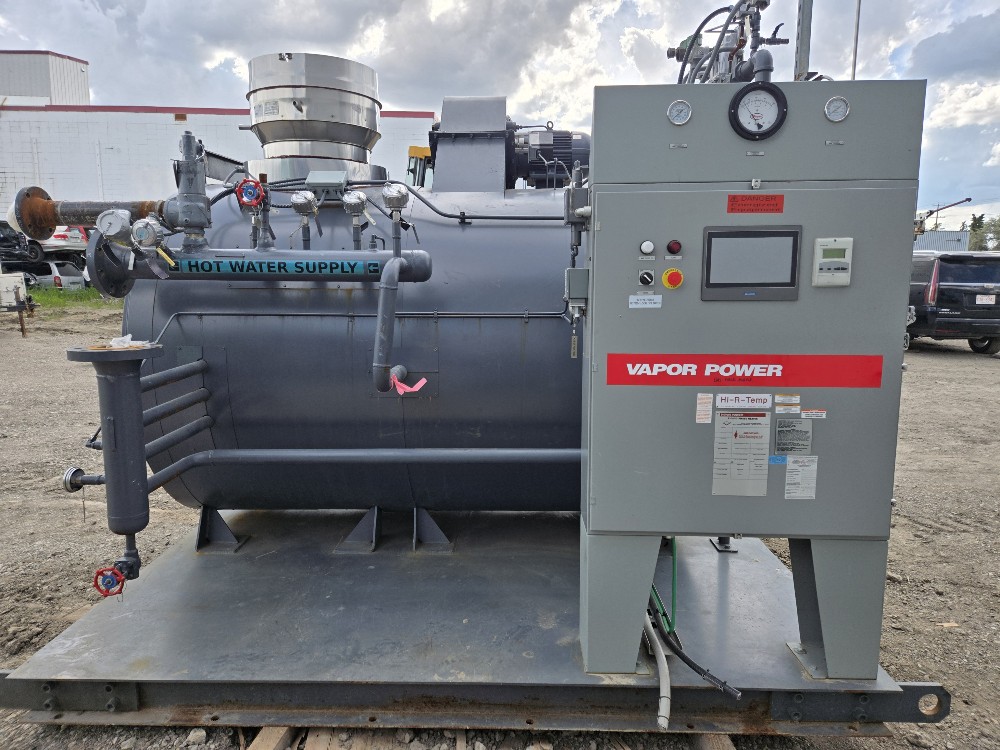

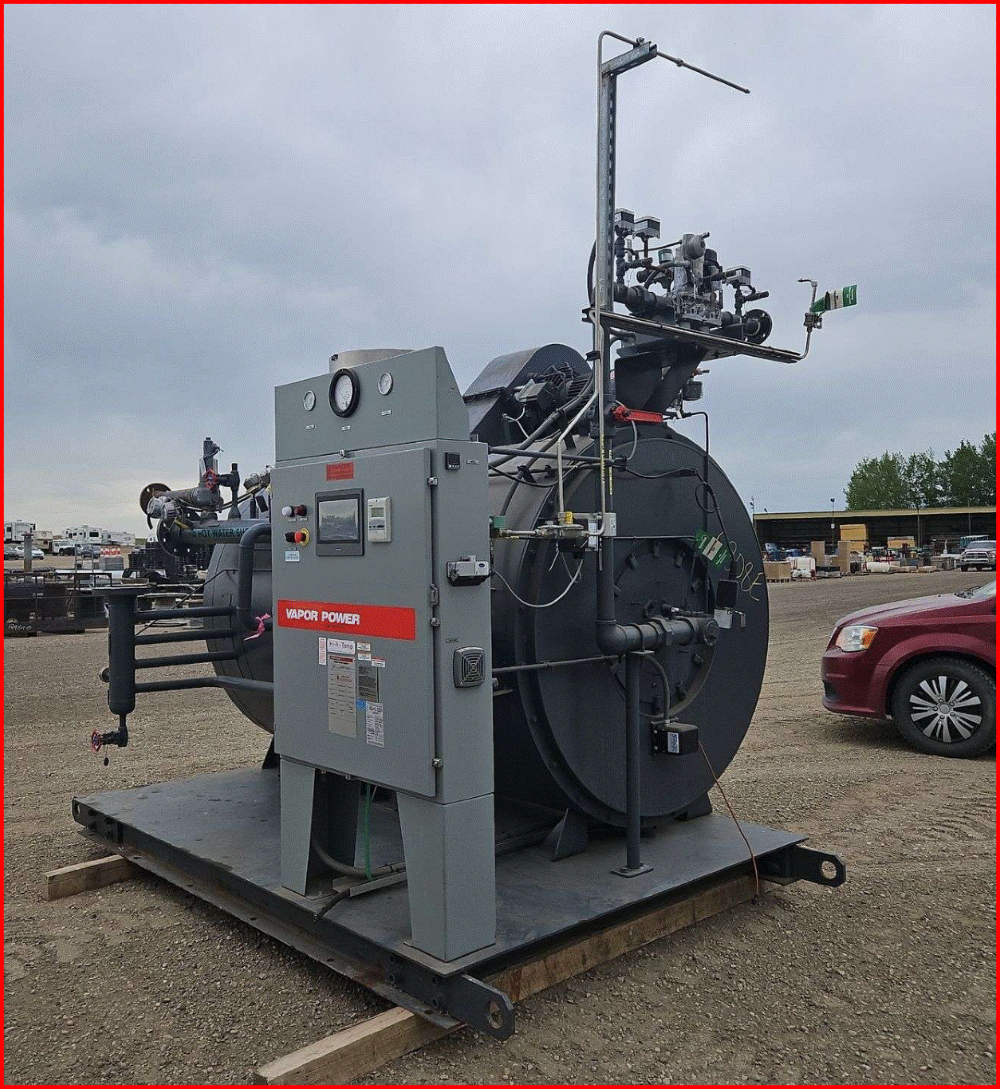

2021 Vapor Power Hi-R-Temp 8.6 MMBtu gas-fired hot water heater a forced-circulation,
helical-coil industrial process heater removed from service in good order, low hours. Fully
code-registered for use anywhere in Canada and built almost entirely from current, name-brand
industrial hardware. Skid-mounted and ready to move. Located in Edmonton, Alberta.


WHY THIS UNIT STANDS OUT

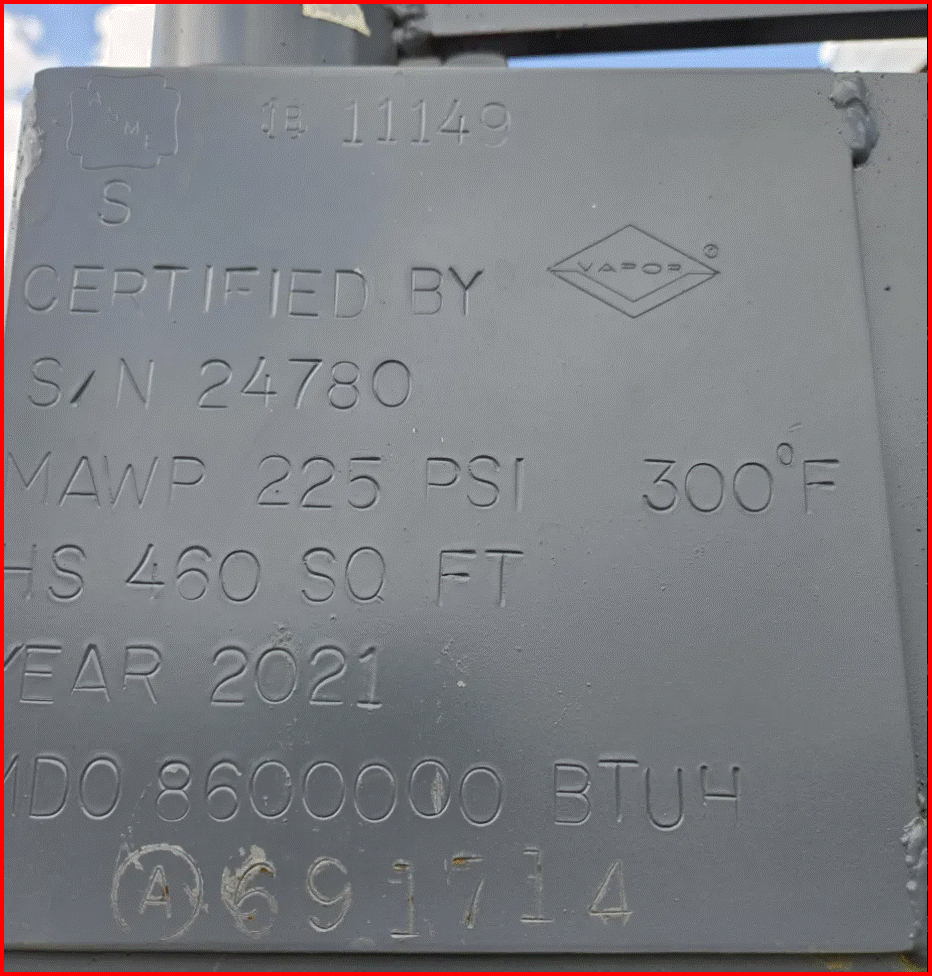

- Fully code-registered pressure vessel — ASME Section I "S" stamp, National Board NB 11149,
  and CRN Z4967.2 (registered in Alberta Canada).
- Siemens LMV5x linkageless combustion with full Allen-Bradley PLC / Advantech HMI automation.
- DCS-ready with documented remote monitoring — Ethernet-networked, with engineered loop drawings
  showing remote start/stop, run-status and common-alarm I/O already mapped (saves re-engineering).
- Complete Class I Div 1 hazardous-location instrument package.
- Matched UL-listed stainless chimney included — normally a separate purchase.
- Dual QPS field evaluations (gas and electrical) plus a recently re-certified relief valve.
- Only 4 hrs on the Clock


SPEC SNAPSHOT
8,600,000 BTU/hr output | 10,750,000 BTU/hr max input | 10:1 turndown | 460 sq ft heating
surface | 225 PSI @ 300°F MAWP | natural gas | 575/600V 3-phase, 13 FLA | 10 HP blower |
120 VAC control | built 2021.


CERTIFICATION & APPROVALS
- Pressure vessel: ASME Section I "S" stamp; National Board NB 11149; CRN Z4967.2 (all-Canada);
  jurisdiction A691714.
- Relief valve: Kunkle 2" ASME/CRN, set 150 PSIG, 10,826 lb/hr bench-certified July 2022 (TW Canada).
- QPS gas / combustion field evaluation.
- QPS electrical SPE-1000 field evaluation.
- Engineered, PE-sealed loop & wiring drawings available.


FULL COMPONENT LIST

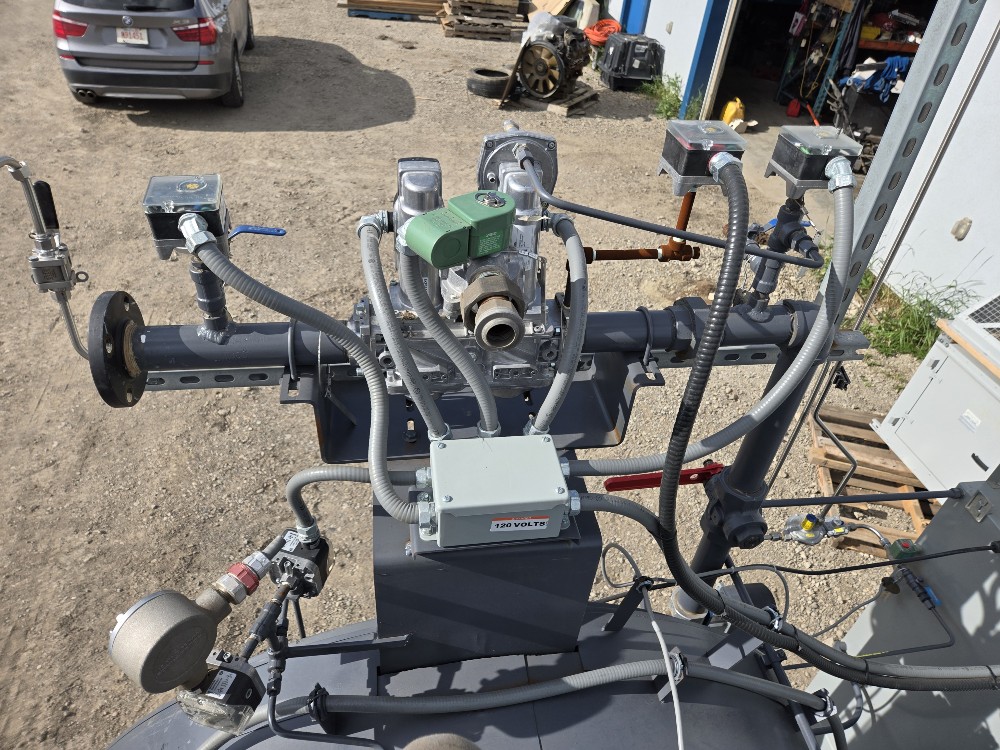

Combustion & Burner Management:
- Siemens LMV51 linkageless burner-management system with AZL52 display
- Siemens SQM45 linkageless air/fuel actuators
- Siemens QRA75 UV flame scanner
- SCC VKG10 gas metering valve
- Dongan ignition transformer
- ASCO Red-Hat safety shutoff & vent solenoid valves
- Honeywell air/gas pressure switch
- CF3M (316L stainless) gas-line ball valve
- Mencom NEMA 4 field-connection / alarm-signal junction box
- Multi-orifice natural gas burner

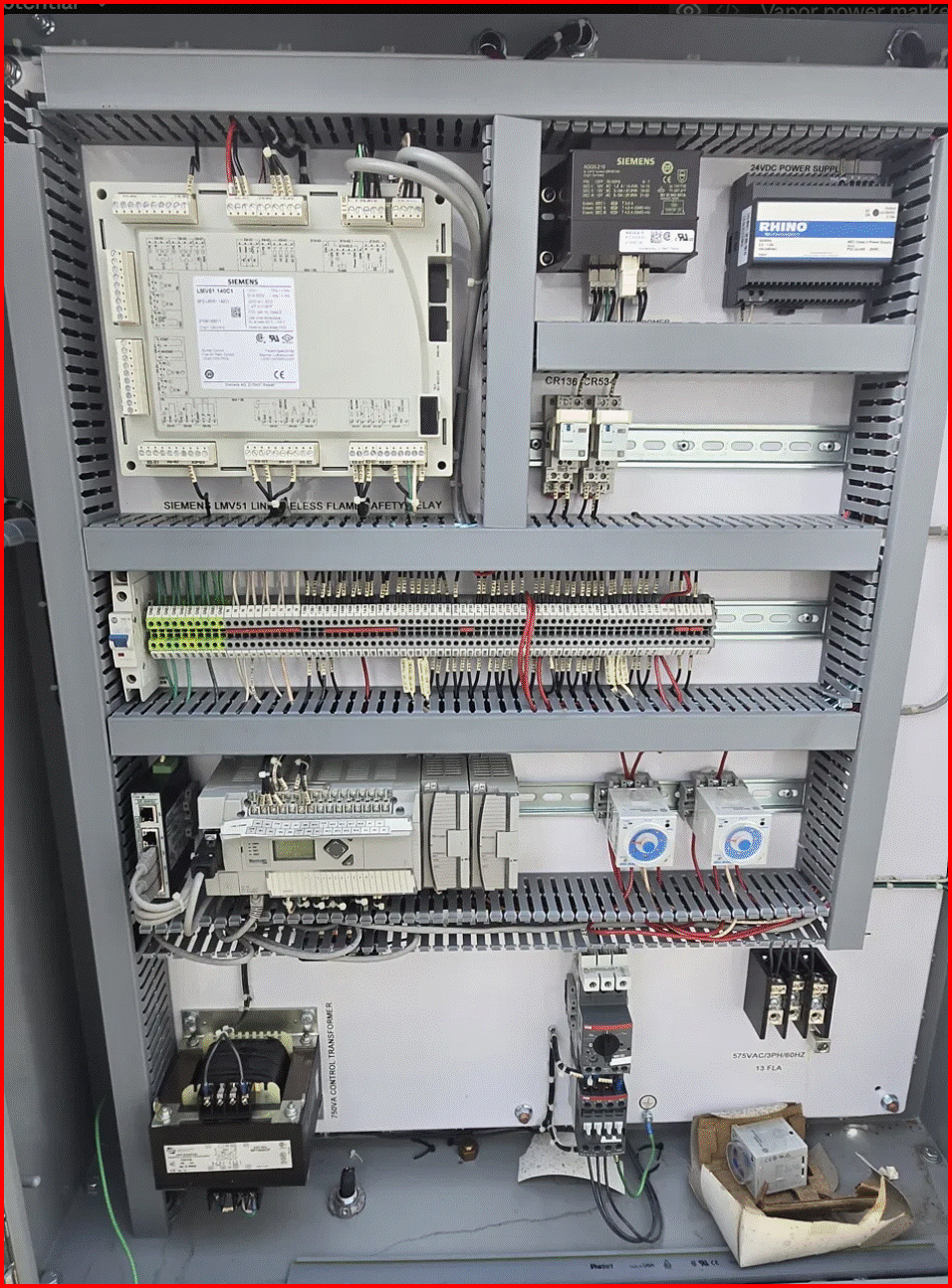

Controls & Automation:
- Allen-Bradley MicroLogix 1400 PLC
- Advantech touchscreen HMI
- AutomationDirect Stride managed Ethernet switch DCS-ready / remote-monitor capable,
  with documented remote start/stop, run-status and common-alarm I/O loops
- ABB MS132 manual motor starter with AF contactor
- Allen-Bradley 700-HR time-delay relays
- HPS Spartan 750 VA control transformer; Rhino 24 VDC supply; Siemens AGG5 transformer
- Dwyer draft gauge
- Saginaw / SCE NEMA 4 / IP66 outdoor control enclosure


Safety, Relief & Instrumentation:
- Kunkle 2" ASME/CRN safety relief valve (bench-certified 2022)
- Cast WCB safety / angle valve
- Square D 9012 hazardous / marine-rated pressure switches (excess + differential)
- Pyromation Class I Div 1 explosion-proof RTD sensors with Lesman heads
- Trerice bimetal process thermometer
- Coil high-temperature limit protection


Pressure Vessel & Coil:
- ASME "S" / NB 11149 / CRN Z4967.2; MAWP 225 PSI @ 300°F; 460 sq ft heating surface; built 2021
- Full coil material heat-code traceability (codes 65N-677/678/679, 82M-165; header stamp VAPOR M-7130)
- Helical water coil, professionally preserved with a molybdate wet-layup for storage

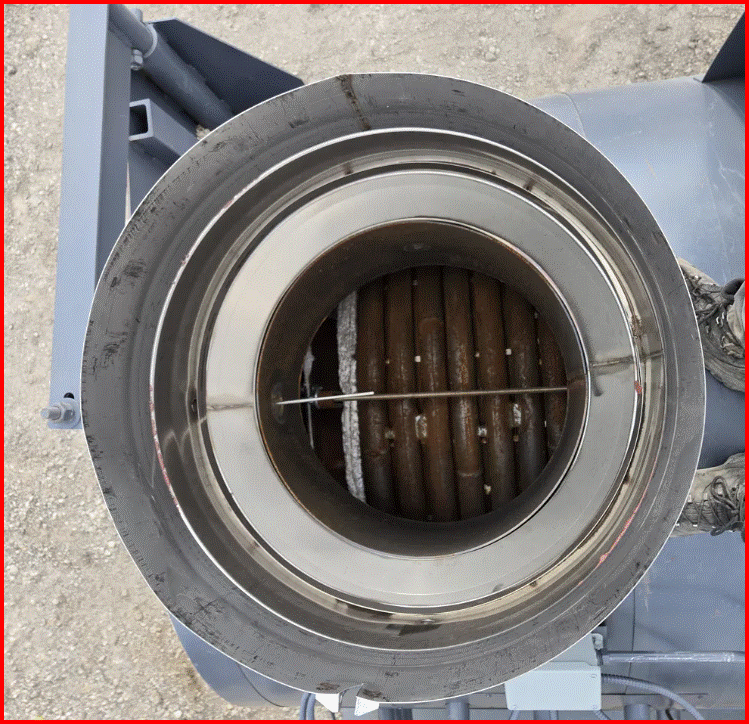

Exhaust Stack (included):
- Cheminée Lining UL/cUL-listed double-wall chimney, 24" 304 stainless
- 1400°F continuous, positive-pressure rated to 60" W.C., exterior-rated
- Includes starting adapter and flange sections


Electrical:
- 575/600V, 3-phase, 60 Hz, 13 FLA

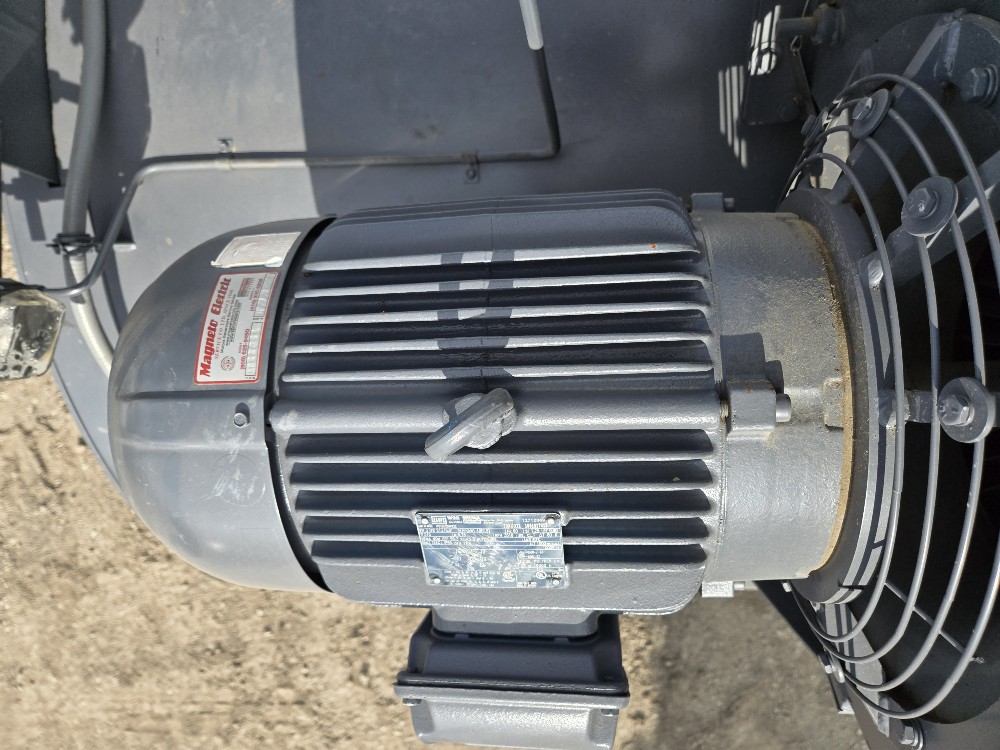

- 10 HP blower motor (WEG)
- 120 VAC control; NEMA 1 main enclosure; 5 kA SCCR

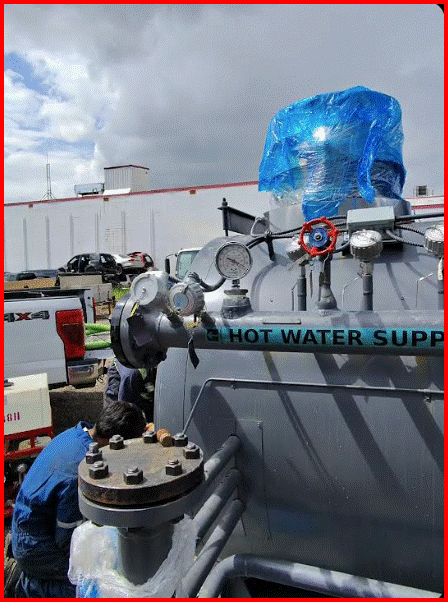

CONDITION & INSPECTION
Low hours. Coil has been pressured up and tested free of leaks, intact tube bundle. A mobile cold
hydrostatic test can be arranged for a serious buyer, and on-site inspection is welcome by
appointment. Built to oil-major standards for a Suncor renewable-ethanol pilot facility in the
Edmonton area — engineered by GCM Consultants (PE-sealed) and built by PCL Industrial. The
original sealed loop and wiring drawing package is available to a serious buyer.
