Vacuum process system Vacuum processing system DISHO KORUMA VP 180/13320

Price on request:

• m.lamprecht@eurolux.de
• +49 176-93263486

We can also deliver the BAV vacuum process system to you. Just ask us.

More BAV vacuum process system on our website:
https://eurolux.de/

We look forward to your inquiry.

Cat. no. 11-3315L

pressure and stirring vessels

Total capacity: 13,320 liters – Usable capacity: 10,000 liters

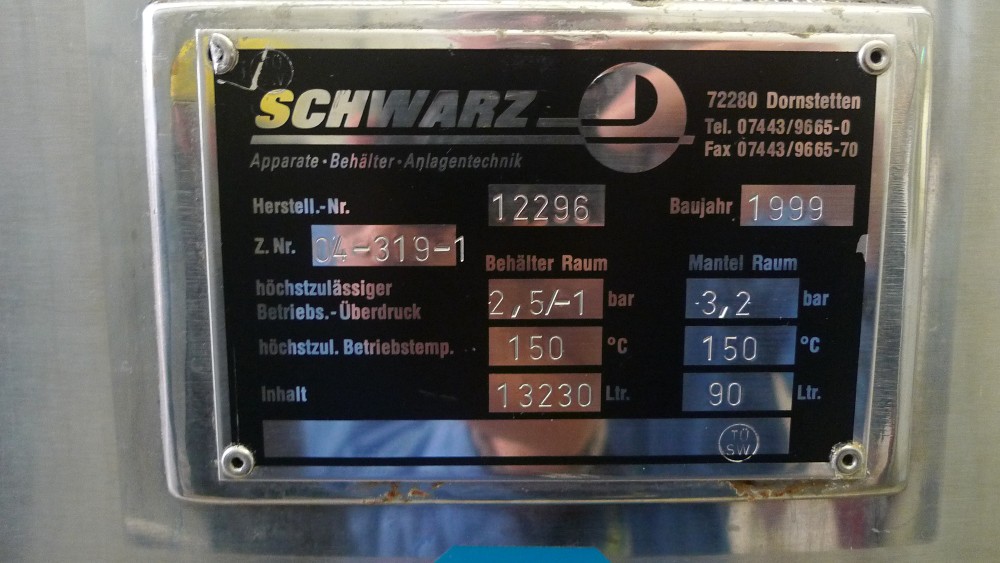

Manufacturer: Schwarz

Year of construction: 1999

Material:

dished bottom and shell: 1.4539

Block flange for agitator, outlet pot and sleeve for temperature sensor: 1.4539

Manhole and other nozzles: 1.4571

Insulation jacket and pipe feet: 1.4301 (V2A)

Attachments: 1.4404/1.4571

Seals: Viton

Execution:

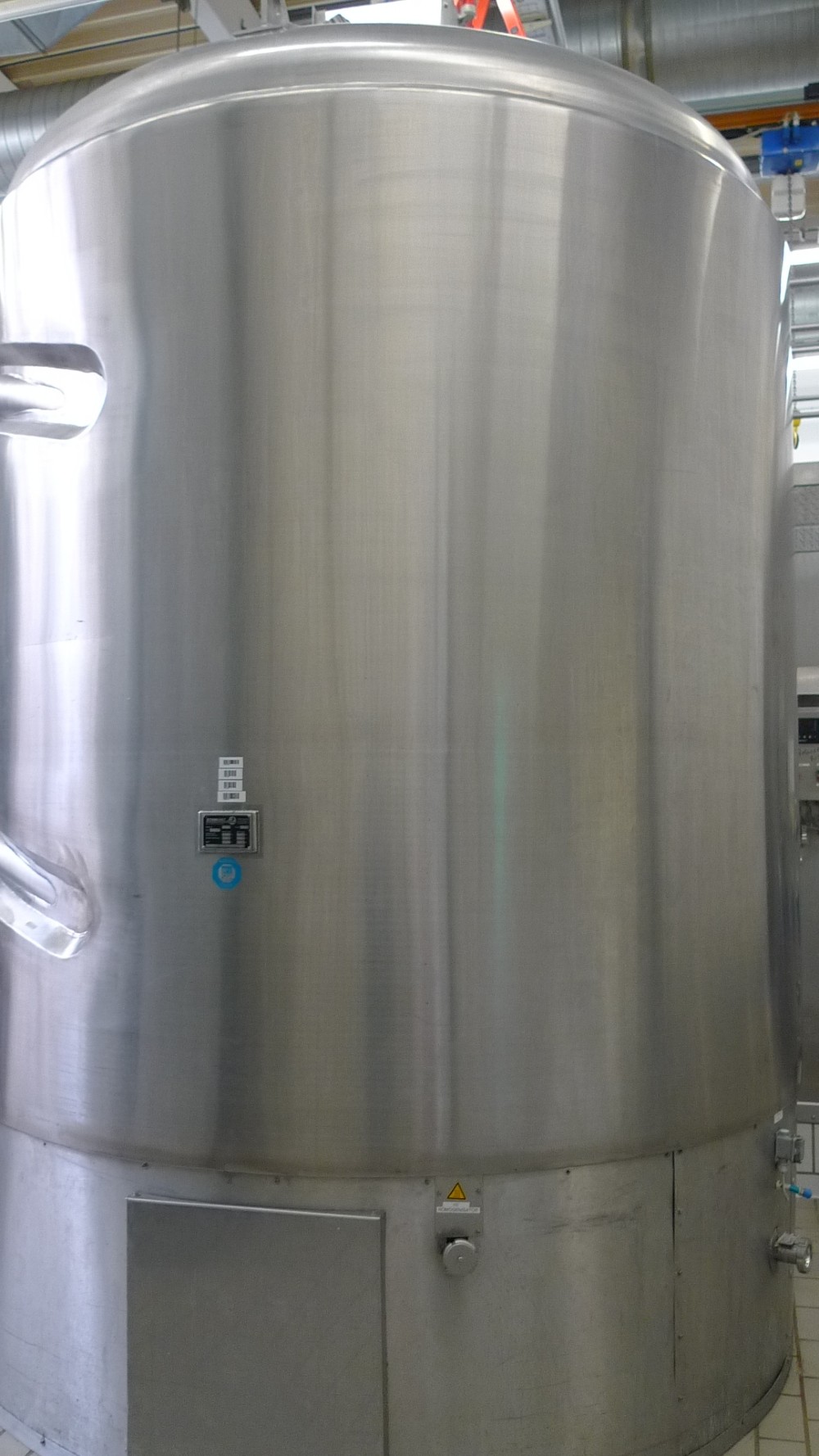

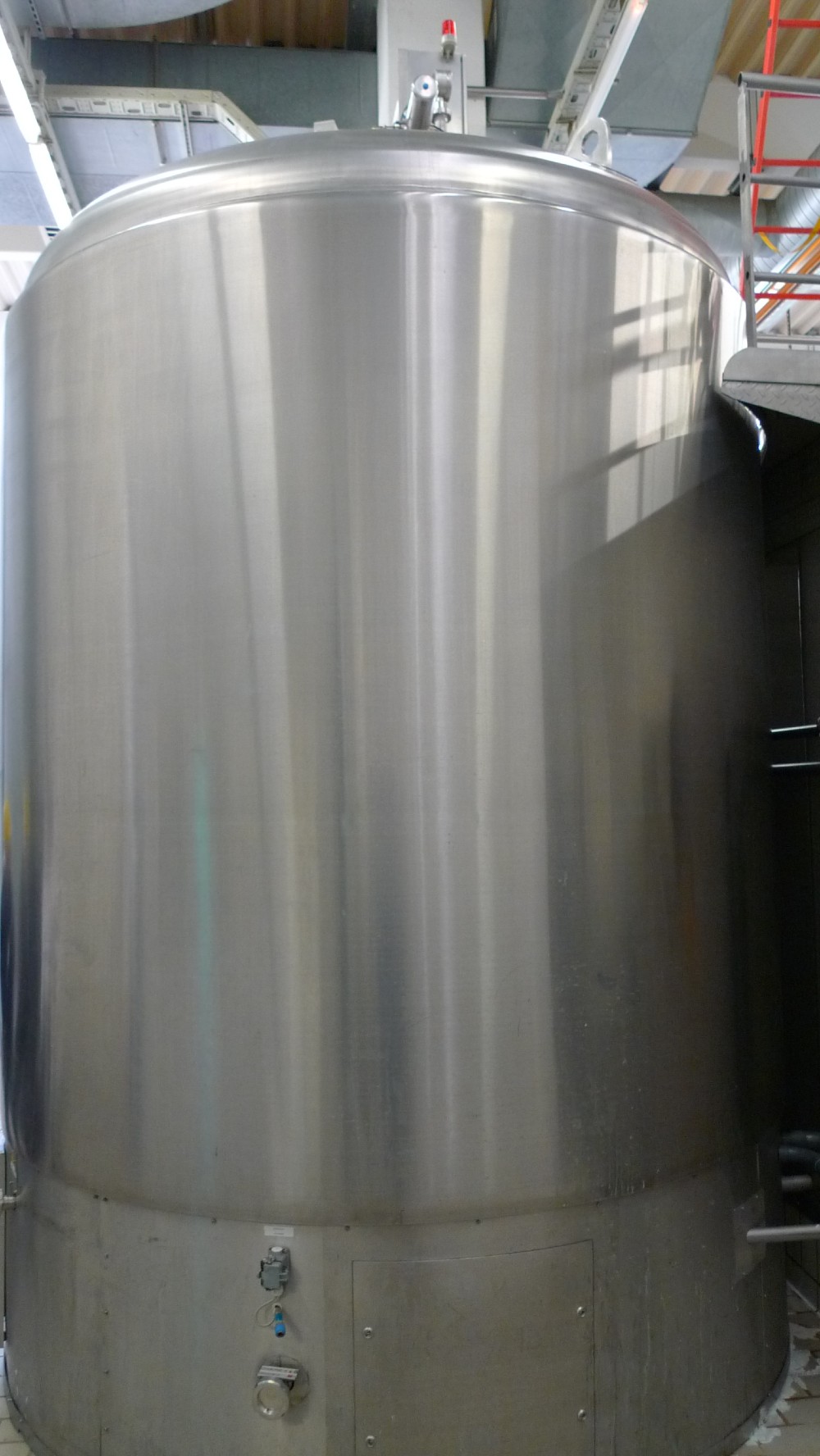

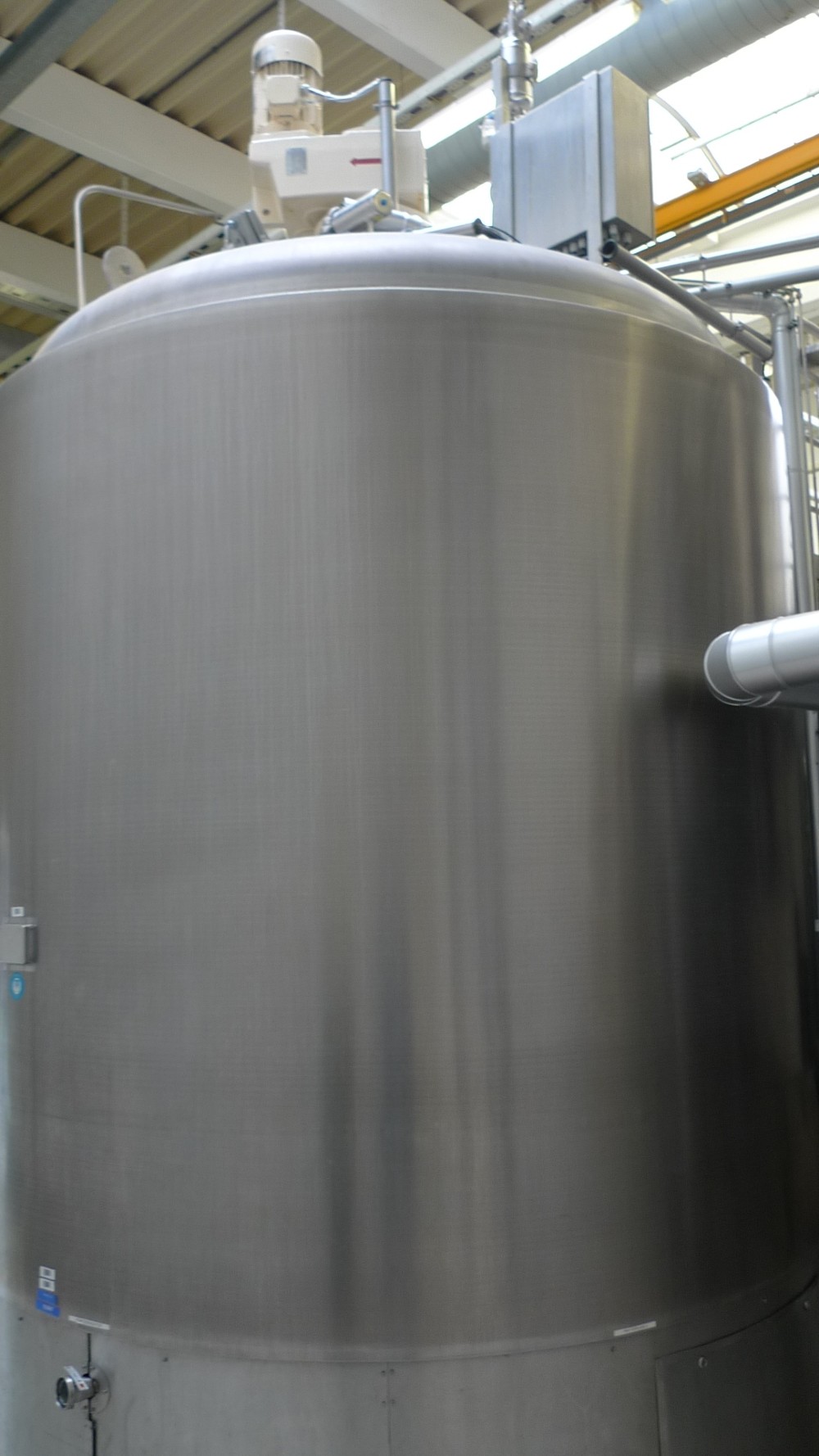

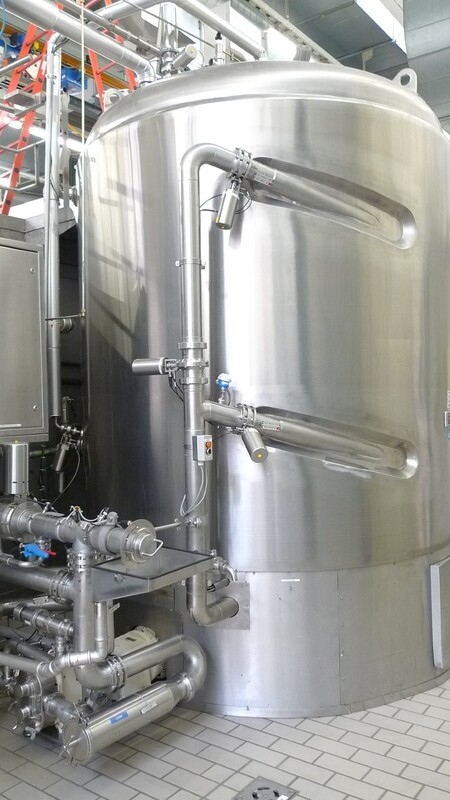

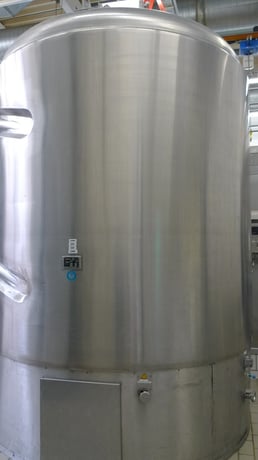

Upright, cylindrical, 2-walled design with dished bottom welded on both sides

Inner diameter: 2500 mm

Outer diameter: 2650 mm

Cylinder length: 2000 mm

Total length without agitator: approx. 4000mm

Four reinforcement plates are welded underneath, to which pipe feet with base plates are attached.

The cylindrical shell and the lower dished bottom are surrounded by a splash-proof welded insulating shell, which is filled with approx. 75 mm of mineral wool.

In the upper dished bottom:

1 hinged manhole DN 500, which can be tightly closed with clamp fasteners and O-ring, including sight glass DN 100

Material thickness (minimum wall thickness):

Inner container upper dished bottom: 6.7 mm

Jacket: 7.5 mm,

lower dished bottom: 6.0 mm

Insulation jacket on all sides: 2.5 mm

Maximum permissible operating pressure in the product chamber: -1+2.5 bar

Maximum permissible operating pressure in the heating/cooling room: +6 bar

Maximum operating temperature in the product area: 150°C

Maximum permissible operating temperature in the heating/cooling room: 150°C

Total weight of the container (including agitators): approx. 5600kg

instruction manual available
