Unimak #FLL-1400-PUR, Laminating Line, w/Flying Knife System, Glue Spreader & Jib Crane, 54" Laminating Line, 48" width x 2.4" max Panel Size, 5-25 MPM, 2016

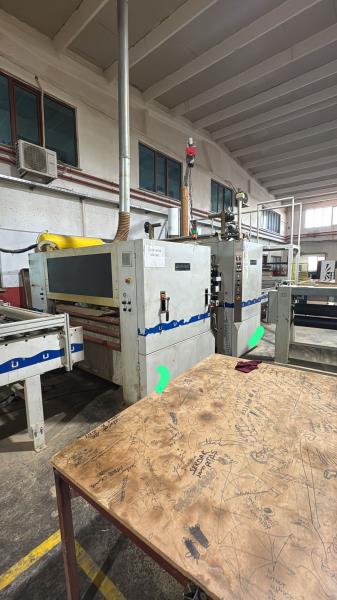

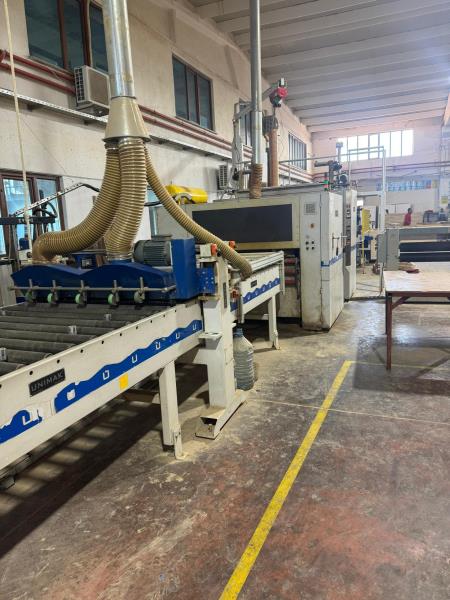

UNIMAK - FLL 1400 PUR: Flat Lamination Line with Flying Knife System, Reverse Roll Glue Spreader, & Jib Crane1,400 mm (54") Laminating Line for: Laminating flat panels with PUR glue.Laminating Station is Sheet & Roll Feed System with: Calendar style double roll Press.Technical Characteristics -- Line Speed from: 5 - 25 MPM (15 - 82 FPM). -- Panel width: 250 mm - 1,550 mm (10" - 48"). -- Panel Thickness: 3 - 60 mm (1/8 - 2-3/8"). -- Overall line footprint: 5,000 x 22,386 x 2,700 mm (16.4' x 74' x 8.8').Panel Types -- MDF (Finish sanded); HDF; chipboard; plywood.Sanding is recommended; minimum infeed temperature: 18 C (64 F).Foil Types -- Rolled form PVC; high gloss; PET; P.P. (preconditioned with primer/corona). -- Rolled form CPL Laminate; max. 0.3 mm (1/64") thickness. -- Rolled form Decor Paper from: 30 g/sq. m (3 g/sq. ft.). -- Sheet form: Acrylic foil or HPL laminate.System Includes the following: -- 3 Meter (118") long Conveyor & adjustable Guide System (20) PVC Coated rollers; retractable panel guide/fence for: Easy width adjustment; mod. #s: "C3 130 HBD". -- Top & Bottom Brush Unit & Sword Brush Panel Cleaner Height adjustable Brush System for: Cleaning panel surfaces; 1st rough cleaning with: Hair bristle brush, then micron grade cleaning with: Blower, vacuum system, and Sword Brush, which works in crosswise direction of material flow (caterpillar type). Includes: (2) 5" Dust suction outlets; mod. #s: "BS 130-PB" & "FDB 130". -- 2.4 Meter (94") Panel Heater Conveyor & Adjustable Guide System Mounted on infeed conveyor; heater preheats top of panels to between: 35 - 40 C (95 - 104 F); width can be easily adjusted by retractable panel guide/fence; mod. #s: "C2.4-130 PH" & "C2.4-130 AGS-2". -- Single Surface Glue Spreader for PUR with Reverse TollApplies PUR hotmelt on flat panels.Application roller is motor driven; features independent frequency inverter redactor; smoothing roller follows application for: High Gloss applications; built-in resistors allow independent electronic temperature control & oil-heating; mod. #: "GS 140-R". -- MELTON E-DRUM -G-25-NPUR Hotmelt System includes Airtight 200 L Drum Melter with: NI120 Temperature control; max. pumping capacity: 130 kG/Hr @ 100 RPM; max. working viscosity: 100,000 cps (100,000 mPa-s); max. working pressure: 80 Bar (1,160 PSI); max. working temp.: 230 C (446 F); (2) heated hoses; 13 mm dia. (1/2") ; (2) MS Series extrusion guns; mod. #: B-DRUM PUR Melter. -- 4.5 (177") Meter Conveyor; Adjustable Guide System; Laminate Sheet FeederTransports glued boards from: Glue spreader to pressure Roller Station; driven by: Frequency controlled gear motor. Sheet Feeder mounted across top; Sheet Feeder feeds laminate sheets to top of boards; width can be easily adjusted by retractable panel guide/fence on conveyor; mod. #s: "C4.5 ADG -130 HBD" & "SF 130".Double Roll Press (calendar style)Laminating Station to: Laminate foils in sheets or rolls onto glue coated panel surfaces. Calendar s
