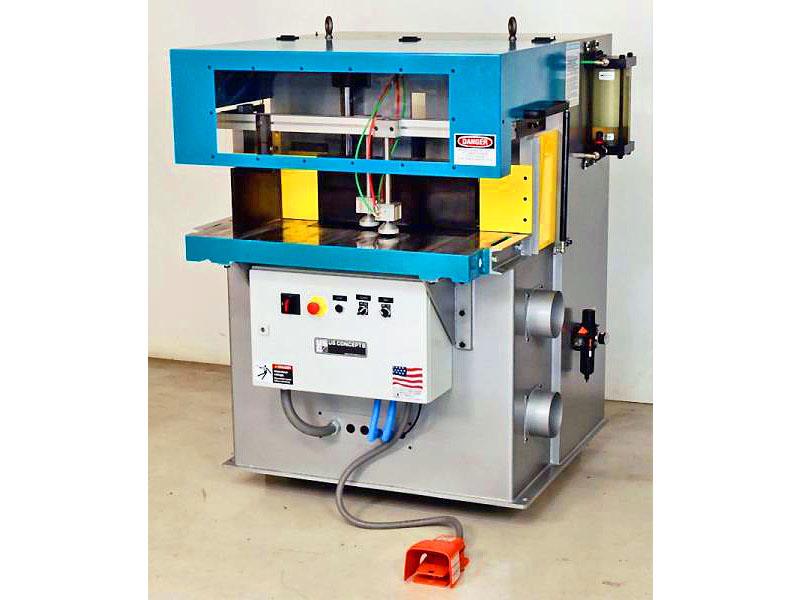

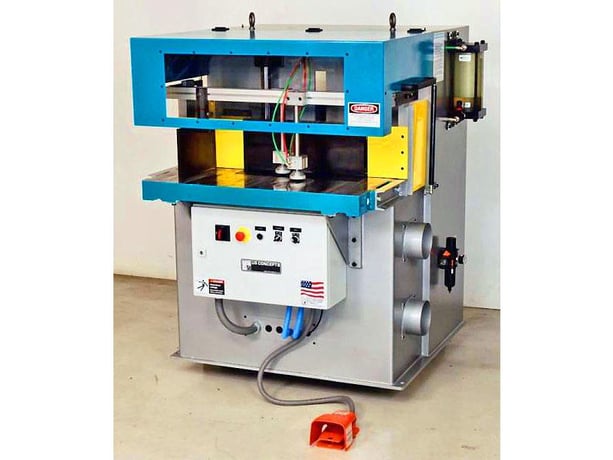

U.S. Motors Concepts #CHB-16, automatic hauncher -notcher, 1.57" spindle diameter, 16" length, 2025, new

Estimated monthly payment valid upon approved credit.

Request Formal Quote

US CONCEPTS CHB-16 HauncherThe CHB-16 Hauncher-Notcher is designed to notch along the edge of the board or across the end.Typical applications: Box joints, finger joints, bee boxes, hinge notches, coping, profiling in furniture and window industries, decorative cuts, beaded frame cabinets, toe kick notches, etc. Equipped with: a 40 mm horizontal spindle that moves up hydraulically past the table with the clamped material. -- A backup board in the table and climb cut ensure the clean-cut, even on cross grain. -- Material air clamps and spindle motion are actuated by a foot switch. Specifications: -- Spindle Dia. 40 mm, Spindle Length 16". (Also available in 20" capacity) supported on both ends; -- Max. Cutter Dia. 10" (254 mm); max. Cutting Depth 2-1/2" (64 mm); max. Material Stacking Height 8" (200 mm). -- Spindle Speed 4,300 or 6,200 RPM; Feed Speed (Air/Oil) 0 - 25 FPM; 15 HP motor; Dust Outlet 2 x 6" (150 mm).Complete with: -- (2) Air Clamps, Back Fence, Side Pivot stop, and Stop Bar. -- Table Size 42" x 16"; Machine Weight 1,650 Lbs (750 kG). -- OPTIONS: Electric; 20 or 25 HP motor; Additional Air Clamps; Additional Side Stop; Center Fence mounted to the Table; Horizontal Clamps; Extended Stop Bar. -- Other Options: Fixture for 45 Cut (Mitered cabinet Doors or Stretcher Bars).
