U.S. Industrial #USHI, 66/90/125/155 Ton, Hydraulic Ironworker With Dual Operator Stations, new, #14355-14360 (4 available)

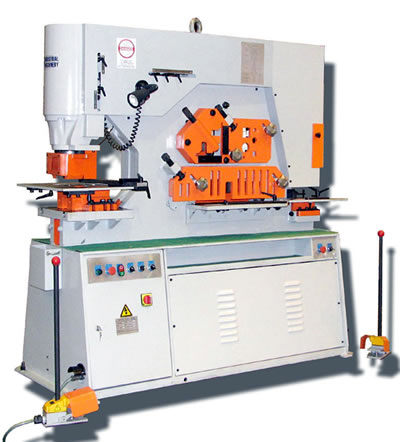

66 TON US INDUSTRIAL MODEL USHI-66T-DO-XT HYDRAULIC IRONWORKER WITH DUAL OPERATOR STATIONS

BASE PRICE: POR


STANDARD FEATURES

Dual Hydraulic Cylinders For Two Man Operation With Two Movable Foot Pedals

(5) Workstations (Punch, Plate Shear, Angle Shear, Rod Shear, And Notcher) This Machine Also Comes With Brake Attachment

Punch Station Has Large 2-Piece Gauging Table With Fence

Punch Station Has Quick Acting Swing Away Stripper With 3 Inserts

Punch Station Has Removable Sections For Punch Leg of Channel Or I-Beam

Quick Change Coupling Nut & Sleeve For Punch

Electric Backgauge, 3" Long

Electrically Interlocked Safety Guard For Notching Station

Magnetic Base Workstation Light

7.5 HP, 3-Phase Operation

Three Sets Of Round Punch & Dies

Spare Parts & Tools


SPECIFICATIONS

Punch
Punch Tonnage	66 Ton
Punch Thickness	5/8"
Punch Diameter	1-1/4"
Throat Depth	17"
Stroke Length	0 - 3.125"
Flat Bar Shear
Max Thickness	12" x 5/8"
Max. Diameter	16" x 5/16"
Blade Length	16"
Angle Shear
Capacity 90 Deg.	5" x 5" x 3/8"
Capacity 45 Deg.	2" x 2" x 1/4"
Bar Shear
Round	1.75"
Square	1.625"
Notcher
Thickness	3/8"
Width	2.25"
Depth	4"
Motor	7.5 HP
Approx. Dimensions	64" x 28" x 69"
Oil Capacity	20 Gal
Weight	3,527 Lbs
