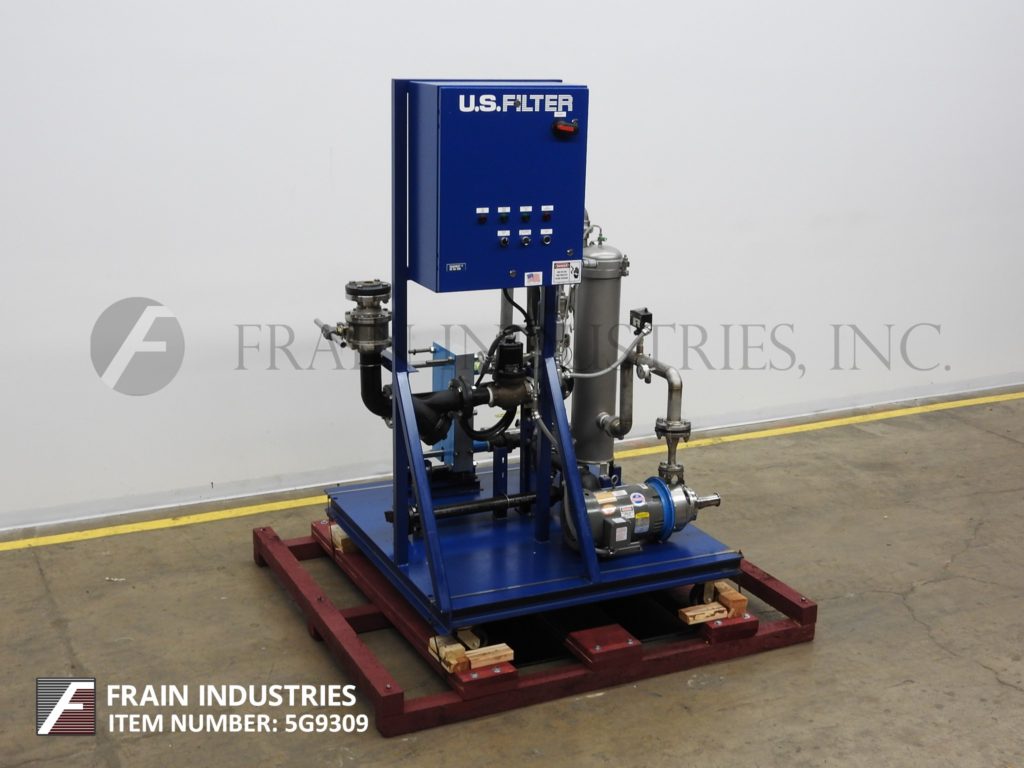

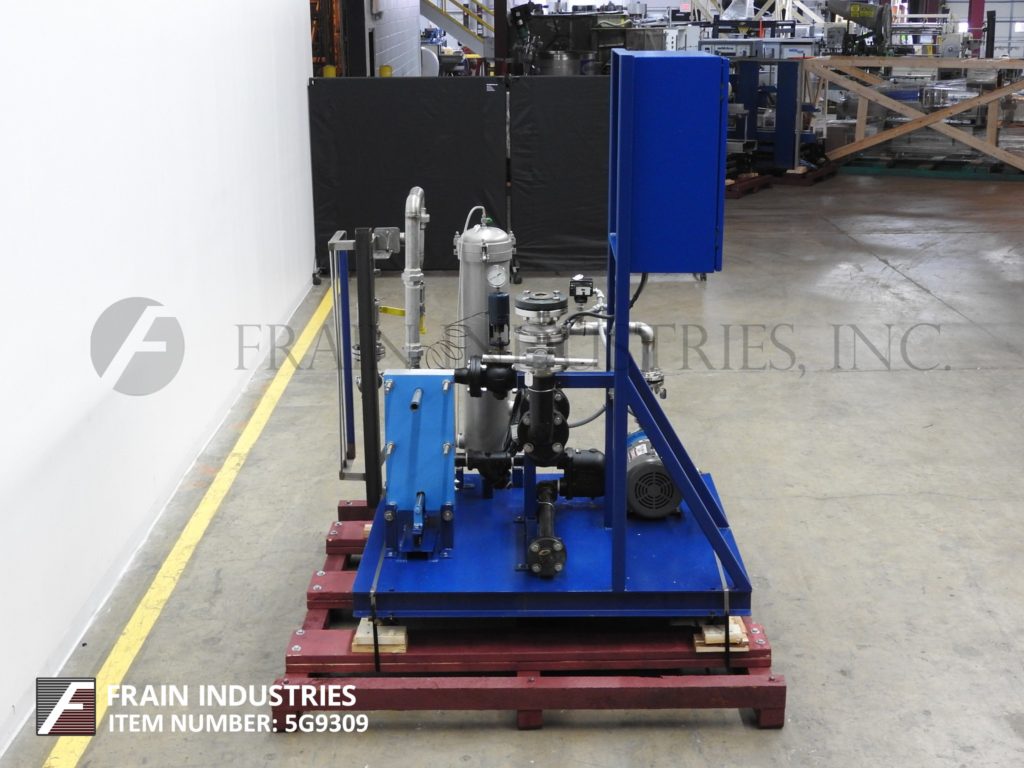

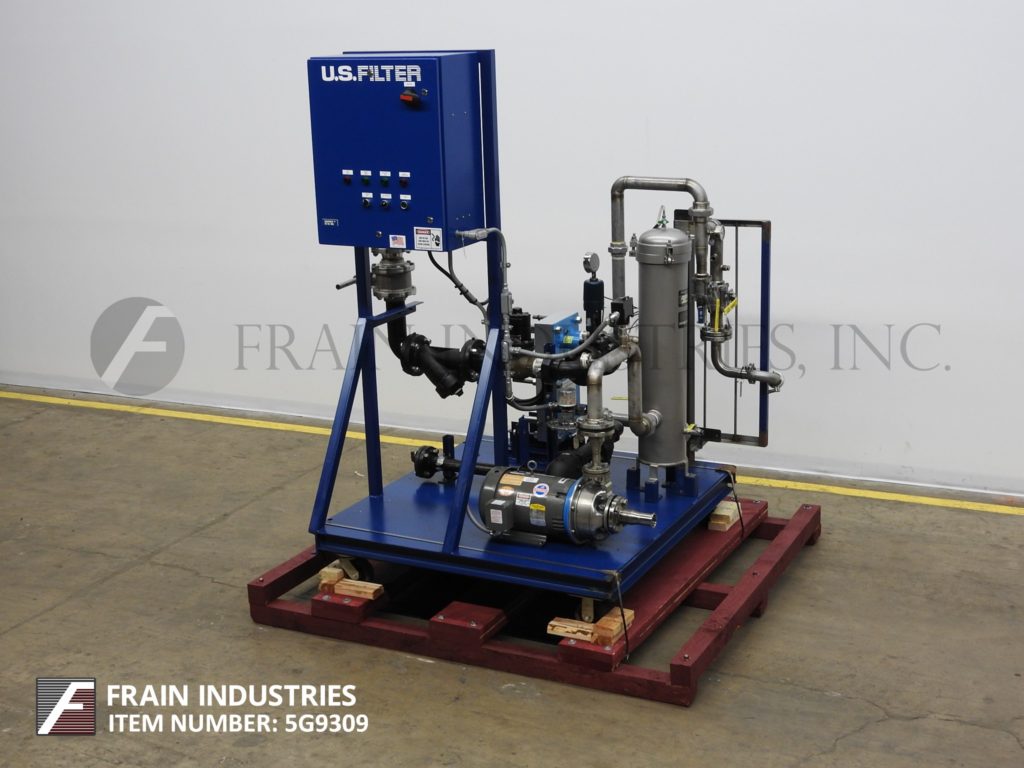

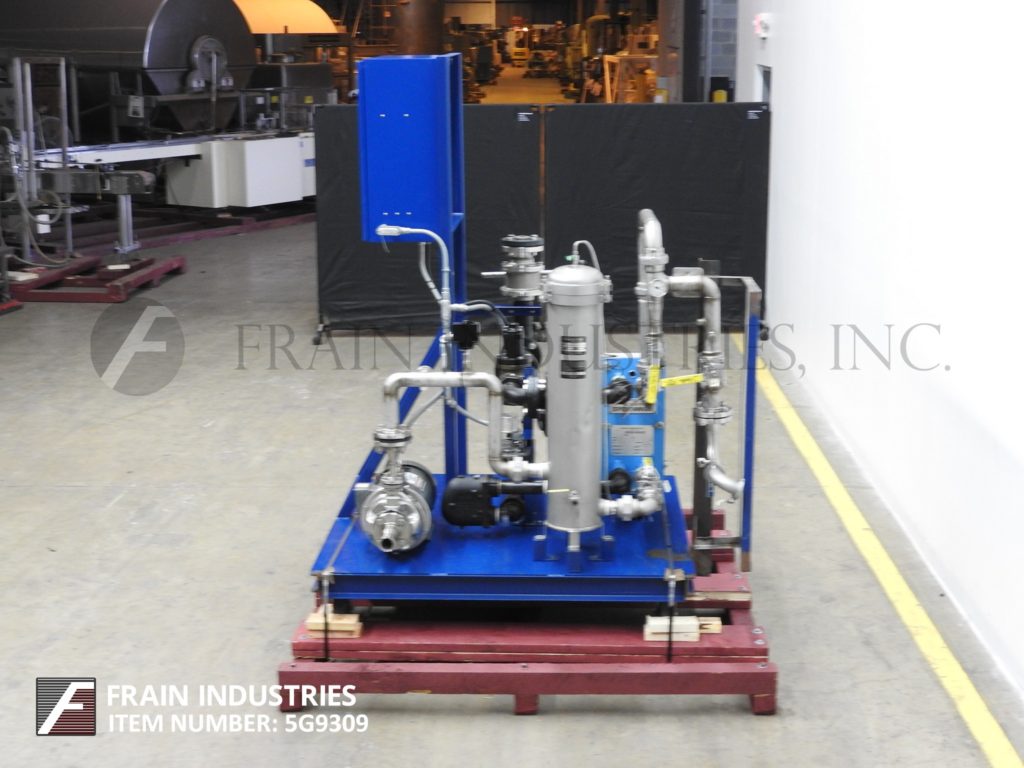

U.S. Filter, cartridge filter base mounted filtration system w/gallons of product filtered per hour, 60" long x 56" wide base

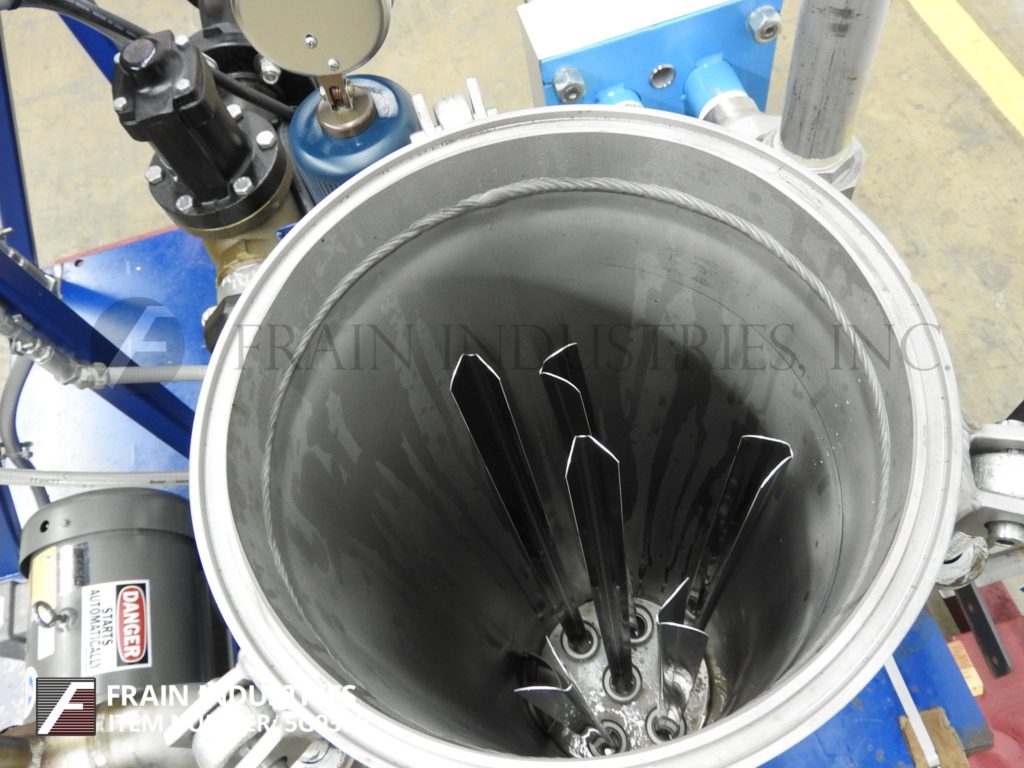

US Filter, base mounted filtration system with gallons of product filtered per hour – depending on materials, application and machine configuration. Equipped with a Filterite, Model T910717-00, 8½" diameter x 32" high stainless steel (6) cartridge filter vessel with a MAWP of 150 PSI @ 200°F. Tranter, Model UX-066-HJ-20, plate and frame heat exchanger with 11.4 ft² surface area and a MAWP of 100 PSI @ 260°F. G & L Pumps, Model SSH, stainless steel centrifugal filter pump with a 7.375 diameter impeller powered by a 7½ hp drive. Control panel has booster pump jog / off / auto switch and heat exchange steam supply hand / off / auto switch. Water fittings; 2½"OD / 2"ID Tri-clamp inlet to pump with (1) 2½"OD / 2"ID Tri-clamp and (1) 2"OD / 1½"ID Tri-clamp discharges. Steam fittings; 1½" NPT inlet and 1" NPT discharge. Mounted on 60" long x 56" wide base platform with casters.

OAD: 68" L x 68" W x 89" H
