For Sale by Machinery Values Inc
Surplus Record Dealer Since 1997
Mike DeRisi
973-49...> Show Seller's Phone Number 973-497-7540 Let the seller know you found their listing on Surplus Record!
Description

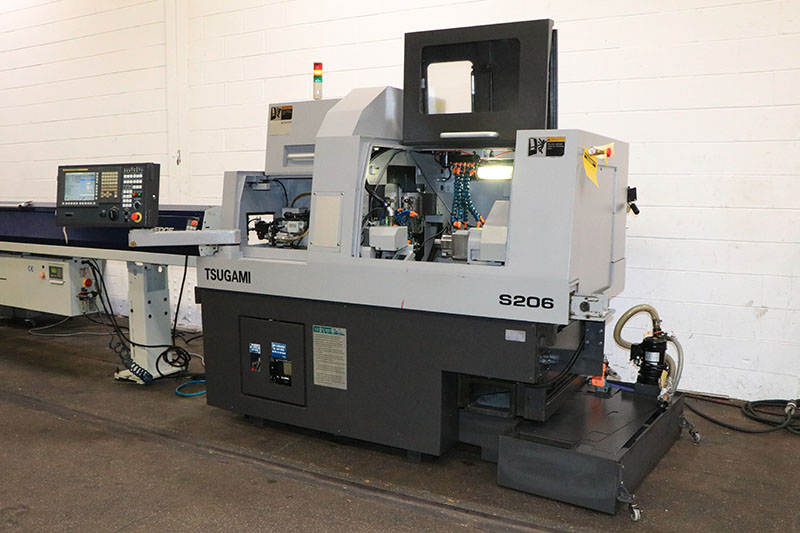

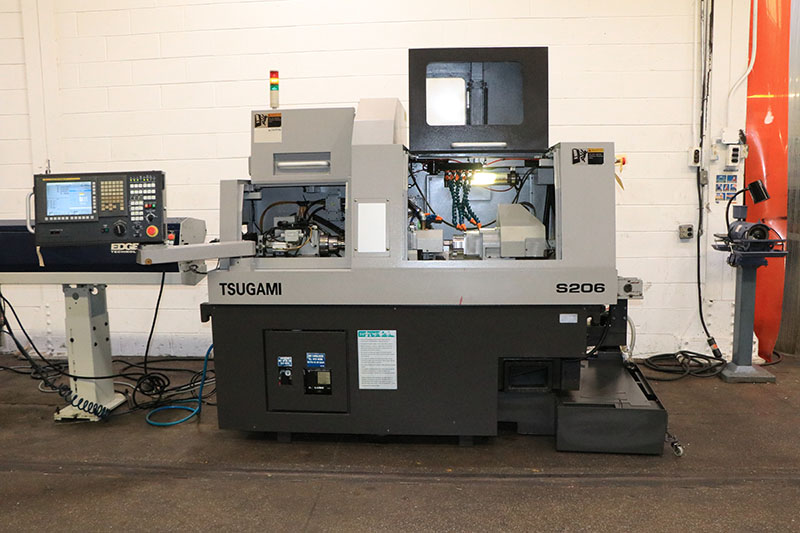

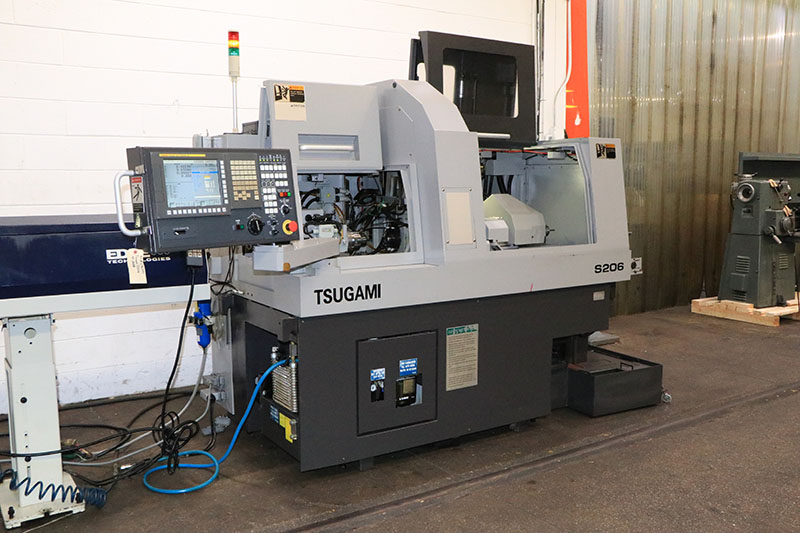

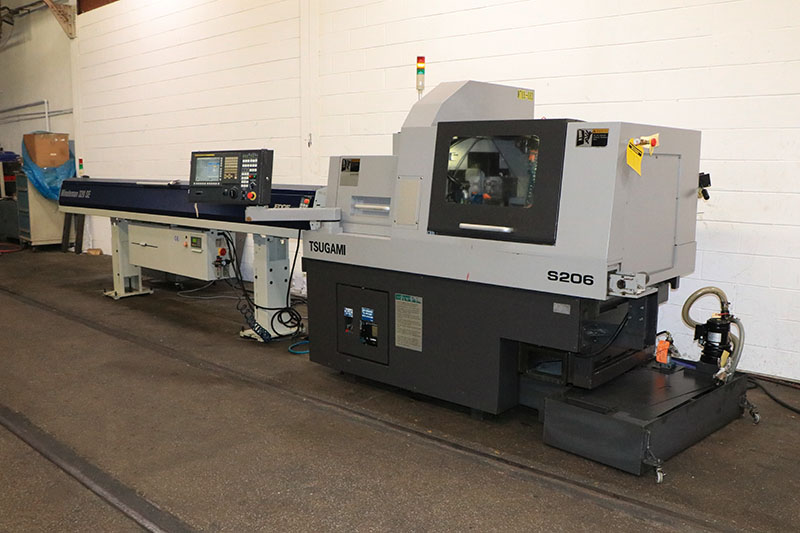

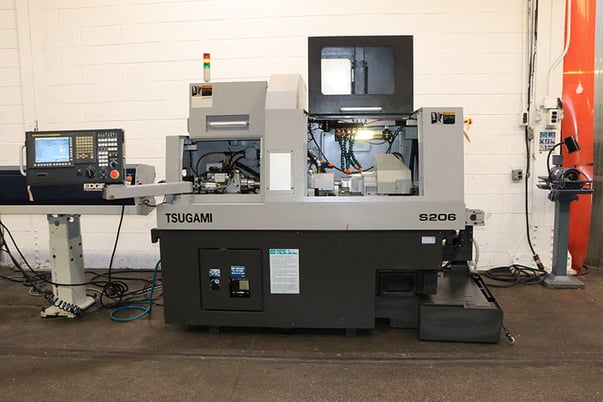

TSUGAMI S206 SWISS TYPE CNC LATHE
NEW: 2012
VIDEO LINK: https://youtu.be/EzteurbVpa4?si=LIDBaJVJZZeCLR3x
General Specifications from Brochure:

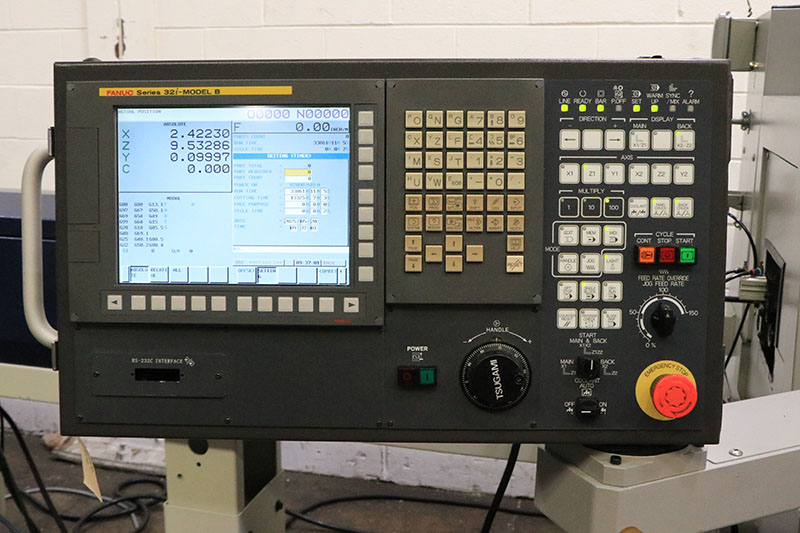

Control: Fanuc″1iTB
No. of Controllable Axes: 8
(X1, Z1, Y1, X2, Y2, Z2, C1, C2)
Max Bar Diameter: 20mm (3/4")
Max Machining Length: 210mm (Direct Drive Rotary GB)
250 (Static Guide Bushing)
80mm (Carrier Type Rotary GB)
45mm Bushingless
Max Drilling Diameter: 10mm
Max Tapping Diameter: M8
Deep Hole Drilling Diameter: 8mm
Max Back Spindle Chucking diameter: 20mm
Max Back Spindle Drilling Diameter: 8mm
Max Back Spindle Tapping Diameter: M6
Max Tool Spindle Drilling Diameter: 6mm (front tool post/back tool post)
8mm (rear tool post)
Max Tool Spindle Slotting Diam:″0mm (T1)
Main Spindle Speed: 200 - 12000 rpm
Back Spindle Speed: 200 - 12000 rpm
Rotary Guide Bushing: 200 - 8000 (carrier type)
200 - 12000 (direct drive type)
Tool Spindle Speed: 200 - 8000 rpm
Tool Storage Capacity (std/max): 24 pcs /″5 pcs
Tool Size: 12 x 12 x 100 mm
Rapid Traverse rate:″2 m/min
(X1, Y1: 24 m/min)
(Y2: 15 m/min)
Main Spindle: 2.2 /″.7 kW
Back Spindle: 1.5 / 2.2 kW
Tool Spindle: 0.75 / 1.1 kW (Front tool post)
1.0 kw (rear tool post)
X1-X2-Z1-Z2-Y2 Axes 0.5 kw
Y1 axis: 0.75 kW
Lubricating Pump:″ W
Power Source Requirements: 14.3 kVA
Compressed Air Requirement: 0.4 MPa or above
Air Discharge rate: 40 NL/min
Machine Weight (approx):″200 kg (7055 lbs)
Machine Dimensions (approx): 2110 x 1200 x 1885 mm (83" x 47" x 74")
EQUIPPED WITH:

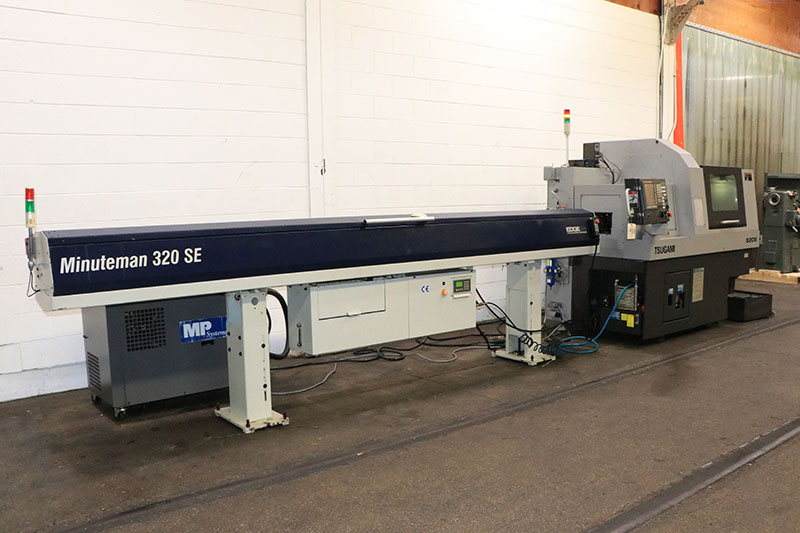

Edge Technologies Barfeed
Mist Buster Mist Collection Unit
Fire Suppression
High Pressure Unit
Get Your Price from Machinery Values Inc!
