Tsugami #BE18, CNC Swiss type turning center, Fanuc Series 32i, Edge barfeeder, .709" bar capacity, 2006

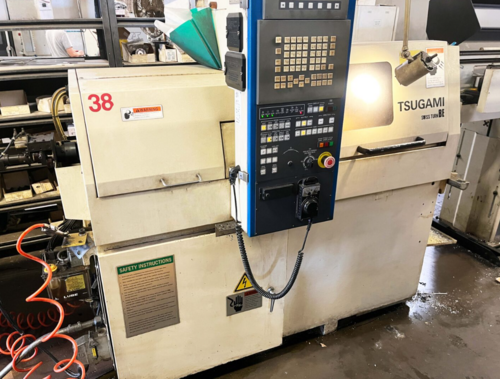

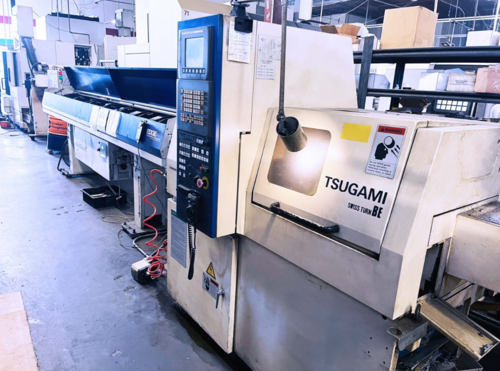

2006 Tsugami BE18 CNC Swiss-type sliding headstock turning center, equipped with an Edge barfeeder and Fanuc Series 32i CNC control. Maximum bar stock capacity of 18 mm (0.709″). Live tooling capable. Guide bushing configuration for rigid support of slender-diameter workpieces. Available for immediate inspection.

SPECIFICATIONS

• Make / Model: Tsugami BE18
• Year: 2006
• Type: CNC Swiss-type sliding headstock turning center
• Max bar capacity: 18 mm (0.709″)
• CNC control: Fanuc Series 32i
• Bar feeding: Edge barfeeder
• Tooling: Live tooling capable
• Headstock type: Sliding / guide bushing

EQUIPMENT DETAILS

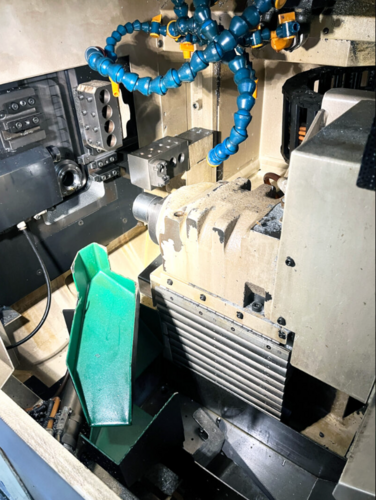

The Tsugami BE18 is a production-proven Swiss-type CNC turning center engineered for high-precision, small-diameter turned parts. The sliding headstock and guide bushing system provide workpiece support at the cutting zone, minimizing deflection on long, slender parts and enabling consistent tolerances across high-volume runs.

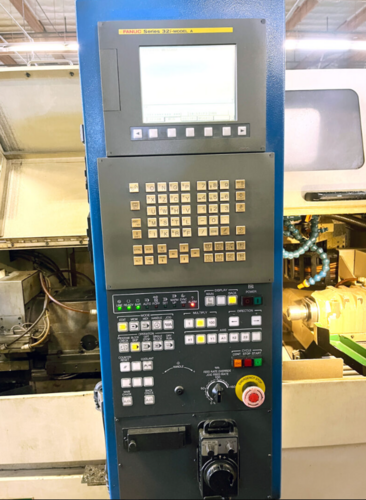

The Fanuc Series 32i control offers a well-supported, industry-standard platform with fast block processing, straightforward G-code programming, and broad compatibility with existing post-processors and CAM systems. Maintenance, spare parts, and technical documentation are readily available.

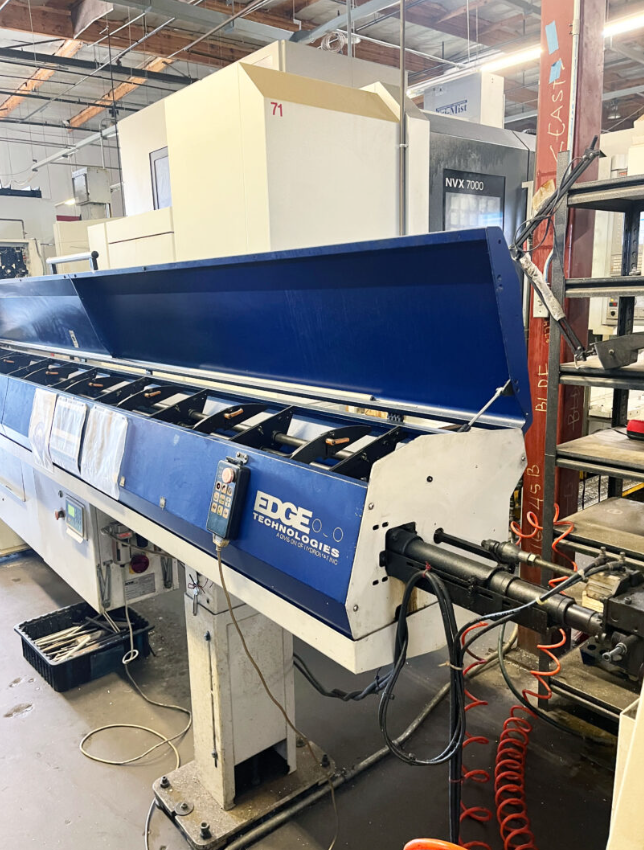

The included Edge barfeeder allows extended unattended operation, reducing per-part labor costs and maximizing spindle uptime during multi-shift and lights-out production.

Suitable applications include medical components, hydraulic fittings, automotive fasteners, fluid control components, and precision-threaded parts requiring tight dimensional tolerances in materials up to 18 mm diameter.

IDEAL FOR

• High-volume small-diameter turned parts
• Medical, dental, and implant components
• Automotive and hydraulic fittings
• Precision threaded and cross-drilled components
• Lights-out / unattended production environments
