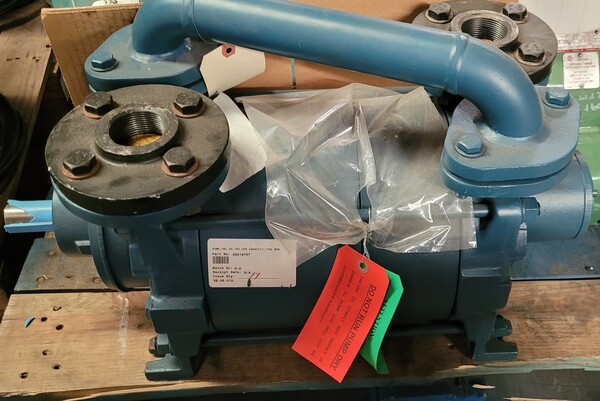

50 -150 CFM, Travaini #TRHE-40-190, 2-stage liquid ring vacuum pump, 10 HP, 1750 RPM, 230/460 V., new

MAKE OFFER

TRAVAINI TRHE 40-190 TRH TRAVAINI Two-Stage Liquid Ring Vacuum Pump

TRHE 40-190 Two-Stage Liquid Ring Vacuum Pump
40MM Flange Size
PRESSURE RANGE : 65 to 68 TORR
CAPACITY : 50 to 150 CFM
FEATURES : Two-stage rotating pump with externally
located bearings grease lubricated for life
SHAFT SEALING : Mechanical seal - Double mechanical seal
or stuffing box optional
OPTIONS : Bareshaft pump - Coupled to electric motor
on baseplate - Monoblock with electric motor
ACCESSORIES : (Optional) Flange mounted air-liquid separator
tank, non-return valve, vacuum relief valve,
vacuum gauge and piped service liquid line with
isolating valve, Y-strainer, 1/60/120 solenoid
valve, flow regulating valve and compound gauge
Shaft sealing C = Mechanical seal
C2 = Double mech. seal
B = Packing seal
Speed RPM 1750
Motor 10HP
Average service liquid flow GPM 3.7
Noise level at 150 Torr dB(A) 68
Minimum suction pressure Torr 25
Cast Iron Casing/Housing-Stainless steel AISI 316 Shaft-Impeller
Max pressure (bar G): 1.8
Max flow (CFM): 2200
Stages (nr): 2
Shaft Support: Bilateral
