For Sale by Prestige Equipment Corp
Surplus Record Dealer Since 1991
Location: Melville, NY
Contact Frank DiSalvo
Phone Number: 631...> Show Phone Number 631-249-5566
Let the seller know you found their listing on Surplus Record!
Description
CAPACITY:
Round Tubing Mild Steel: 1.65" x 0.118"
Round Tubing Stainless Steel: 1.65" x 0.059"
Maximum Moment of Resistance: 3.4 cm3 (S235)
Bending Angle up To: 180 Degrees +10 Degrees Spring Back
Bending Time: Maximum 180 Deg./Sec (Front Feed)
Speed of Front Feed: 1600 mm sec
Speed of Rotation: Maximum 450 Degree/Second
Repetition Tolerance Bending: +/-0.05 Degrees
Repetition Tolerance Length: +-0.05 mm
Repetition Tolerance Rotation: +/-0.05 Degrees
Arbor Length/Usable Length: 120"
Radii: Max. 6.61"
Bending Height: 45.27"
Boosting Force Length Positioning: 2.5 kN
Approximate Dimensions: 296" x 63" x 63"
Approximate Weight: 12,100 Lbs.
Equipped With:

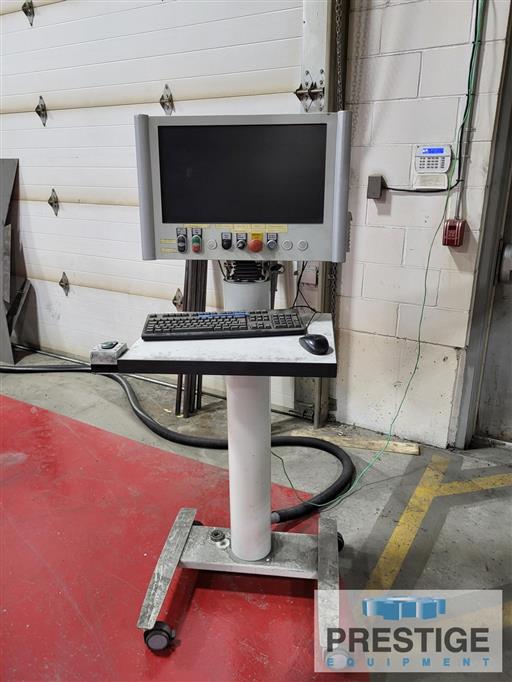

Transfluid CNC Control with Windows 10 Operating System and 22" Widescreen Monitor
Servo Electric Power Bending Axis
Servo Electric Positioning of the Rotation Length
All other axis Servo Electric (Clamping/Mandrel/Pressure Die...etc)
Bending Head For Right Hand/Left Hand with One Off Set Bend Device
Bending Head can be Horizontal & Vertical
Automatic Programmable Mandrel Withdrawal
Carriage For Wiper Die
Boosting Function
Remote Diagnostics Option
Automatic Mandrel Lubrication
Air Conditioning for Electrical Cabinet
Features:
Servo Electric Power Bending Axis
Servo Electric Positioning of the Rotation Length
Bending Head For Right Hand/Left Hand with One Off Set Bend Device
Bending Head can be Horizontal & Vertical
Automatic Programmable Mandrel Withdrawal
Carriage For Wiper Die
Boosting Function
Get Your Price from Prestige Equipment Corp!
