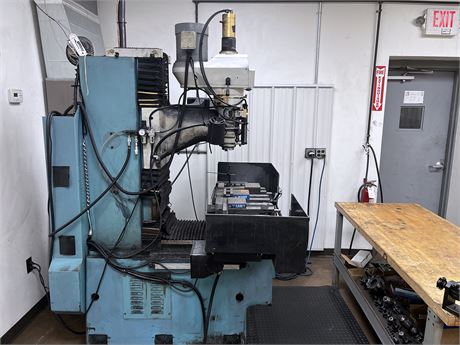

Trak #DPM, CNC Bed Mill, 31" X, 17" Y, 23.5" Z, #40 NST, 70-4200 RPM, 3 HP, digital read out, 1999

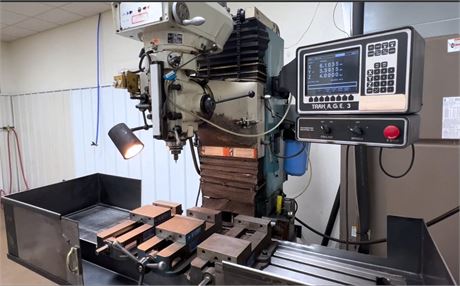

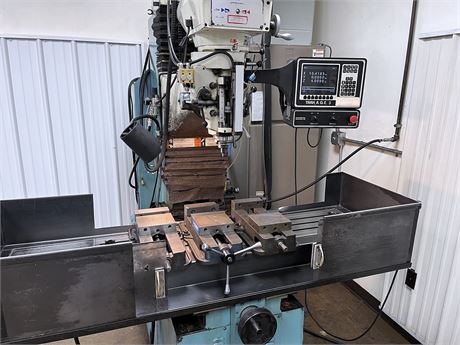

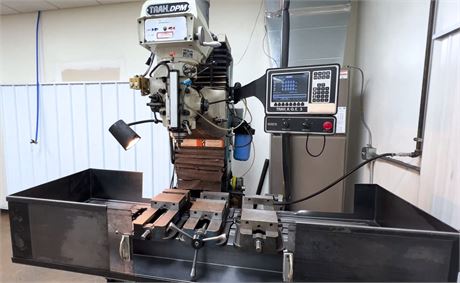

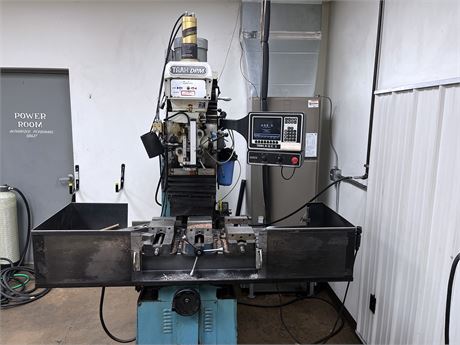

Trak DPM Bed Mill (1999)

Description
Make: Trak
Model: DPM
T-Slots: 63mm x 2.5"
X Travel: 31"
Y Travel: 17"
Z Travel: 23.5"
Spindle Head
Quill Diameter: 100mm
Spindle Taper: #40 NST, NMTB
Speed Range: 70-4200 RPM
Spindle Nose to Table (max part height): 0-25"
Spindle center to column face: 17.3"
Quill Feeds per revolution of Spindle: 0.002, 0.004, 0.006 in/revolution
Head Swiveling (right to left): 90 degrees

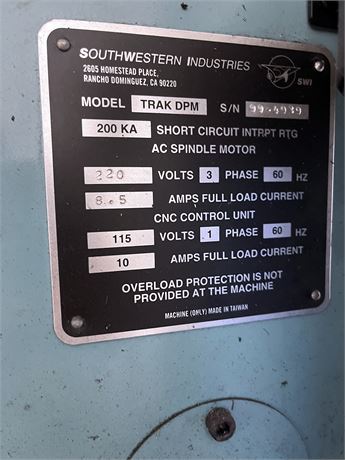

Spindle Motor
Power: 3 Hp
Voltage: 220V or 440V
Phase/Cycle: 3 Phase/60 Hz
Current: 8.6/4.3 amp
Max weight of workpiece: 1320 lbs
Maximum Machining Capacities
Drilling Mild Steel: 1.5" diameter
Tapping: 1.25"
Milling: 3 cubic in/minute
Boring: 4.75"
Approx shipping weight 4500 lbs
Pallet size 6' x 6'

Equipped With

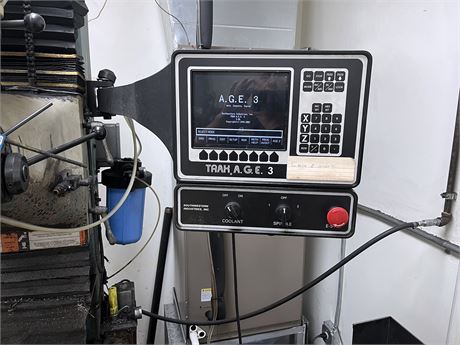

DRO,

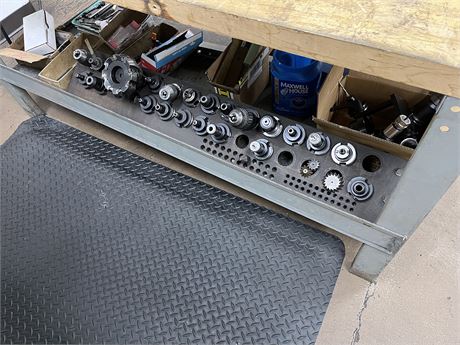

Box Tooling,
Table Vices
