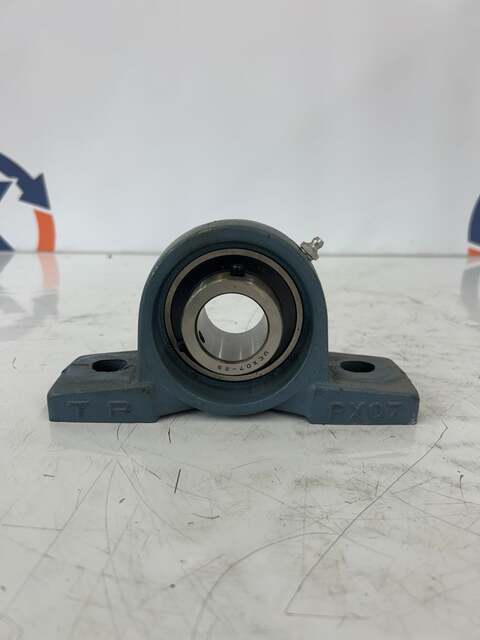

TR (TR Industrial) Pillow Block Bearing UCPX07-23 1-7/16 in. Bore, 2-Bolt, PX07 Housing

The TR UCPX07-23 is a medium duty two-bolt pillow block bearing unit with a 1-7/16 in. bore. The housing number is PX07, cast from gray iron, and the insert bearing is designated UCX07-23. Shaft locking is accomplished via two hexagon socket set screws acting directly on the shaft. A grease fitting (zerk) is installed in the housing cap for in-service relubrication. Housing dimensions per published specifications: overall length 203 mm, bolt hole center distance 144 mm, base width 57 mm, center height 54 mm. Bolt size is 1/2 in. or M14. The insert features a wide inner ring, contact seal with slinger on both sides, and a self-aligning spherical outer ring that seats into the matching concave bore of the PX07 housing, allowing the unit to accommodate minor shaft misalignment. Dynamic load rating is 29.1 kN and static load rating is 17.8 kN per published data for this housing and insert combination. The UCPX07-23 is a standard interchange designation used across major bearing manufacturers including AMI, FYH, Browning (VPS-323), Dodge (P2B-SCM-107), NTN (UCPX07-107T), Peer, and Sealmaster (MP-23). This unit is suited for conveyor systems, agricultural machinery, construction equipment, and general industrial shaft support applications.

Stock # 0226-676
