Description
Specifications:

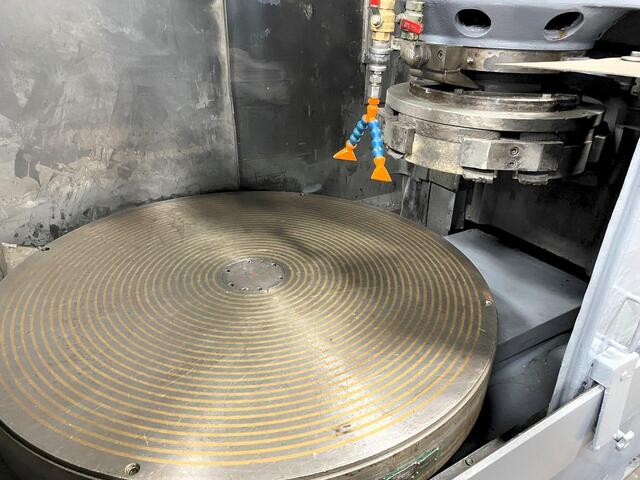

Magnetic Chuck Size
42.5 inches
Spindle (Horz/Vert)
vertical
Spindle Motor Size
50 horsepower
Swing
45 inches
Work Height Under Wheel
23.6 inches
Wheel Head Feeds
.004 - .12 IPM
Dimensions
91" Long x 140" Wide x 98" High
Weight
15000 pounds
Equipped with

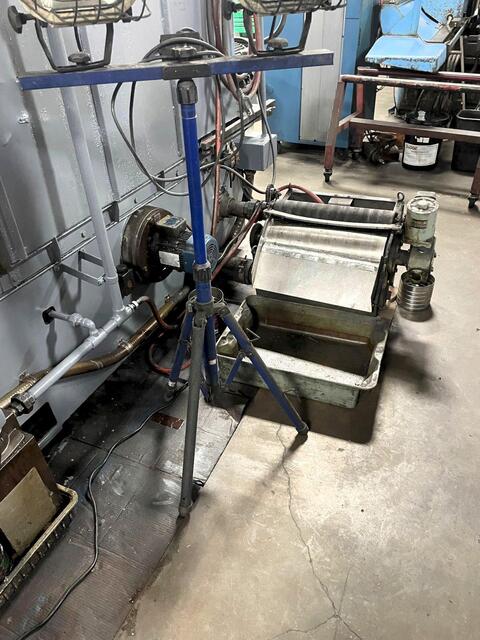

Wet Base with Magnetic Chip Separator, 20" Segmented Wheels - 5 Segments - Large Supply of Segments, Electro-Magnetic Chuck with Neutrifier, New Gear for Chuck Rotation, New Oiling System, New Sheet Metal Guards.
Equipped with:

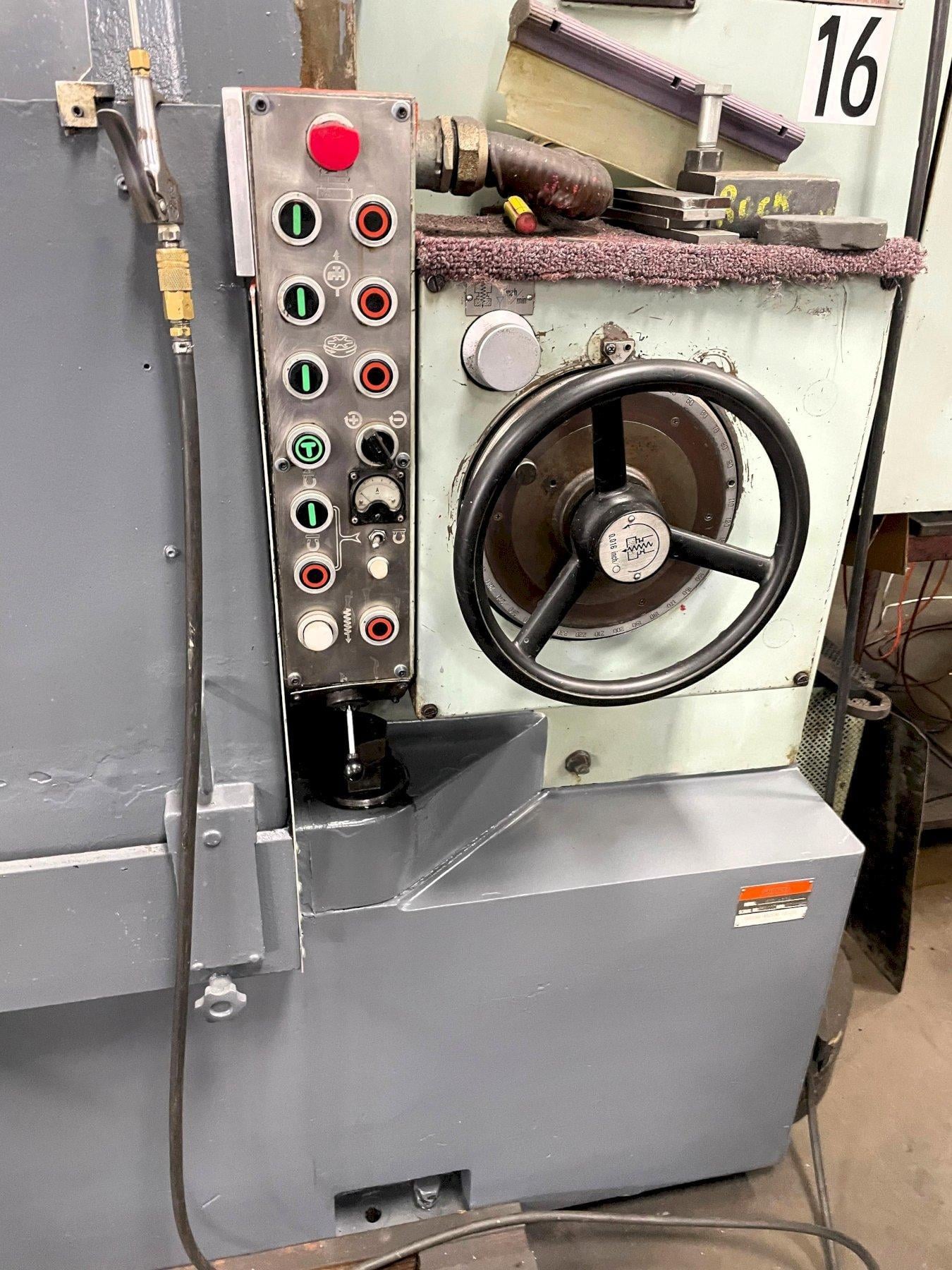

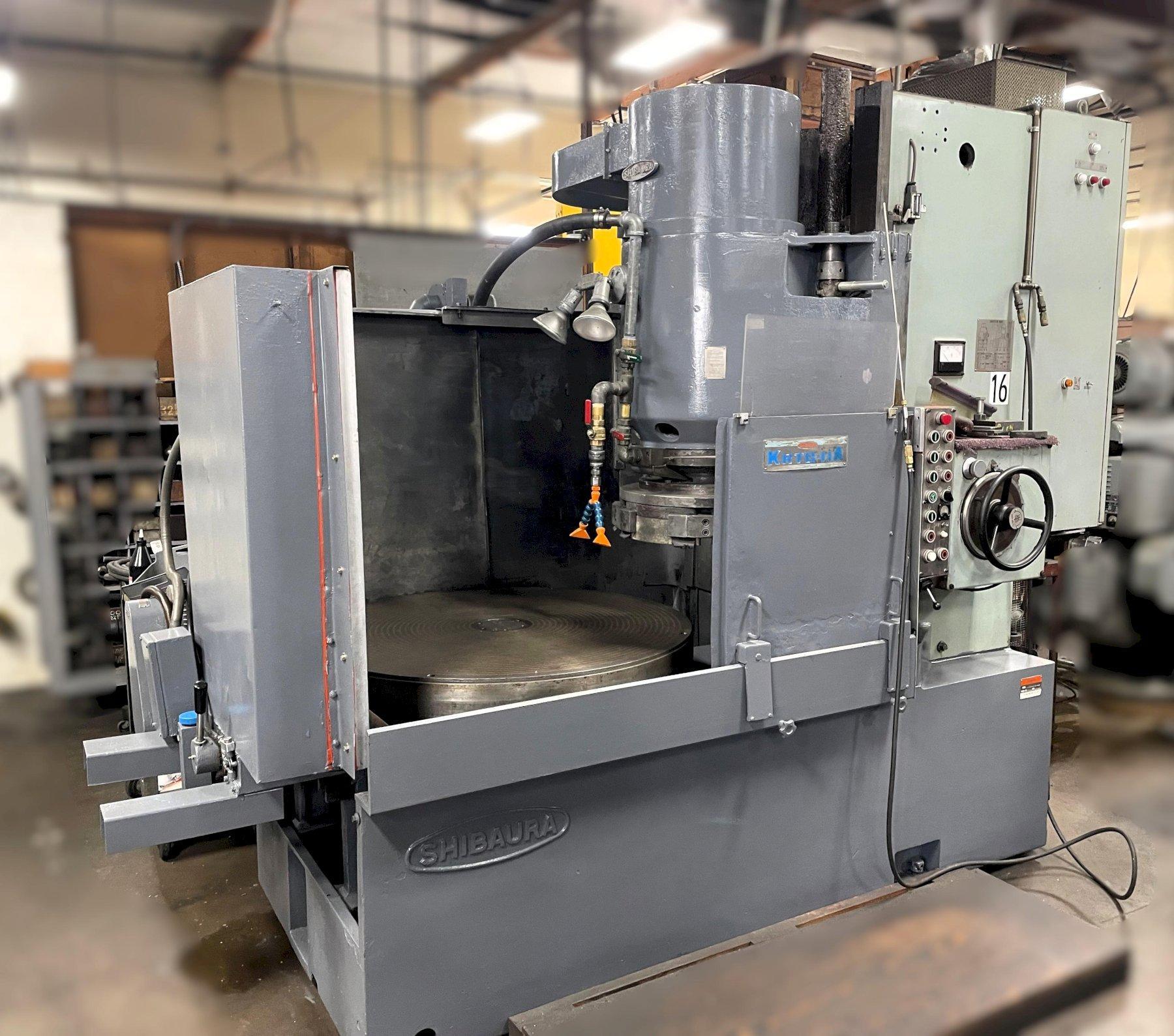

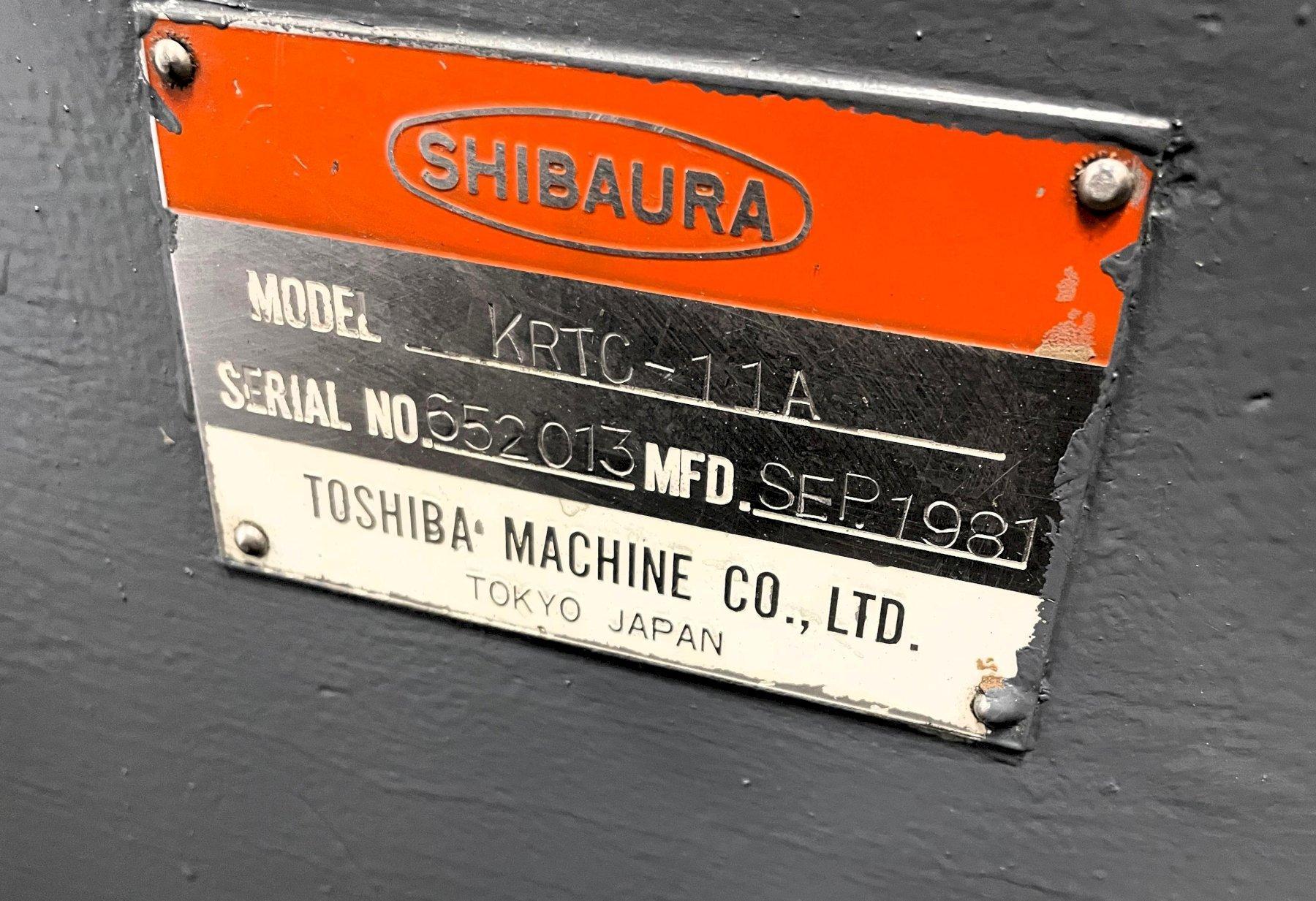

Used 1981 Toshiba Shibaura KRTC-11A Rotary Surface Grinder equipped with Wet Base with Magnetic Chip Separator, 20" Segmented Wheels - 5 Segments - Large Supply of Segments, Electro-Magnetic Chuck with Neutrifier, New Gear for Chuck Rotation, New Oiling System, New Sheet Metal Guards.
Magnetic Chuck Size
42.5 inches
Spindle (Horz/Vert)
vertical
Spindle Motor Size
50 horsepower
Swing
45 inches
Work Height Under Wheel
23.6 inches
Wheel Head Feeds
.004 - .12 IPM
Dimensions
91" Long x 140" Wide x 98" High
Weight
15000 pounds
Equipped with
Wet Base with Magnetic Chip Separator, 20" Segmented Wheels - 5 Segments - Large Supply of Segments, Electro-Magnetic Chuck with Neutrifier, New Gear for Chuck Rotation, New Oiling System, New Sheet Metal Guards.
Equipped with:
Used 1981 Toshiba Shibaura KRTC-11A Rotary Surface Grinder equipped with Wet Base with Magnetic Chip Separator, 20" Segmented Wheels - 5 Segments - Large Supply of Segments, Electro-Magnetic Chuck with Neutrifier, New Gear for Chuck Rotation, New Oiling System, New Sheet Metal Guards.
Short Terms and Conditions of Sale (Please contact us for complete Terms and Conditions): Unless otherwise posted, all items are sold AS-IS, WHERE-IS With All Faults. All specifications and locations are subject to change without notice. All items are subject to availability and prior sale.
ACT Machinery
2424 Cypress Way
Fullerton, Ca 92831
Financing Available / Se Habla Español
Get Your Price from ACT Machinery!
Buyers Who Viewed This Listing Also Viewed:
Shibaura #KRTC-11-A, 42-1/2" mag.chuck, 700 RPM, 50 HP, automatic lube, 1978, #51537
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Shibaura
Model: KRTC-11A
Year: 1978
SERIAL. 449 (181038), MODEL. KRTC-11A, YEAR NEW. 1978, DIAMETER OF MAGNETIC CHUCK. 42-1/2", MAXIMUM HEIGHT UNDER WHEEL. 24", MAXIMUM SWING INSIDE GUARDS. 45", SEGMENT WHEEL SIZE. 22" DIAMETER, TABLE SPEEDS (4). 10,15,20,30 RPM, AUTOMATIC DOWNFEED RATES.004" TO.012" IPR, WHEEL SPEED. 700 RPM, COOLANT IN BASE. YES ...more

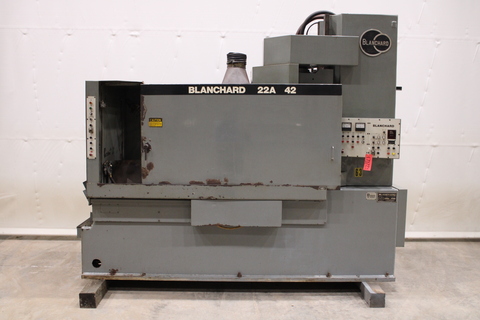

Blanchard #22A-42, Rotary Surface Grinder, 42" Chuck, 50 HP, 24" Vertical Range, 1994
