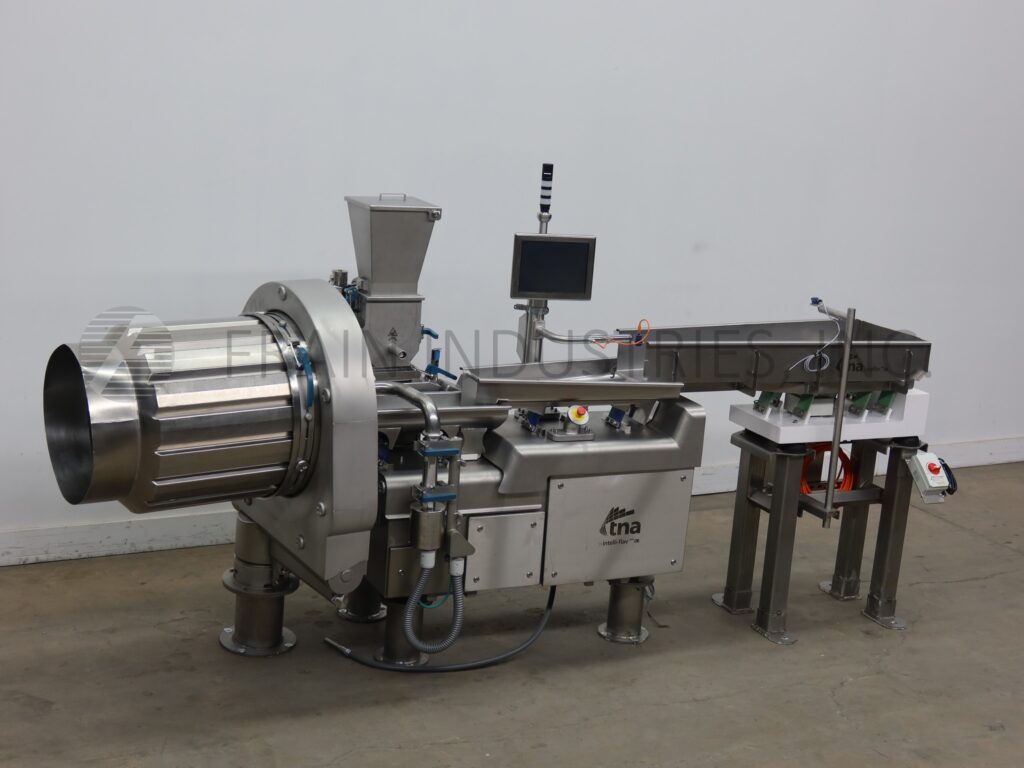

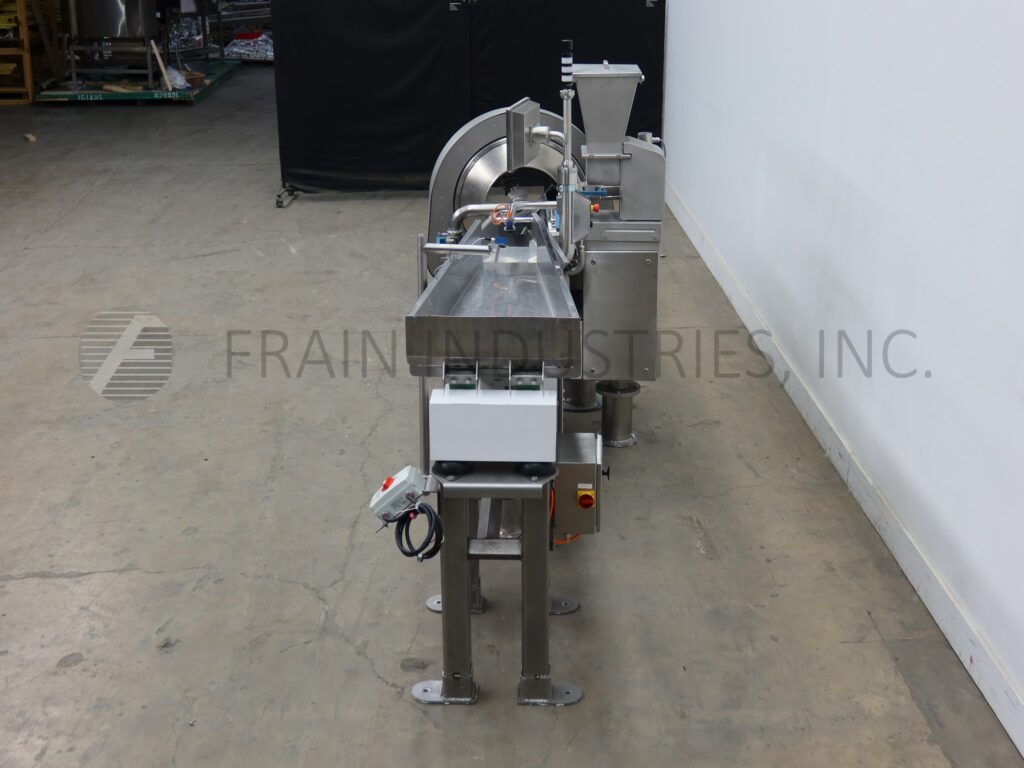

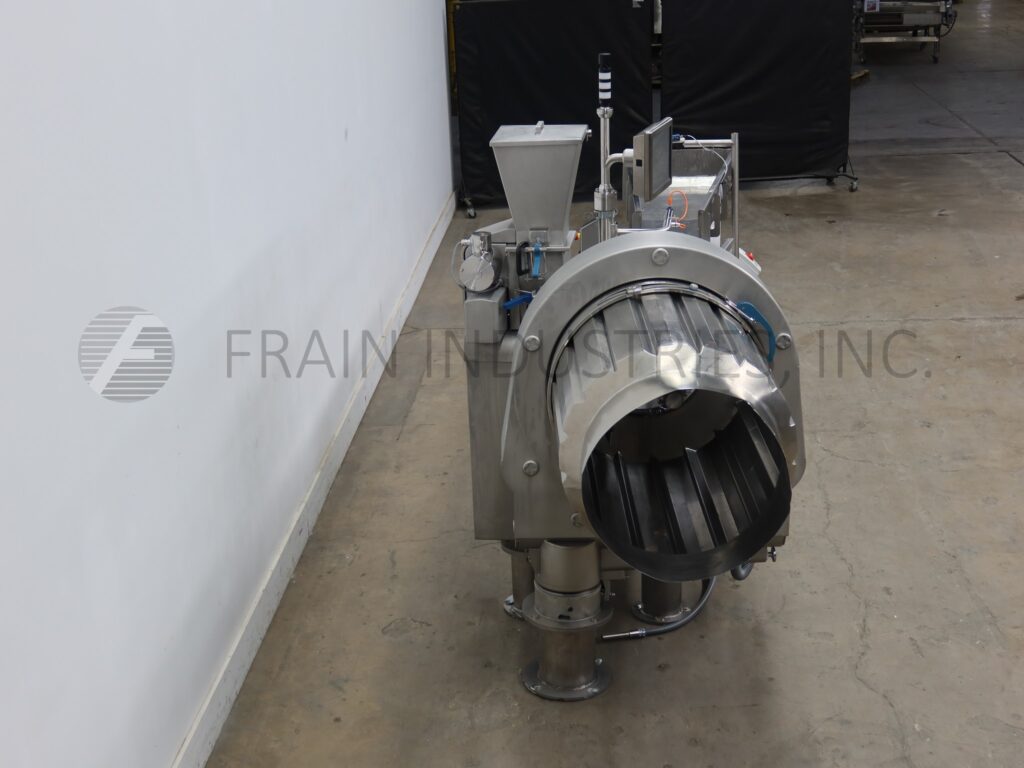

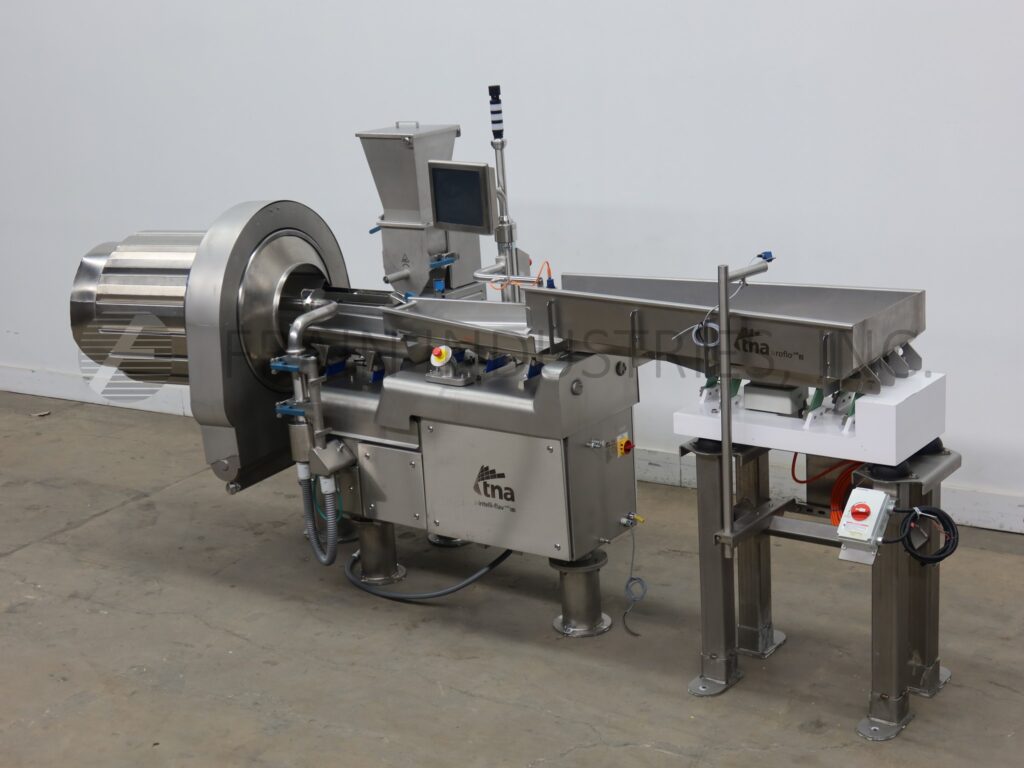

TNA Manufacturing #Intelli-Flav-OMS 5.1-RH-WD-OB1-CR-SD, 30" diameter, 304 Stainless Steel coating pan system with 3 tier vibratory feed

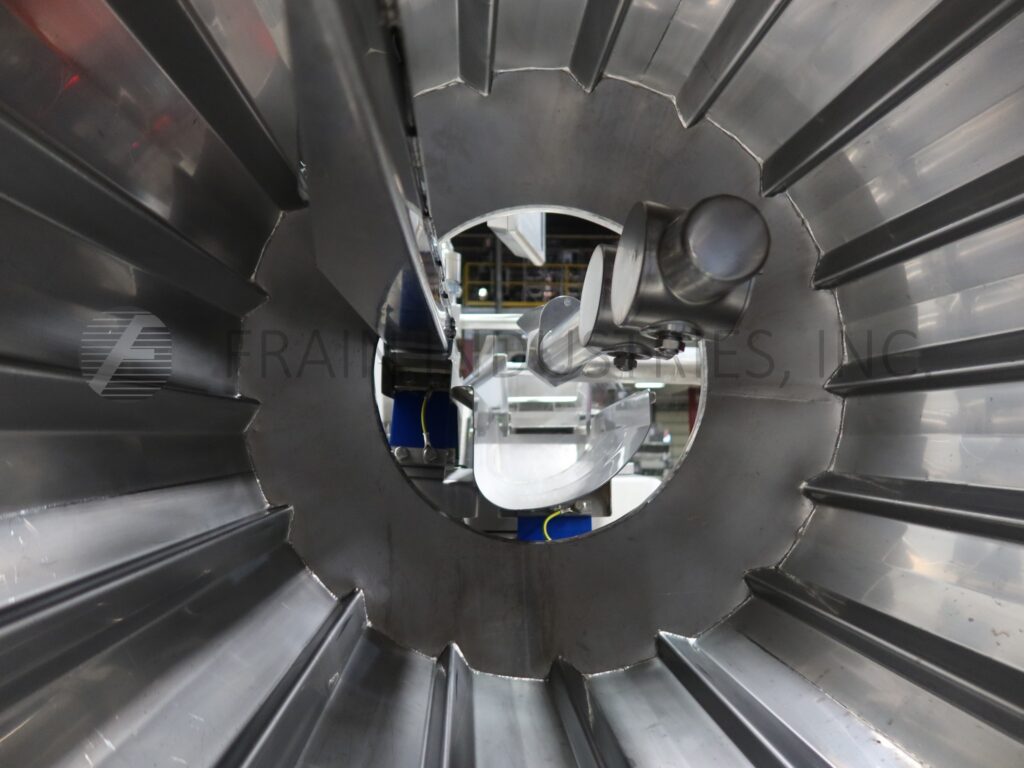

TNA Manufacturing, model Intelli-Flav OMS 5.1-RH-WD-OB1-CR-SD, 30" diameter, 304 stainless steel coating pan system with 3 tier vibratory feed. Dry ingredients rated from 0 lbs/hr to 132 lbs/hr and liquid feeding rated from 0.06 lbs/hr to 3.52 lbs/hr – dependent on materials, application and machine configuration. Top vibratory feeder is 59" long x 7¾" deep x 22" wide at infeed and 9¾" at discharge with 60" infeed height, middle vibratory feeder is 33" long x 4" deep x 20" wide at infeed and 8" at discharge, bottom vibratory feeder is 30" long x 9" wide x 6" deep. 30" diameter x 38" long coating drum with 17" diameter infeed powered by a ¾ hp drive, 25" diameter discharge with 36" discharge height, auger dry ingrediant dispenser with 12¾" wide x 12¾" long x 16½" deep agitated hopper with lift up lid, 1" diameter auger on 1" centers powered by a .33 hp drive, liquid spray applicator with (2) spray nozzles. Drum interior has (17) 34" long x 1¾" wide x ¾" high soft flight baffles. Control panel with touchscreen HMI. Mounted on stainless steel frame with satus lights.

OAD: 166"L x 53"W x 89"H
