Tin Knocker #TK-Fourplex, S & Drive Rollformer, 1.06' width Cleat, 1.06' width Drive Cleat, 100 FPM, 5 HP, 230 V, new

Description

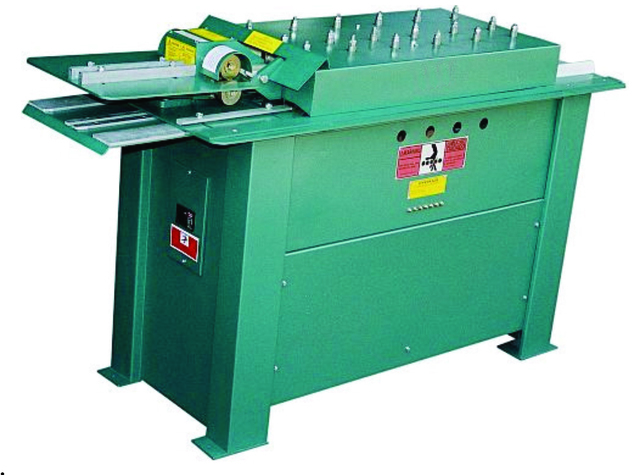

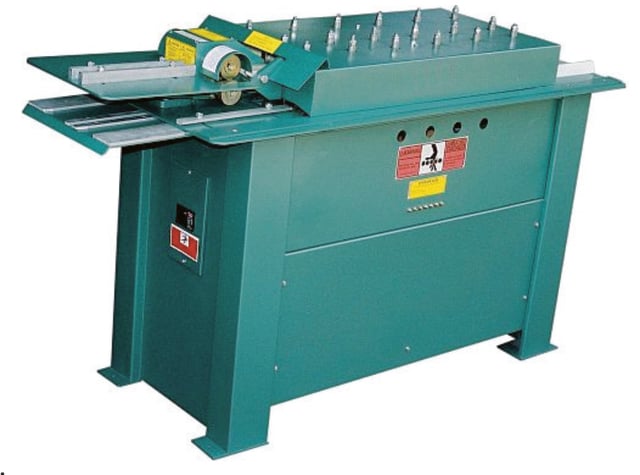

Tin Knocker TK Fourplex S & Drive Rollformer

Inventory # 9710

Model: TK Fourplex

View the Tin Knocker TK Fourplex Manual Here

Description:

The TK Fourplex comes standard with S and Drive rolls down the center to slit and feed S and Drive Cleats, turning scrap into useful product. Outboard rolls can be configured with one set of optional tooling as either Button Lock, Pittsburgh, or 4-in-1 Rolls (1/4″ flange, 1/2″ flange, standing seam and t-connection)

Specifications:

Capacity:

Drive Cleat: 20 – 26 Gauge

S Cleat: 22 – 28 Gauge

Cleat Width: 1 1/16″

Drive Cleat Width: 1 1/18″

Pittsburgh Lock: 20 – 28 Gauge (with optional tooling)

Right Angle Flange: 22 – 26 Gauge (with optional tooling)

Standing Seam: 22 – 26 Gauge (with optional tooling)

Tee Connection: 22 – 26 Gauge (with optional tooling)

Male & Female Button Lock: 20 – 24 Gauge (with optional tooling)

Speed: 100 FPM

Motor: 5 HP / 230v / 3ph

Mechanical Specifications:

Dimensions: 30″ x 74″ x 50 ” H

Weight: approx. 1,280 lbs.

FOB Factory – Contact us for special pricing and availability
