Description

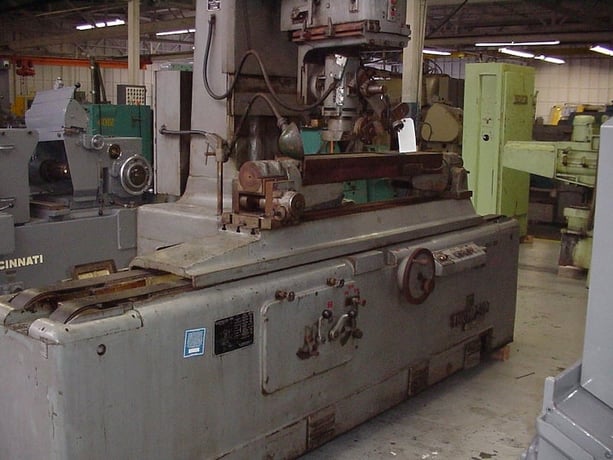

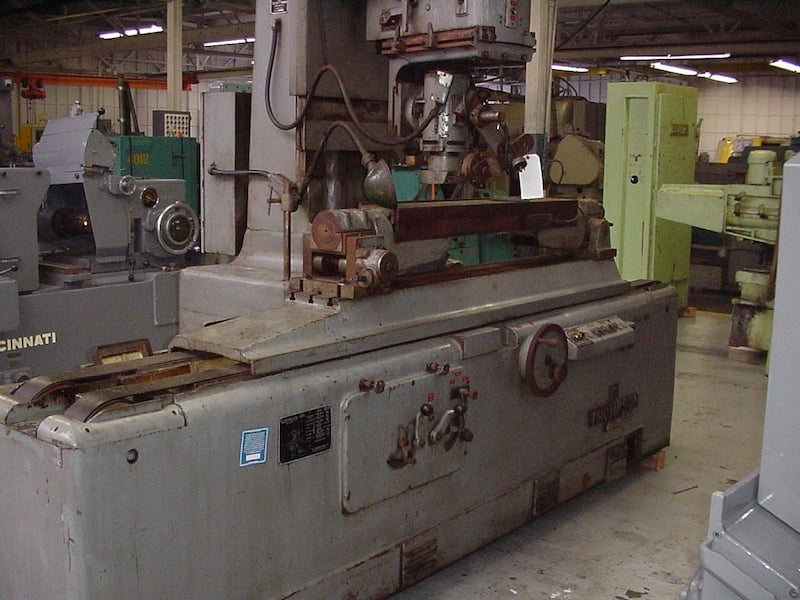

6" x 48" Automatic Model B, Thompson Flat Broach Grinder, Tilting Type Electro-Magnetic Chuck, Neutrol & Rectifier, As Is
THOMPSON FLAT BROACH GRINDER
S/N E-51430
STANDARD SPECIFICATIONS
Table size (with 3 T slots)........................ 9 x 62
Maximum longitudinal feed, hand.................... 48
Hydraulic cross travel of wheel head...............14
Wheel head swivels on horiz. axis............. 60' left or right
Wheel head swivel on vert. axis.................... 90'
Grinding wheel spindle motor. .. . . ............. 1.5 HP
Maximum distance spindle totable.................. 18
Approximate machine weight......................... 9,000 lbs.
Approximate floorspace....................... 66 x 13' x 8' high
(Not counting over travel of table)
Cross travel....................................... 17
Wheel capacity.....................................6 x 1
EQUIPPED WITH
PRIVATE Tilting type electro magnetic chuck................ 6x 48tc'\l 1 Tilting type electro magnetic chuck................ 6\x 48\
Self contained hydraulics and coolant.
Neutrol controls.
Neutrofier.
Specifications are deemed accurate, however, subject to verification or prior sale.
THOMPSON FLAT BROACH GRINDER
S/N E-51430
STANDARD SPECIFICATIONS
Table size (with 3 T slots)........................ 9 x 62
Maximum longitudinal feed, hand.................... 48
Hydraulic cross travel of wheel head...............14
Wheel head swivels on horiz. axis............. 60' left or right
Wheel head swivel on vert. axis.................... 90'
Grinding wheel spindle motor. .. . . ............. 1.5 HP
Maximum distance spindle totable.................. 18
Approximate machine weight......................... 9,000 lbs.
Approximate floorspace....................... 66 x 13' x 8' high
(Not counting over travel of table)
Cross travel....................................... 17
Wheel capacity.....................................6 x 1
EQUIPPED WITH
PRIVATE Tilting type electro magnetic chuck................ 6x 48tc'\l 1 Tilting type electro magnetic chuck................ 6\x 48\
Self contained hydraulics and coolant.
Neutrol controls.
Neutrofier.
Specifications are deemed accurate, however, subject to verification or prior sale.
