Thiele #BF400V, 3 Piece Bliss Case Former, 12-35 BPM, 8"-20" width x 4"-16" D x 9-1/3" -31-7/8" L cases, AB PLC, 2018

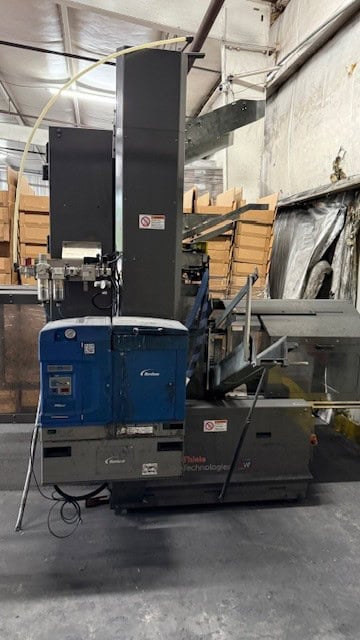

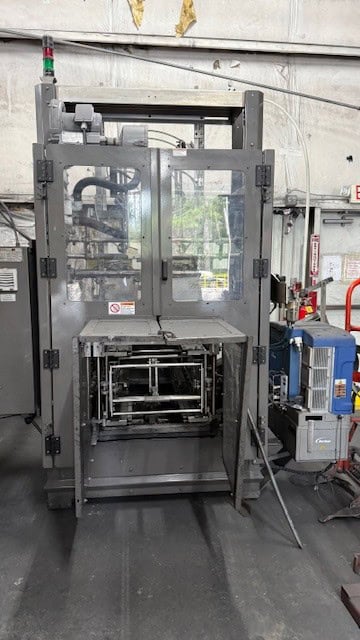

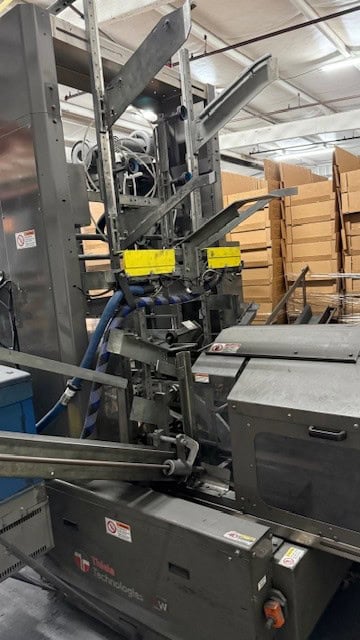

Used Thiele BF400V Bliss Case Former for 3 Piece Bliss Cases, 2018:

Presently set up to run 3 piece bliss cases, 22-1/16″ x 14-5/8″ x 5-9/16″ at a rate of 20 bliss cases per minute

Capable of being set up to run these case dimensions:
Length: 9-1/4″ – 31-7/8″
Width: 8″ – 20″
Depth: 4″ – 16″

Speeds from: 12-35 bpm depending on style and size

Features:
– Kwik-change crank adjustable bottom stops.
– Standard body hopper – 100 blank capacity.
– Vacuum feed system w/filter kit.
– Single feed wheel.

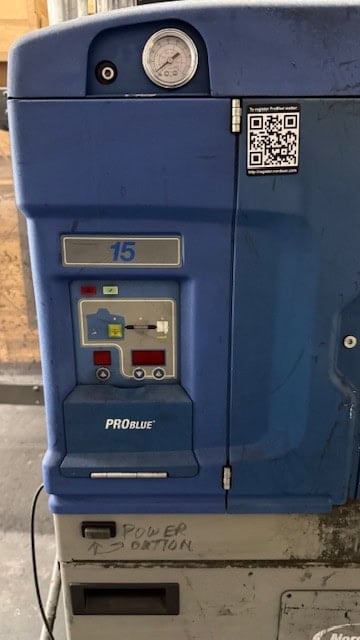

– Nordson ProBlue 15 glue system mounted to the Tray/Bliss frame.
– Rail mandrel guide system.
– Extended stroke feed post.
– Internal flange which is 3-1/2 to 5-inches.

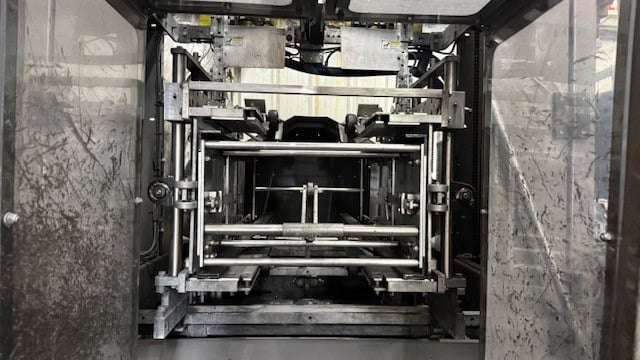

– One forming mandrel (included).
– Heavy duty mild steel / aluminum construction.
– Thiele steel colored enamel paint.
– Electrical service of 460 volts AC, 60 Hz, 3-phase.
– Control voltage is 24 VDC.

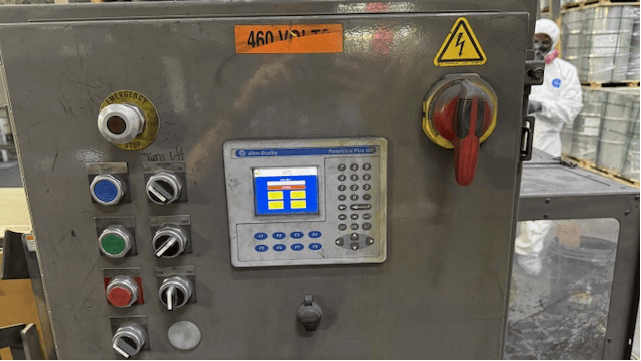

– Allen Bradley MicroLogix 1400 PLC with Ethernet.
– PanelView Plus Compact 400 with color touch screen.
– Variable frequency drive.
NEMA 12 electrical construction.
– Compressed air requirement is 80 PSI (5.5 bar).

Safety Package, Including:
– Interlocked polycarbonate access doors
– Fixed guards and covers (require a tool to be removed)
– Category 3 Safety circuit
– One E-Stop
– Lockable main disconnect (rotary style)
– 2-color stack light (red/green) with audible start-up alarm
– Lockable hand valve (air inlet)
