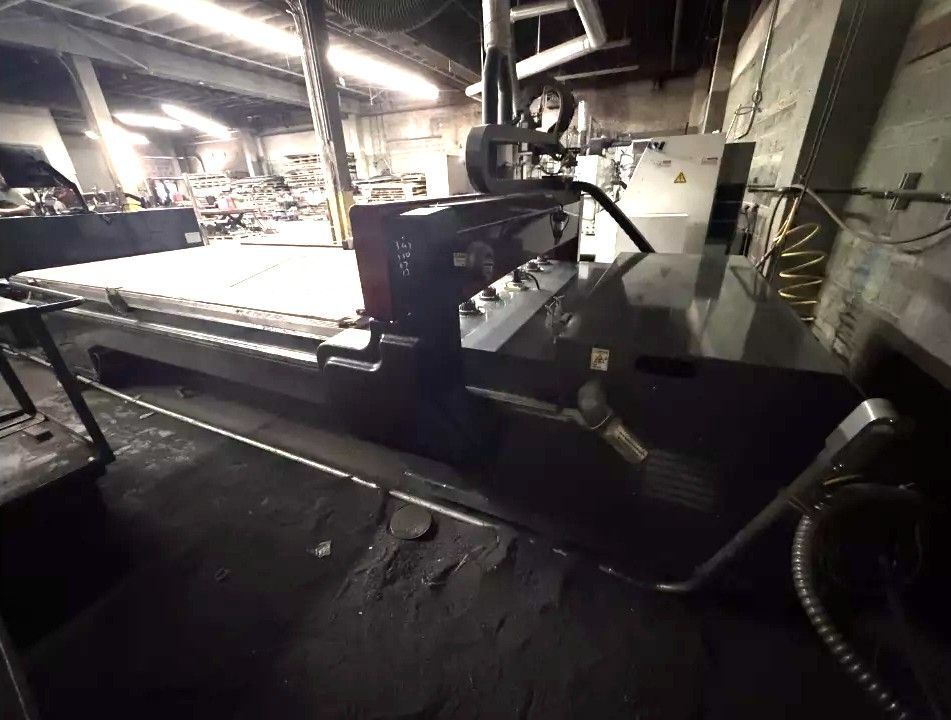

Thermwood #Cut-Ready-Cut-Center, CNC Router, 5' x 10' table, Ultra 6 CNC, vacuum pump, 2021

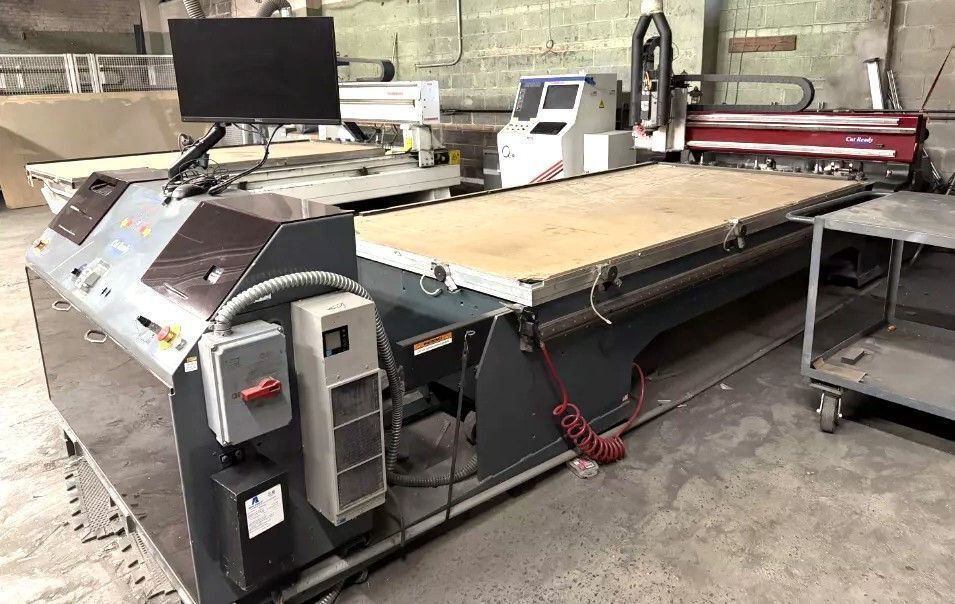

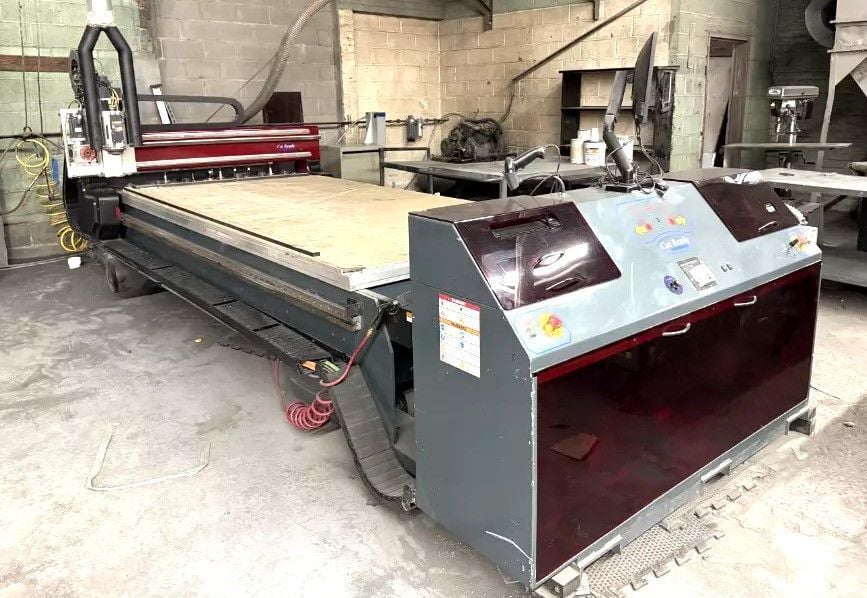

5' X 10' Thermwood Cut Ready Cut Center CNC Router designed for Cabinets, New 2021 Ultra 6 CNC, Vacuum pump, Extra easy programming
MACHINE SPECIFICATIONS
Maximum sheet size 61 X 121

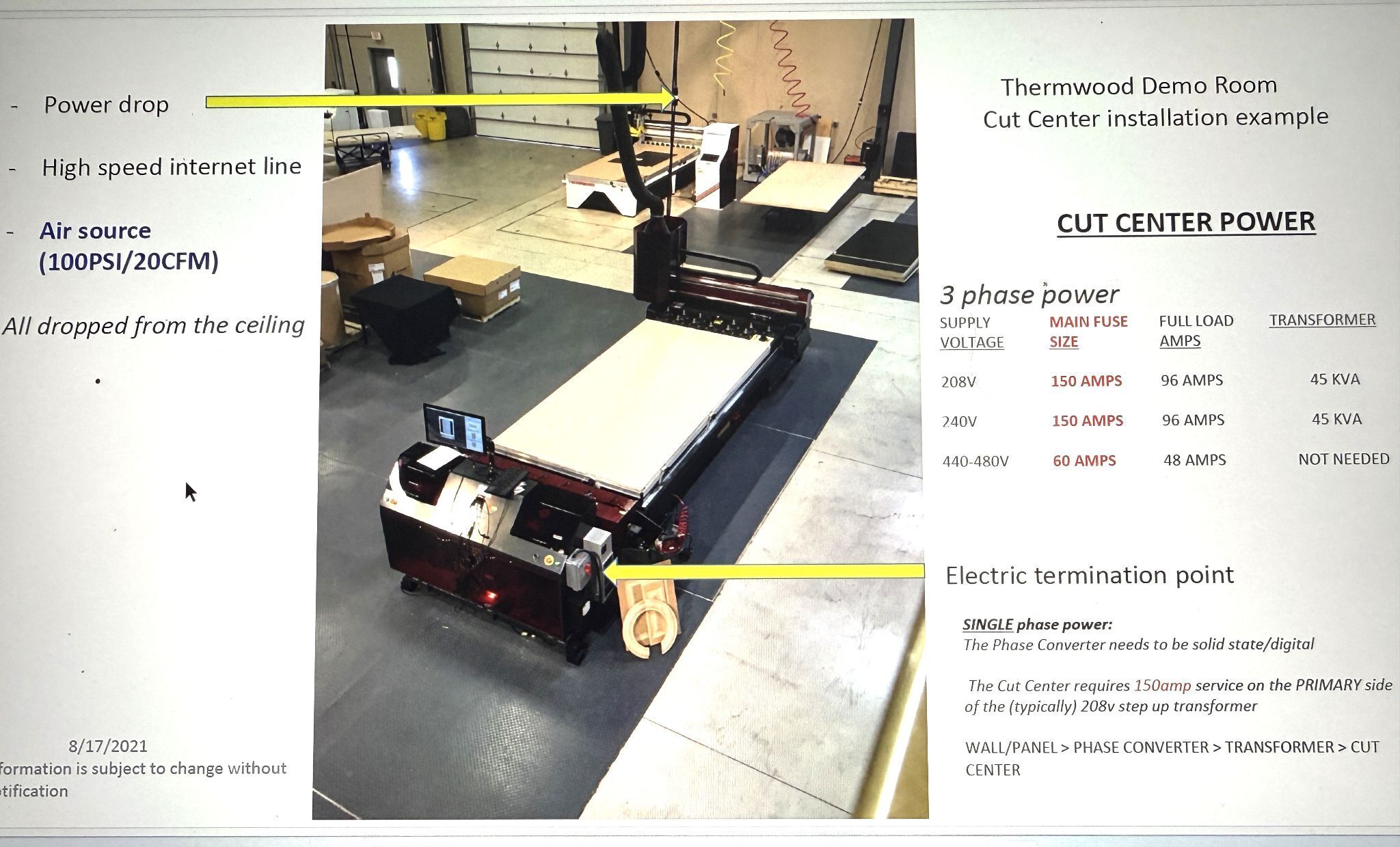

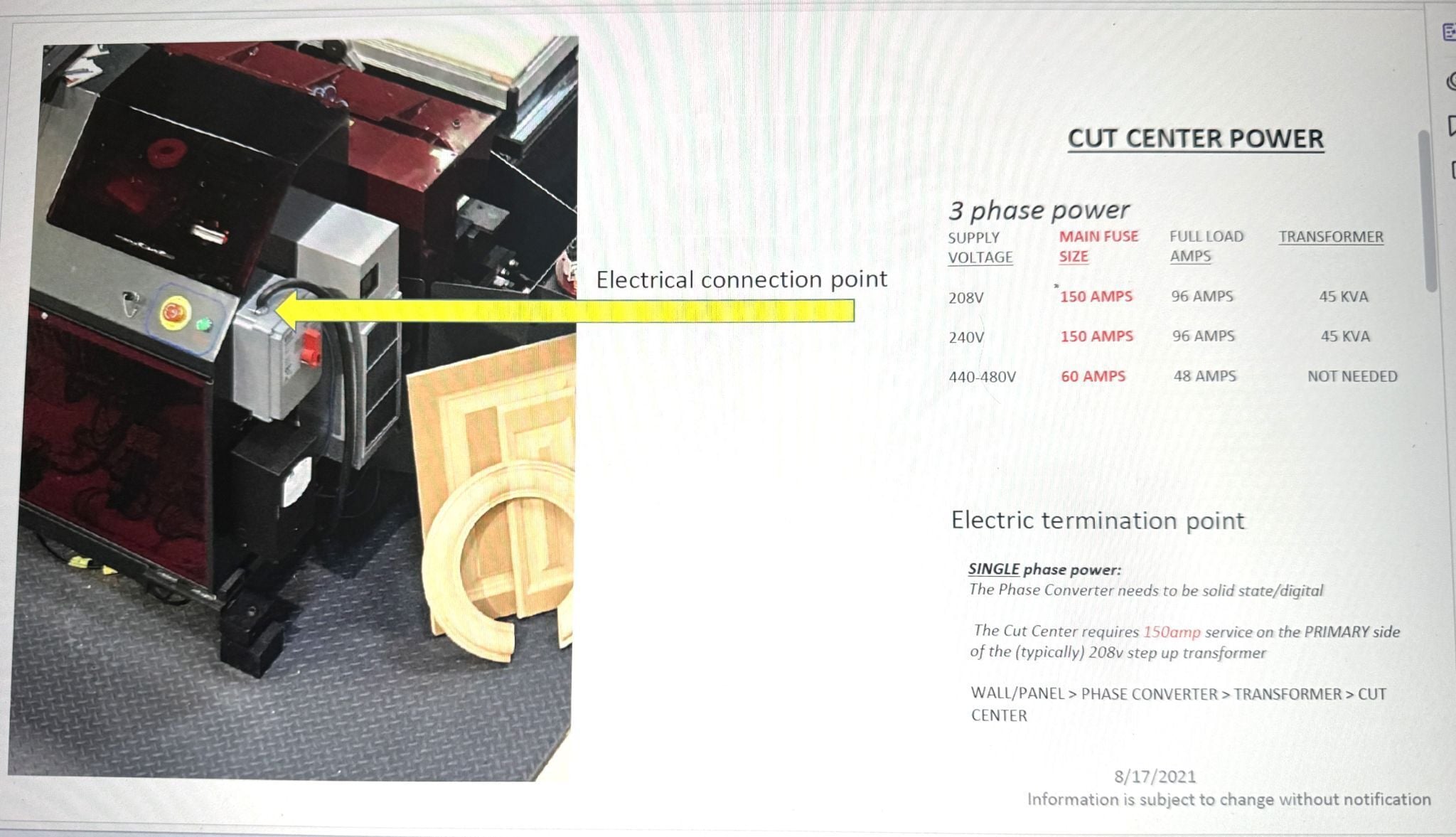

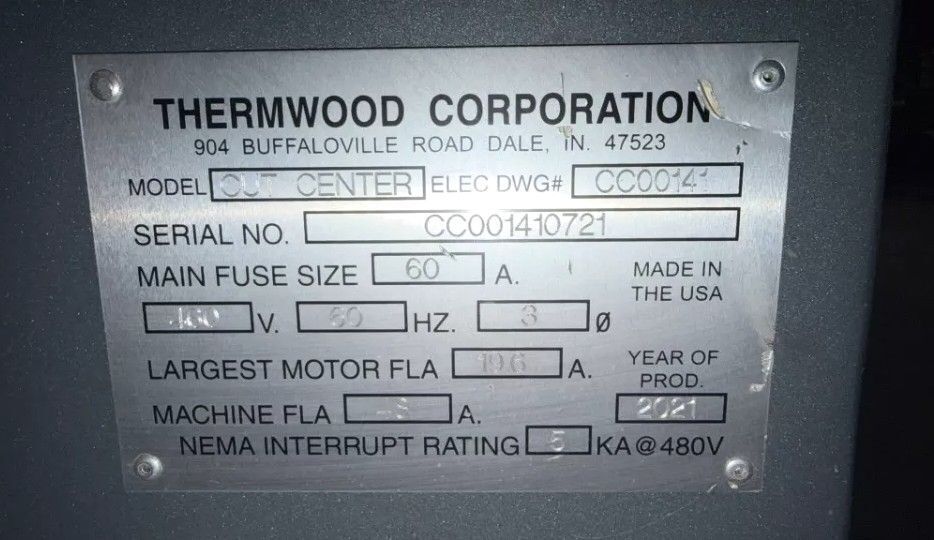

Electrical requirements 380 440 Volt 50 Hz / 440-480V 60Hz 3 Phase power input (other voltages optional). NOTE: A grounding rod with a resistance to ground of 25 ohms or less should be set near the machine. This rod is intended as a supplementary grounding device, and shall not be used as the sole grounding means for the equipment.
Air requirements 30 CFM @ 100PSI (max) utilizing a incoming line
Internet connection required wireless connection is provided if connection is not currently available.
Automatic tool change spindle Horsepower - 12
Max speed RPM - 24,000
Minimum required dust collection 1200 CFM, 6 connection
Vacuum hold down system (internal) Horsepower 15 at 60 Hz
CFM 280
Valve operation automatic

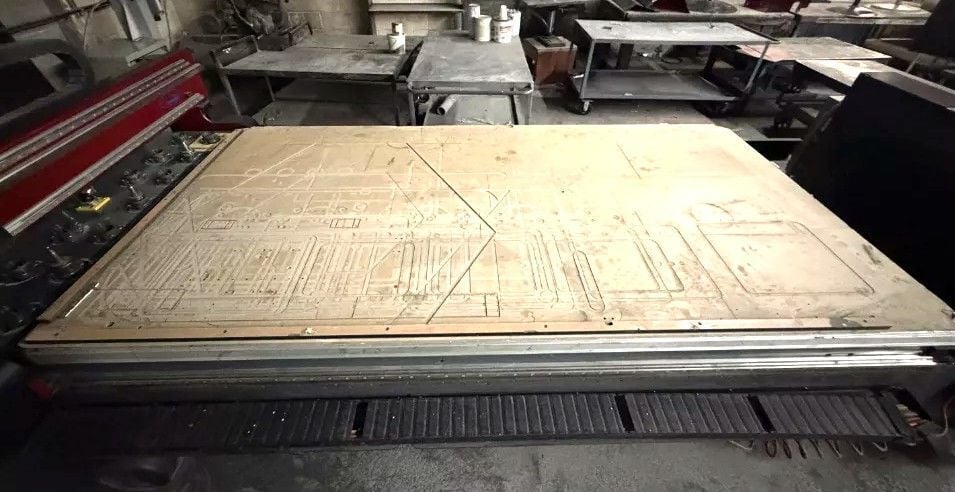

Ultra-flow table design
One (1) MDF high flow vacuum table board
Five (5) MDF high flow vacuum waste boards
Automatic three-stage machining, based on part size
Automatic waste board management
Automatic waste board resurfacing
Automatic table board resurfacing
Three retractable material locator stops with position sensors
Automatic air float system to assist in moving material on the table

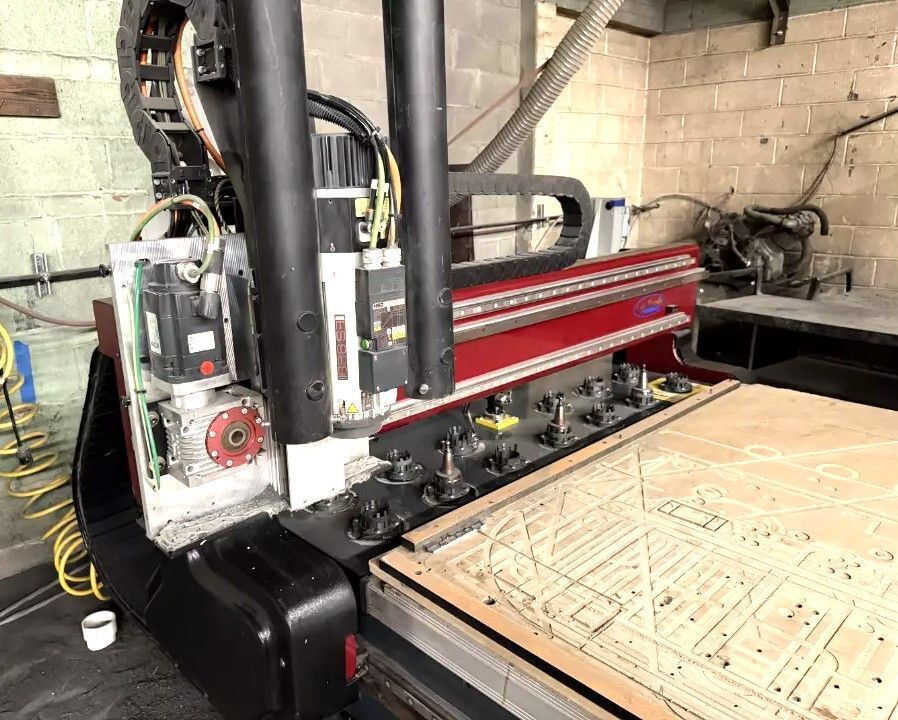

Tooling Automatic tool position management
Automatic tool life monitoring
Automatic tool change system
Automatic tool length and diameter measurement
Automatic tool parameter maintenance
12 tool storage positions (maximum 2 diameter tools)
Tool change station
12 precision balanced tool holders with appropriate tooling installed
Cut ready tool kit (one set)
Tool change station and torque wrench
-

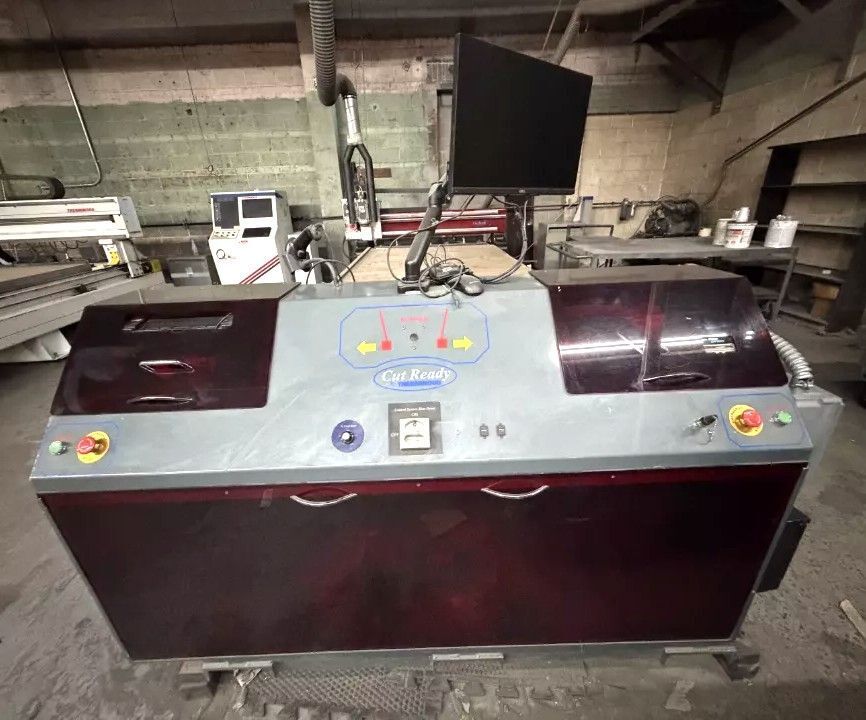

Operator interface
o
Main power switch
o
Start Button (2 locations)
o
Emergency Stop button (2 locations)
o
USB keyboard ready
o
Wearable Clicker/Pause Button
o
23 Inch touch screen display
Adjustable position arm
Video instruction for each step
Gesture interface
Graphic display of products
3D display of products including rotate, zoom, pan and explode
-
System software Version 1.0.27
-
Cut Ready mobile App for remote data entry
-
The system can operate solely as a Cut Center with no CNC Programming required
-
The system can be operated as a CNC router in the traditional manner, running programs generated with virtually any CNC software. This feature activation requires the operator to have successfully completed Thermwoods standard 3 axis machine training class.
-
The system can operate utilizing eCabinetSystems software and following specific design protocols, Custom products can be designed and added to the Cut Center by users and then those items can be run as part of a Cut Center with no further programming
-
Maintenance
o
Automatic routine maintenance management
o
Video instruction for each routine maintenance task
o
Virtual Service, real time, live assistance on the control screen (see current operating hours)
-
Lubrication
o
Automatic oil/grease lubrication
-
Updates
o
System software updates are available as a free download when they are released
o
Product library updates and additions are available as a free download when they are released
