Thermwood #C67DT, 5-Axis Cnc Router, 120" x60" x36" travel, 5' x10' table, 1995

Estimated monthly payment valid upon approved credit.

Request Formal Quote

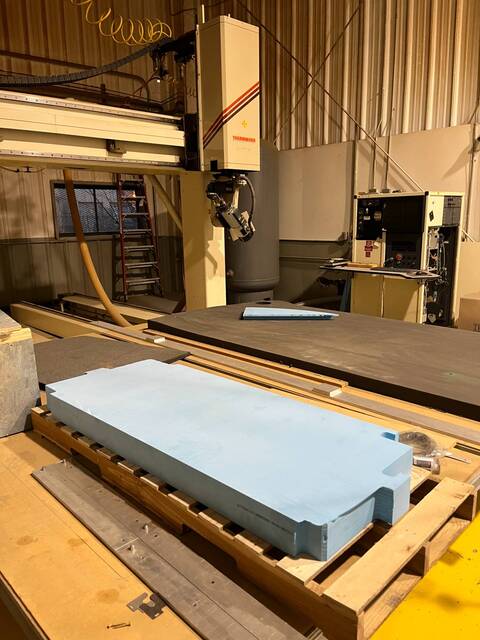

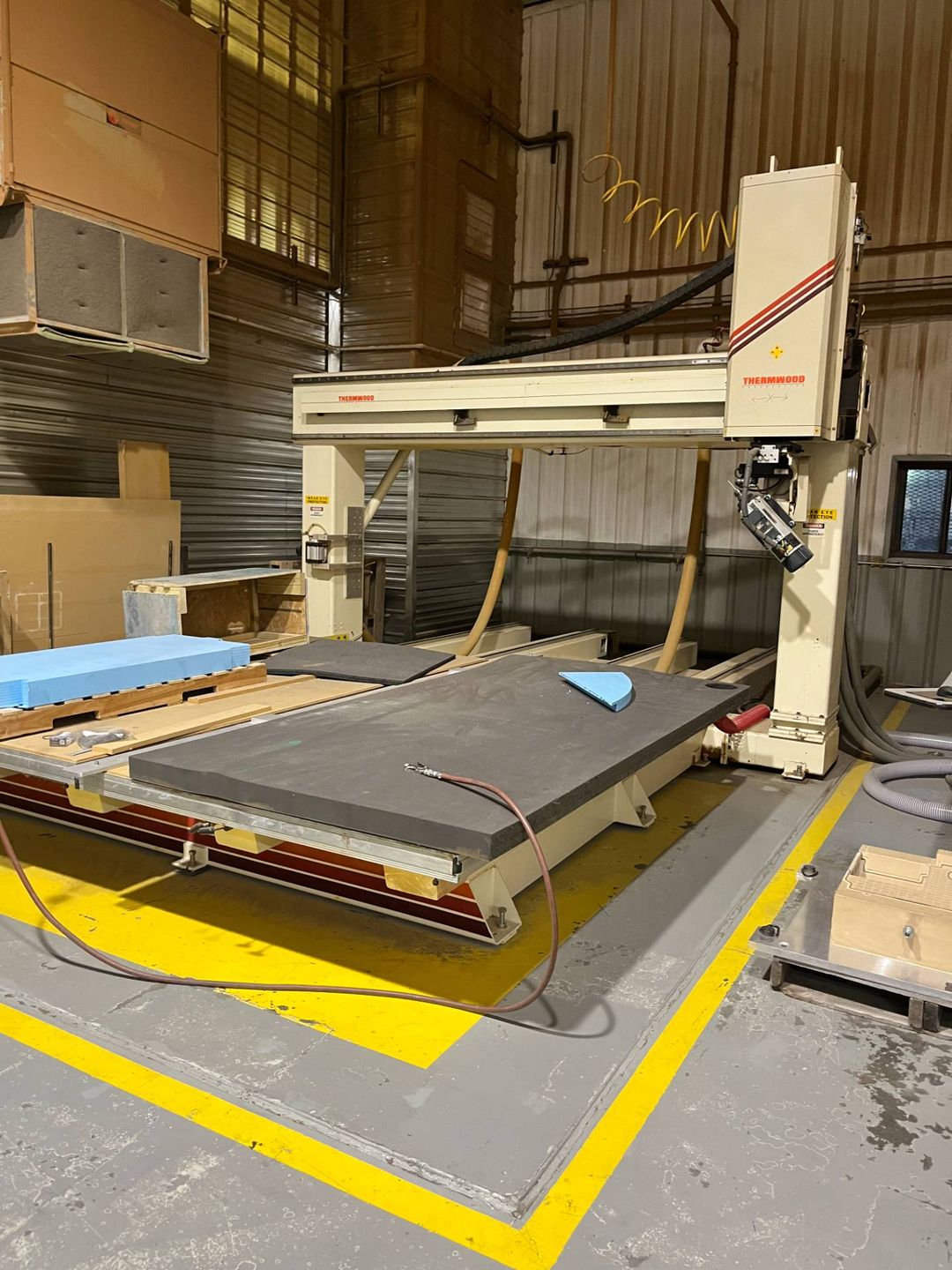

The Thermwood C67DT is a heavy-duty 5-Axis CNC router designed for high-precision trimming of 3D parts, patterns, and molds. This moving-table style machine typically features dual 60-inch by 60-inch (5-foot by 5-foot) aluminum work tables, which can often be locked together to create a single 60-inch by 120-inch (5-foot by 10-foot) machining area. Technical specifications for this model include an X-axis travel of 120 inches, a Y-axis travel of 60 inches, and a Z-axis stroke ranging from 24 to 36 inches, with some configurations supporting up to 48 inches. The rotational axis (C-axis) provides 360-degree movement, while the tilt axis (A/B-axis) offers 180 to 270 degrees of motion.

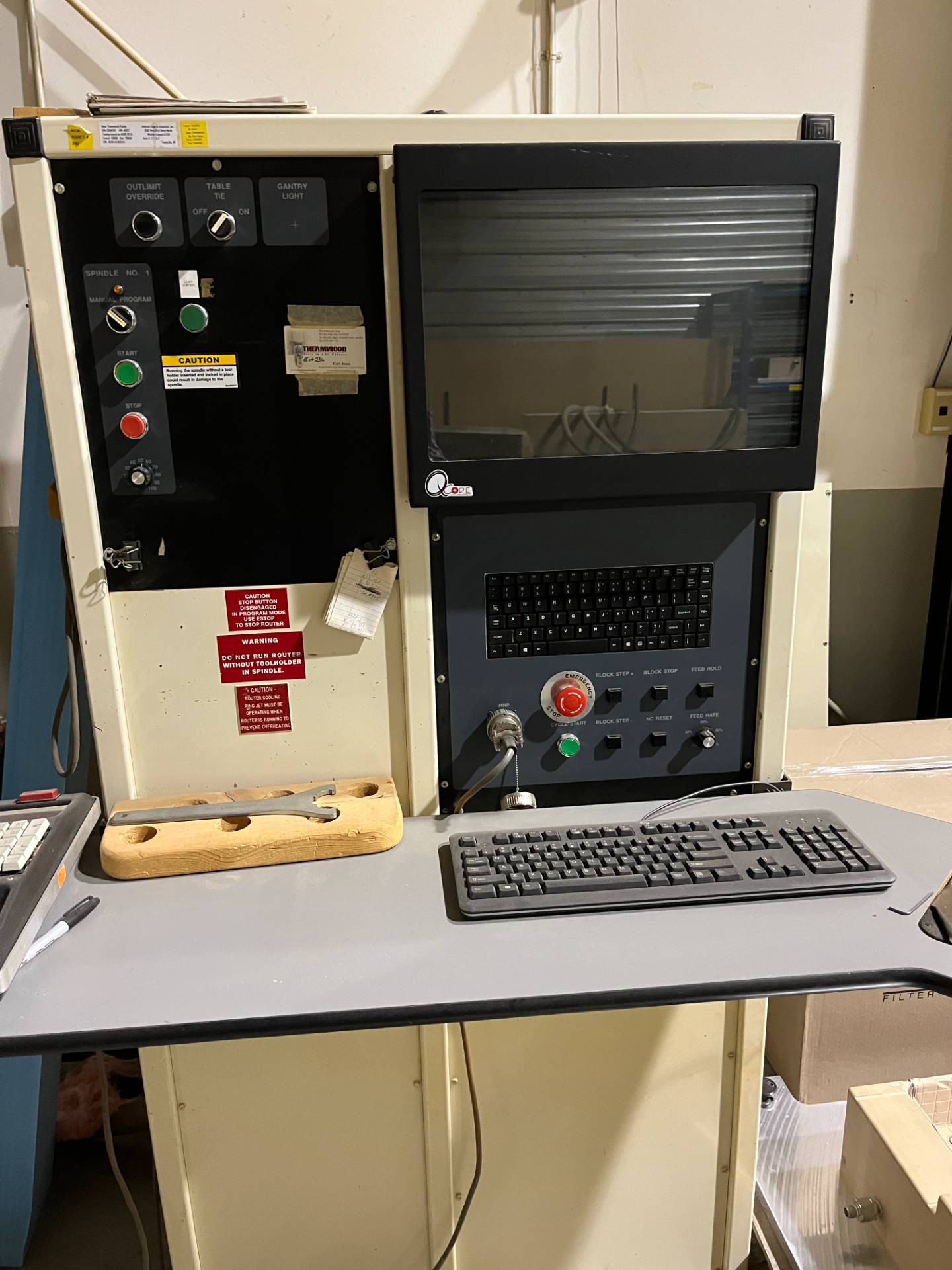

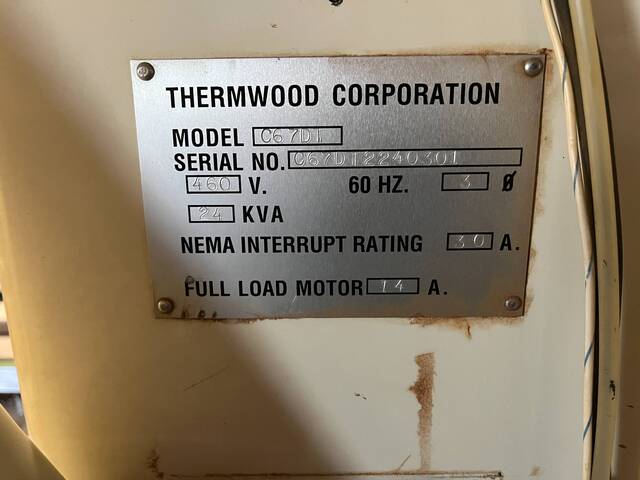

The machine is commonly equipped with a 7.5 HP to 10 HP dual-ended or ATC spindle, capable of speeds between 3,000 and 18,000 or 24,000 RPM. Control is typically managed by the Thermwood 91,000 SuperControl or upgraded Q-Core CNC systems running on Windows-based software. Additional technical features include a 6-position automatic tool changer, Siemens intelligent servo drives, and a multi-function vacuum table with a machined aluminum grid. Electrical requirements are generally 220V, 240V, or 460V, 3-phase, 60 Hz. The C67DT utilizes all-axis ball screw drives to achieve feed rates up to 1,200 inches per minute and incorporates an automatic lubrication system for gantry rail and ball screw bearings.
