Description

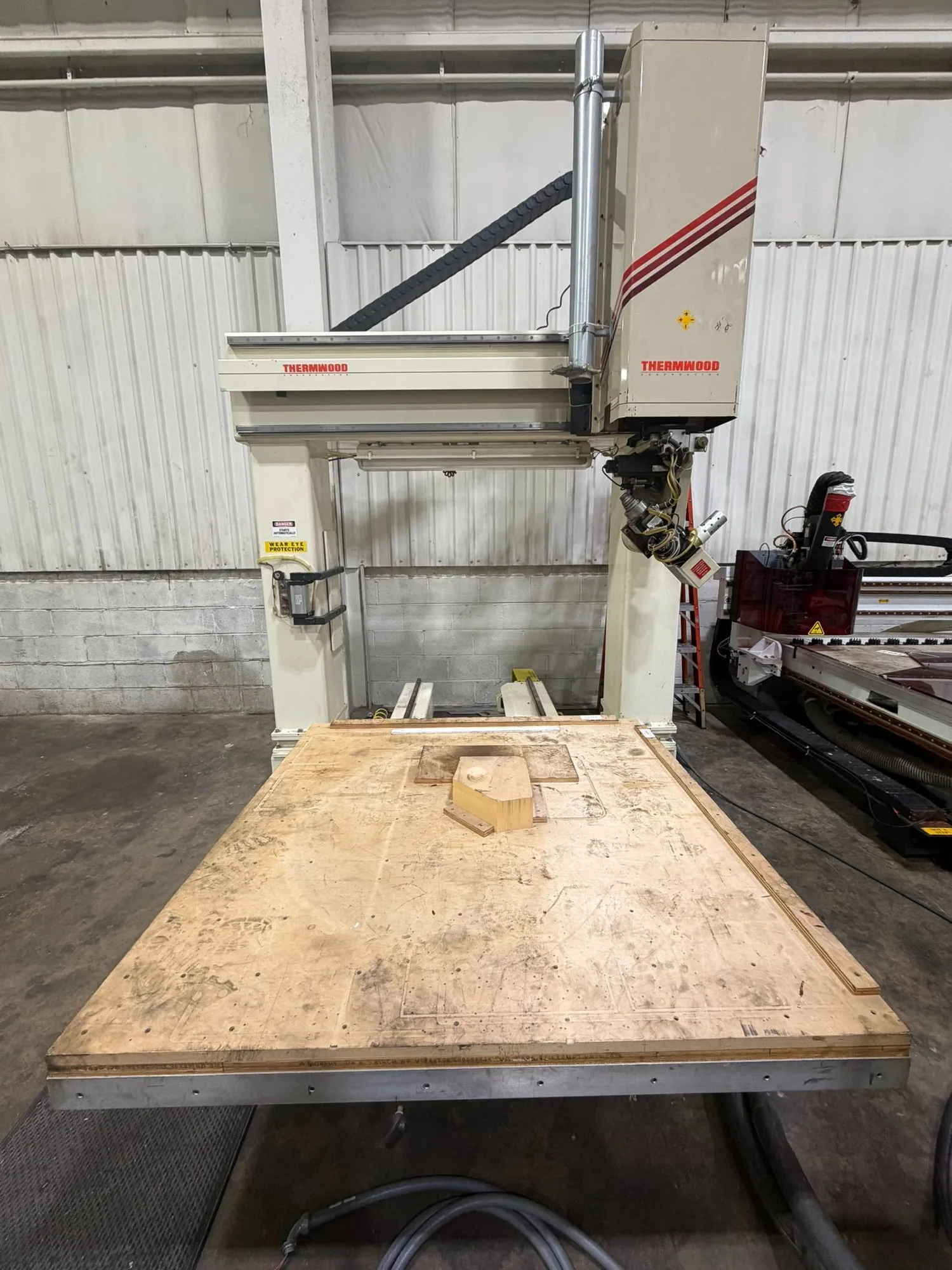

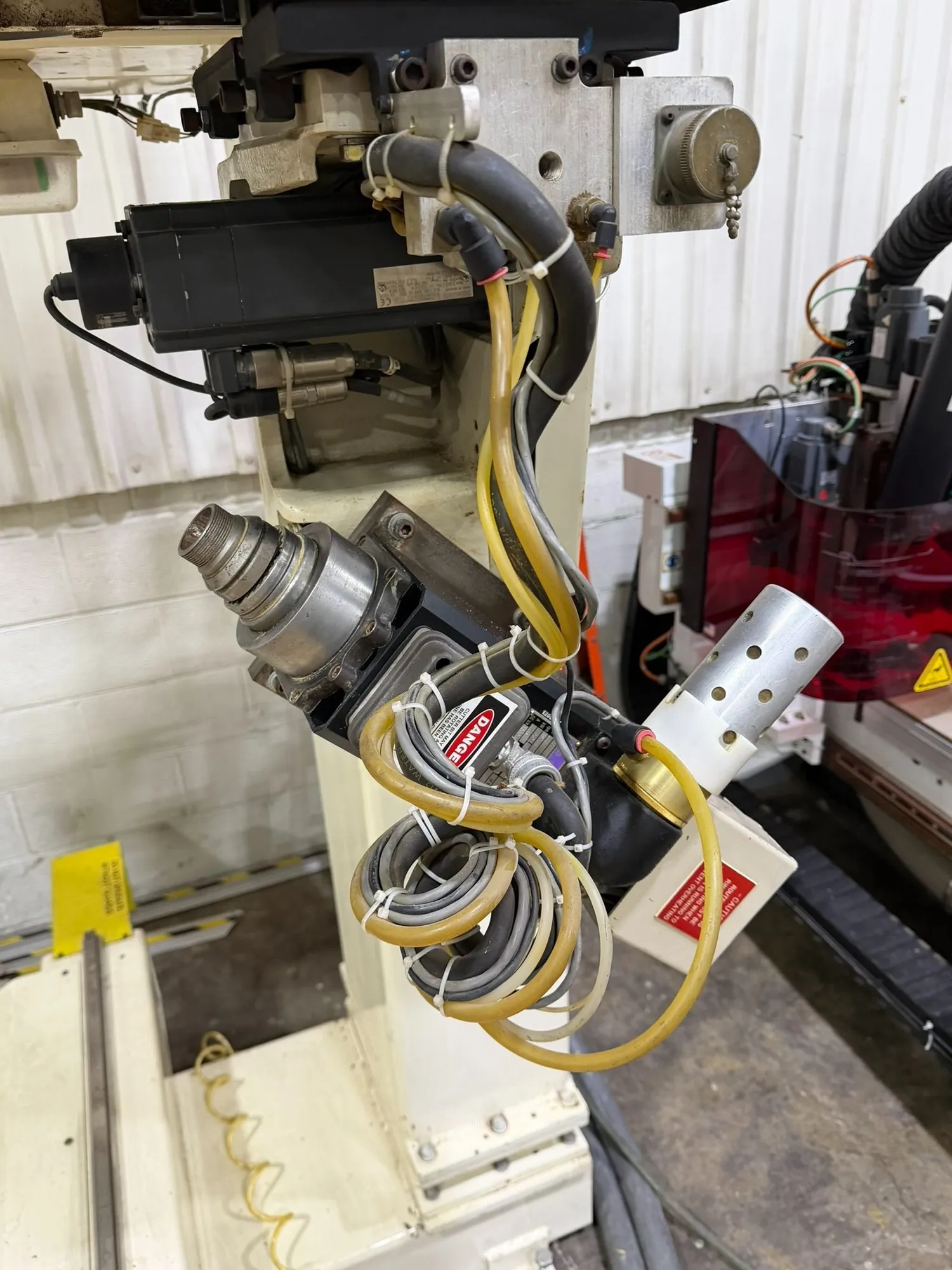

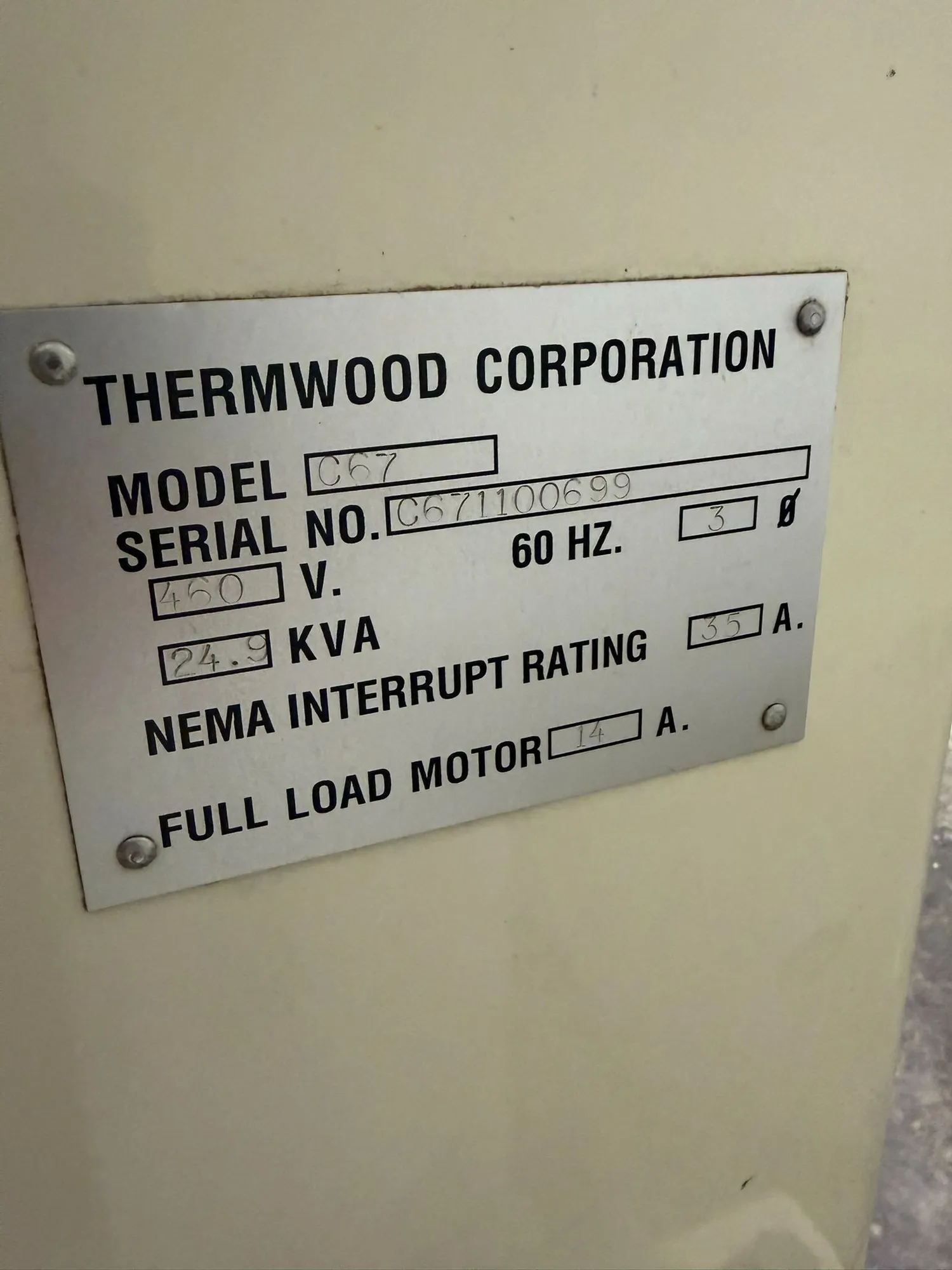

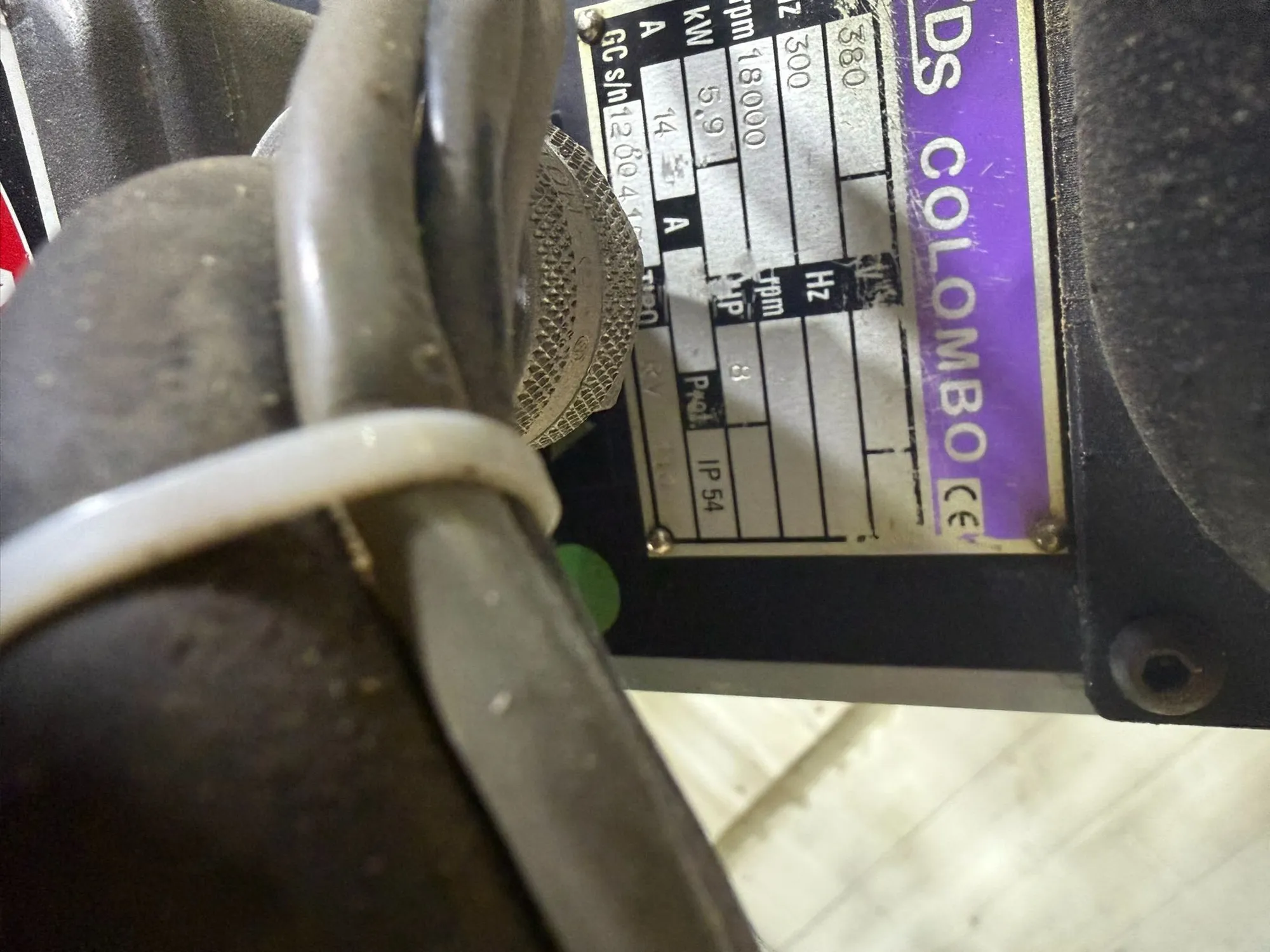

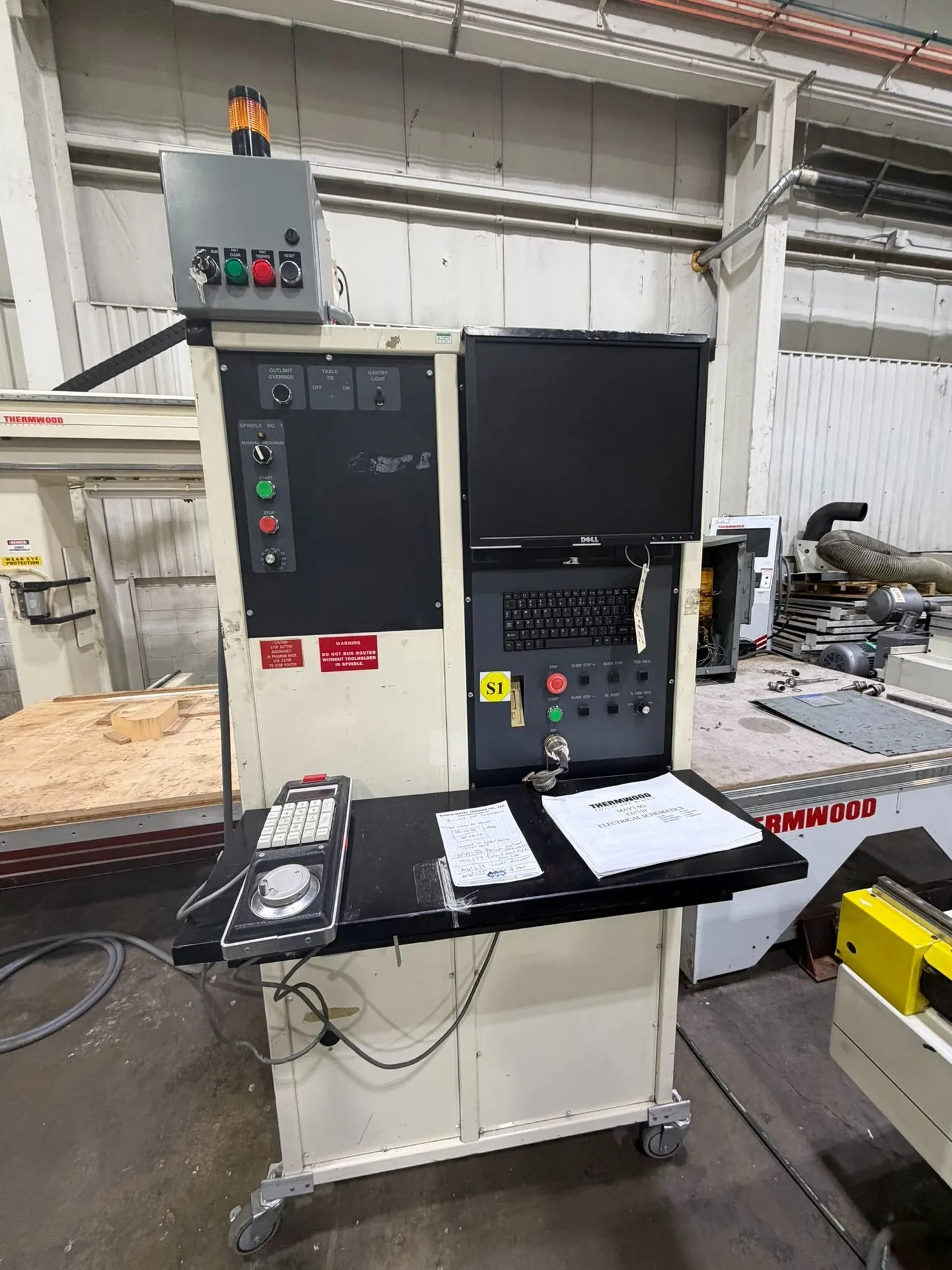

The Thermwood model C67 is a heavy-duty, entry-level 5-Axis CNC router designed for high-speed trimming of three-dimensional parts, patterns, and molds. This specific machine features a 5' x 5' moving solid aluminum table in a fixed-gantry configuration. It is equipped with five programmable axes of motion, including 60 inches of travel in the X and Y axes and 24 inches of Z-axis stroke. Rotary capabilities include 360-degree C-axis rotation and 180-degree B-axis tilt, supporting full five-axis simultaneous motion. The spindle system consists of an 8 HP Colombo dual-end spindle capable of variable speeds ranging from 3,000 to 18,000 RPM. Tool management is handled by a 6-position gantry-leg automatic tool changer. The machine is operated via a Thermwood CNC Windows-based SuperControl system, which utilizes Siemens intelligent servo drives and 3D laser-compensated axis alignment for high-precision repeatability. Additional features include an automatic lubrication system and a hand-held teach pendant for manual positioning. Performance specifications include feed speeds up to 900 IPM. Electrical requirements are 220 or 440 volt, 3 phase, 60 cycle, with a compressed air requirement of 90 PSI. The engineered steel construction provides a rigid platform for industrial applications in the aerospace, automotive, and composites industries.
Used Thermwood C67S (2004) CNC Router for Sale. This 4-axis machine has a 60″ x 120″ table with 2-zone vacuum hold down and 24″ of Z-axis travel. It runs a Colombo 7.4 HP spindle and is operated through Gen2 Super Controllers on a Windows XP operating system. Power requirement is 460v, 3ph, 60 hz. ...more
