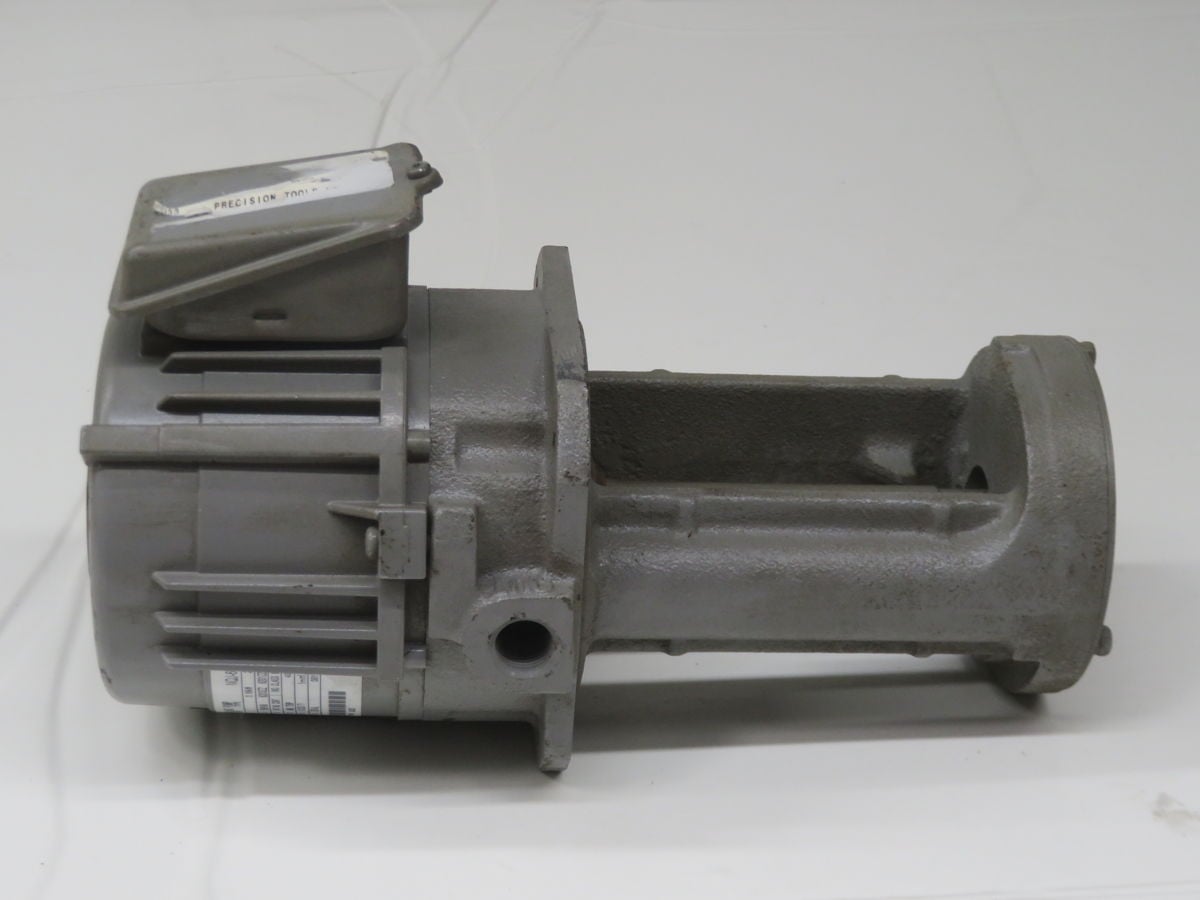

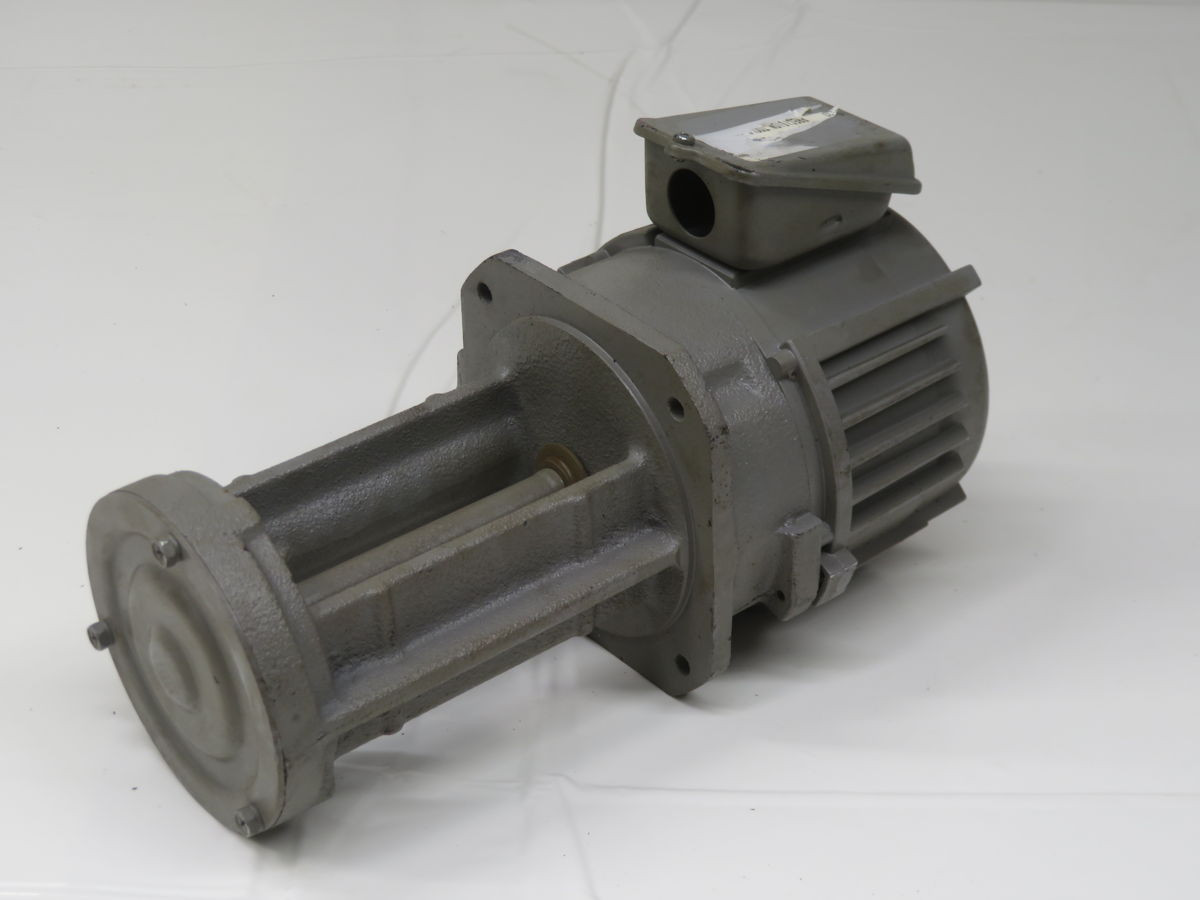

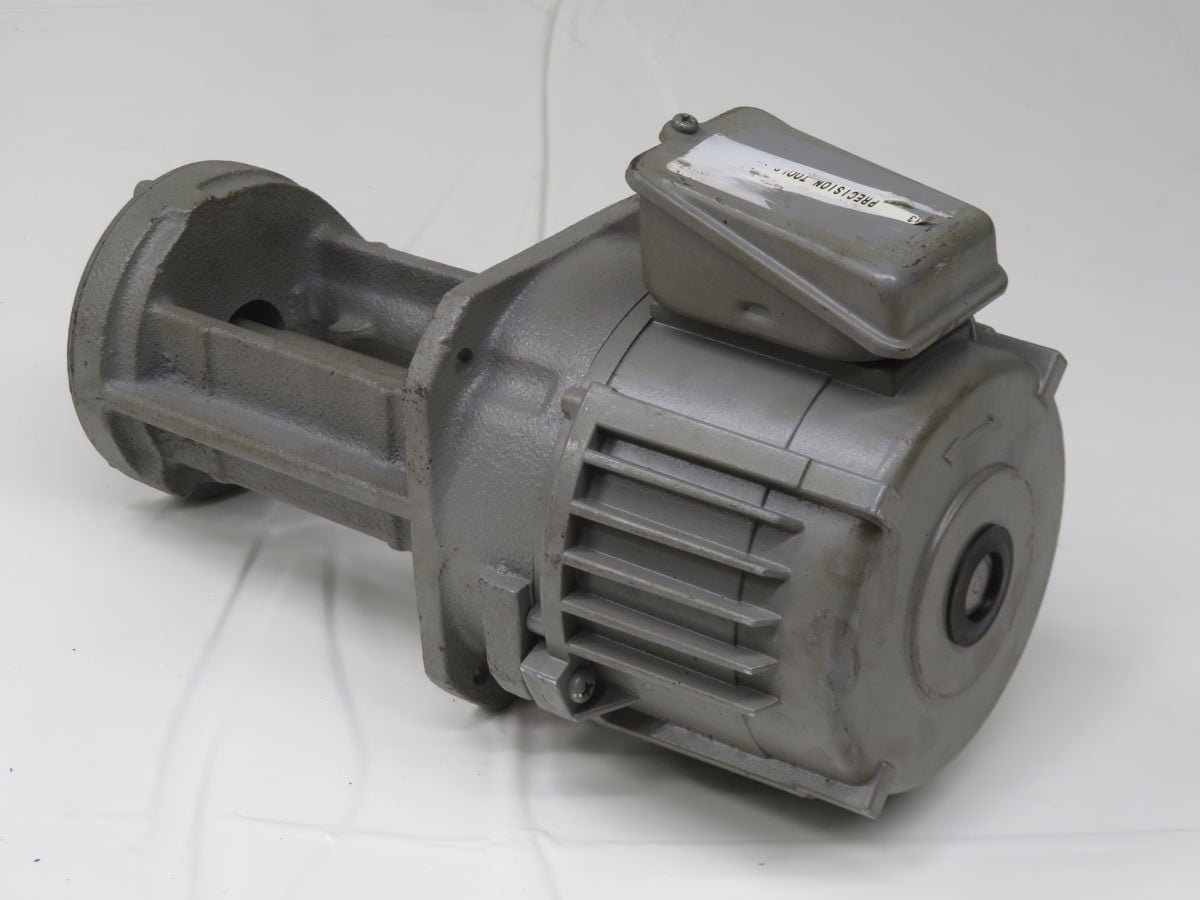

Teral #NQJ-60E, Coolant Pump, 54 L/Min. max discharge, 4.3 M max head, 0.06 KW, 200 V., 50/60 Hz., IP44, Rc 1/2 discharge bore

$3,499 USD

Request Formal Quote

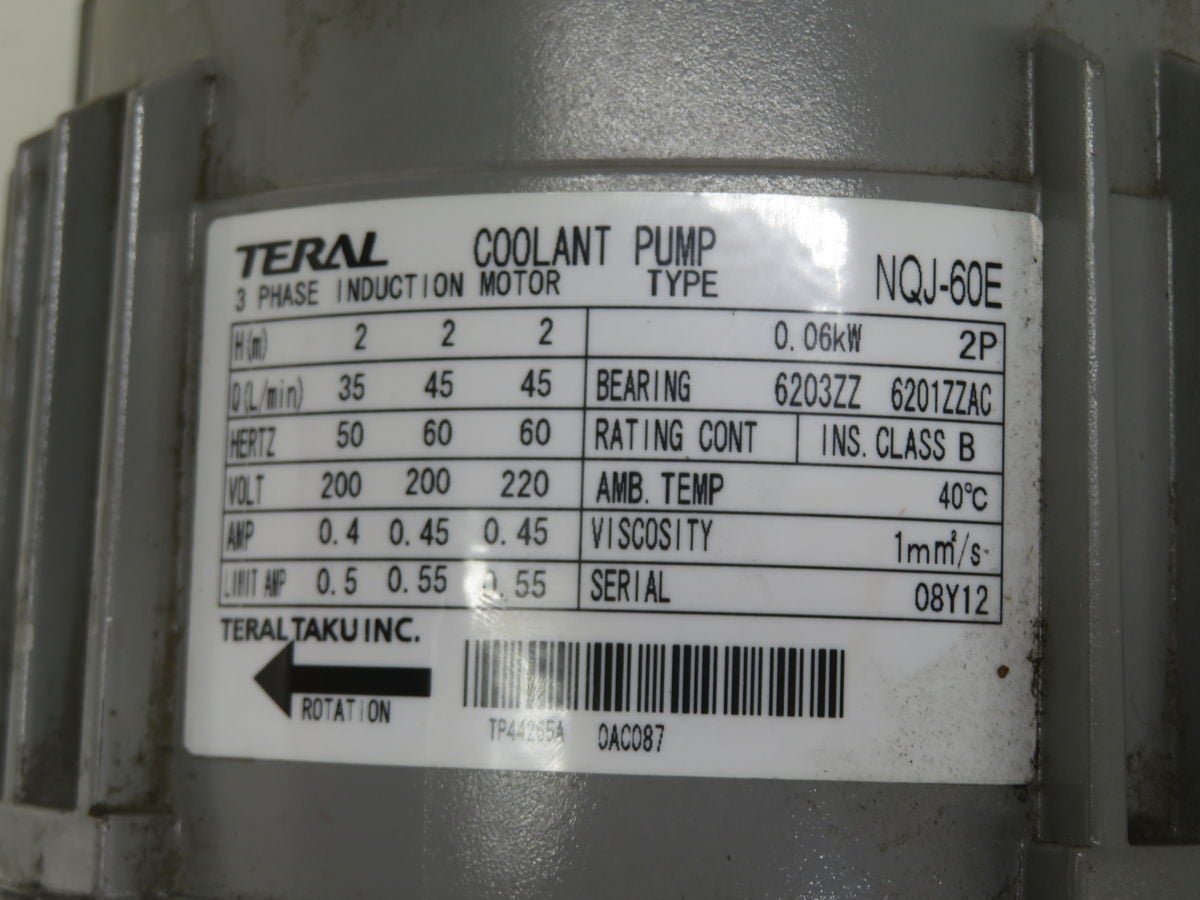

The Teral NQJ-60E is a coolant pump powered by a 0.06kW, 2-pole, fully enclosed, externally fan-cooled induction motor. It operates on 200V at a frequency of 50/60 Hz, drawing 0.4A. The pump features 6203ZZ and 6201ZZAC bearings. It delivers a rated discharge of 30 L/min at 50Hz with a 2.0 M total head, and 36 L/min at 60Hz with a 2.8 M total head. Maximum discharge capacity is 45 L/min at 50Hz and 54 L/min at 60Hz, reaching a maximum total head of 3.0 M at 50Hz and 4.3 M at 60Hz. The discharge bore is Rc 1/2. Constructed with a cast iron (FC200) case and a stainless steel (SUS403) shaft, it utilizes a PPS (polyphenylene sulfide) impeller. The unit has an IP44 protection class, E insulation class, and is designed for liquid temperatures ranging from 0 to 60 °C. The total weight of the pump is 4.8 kg.
