Description
Disclaimer
All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

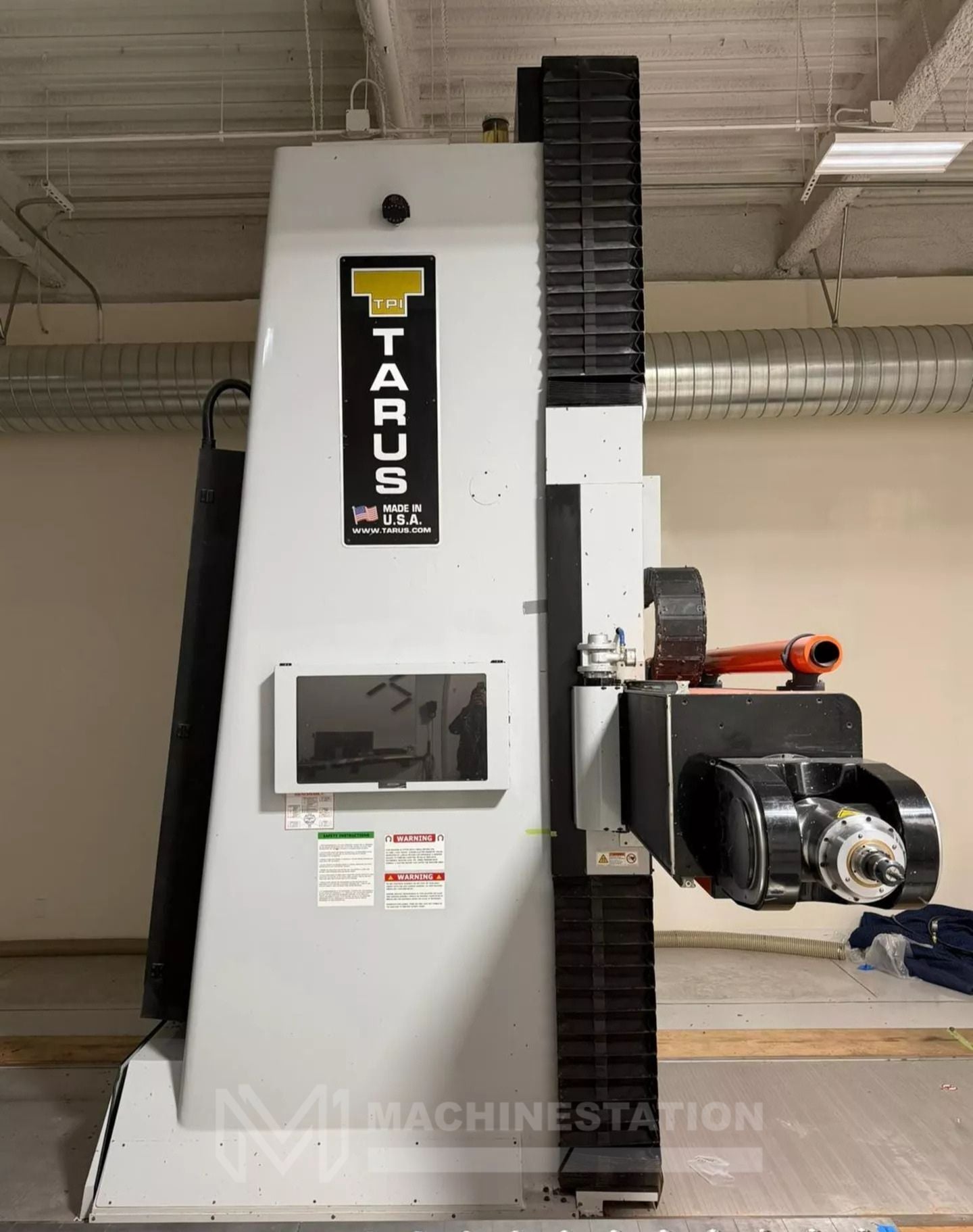

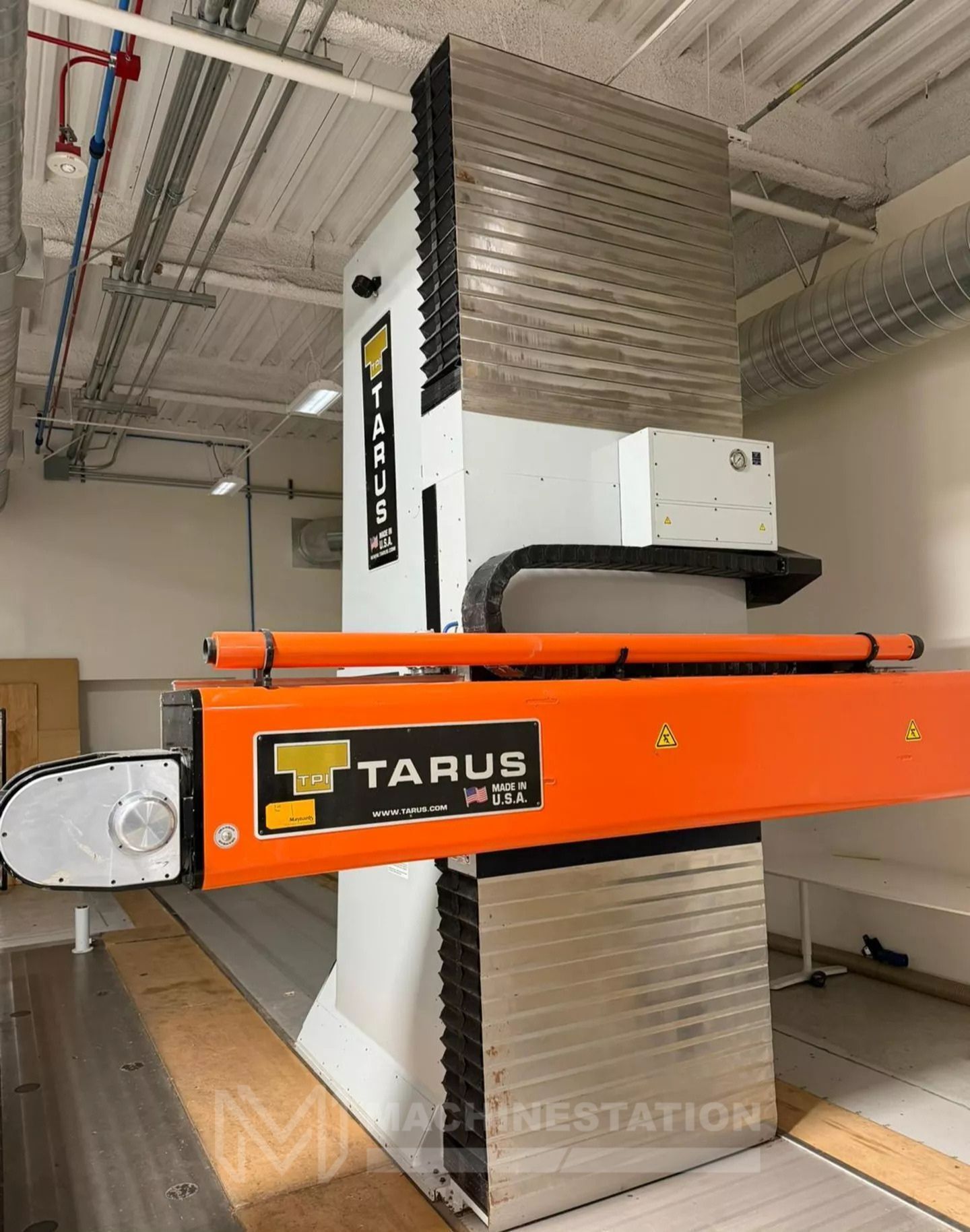

TPSCHSM 5-Axis CNC Control
Continuous 5-Axis Machining Capability
Travels:
X-Axis Travel: 298.5"
Y-Axis Travel: 79.0"
Z-Axis Travel: 64.2"
A-Axis Rotation: ±109°
B-Axis Rotation: ±180°

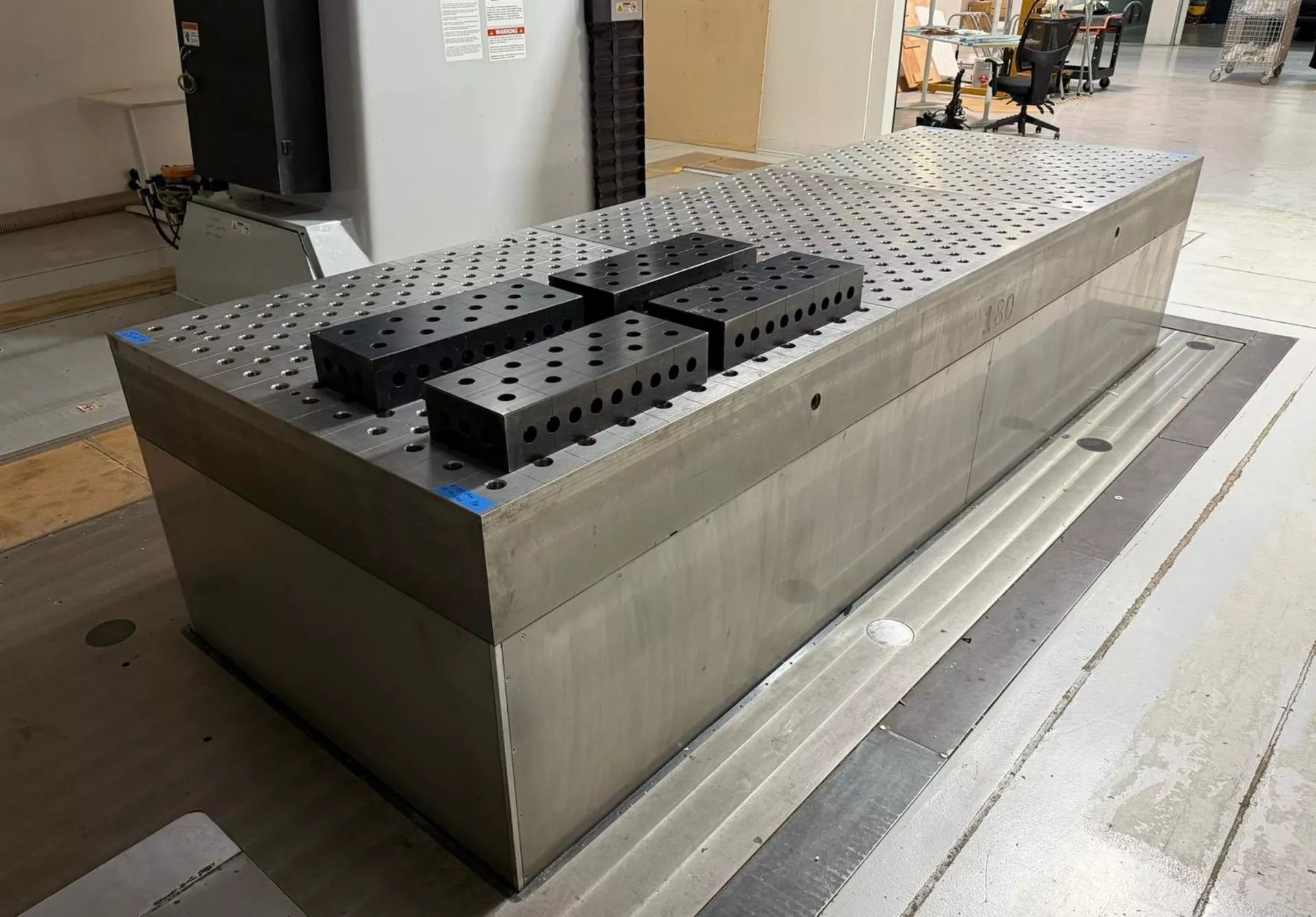

Table:

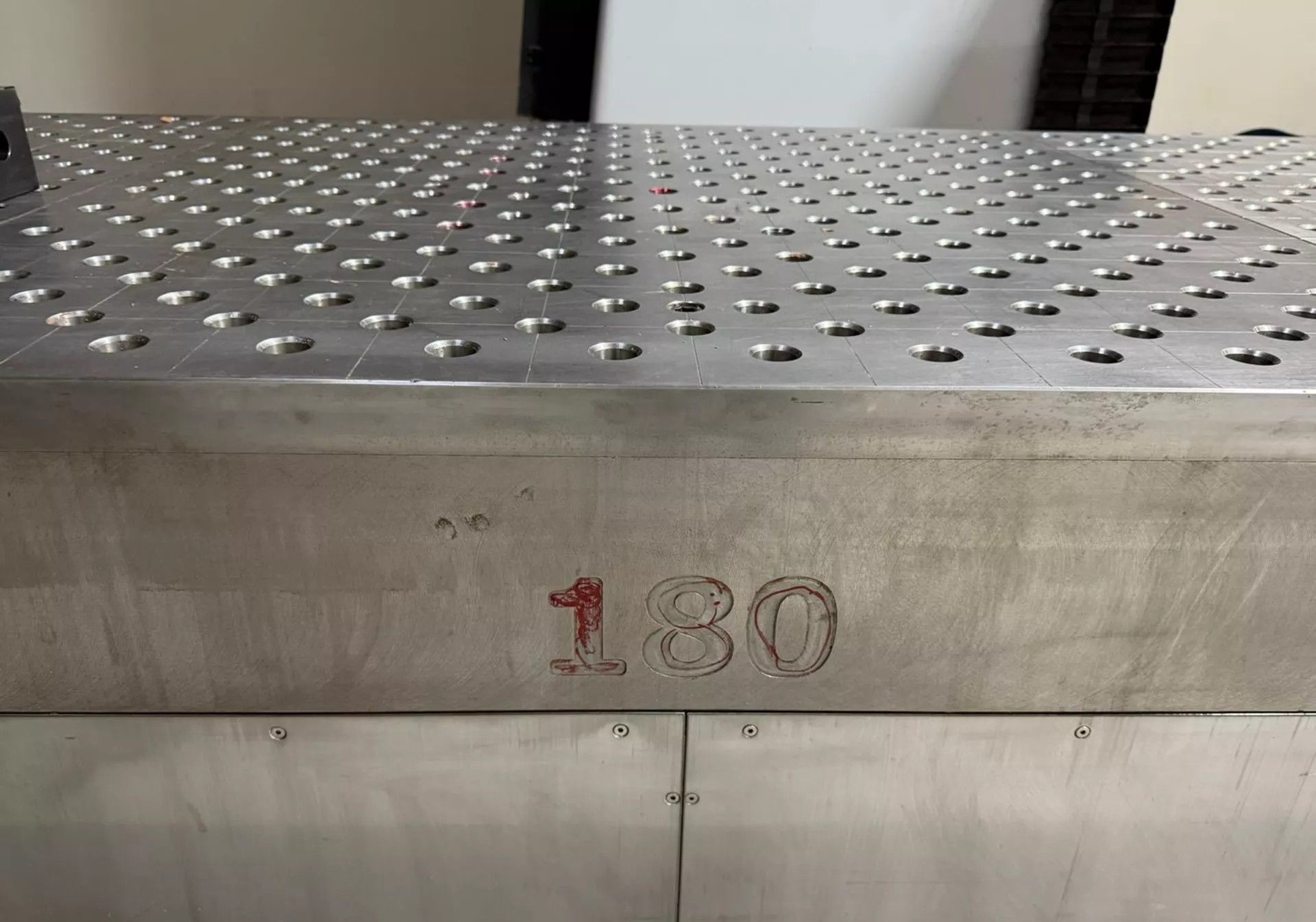

Table Size: 48" × 144"

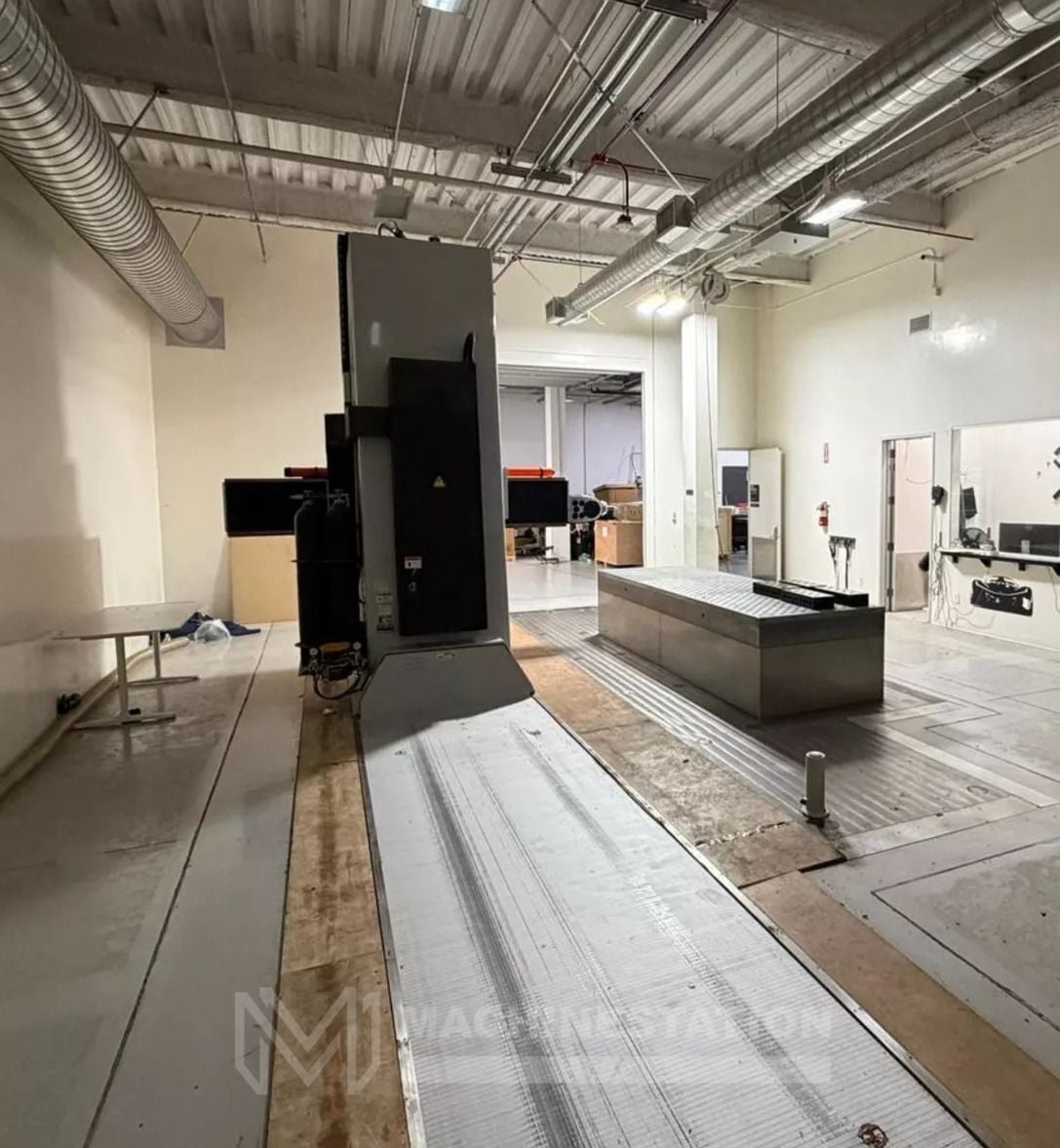

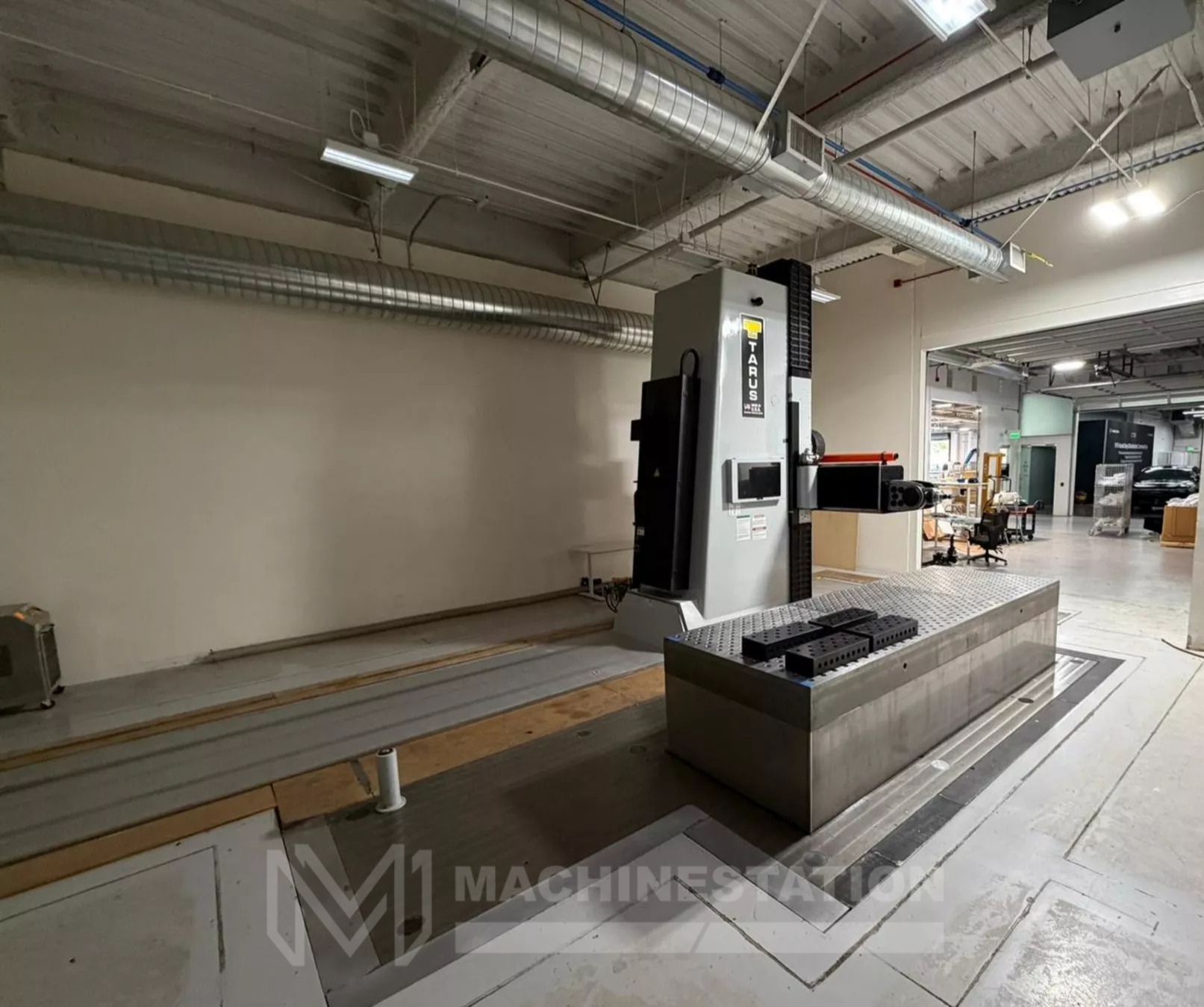

Table Type: In-Ground Machine Table

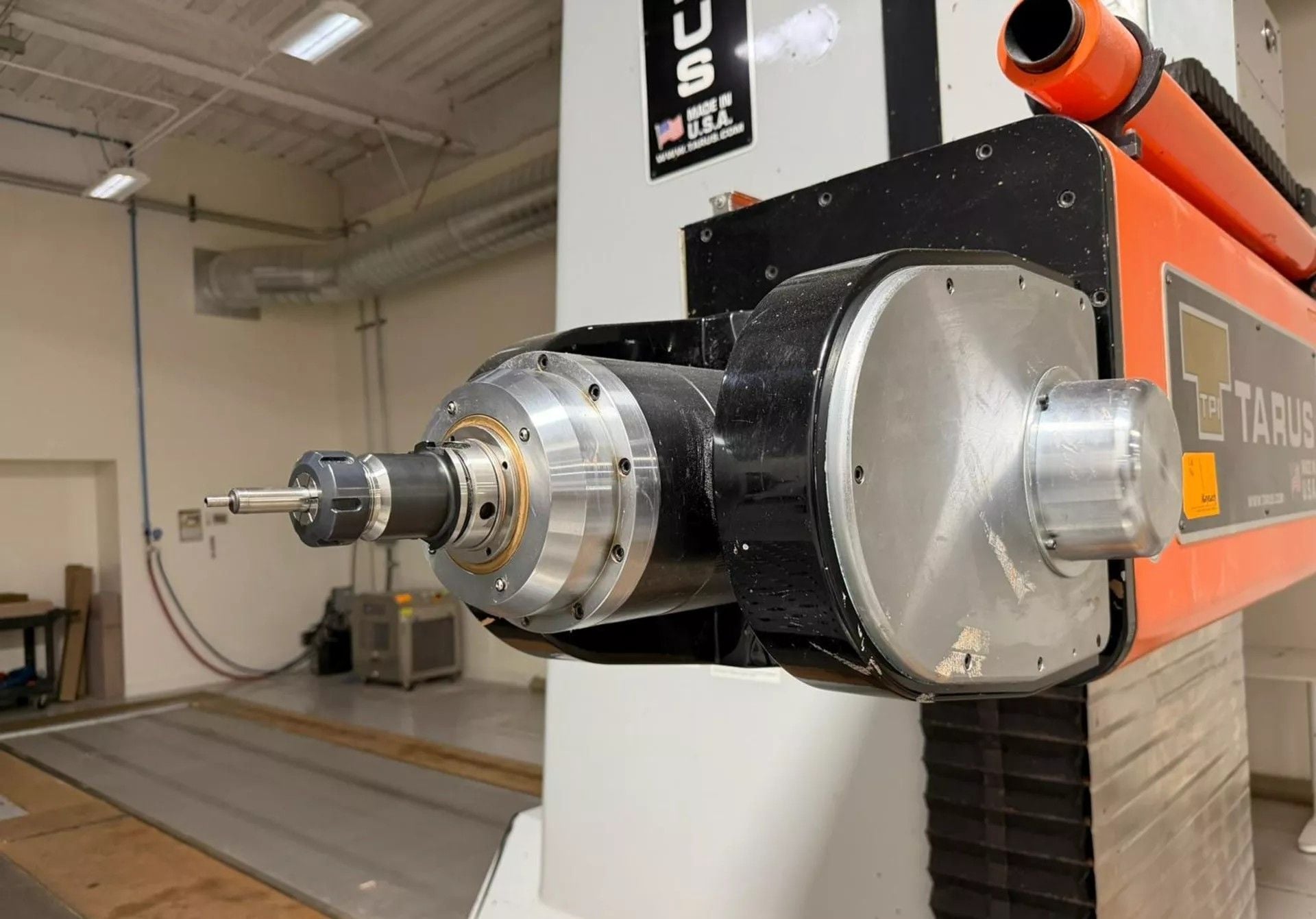

Spindle
Spindle Speed: 15,000 RPM
Spindle Taper: HSK-63
General:
Power Requirement: 480 Volt / 3 Phase / 60 Hz / 100 AMPS
Overall Floor Space Required: 190" W × 437.25" L Approx.
Column Height: 166.5" Approx.

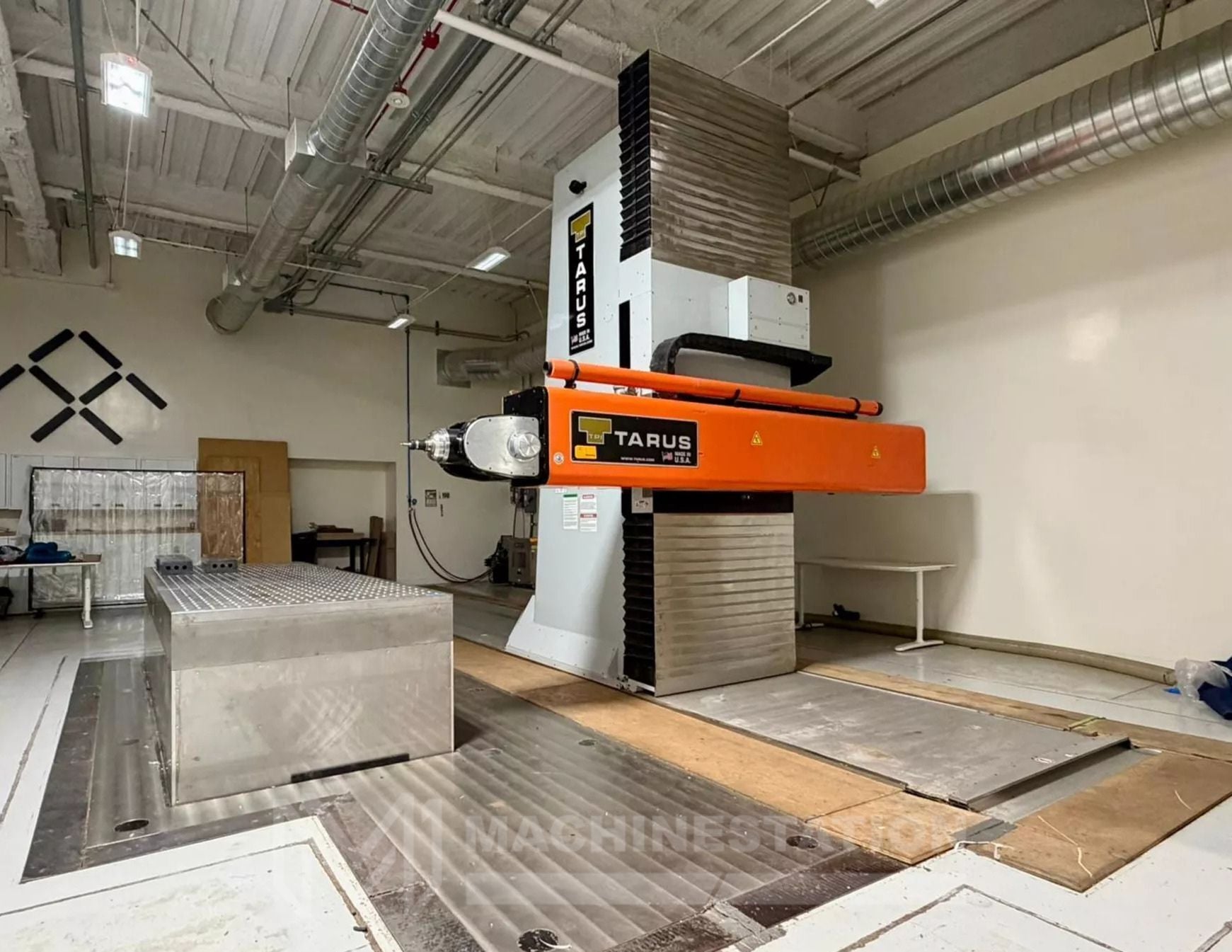

Designed to Provide 5-Axis Milling Capability for Modeling and Prototyping Clay and Low Density Foam Components in Product Development in Automotive, Aircraft, and Defense Related Industries.
All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:
TPSCHSM 5-Axis CNC Control
Continuous 5-Axis Machining Capability
Travels:
X-Axis Travel: 298.5"
Y-Axis Travel: 79.0"
Z-Axis Travel: 64.2"
A-Axis Rotation: ±109°
B-Axis Rotation: ±180°
Table:
Table Size: 48" × 144"
Table Type: In-Ground Machine Table
Spindle
Spindle Speed: 15,000 RPM
Spindle Taper: HSK-63
General:
Power Requirement: 480 Volt / 3 Phase / 60 Hz / 100 AMPS
Overall Floor Space Required: 190" W × 437.25" L Approx.
Column Height: 166.5" Approx.
Designed to Provide 5-Axis Milling Capability for Modeling and Prototyping Clay and Low Density Foam Components in Product Development in Automotive, Aircraft, and Defense Related Industries.
