For Sale by Scott Machinery & Supply Inc
Description

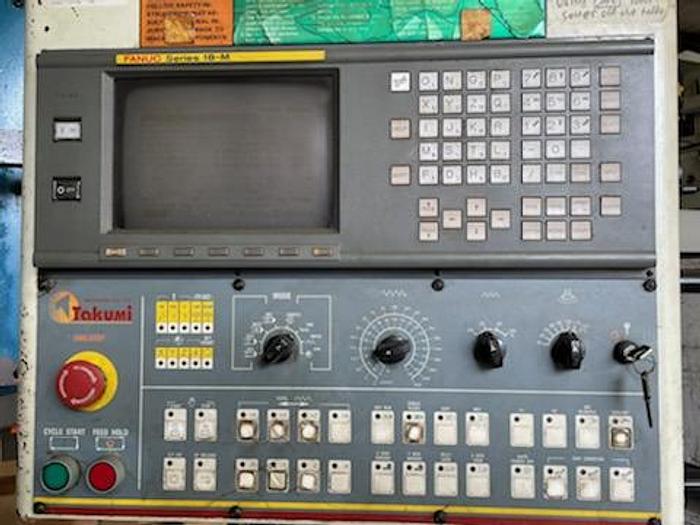

CONTROL: Fanuc 18m
TABLE WORKING SURFACE.................: 86.6" x 40"
TABLE CAPACITY........................: 6614 LBS.
TABLE TO SPINDLE .....................: 6" TO 42"
TABLE TO FLOOR .......................: 34"
SPINDLE CENTER TO COLUMN WAYS.........: 37"
LONGITUDINAL TRAVEL (X-AXIS) .........: 86.6"
CROSS TRAVEL (Y-AXIS) ................: 40"
VERTICAL TRAVEL (Z-AXIS)..............: 29.5"
FEED RATES, ALL AXES .................: 0 - 197 IPM
RAPID TRAVERSE RATE ..................: 0 - 472 IPM/ X & Y

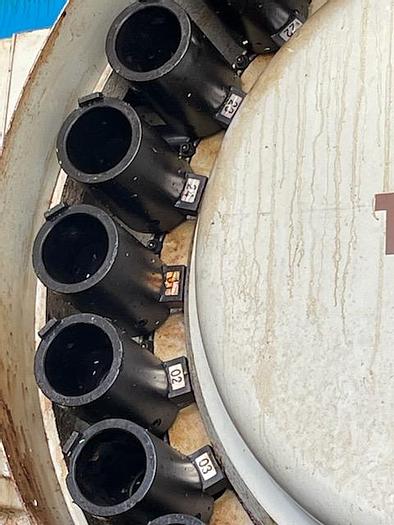

TOOL STORAGE CAPACITY ................: 24 Stations
SPINDLE HORSEPOWER....................: 30/35 HP
SPINDLE SPEEDS RANGE..................: 0 6,000 RPM GEARED
SPINDLE TAPER.........................: CAT #50
MACHINE WEIGHT........................: APPROX. 43,000 LBS.
EQUIPPED WITH:
(2) CHIP CONVEYORS
Ciller Unit
Auto Lube
Upgraded Spindle bearings
Hand Held Manual Pulse Generator
Machine Manuals
Ethernet connection

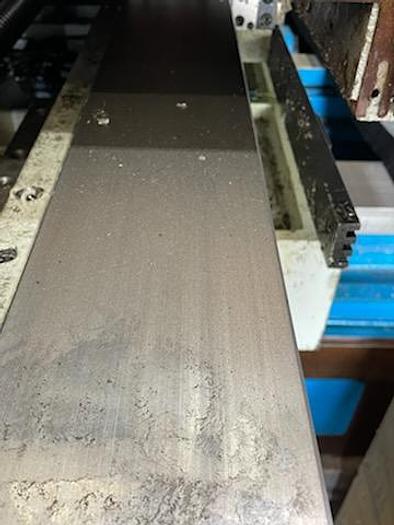

Box Ways
Specifications

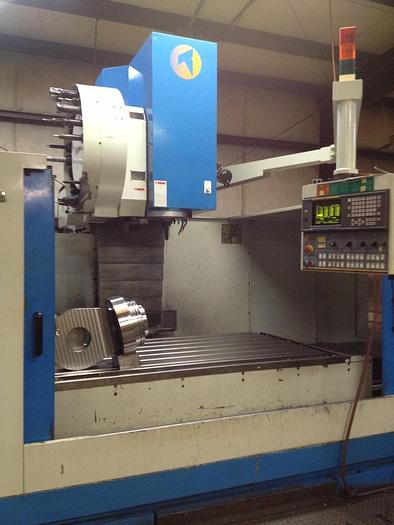

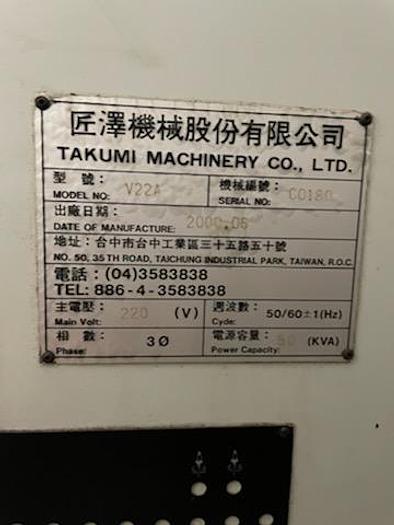

| Manufacturer | Takumi |
| Model | V22A |
| Year | 2000 |
| Condition | Used |
