Description

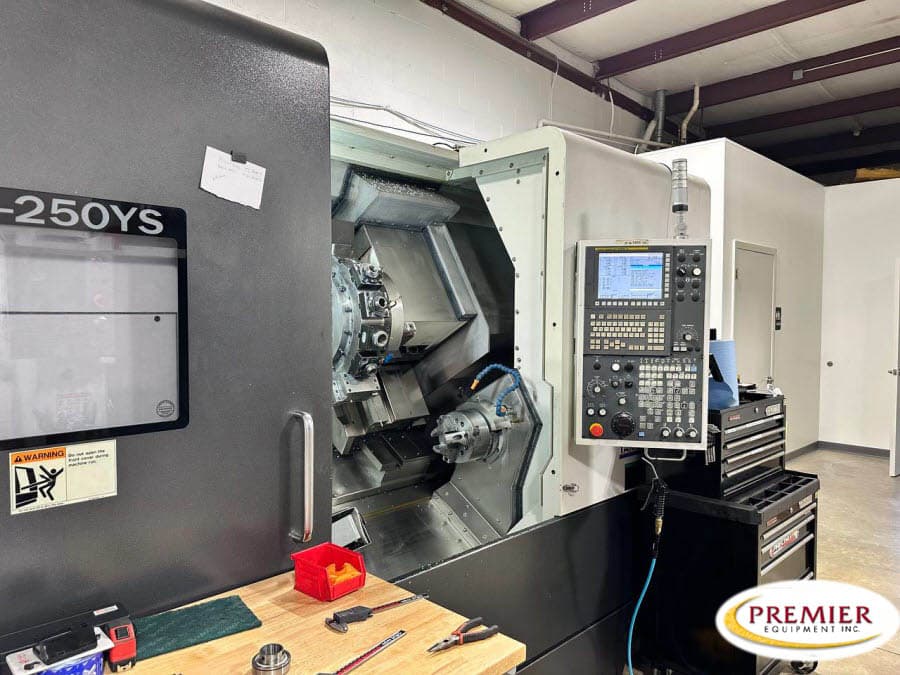

Takisawa LA250YS Multi-Axis CNC Turning Center
Specifications (subject to buyer verification):
Max. Workpiece Swing (diameter) 23.6″ (600 mm)
Max Turning Diameter 14.6″ (370 mm)
Max Turning Length 29″ (737 mm)
Max Bar Work Capacity Main: 3″ (75 mm)
Max Bar Work Capacity Sub: 2″ (52 mm)
X-axis Travel 10.6″ (270 mm)
Z-Axis Travel 31.5″ (800 mm)
Y-axis Travel (spindle head) ±2.6″ (±66.04 mm)
Spindle Nose Main: A2-8
Spindle Nose Sub: A2-6
Spindle Speed 3,500 RPM
Spindle Drive Motor (30 min. / cont.) Main: 30 HP (22 kW) / 20 HP (15 kW)
Spindle Drive Motor (30 min. / cont.) Sub: 15 HP (11 kW) / 10 HP (7.5 kW)
Equipped With (subject to buyer verification):
Fanuc Series 32i-Model B CNC Control
Barfeeder
Parts Catcher
Sub Spindle
Milling
All Available Tooling
Main Spindle 10” Hydraulic Chuck
Sub Spindle 8” Hydraulic Chuck
