For Sale by R & J Machinery Sales
Surplus Record Dealer Since 1997
Location: Milford, MI
Contact Jeff Bruce
Phone Number: 248...> Show Phone Number 248-685-7879
Let the seller know you found their listing on Surplus Record!
Description
| Table size | 18″ x 15″ |
|---|---|
| T-slots (number x width x pitch) | 4 x 0.629″ x 2.480″ (4 x 16 mm x 63 mm) |
| Travel (X, Y, Z axis) with soft limits | 14″ x 12″ x 17″ |
| Rapid traverse X, Y, Z | 400 IPM in Toolroom Ops 600 IPM in Production Ops |
| Spindle taper | 30 Taper |
| Spindle speed range - Production Ops | 50 - 10,000 RPM |
| Spindle speed range - Toolroom Ops | 50 - 5,000 RPM |
| Spindle nose diameter | 2.2″ |
| Tool clamping force (90 psi) | 850 - 1,000 lbs |
| Tool holder type | BT 30 |
| ATC tool capacity | 8 |
| Maximum tool weight (incl. holder) | 8 lbs |
| Maximum tool diameter | 2″ |
| Tool carrier speed | 1.2 - 1.4 sec from front to back |
| Tool selection system | Shortest path |
| Spindle motor HP - peak | 4.5 HP |
| Spindle motor HP - continuous | 3 HP |
| Power requirements | 208V (208-240V is acceptable), 3P, 30A 480V with transformer options (440-520V is acceptable), 3P, 15A |
| Maximum weight of workpiece | 500 lbs |
| Height of table from bottom of bed*** | 34″ |
| Min. spindle nose to table distance **** | 2.75″ |
| Max. spindle nose to table distance **** | 20.25″ |
| Spindle center to spindle head casting face | 15.7″ |
| Min. machine height *** | 93″ |
| Min. machine height to fit through doorway ** | 93″ |
| Max. machine height (head all the way up) *** | 101.5″ |
| Length (pendant enclosure rotated at 90°) | 88.25″ |
| Overall length of machine with electrical cabinet fully open 180° and pendant enclosure rotated 90° | 113.5″ |
| Footprint of machine (width x length) | 30.5″ x 52″ |
| Weight net / shipping (lbs) | 2,825 / 3,175 |
| Coolant capacity | 15 gal |
| Coolant pump power | 1/4 HP |
| Air - CFM (at 90 psi), SCFM | 2.5 CFM, 18 SCFM |
| Air quality | Air dried/water separator upstream of VMC |
| Lubrication pump capacity | 2 liter |
Equipped With:

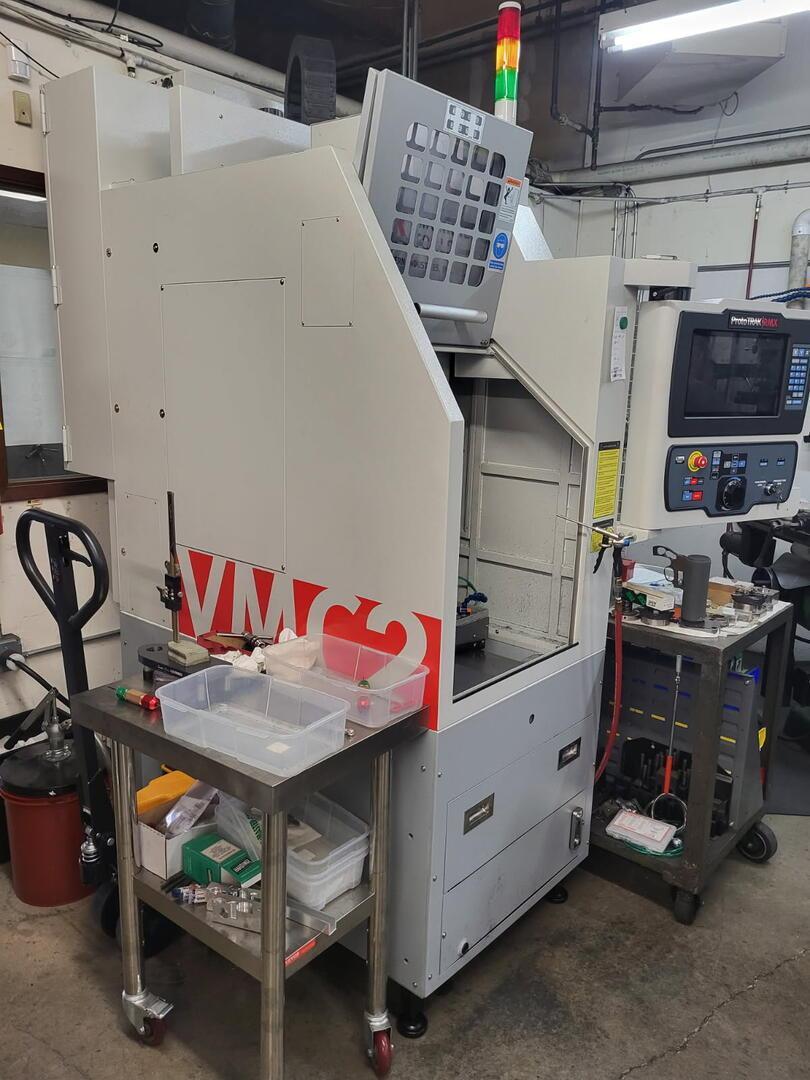

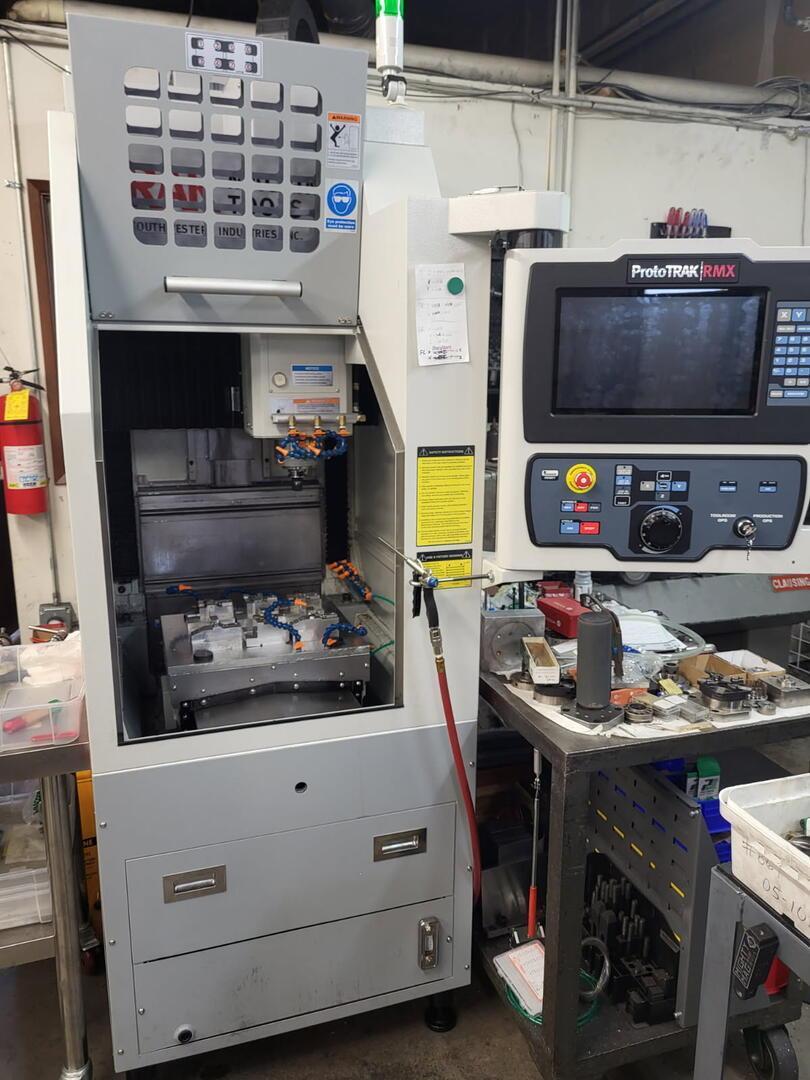

Prototrak RMX CNC Control
Specifications subject to change.* User may cause damage if machine crashes.** Must remove resistor and all sheet metal attached to top of electrical cabinet.*** Height changes slightly based on how machine is leveled on leveling screws.**** Can vary slightly due to home switch location and soft limit settings.
Get Your Price from R & J Machinery Sales!
Buyers Who Viewed This Listing Also Viewed:
JUST ADDED!
Haas #Super-Mini-Mill, vertical machining center, 16" X, 14" Y, 15" Z, 10,000 RPM, 10 automatic tool changer, CAT 40, 4th axis rotary table, 2025
Category: Vertical CNC Machining Centers
Seller: KD Machinery
Location: Scottsdale, AZ
Mfr: Haas
Model: SUPER MINI MILL
Year: 2025
JUST ADDED!

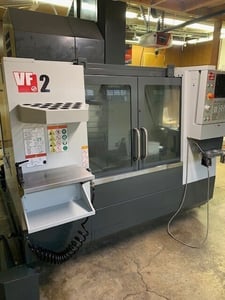

Haas #VF-2, CNC Vertical Machining Center, 30" X, 16" Y, 20" Z, 14" x 36" table, 30 HP, 10,000 RPM, 30 automatic tool changer, CAT 40 taper, Haas control, 2020
Category: Vertical CNC Machining Centers
Seller: Toolquip Inc
Location: Lebanon, OH
Mfr: Haas
Model: VF-2
Year: 2020
Used Vertical Machining Center in used condition. s 30" x 16" x 20" travel, 30 hp, 10,000 RPM, CAT 40 taper, and 30 ATC. WIPS, 2-speed gearbox, HRT210 4th axis, high-speed machining, and more., 2020 HAAS VF-2, X. 30", Y. 16", Z. 20", Power. 30 hp, RPM. 10,000 RPM, # ATC. 30, Taper. CAT 40, Table-W. 14", Table-L. 36" ...more
JUST ADDED!
Amera-Seiki #VTC-5, CNC vertical machining center, 86.6" X, 24.4" Y, 24.4" Z, 10000 RPM, 32 automatic tool changer, 20 HP, CAT 40, Fanuc Oi-MB, 2022
Category: Vertical CNC Machining Centers
Seller: Revelation Machinery
Location: Chicago, IL
Mfr: Amera-Seiki
Model: VTC-5
Year: 2022
Make: Amera‑Seiki, Model: VTC‑5, Year: 2022, Machine Location: Upon Request, X-Axis Travels: 86.6″, Y-Axis Travels: 24.4″, Z-Axis Travels: 24.4″, Spindle Taper: CAT 40, Spindle Speed: 10,000 RPM, Spindle Motor: 20 HP, ATC: 32, Number of Axis: 3, Table Size: 98.4″ x 23.6″, Max ...more
JUST ADDED!

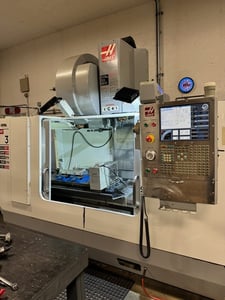

Haas #VF-3, CNC vertical machining center, 4-axis, 40 automatic tool changer, 40" X, 20" Y, 25" Z, 10000 RPM, 30 HP, 18" x48" table, #40 taper, HRT 210 rotary, 2007
