Sunny Motor Control Center HD-319C 220V

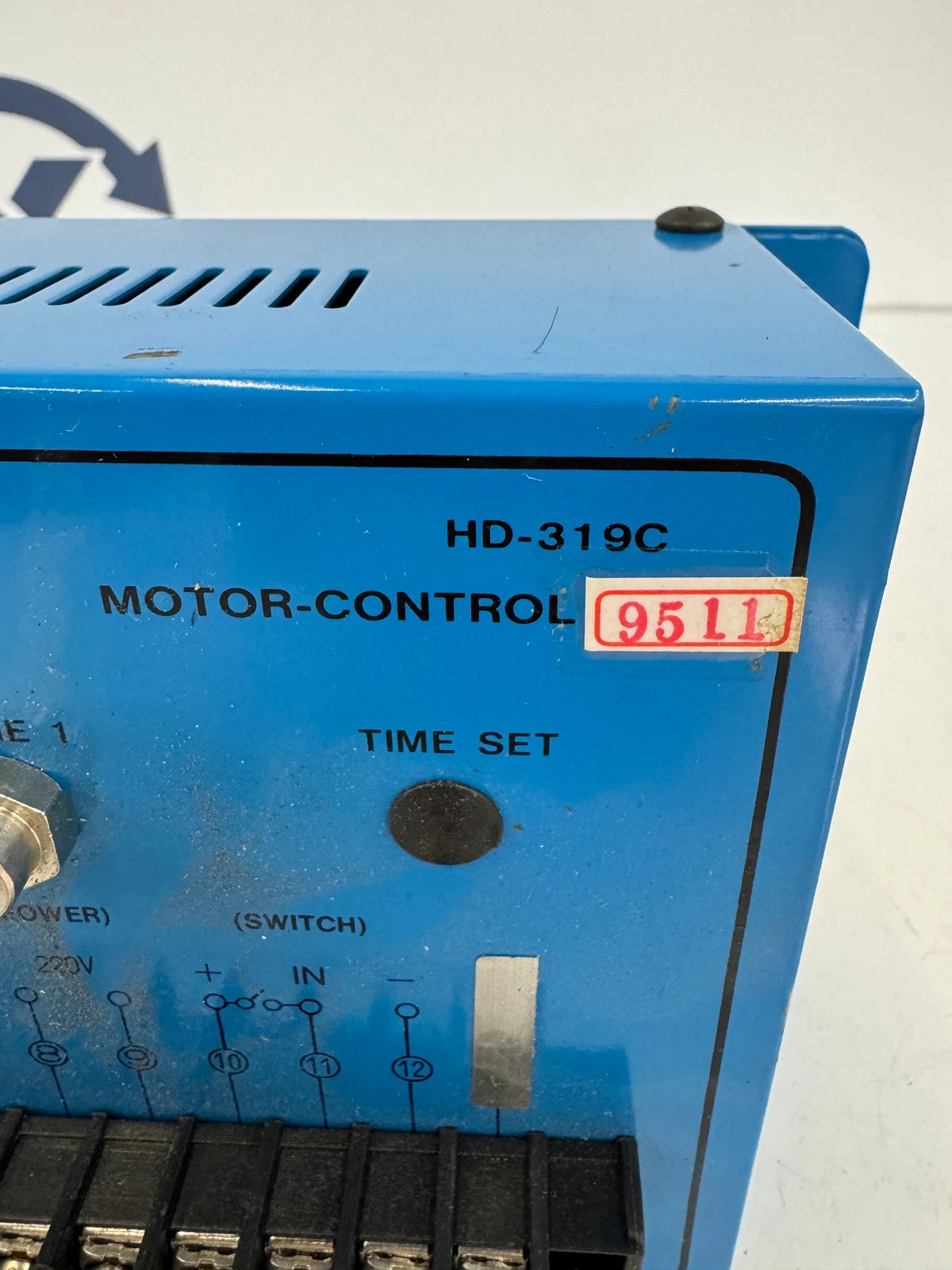

Sunny HD-319C Motor-Control unit with front panel marking HD-319C and serial identifier 9511. Acer/Kent Surface Grinder Crossfeed Control Box. The enclosure is labeled “MOTOR-CONTROL” and includes integrated front-access fuse holders, power indicator light, time indicator light, and a manual variable resistor adjustment labeled VR (MAN). A dedicated TIME SET adjustment point is present on the right side of the panel.

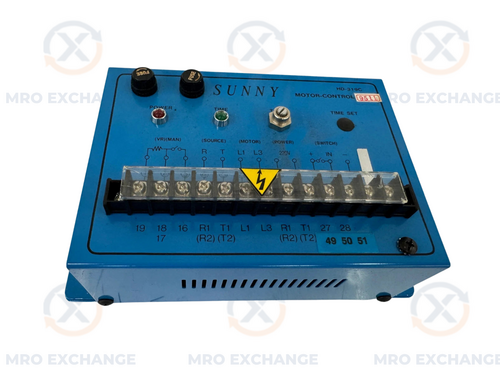

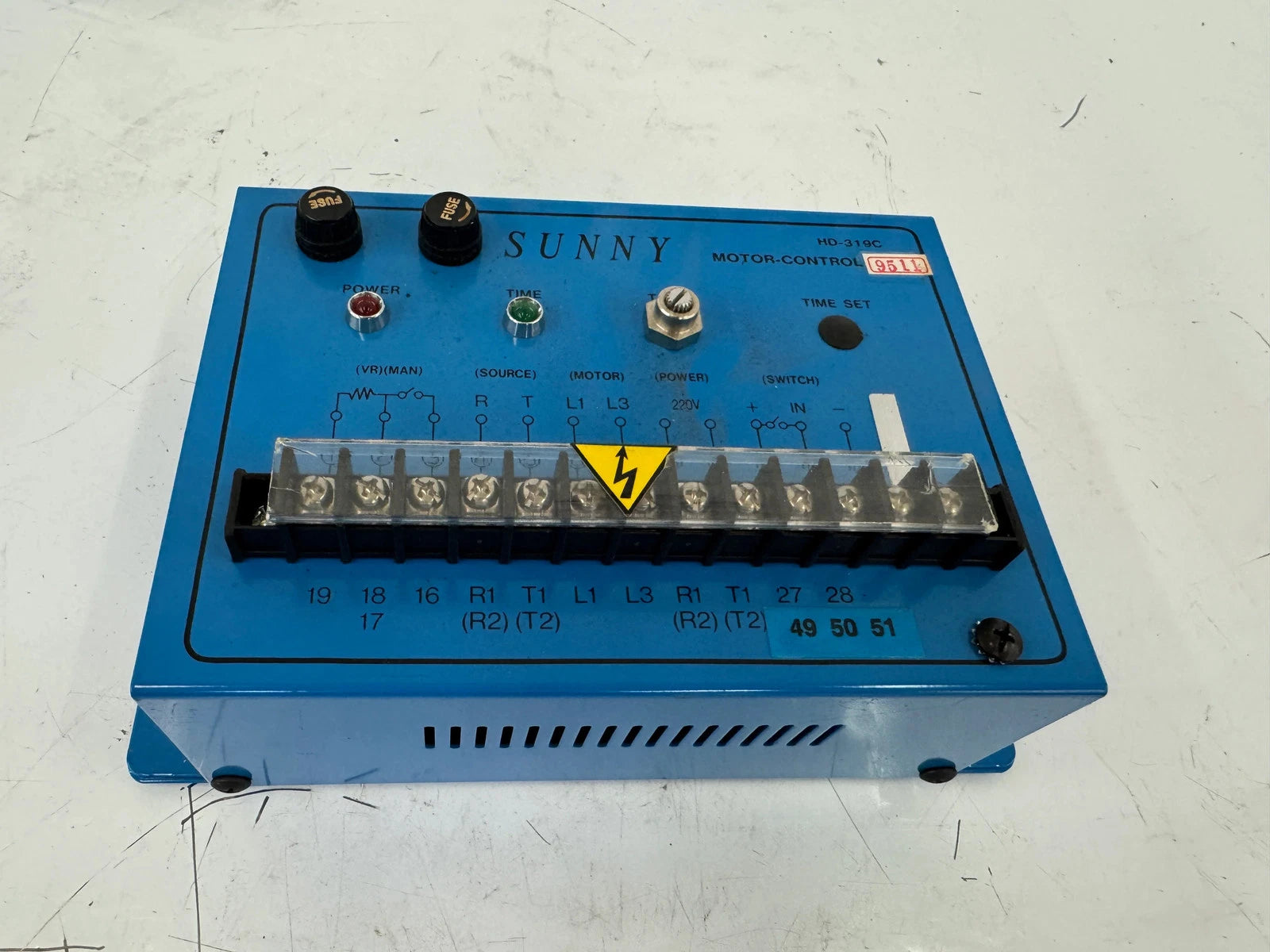

The terminal strip is clearly labeled with connection points for source and motor wiring, including R, T, L1, and L3. Power input is marked 220V. Additional terminals are identified as R1 (R2), T1 (T2), and numbered positions 27, 28, 49, 50, and 51. The printed wiring diagram on the faceplate shows labeled sections for SOURCE, MOTOR, POWER (220V), and SWITCH connections with positive and negative indicators.

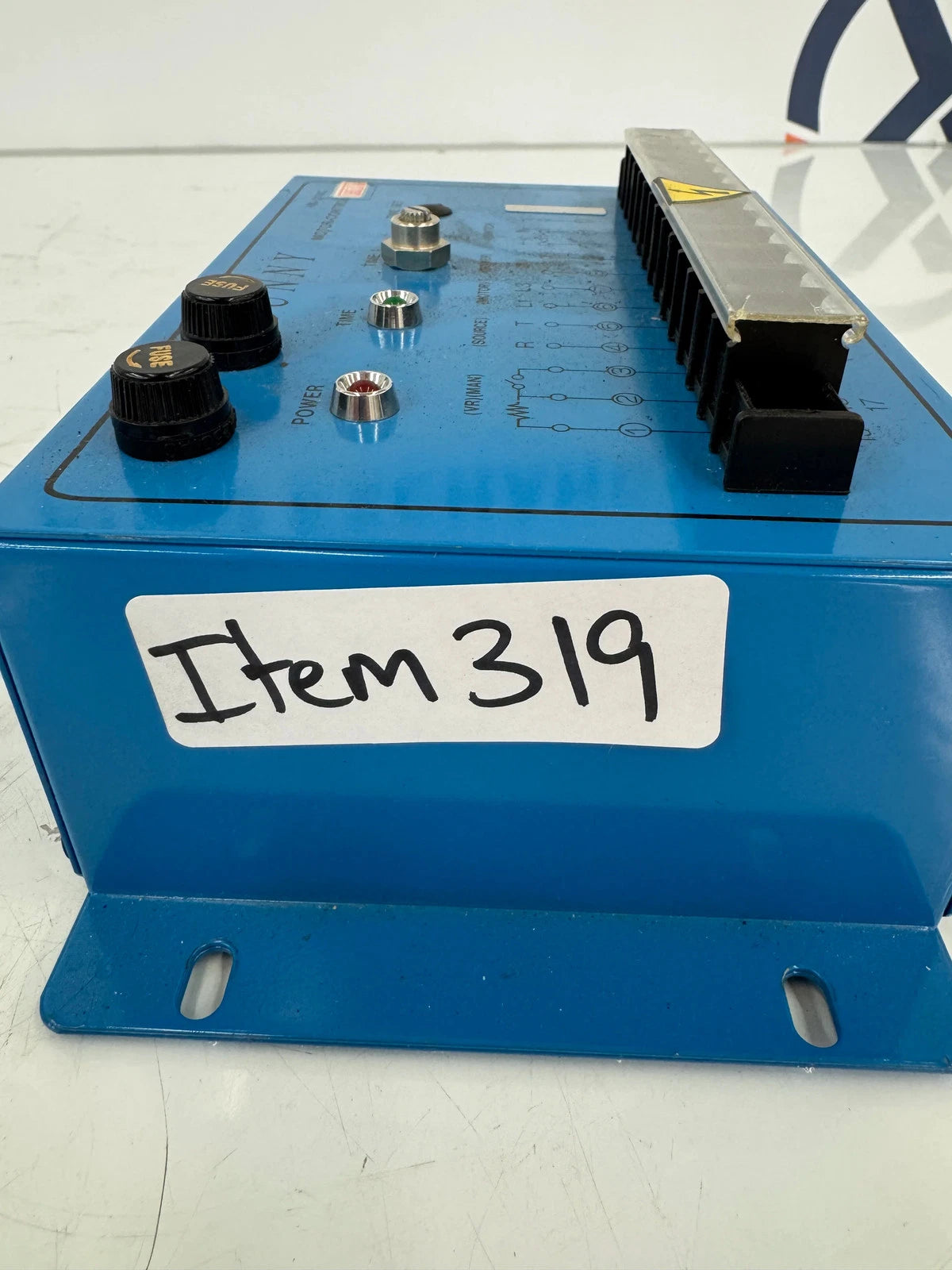

The unit is housed in a blue metal enclosure with ventilation slots and a transparent protective cover over the main terminal block. A high voltage warning symbol is displayed on the terminal cover. All model information, terminal designations, and electrical markings are derived directly from the device labeling and front panel print. Suitable for applications requiring a 220V motor-control interface consistent with the labeled terminal configuration.

Stock # 0226-319
