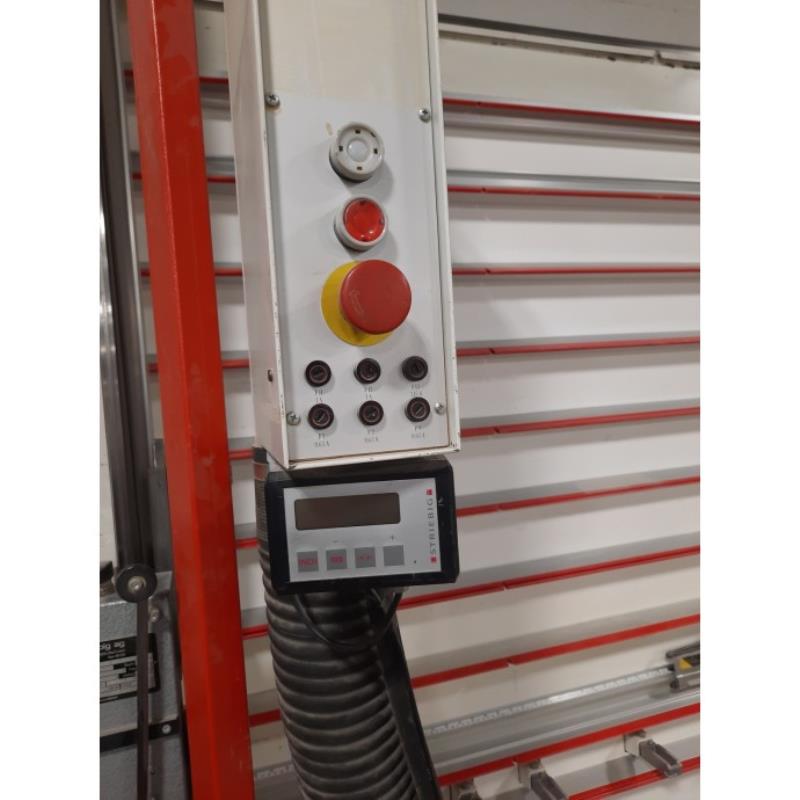

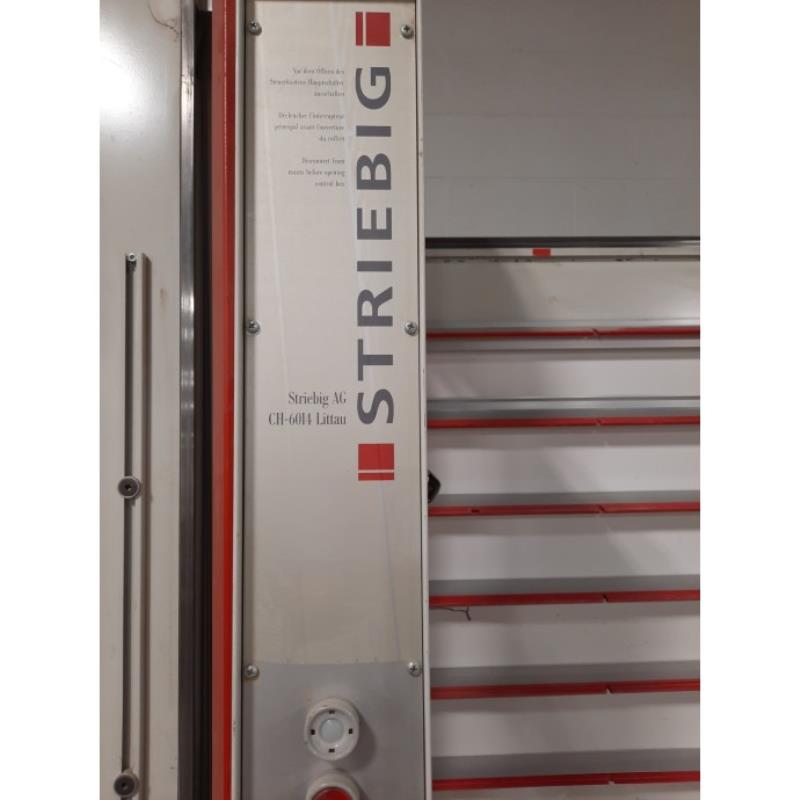

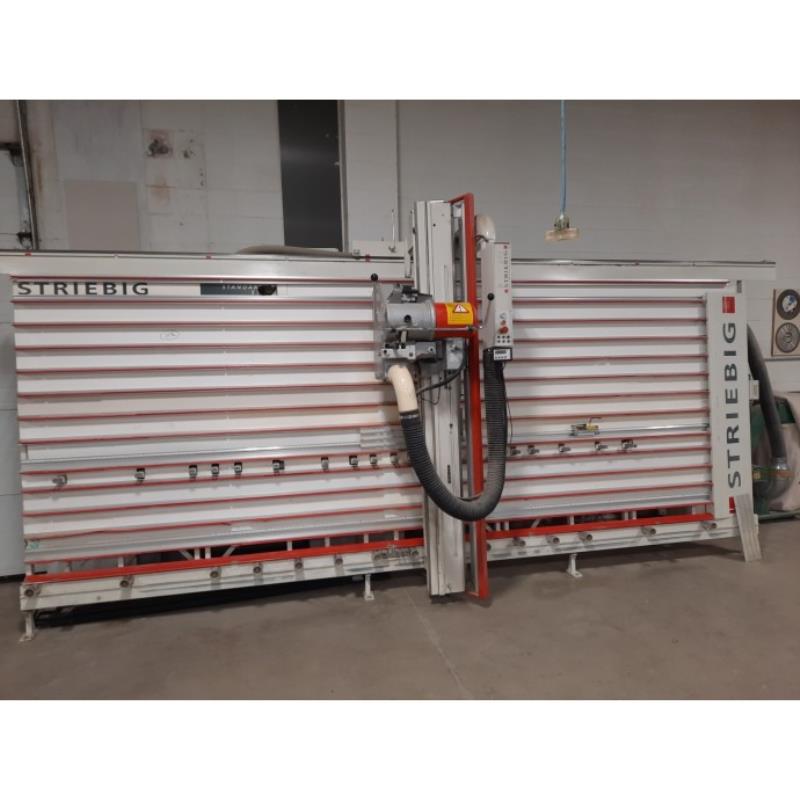

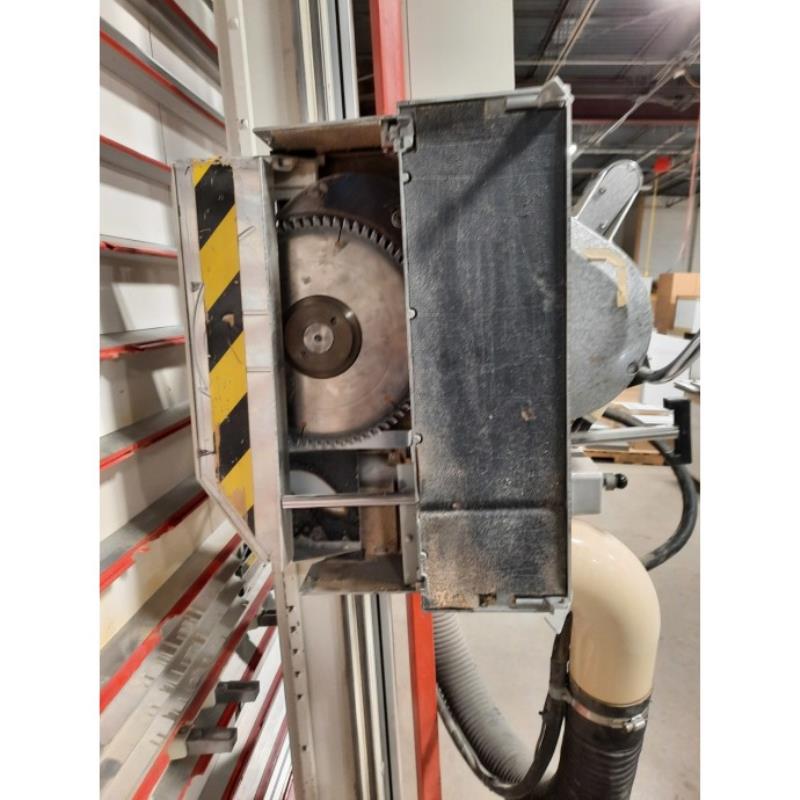

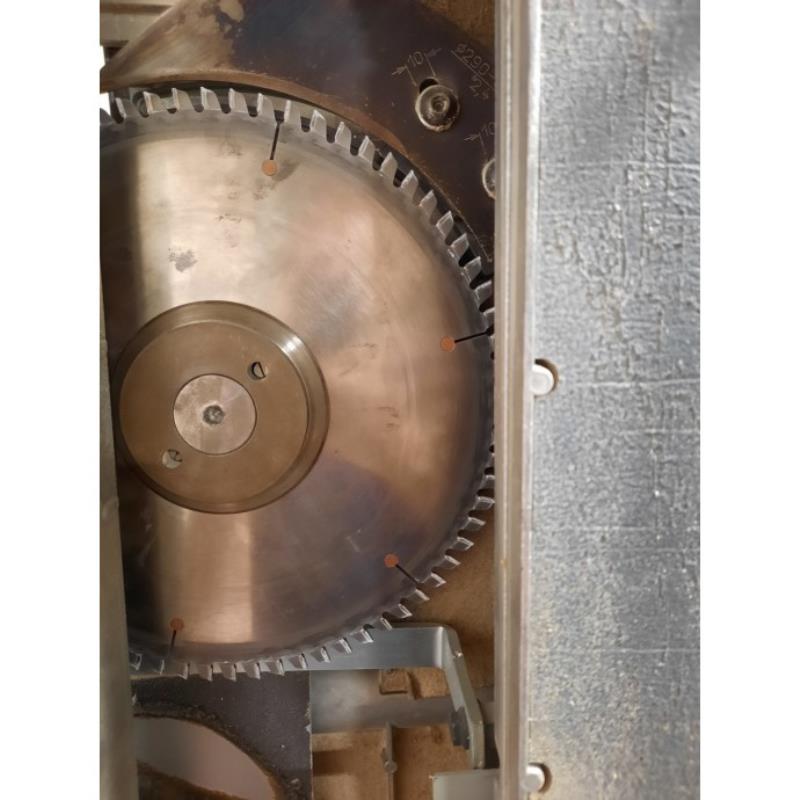

STRIEBIG OPTISAW III Vertical Panel SawSpecifications: -- 75-1/2" Crosscut (top/bottom) x 14'1" rip cut cap.; 3-1/8" cutting depth. -- 7.5 HP Arbor motor, automatic Star-Delta starter; 300 mm dia. (11-7/8") blade with 30 mm bore - 4,750 RPM rotation. -- Equipped with: -- Carbide split scoring blade and special removable 12,000 RPM scoring spindle assembly; splitting wedge can be swivelled in and out with blade running; auto return of splitter; automatic shifting back support grid, retractable shelf for small parts cutting at mid-level of frame, (1) adjustable flip-stops on inch/metric measuring scale. -- Roller supports across bottom of saw frame for easy positioning of panels features foot pedal braking system. -- Complete with: -- Digitron 2 measuring for rip and crosscuts; built-in depth setting device for dado and groove cuts; (4) each adjustable base & rear supports for free-standing installation. .
disk of circular saw-Ø: max. 275 mm cutting area at 90°, round: 90 mm cutting area at 90°, square: 160 x 65 mm cutting area in mitre at 45°, round: 90 mm cutting area in mitre at 45°, square: 80 x 80 mm, engine: 380 V, 1,2/1,5 kW, space needed: 950 x 780 x 1500 mm, weight: 300 kg, Machine ...more
