For Sale by Carolina Machinery Sales
Surplus Record Dealer Since 2021
Location: Monroe, NC
Contact Ralph Viegelmann
Phone Number: 704...> Show Phone Number 704-288-1904
Let the seller know you found their listing on Surplus Record!
Description

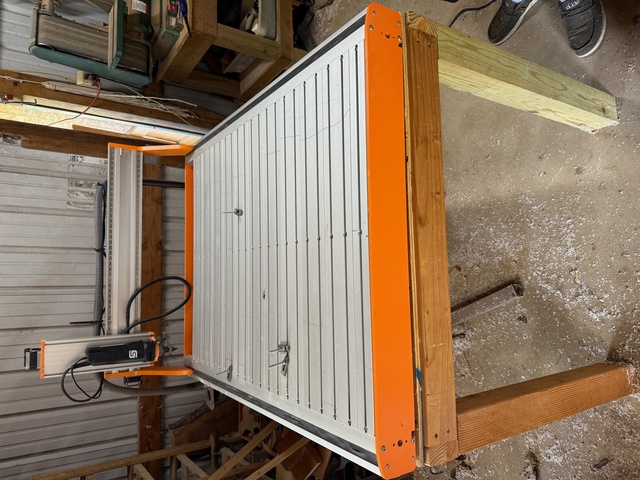

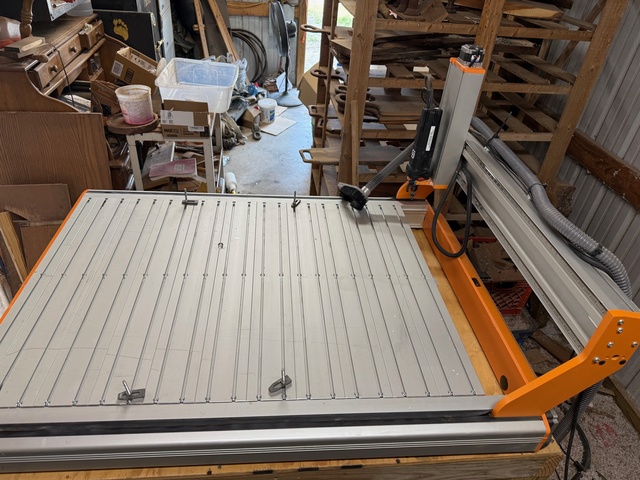

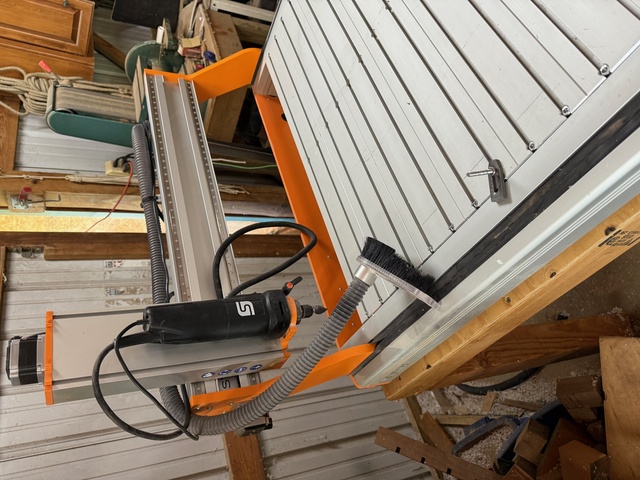

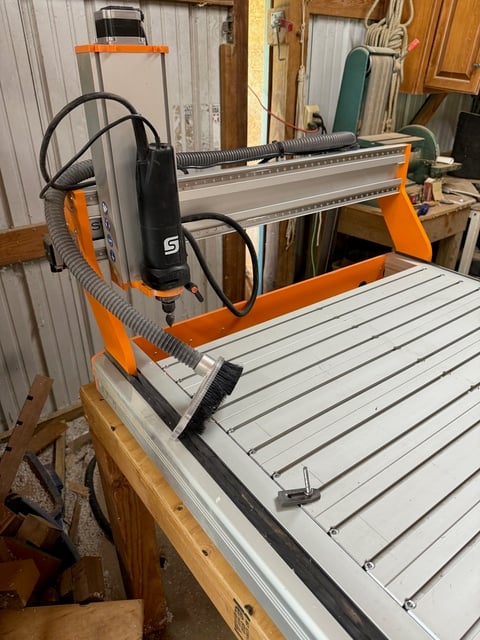

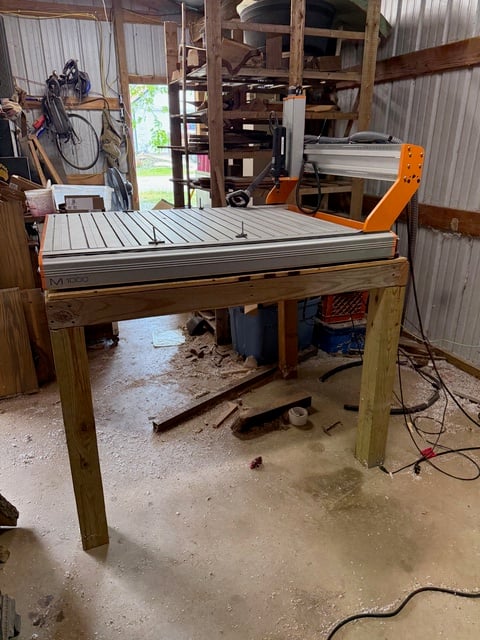

Working area up to 38.5" x 56.8" x 7.6"
Z Axis Clearance 5.21/8.07" (135/205 mm)
Repeatability+/- 0.0009" (0.025 mm) (with optional HIWIN® ball screws: +/- 0.0005"/0.015 mm)
Programmable Resolution0.0002" (0.00625 mm
Backlash0.0019 (0.05 mm) (with optional HIWIN® ball screws: ) 0.0012"/0.03 mm
Maximum Speed in Diagonal Travel X-Y284 in/min (120 mm/s)
Spindle (Lead Screw)igus® dryspin 12 x 5 mm (optional: HIWIN® ball screws 12 x 5 mm)
Linear GuideBosch Rexroth ball bearing guideDriveStepper motors:
Sanyo-Denki NEMA 23Tool Holder43 mm clamping diameter (Euro neck, optional smaller diameters)
Weight 92.3 lbs (42.0 kg)
Input Voltage110-240V (comes standard for 110V/60h)
Output Voltage24 - 30 VPower Consumption180 W
InterfaceUSB / Parallel (LPT1) / Network RJ-45
Z Axis Clearance 5.21/8.07" (135/205 mm)
Repeatability+/- 0.0009" (0.025 mm) (with optional HIWIN® ball screws: +/- 0.0005"/0.015 mm)
Programmable Resolution0.0002" (0.00625 mm
Backlash0.0019 (0.05 mm) (with optional HIWIN® ball screws: ) 0.0012"/0.03 mm
Maximum Speed in Diagonal Travel X-Y284 in/min (120 mm/s)
Spindle (Lead Screw)igus® dryspin 12 x 5 mm (optional: HIWIN® ball screws 12 x 5 mm)
Linear GuideBosch Rexroth ball bearing guideDriveStepper motors:
Sanyo-Denki NEMA 23Tool Holder43 mm clamping diameter (Euro neck, optional smaller diameters)
Weight 92.3 lbs (42.0 kg)
Input Voltage110-240V (comes standard for 110V/60h)
Output Voltage24 - 30 VPower Consumption180 W
InterfaceUSB / Parallel (LPT1) / Network RJ-45
Get Your Price from Carolina Machinery Sales!
