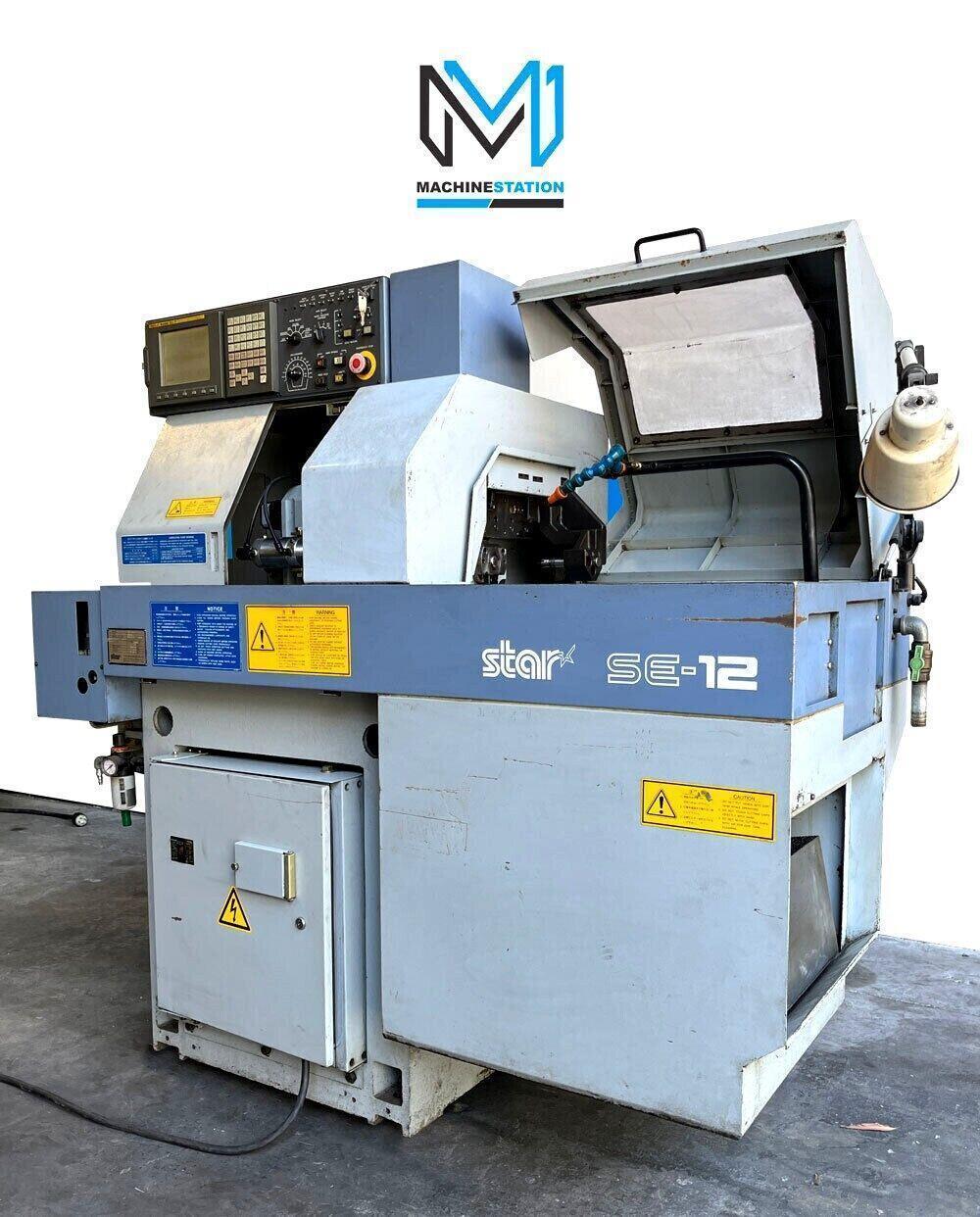

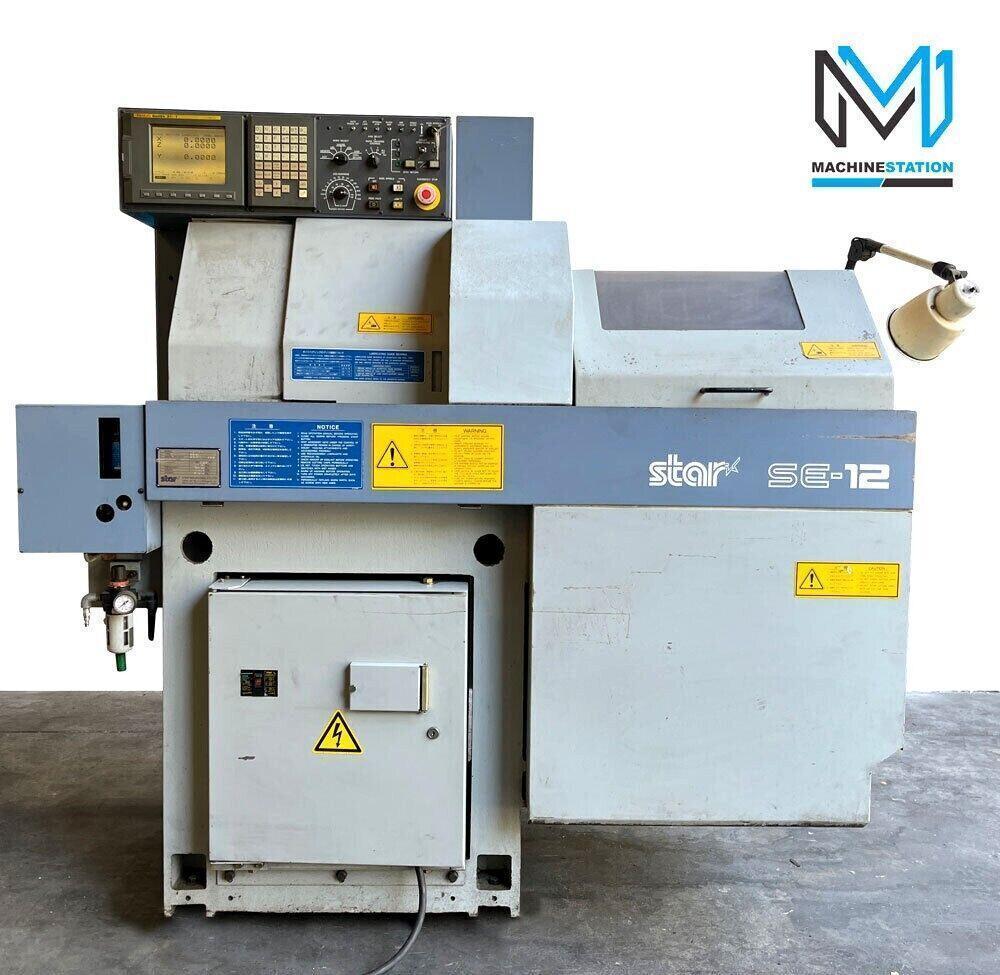

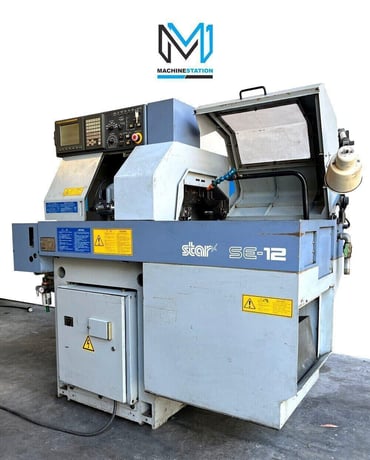

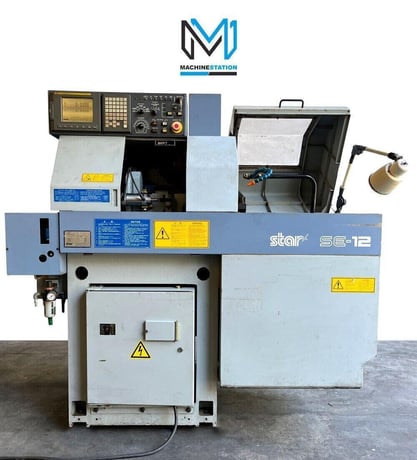

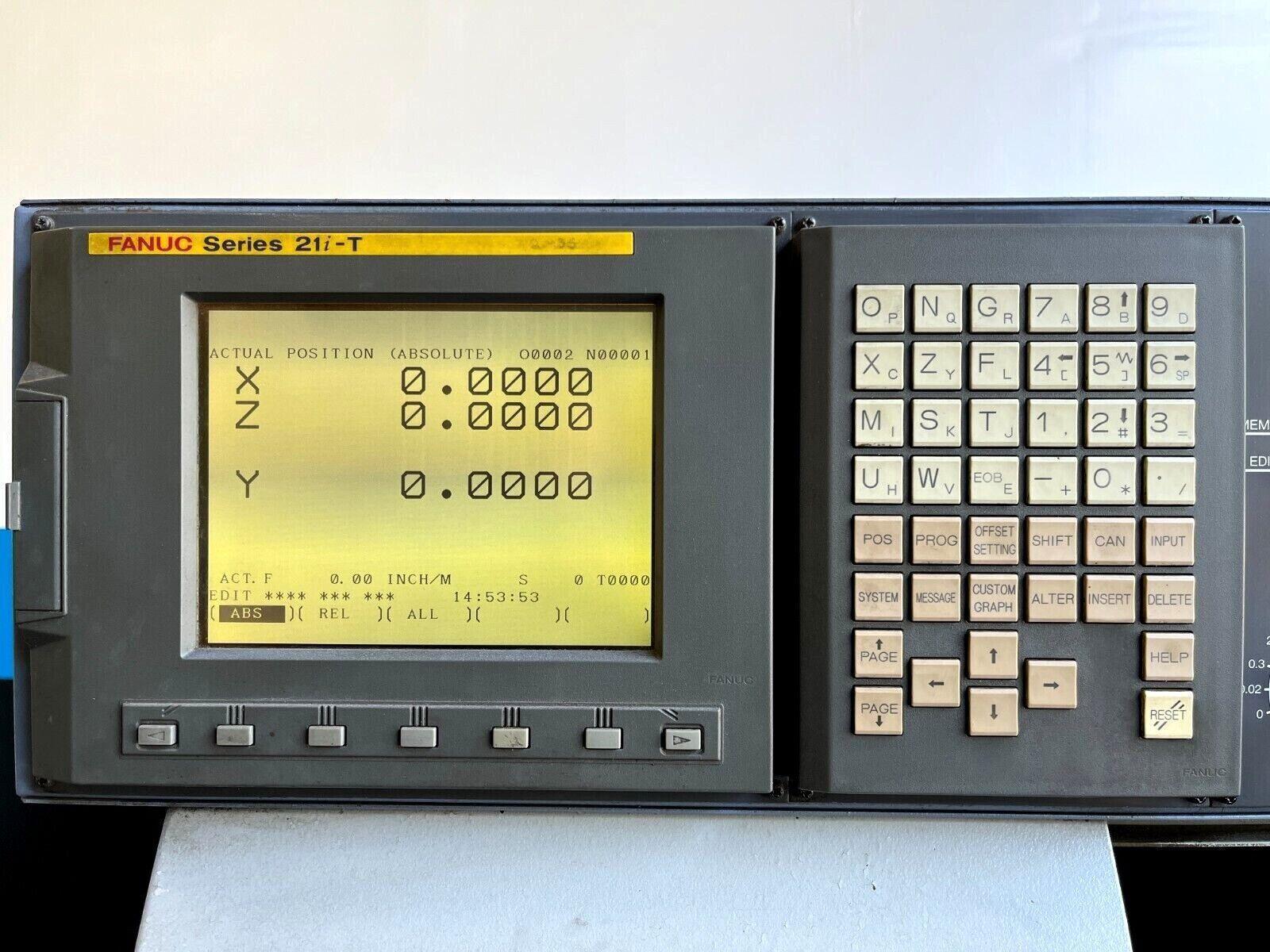

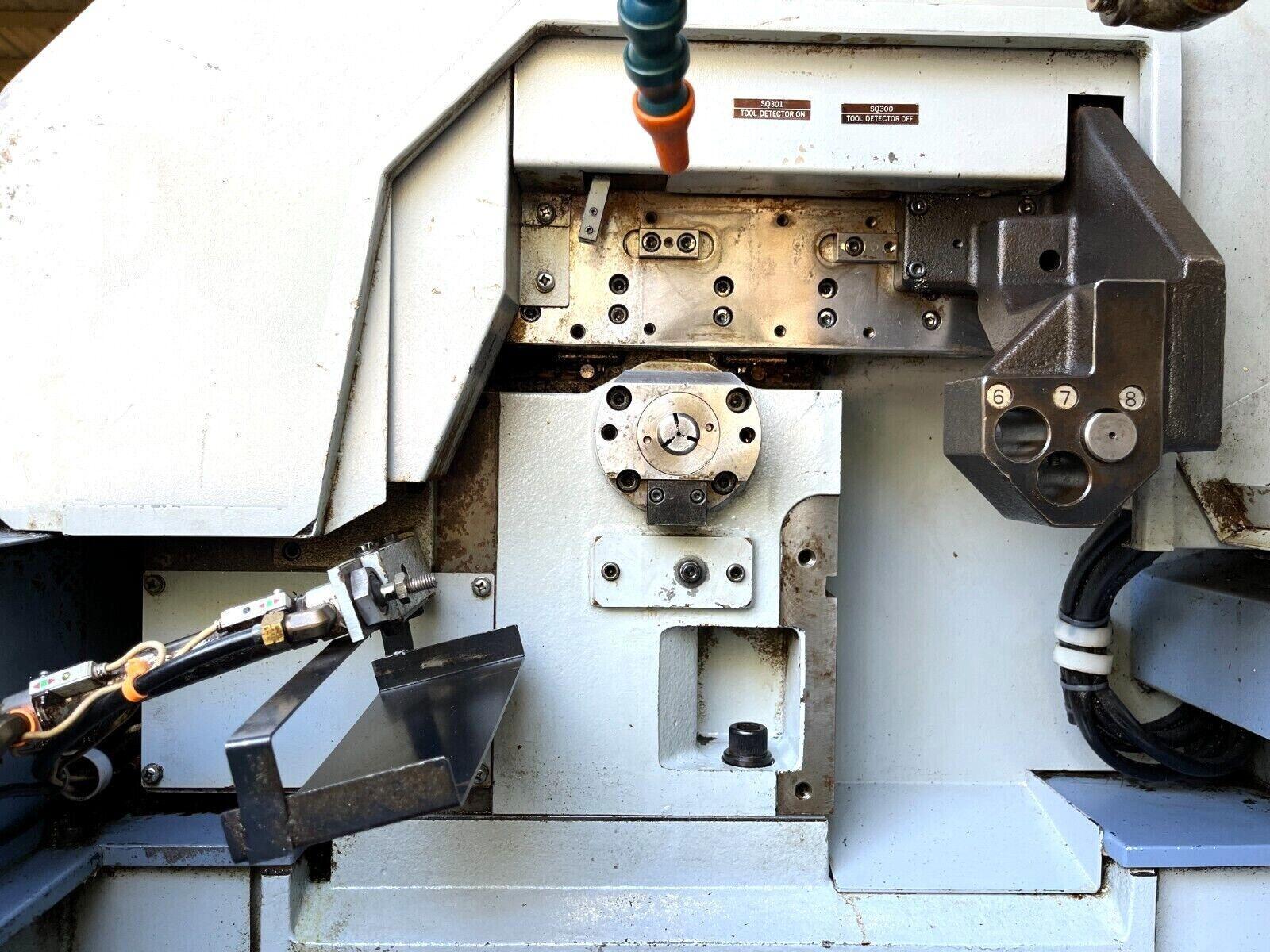

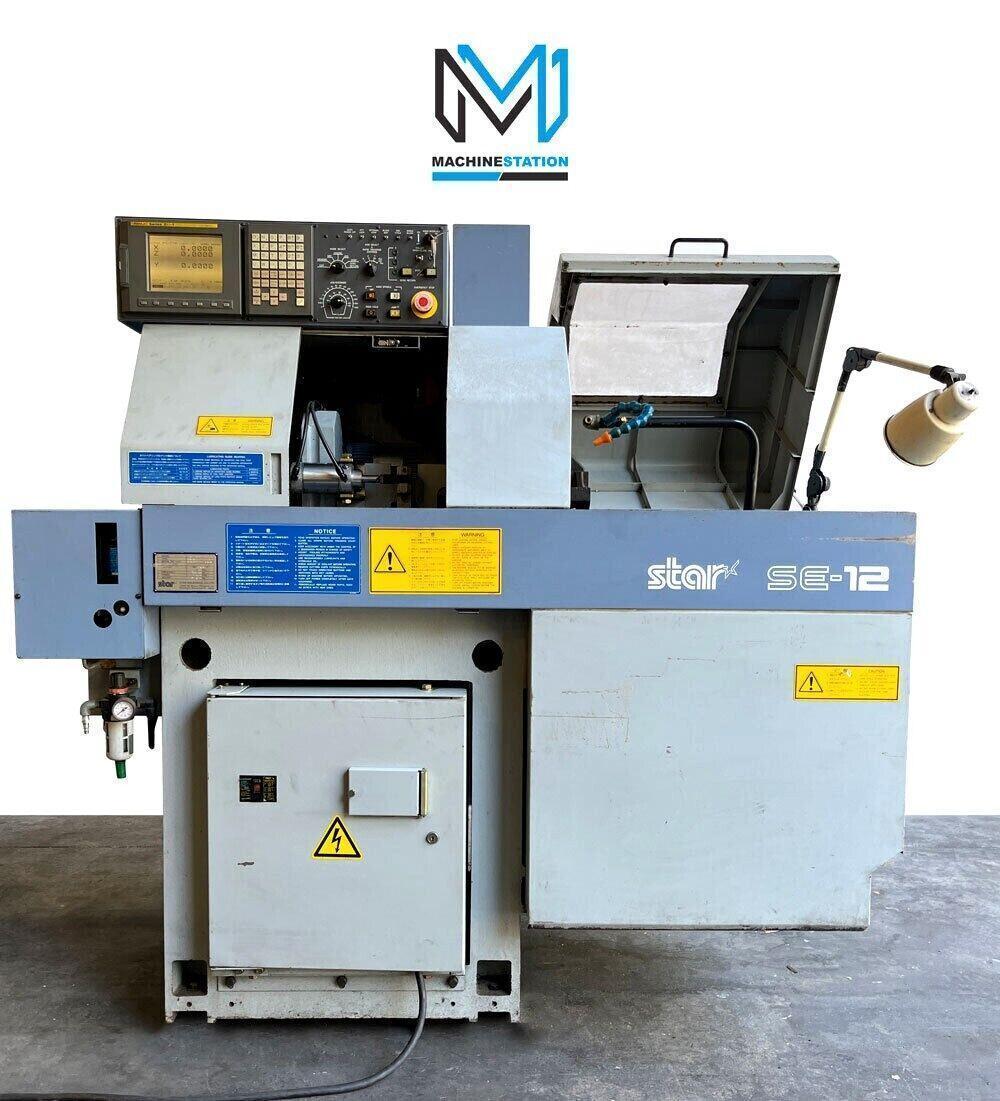

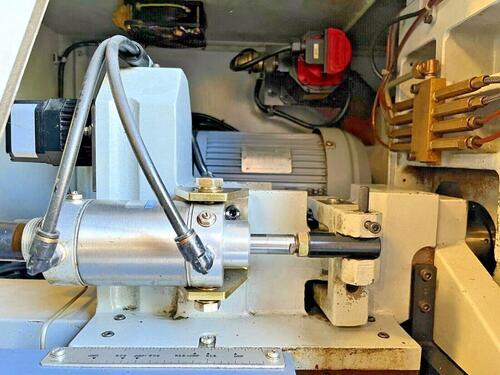

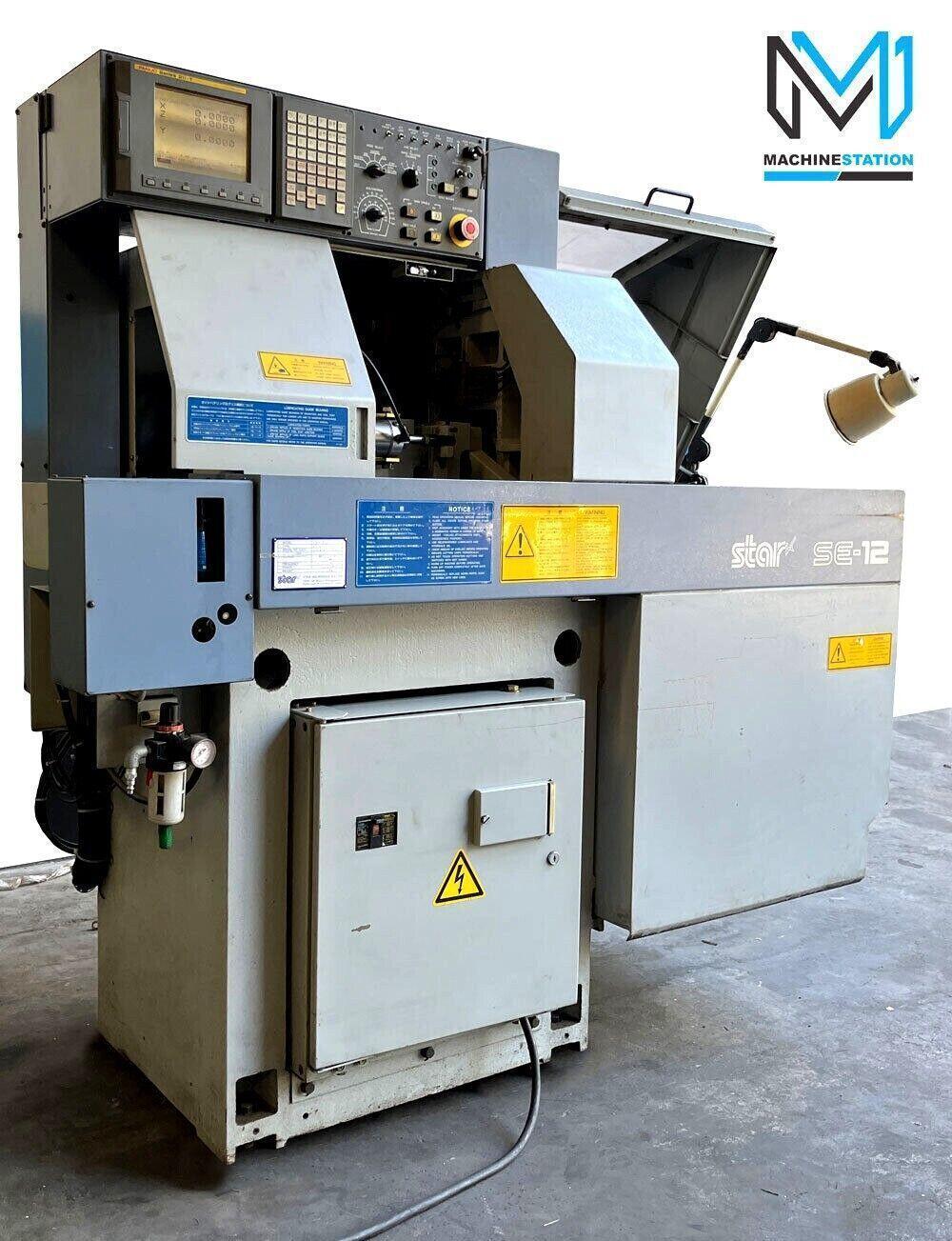

Star #SE-12, CNC swiss screw lathe, Fanuc 21i-TB, .472" diameter, 5.51" length, 2006

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Specifications:
Capacity:
Max Turning Diameter: 0.472" (12 mm)
Max Turning Length: 5.511" (140 mm)
Max Turning Length with Gripping Unit: 3.937" (100 mm)
Max Bar Capacity: 0.472" (12 mm)
Tool Capacity: 8 (5 + 3)
Travels:
X Axis: 0.50" (12.70 mm)
Y Axis: 0.50" (12.70 mm)
Z Axis: 5.51" (140 mm)
Raid Traverse X, Y, Z Axis: 590 IPM
Spindle:
Spindle Bore: 0.5" (12.7 mm)
Spindle Speed: 10000 RPM

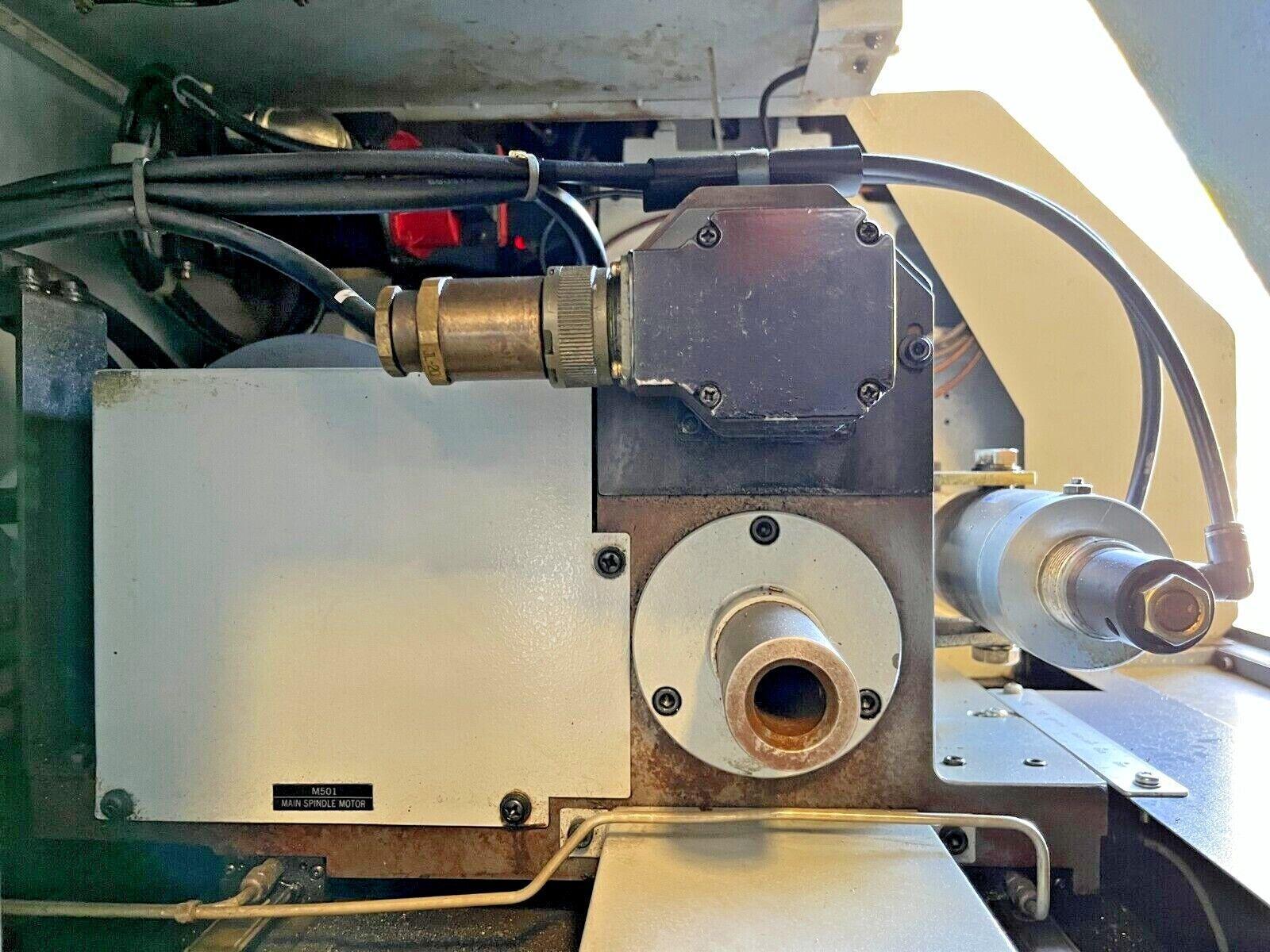

Spindle Motor: 2.2 kw

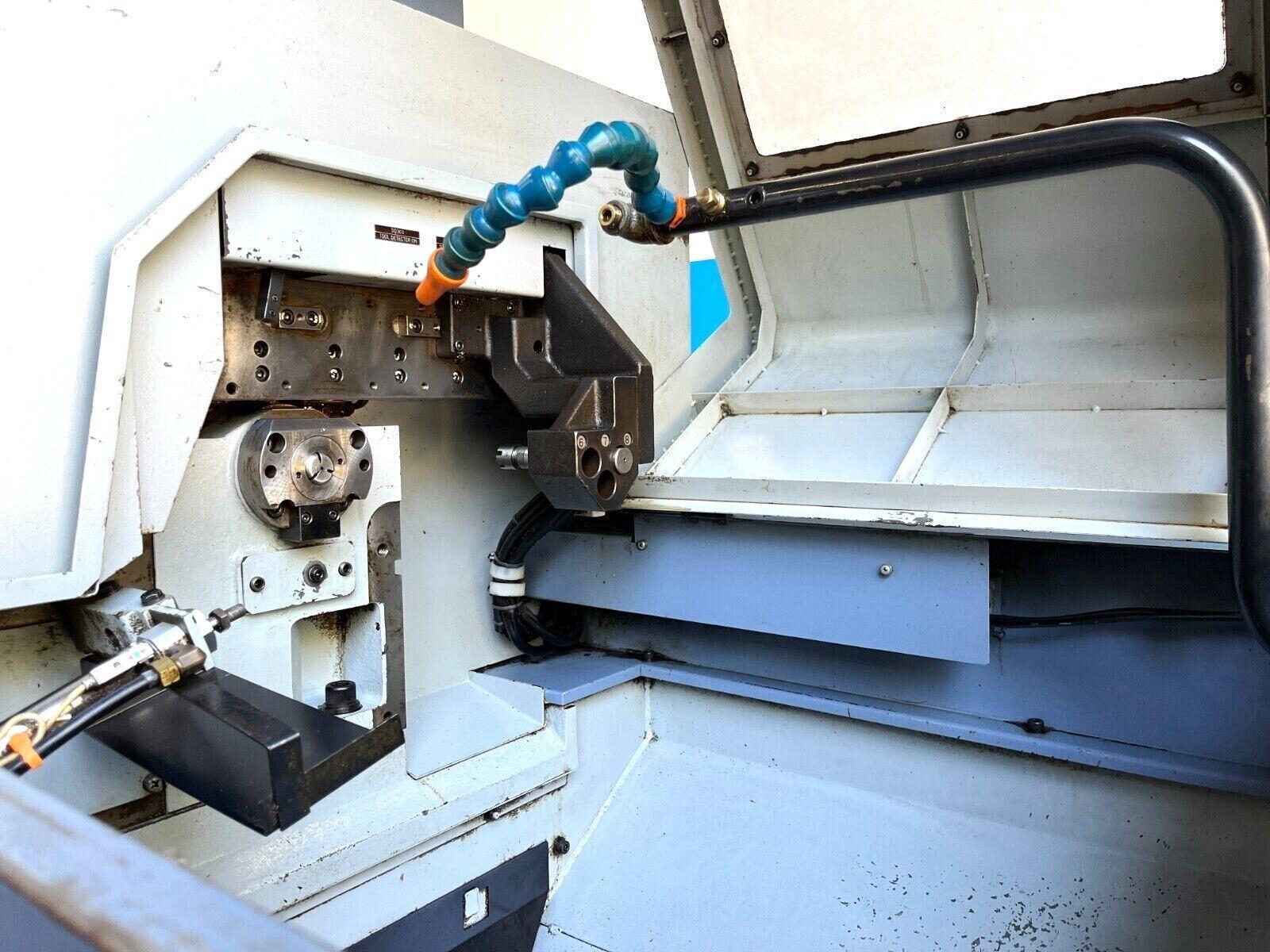

Standard Tools:
Number of Turning Tools: 5
Number of Stationary Tools: 3
Max Drilling Capability: 0.393" (10mm)
Max Tapping Capability: M8 x P1.25
Die Cutting Capability: M8 x P1.25
General:
Power Source: AC 200 V/ Three Phase/ 60 Hz/5.5 kva
Overall Dimensions: 69" x 35" x 63" High
Weight: 1985 lbs Approx.
