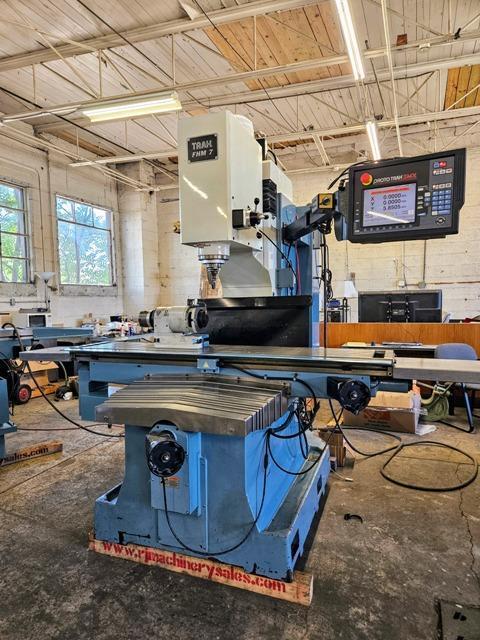

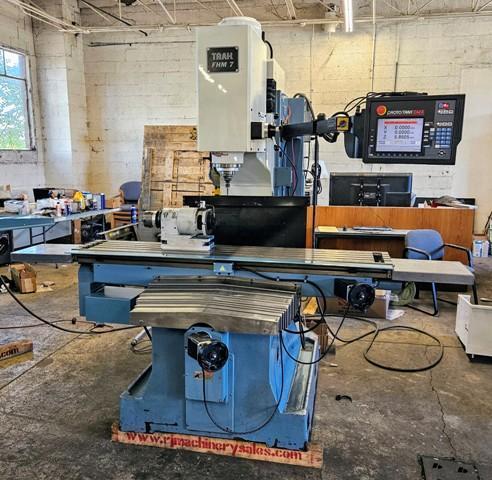

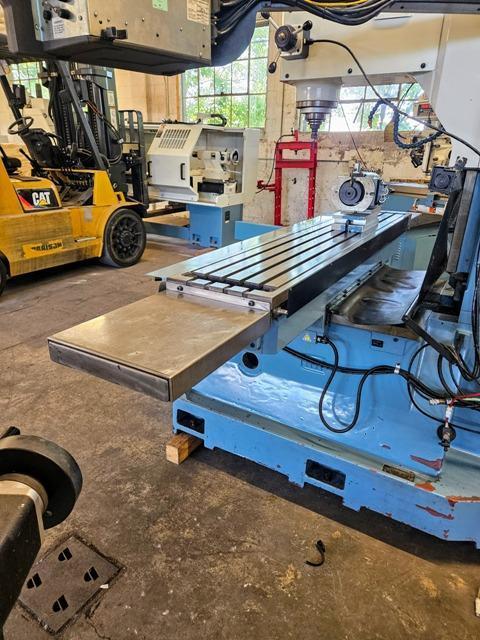

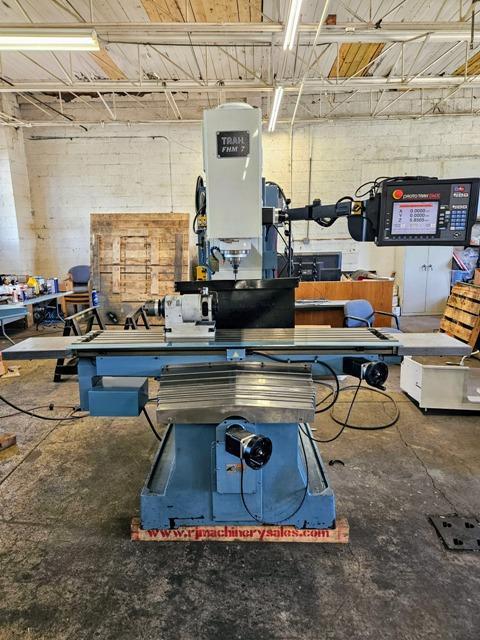

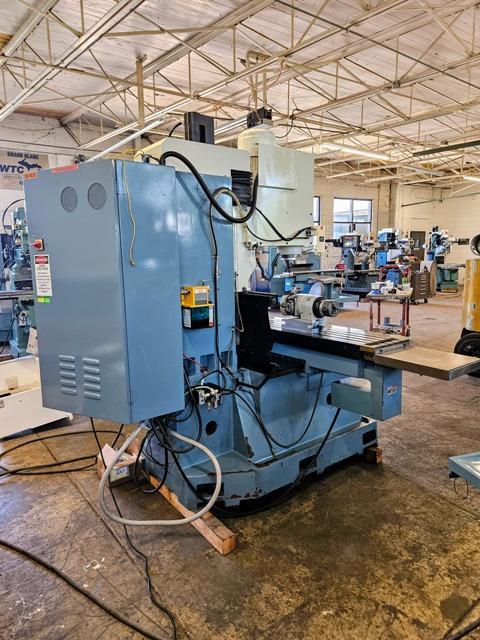

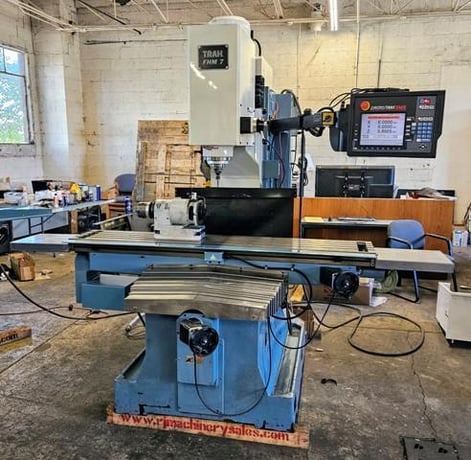

Manufacturer: Southwestern Industries
Model: TRAK-FHMSX-7
Year: 2010
Table: 14.00 - 76.00
HP: 7.5
Stock # 104296
1 / 10
Click to zoom in
1 / 10
For Sale by R & J Machinery Sales
Surplus Record Dealer Since 1997
Location: Milford, MI
Contact Jeff Bruce
Phone Number: 248...> Show Phone Number 248-685-7879
Let the seller know you found their listing on Surplus Record!
Description
https://youtu.be/AFxHciqQxAU?si=GECnbAZqzay3UYso
Specifications

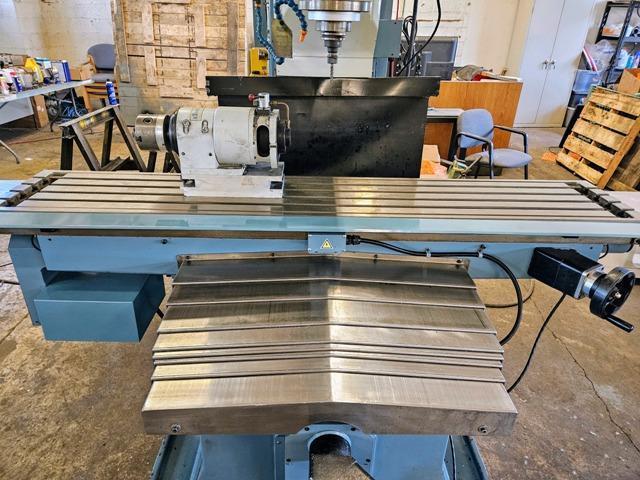

T- Slots: 4 x 16mm x 63.5mm
Travel X: 60"
Travel Y: 23"
Travel Z: 20.5"
Quill Diameter: 5.06"
Spindle Taper: 40
Spindle Speed Range: 200-5000 RPM
Spindle Center to Column Face: 23"
Spindle Motor Power: 7.5 HP
Power Requirement, Control: 110V, 1P, 15A
Power Requirement, Machine: 220V, 3P, 60HZ Current,
Full Load Amps: 37.5 FLA
Maximum Weight of Workpiece: 2200 lbs.
Height of Table from Bottom of Bed: 38.25"
Maximum Spindle Nose to Table: 21.5"
Way Surface: Dovetail X axis
Way Surface: Square Ways Y and Z axis
Drilling Max Capacity: 1" dia.
Tapping Max Capacity: 5/8"
Milling Max Capacity: 7" 3"/min
Automatic lubrication pump
Auxiliary function hardware
Limit switches
Equipped With

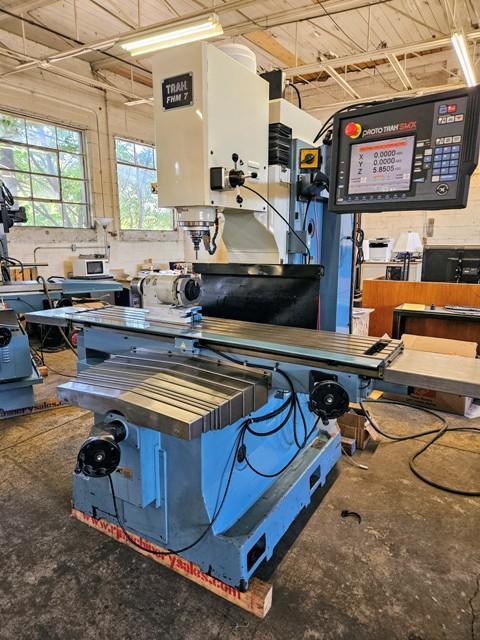

Prototrak SMX CNC Control
Programmable E Head
Power Draw Bar
Advanced Features
Networking
Traking/E Hanwheels
