Solberga #SE NR7, 22" Geared Head Drill Press

$2,450 USD

Request Formal Quote

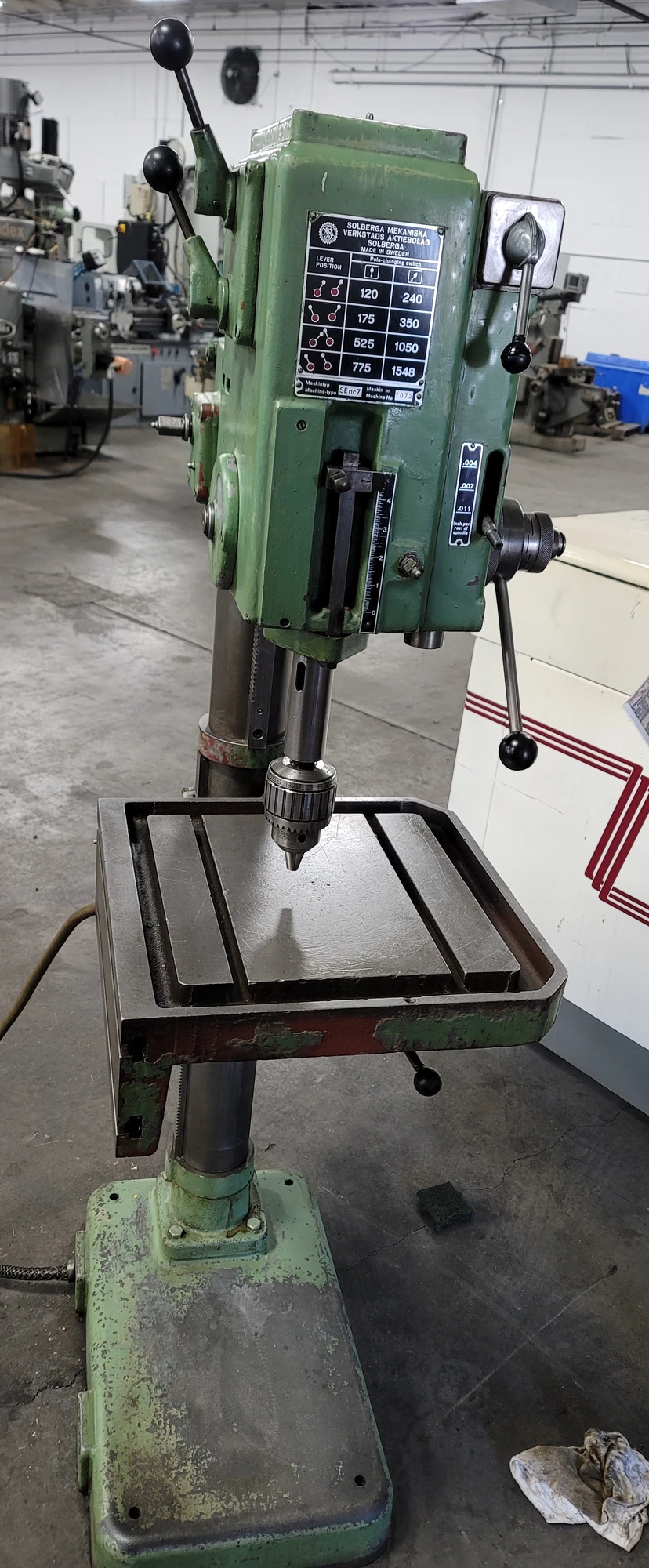

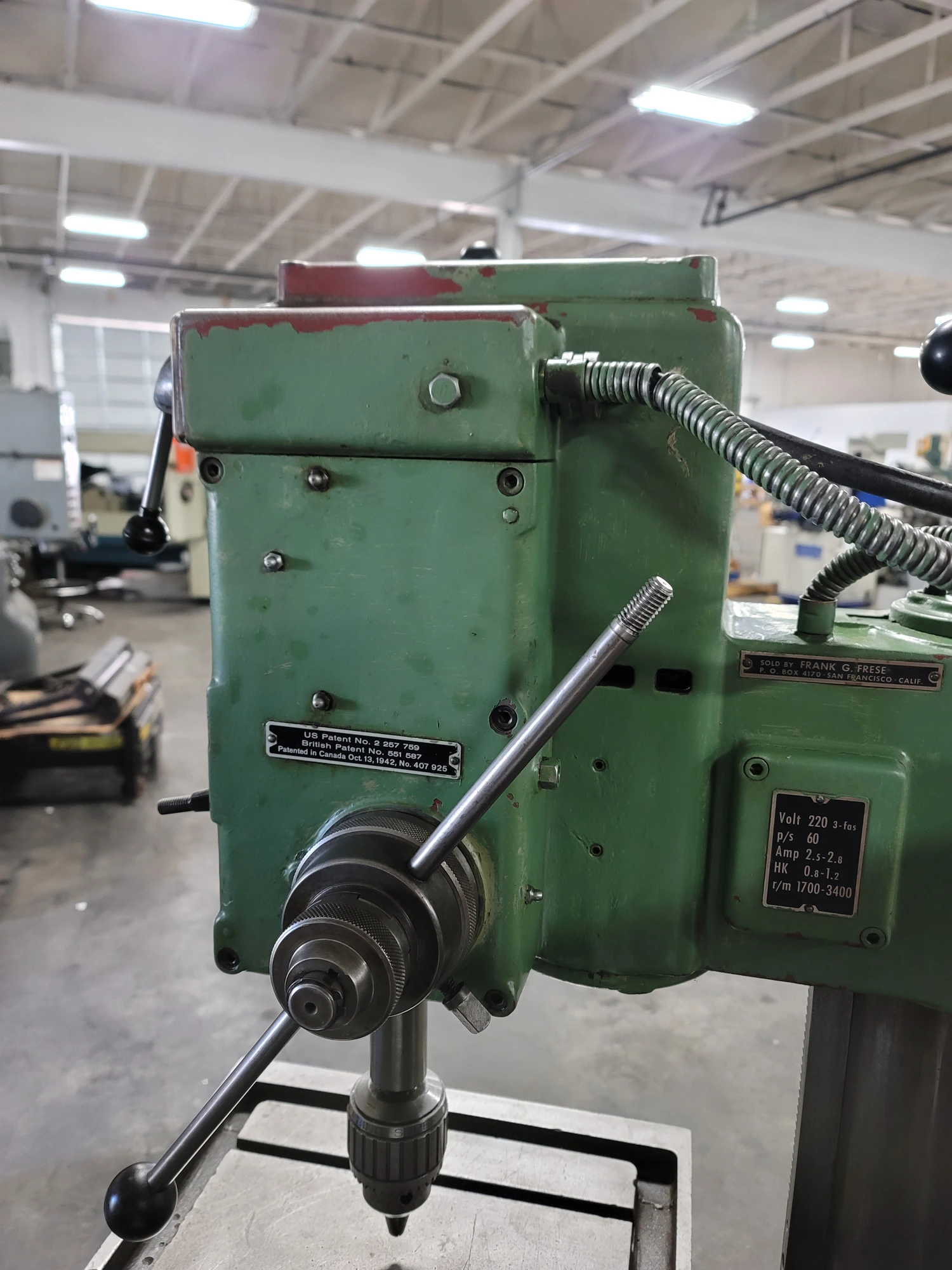

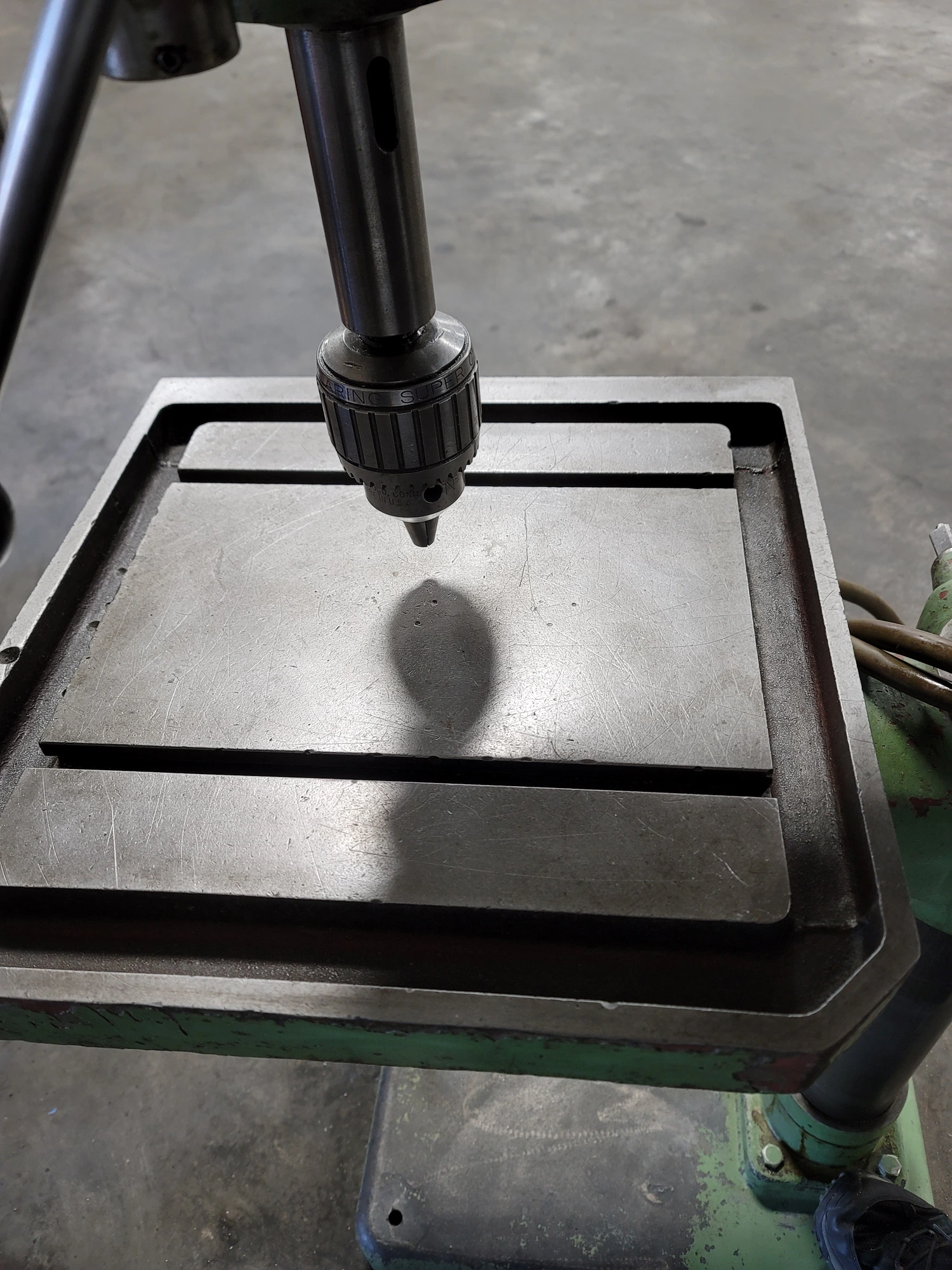

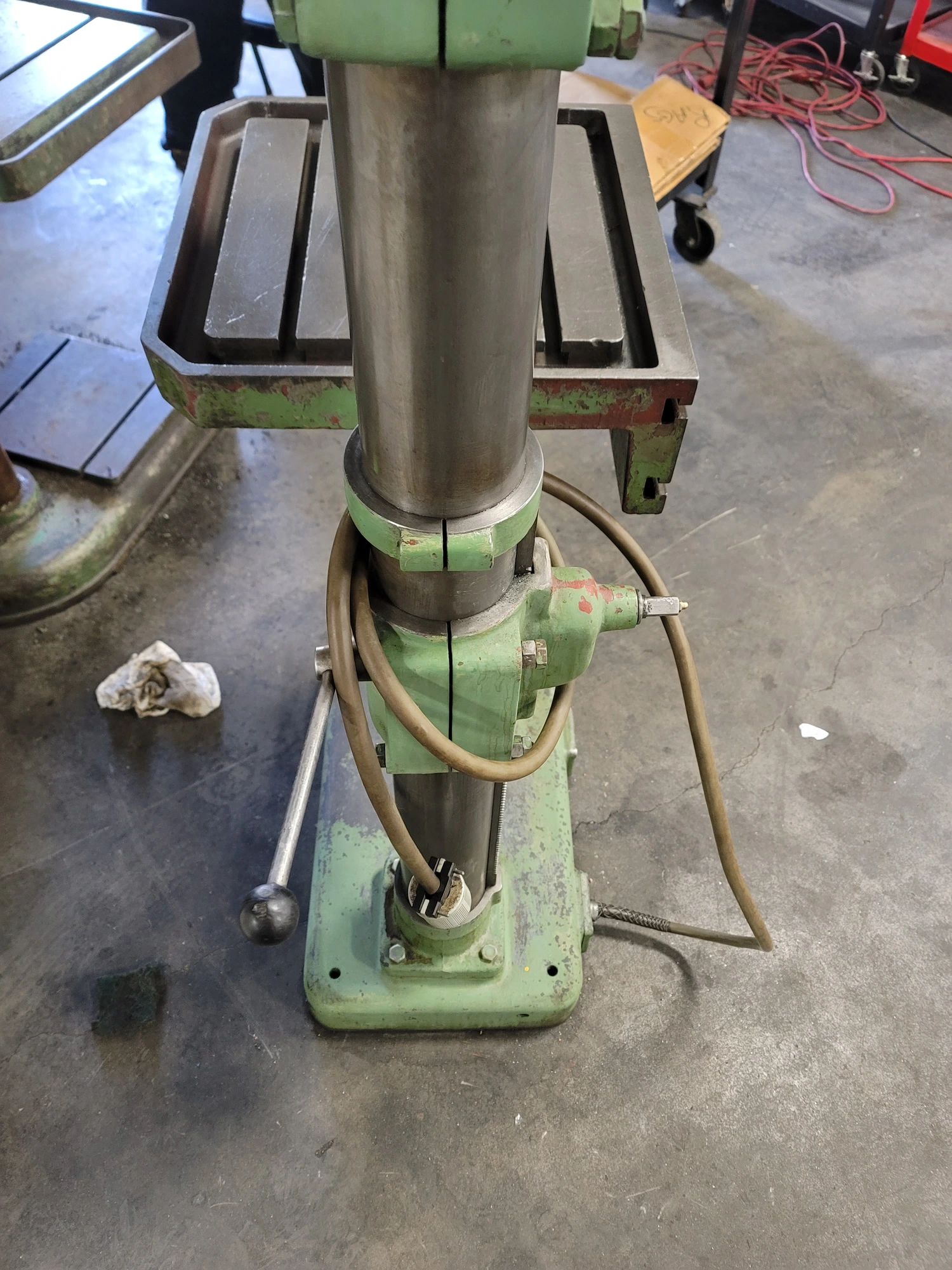

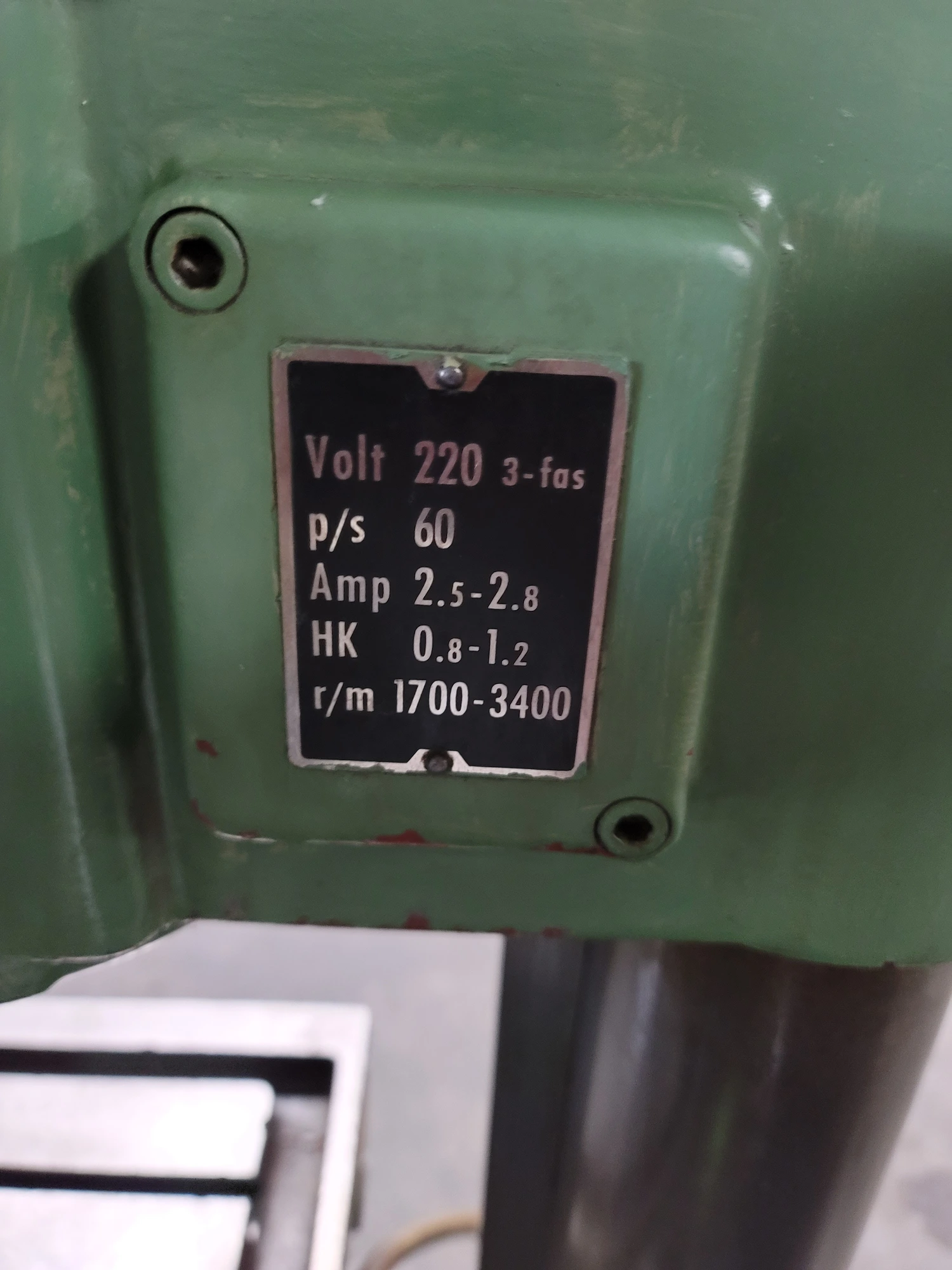

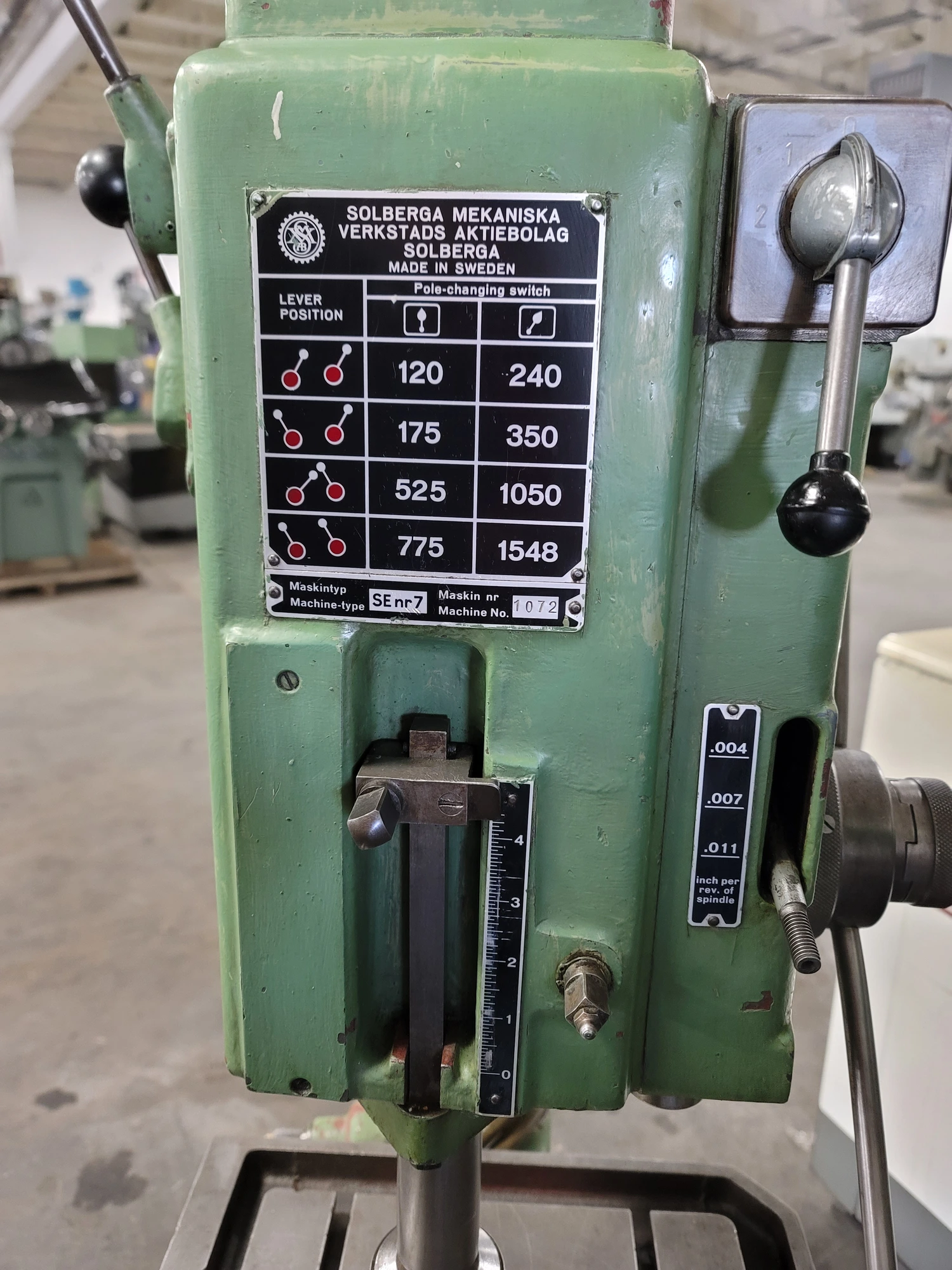

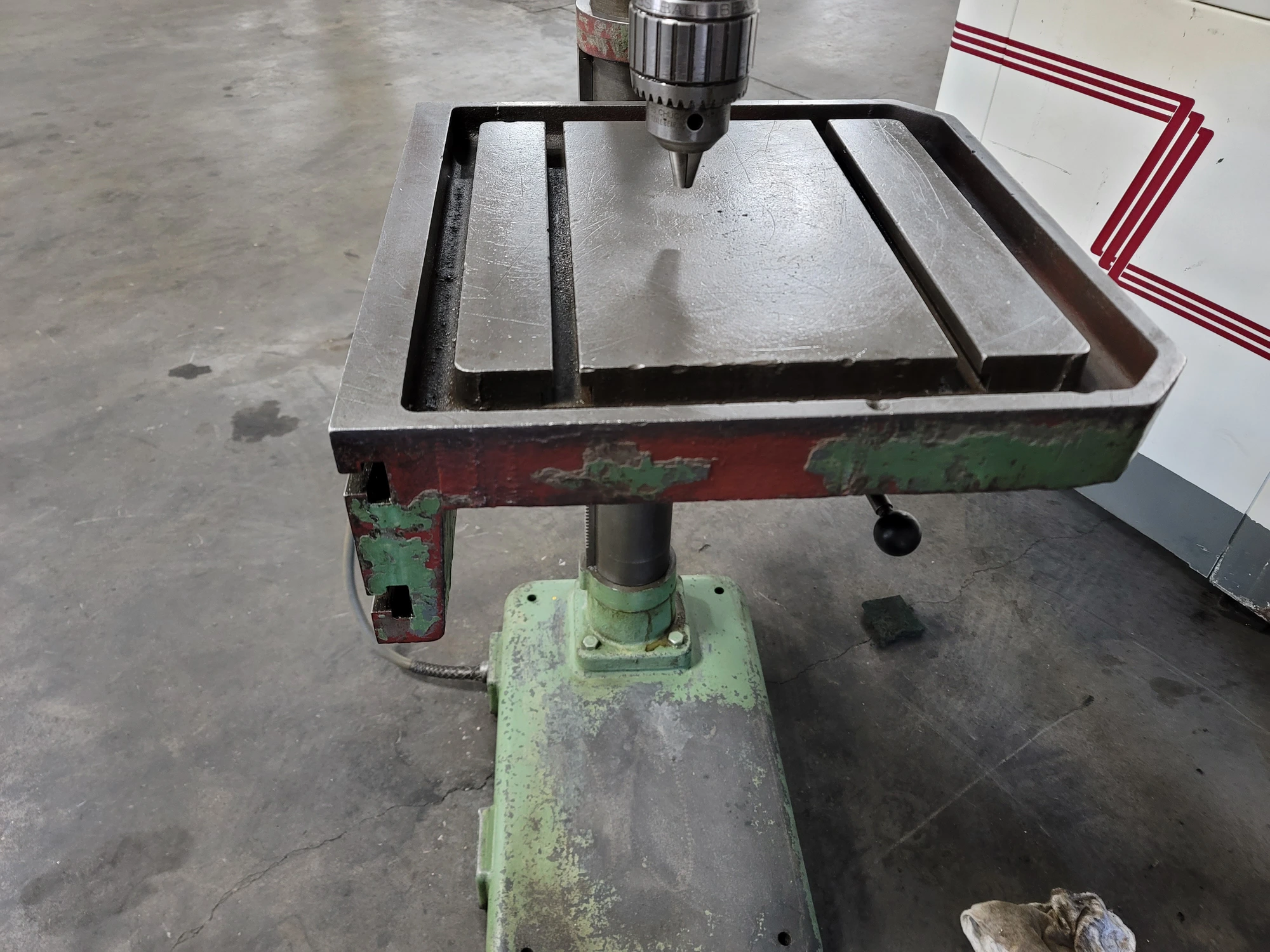

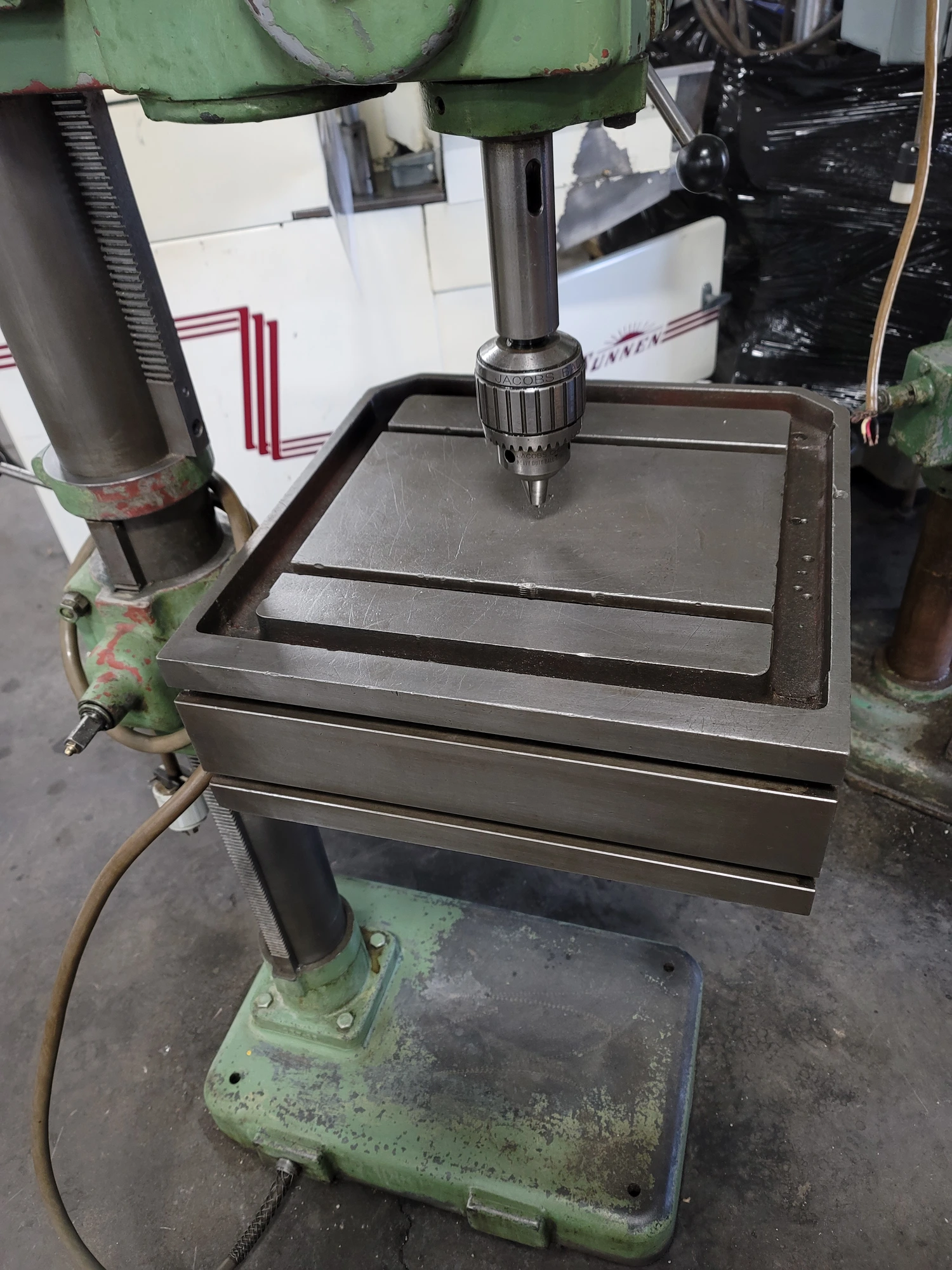

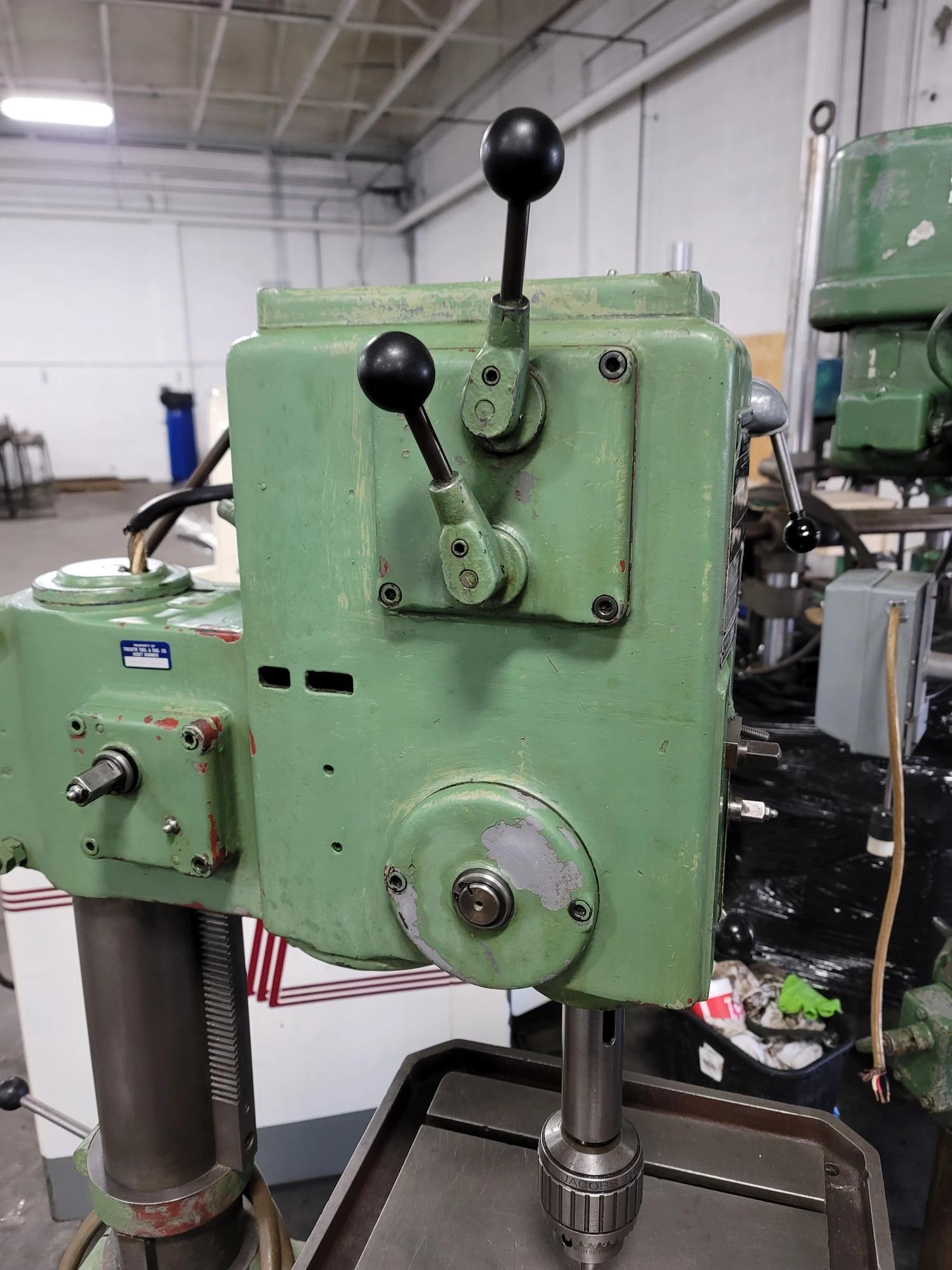

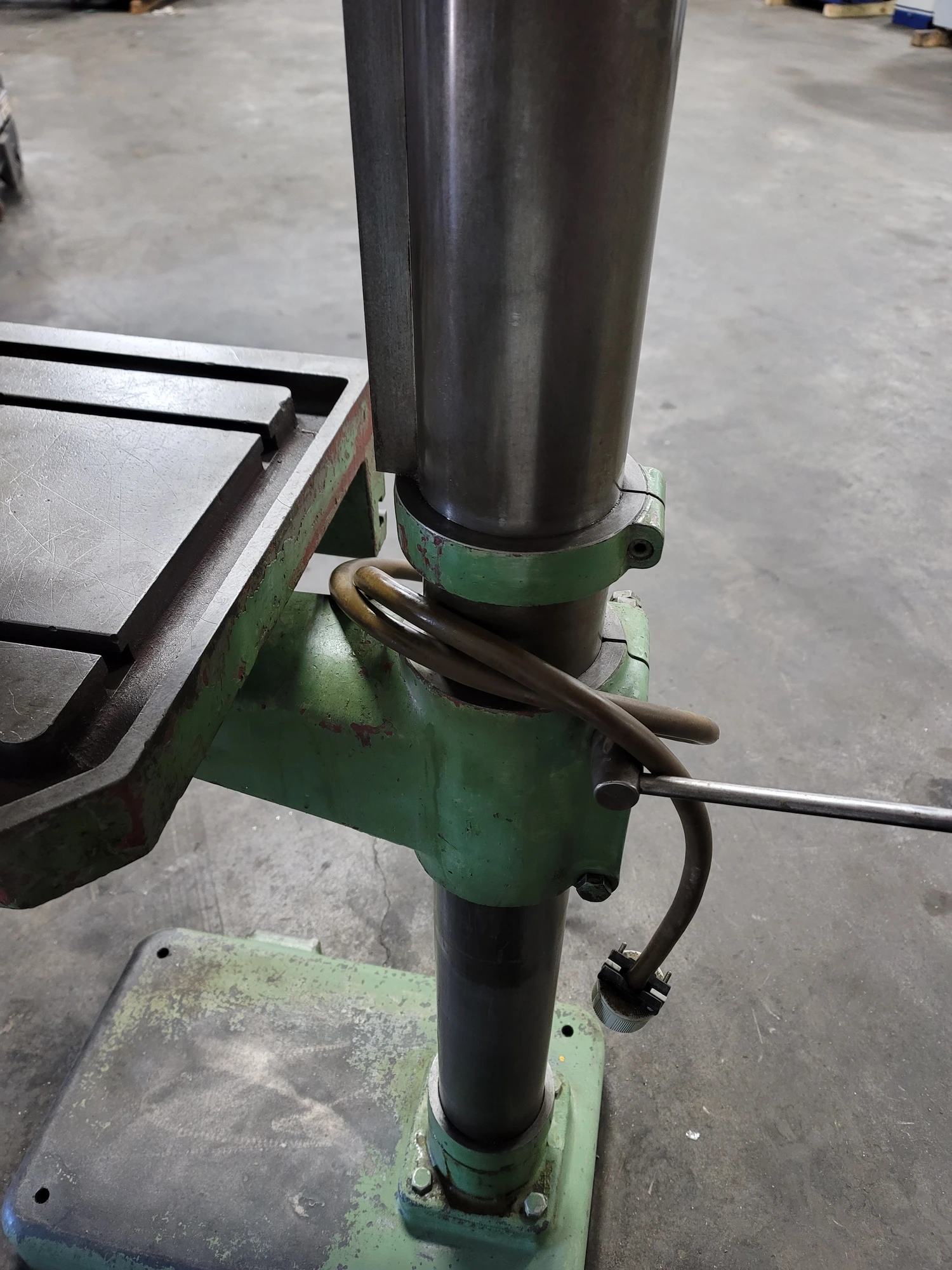

THE SOLBERGA 22" GEARED HEAD DRILL PRESS MODEL SE NR7 IS ENGINEERED FOR PRECISION AND EFFICIENCY IN SINGLE SPINDLE DRILLING APPLICATIONS. IT FEATURES A ROBUST GEARED HEAD DESIGN WITH A RACK AND PINION HEAD ADJUSTMENT SYSTEM, ALLOWING FOR PRECISE CONTROL AND EASE OF USE. THE DRILL PRESS OFFERS EIGHT SPINDLE SPEEDS RANGING FROM 120 TO 1548 RPM, POWERED BY A TWO-SPEED MOTOR WITH A SPINDLE MOTOR CAPACITY OF 1-1/2 HORSEPOWER. THE SPINDLE IS EQUIPPED WITH A #3 MORSE TAPER AND A JACOBS 18N DRILL CHUCK, ENSURING COMPATIBILITY WITH A VARIETY OF DRILL BITS. THE SPINDLE STROKE MEASURES 4-1/2", WITH A SPINDLE-TO-COLUMN DISTANCE OF 11-1/4". THE T-SLOTTED TABLE AREA IS 14" X 14", PROVIDING AMPLE SPACE FOR WORKPIECES, WITH A SPINDLE-TO-TABLE DISTANCE ADJUSTABLE FROM 4-1/2" TO 28". THE BASE WORK AREA IS ALSO T-SLOTTED, MEASURING 17" X 14". THE COLUMN DIAMETER IS 4", CONTRIBUTING TO THE MACHINE'S STABILITY AND DURABILITY. THE DRILL PRESS OPERATES ON A 220 VOLT, THREE-PHASE ELECTRICAL SYSTEM, WITH A MOTOR OUTPUT OF 3 / 1.8 HORSEPOWER AND A SPEED OF 1,700 / 3450 RPM, DRAWING 4.2 / 5 AMPS AT 60 HZ. THE OVERALL DIMENSIONS OF THE MACHINE ARE 24" X 29" X 81" TALL, MAKING IT SUITABLE FOR PROFESSIONAL WORKSHOPS REQUIRING RELIABLE AND PRECISE DRILLING EQUIPMENT.
