SolaHD Power Conditioner 23-22-112-2

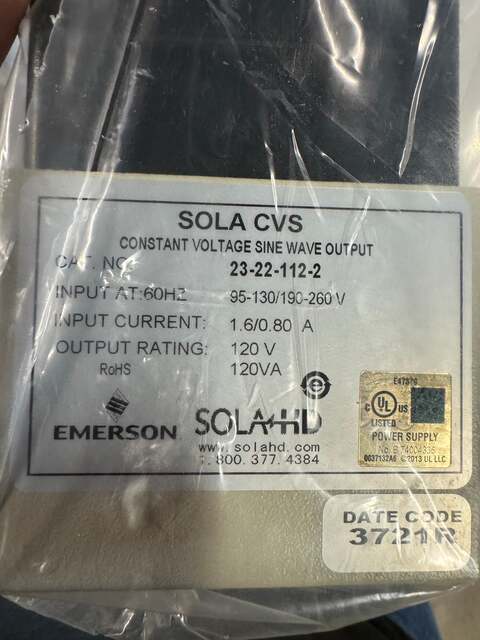

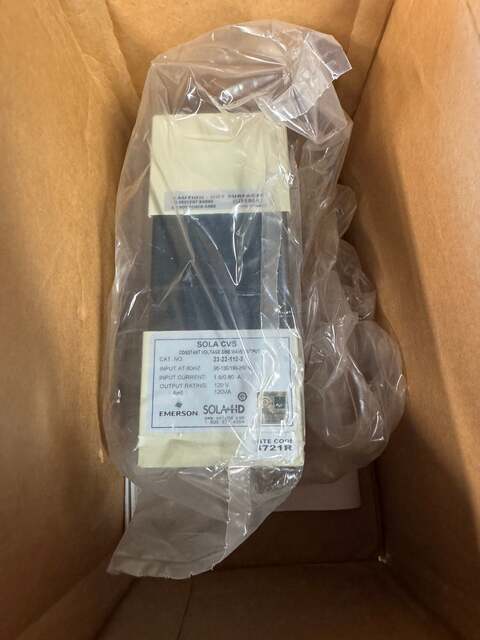

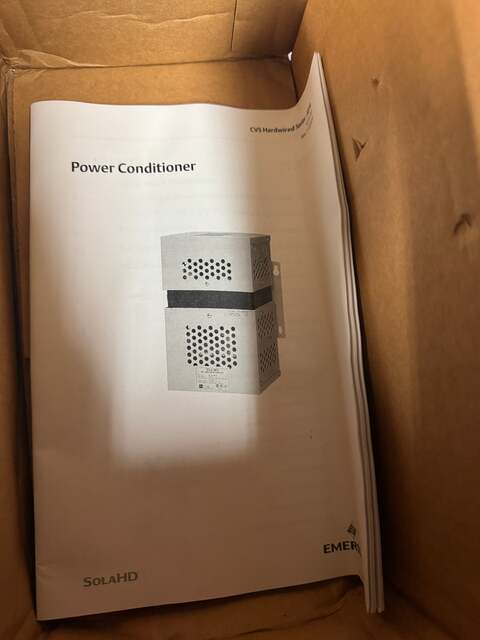

The SolaHD 23-22-112-2 is a constant voltage sine wave output power conditioner rated at 120VA, designed to deliver tightly regulated 120V AC output from a wide input voltage range of 95-130V or 190-260V at 60Hz. Manufactured under the SolaHD brand by Emerson, this hardwired CVS Series unit employs ferroresonant transformer technology to recreate a well-regulated sinusoidal waveform while providing galvanic isolation from the input supply. Input current is rated at 1.6A (low voltage range) or 0.80A (high voltage range). Output is 120V at 120VA. The unit carries RoHS compliance and is UL Listed as a Power Supply (UL File E47379). Date code 3721R is visible on the nameplate sticker. The unit ships in its original box with the SolaHD CVS Hardwired Series Power Conditioner installation manual included. The CVS Series is commonly used in industrial control panels, CNC equipment, and other applications requiring stable, conditioned AC power where voltage sags, swells, or waveform distortion on the input could disrupt sensitive electronic loads. Part number 23-22-112-2 is also referenced in some sources as 23221122.

Stock # 0526-02228
