Manufacturer: Snk
Model: FSP-80V
Year: 2011
Automatic Tool Changer: 40
Longitudinal" X: 90.5
Cross" Y: 33.4
Vertical" Z: 27.5
RPM: 4000
Stock # X1D4333
1 / 5
Click to zoom in
1 / 5
For Sale by Toolquip Inc
Surplus Record Dealer Since 2025
Location: Lebanon, OH
Contact Daniela Weaver
Phone Number: 513...> Show Phone Number 513-450-6223
Let the seller know you found their listing on Surplus Record!
Description

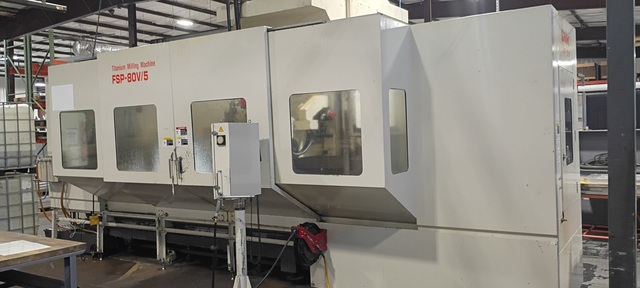

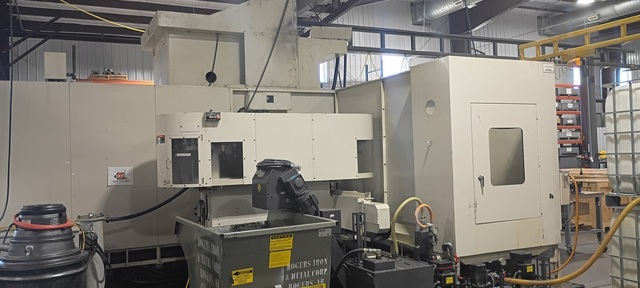

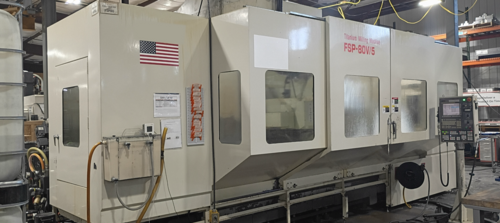

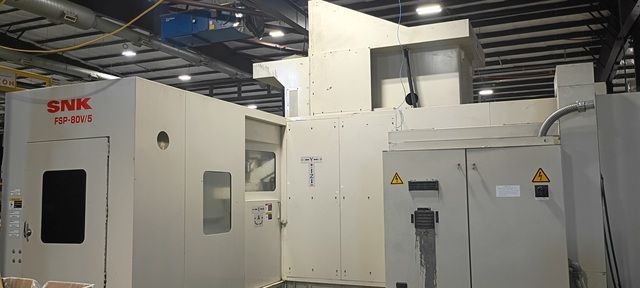

SNK FSP-80V 5-Axis Vertical Machining Center, 2011 model, features 90.5" X, 37.4" Y, and 27.5" Z travel. Equipped with FANUC 31i-A5, 40-tool ATC, splash guard, chip conveyor, and spindle overload protection. 30 hp, 4,000 RPM.
Travels
- Table travel (X-Axis): 2,300 mm (90.5 in)
- Column travel (Y-Axis): 850 mm (33.4 in) + ATC 400 mm (15.7 in)
- Spindle vertical (Z-Axis): 700 mm (27.5 in)
- Spindle swivel (A & B-Axis): 30 deg.
Feed Rates
Rapid Traverse
- X & Y-Axis: 20 m/min (787.4 ipm)
- Z-Axis: 10 m/min (393.7 ipm)
- A & B-Axis: 1,000 dpm
Feedrate
- X & Y-Axis: 0 to 10,000 mm/min (0 to 393.7 ipm)
- Z-Axis: 0 to 5,000 mm/min (0 to 196.8 ipm)
- A & B-Axis: 0 to 500 dpm
- CNC: FANUC 31i-A5
Automatic Tool Changer
- Automatic tool changer (ATC): 40 tools
Table
- Work mounting surface Width: 800 mm (31.5 in)
- Work mounting surface Length: 2,000 mm (78.7 in)
- Table loading capacity: 4,000 kg (8,800 lbs.)
Spindle
- Spindle speed: 20 to 4,000 min-1
- Spindle nose: ISO. No. 50 (Dual Face Contact Type)
- Spindle horsepower: VAC 22 kW (30 min.) / 18.5 kW (cont.); VAC 30 hp (30 min.) / 25 hp (cont.)
Travels
- Table travel (X-Axis): 2,300 mm (90.5 in)
- Column travel (Y-Axis): 850 mm (33.4 in) + ATC 400 mm (15.7 in)
- Spindle vertical (Z-Axis): 700 mm (27.5 in)
- Spindle swivel (A & B-Axis): 30 deg.
Feed Rates
Rapid Traverse
- X & Y-Axis: 20 m/min (787.4 ipm)
- Z-Axis: 10 m/min (393.7 ipm)
- A & B-Axis: 1,000 dpm
Feedrate
- X & Y-Axis: 0 to 10,000 mm/min (0 to 393.7 ipm)
- Z-Axis: 0 to 5,000 mm/min (0 to 196.8 ipm)
- A & B-Axis: 0 to 500 dpm
- CNC: FANUC 31i-A5
Automatic Tool Changer
- Automatic tool changer (ATC): 40 tools
Table
- Work mounting surface Width: 800 mm (31.5 in)
- Work mounting surface Length: 2,000 mm (78.7 in)
- Table loading capacity: 4,000 kg (8,800 lbs.)
Spindle
- Spindle speed: 20 to 4,000 min-1
- Spindle nose: ISO. No. 50 (Dual Face Contact Type)
- Spindle horsepower: VAC 22 kW (30 min.) / 18.5 kW (cont.); VAC 30 hp (30 min.) / 25 hp (cont.)
