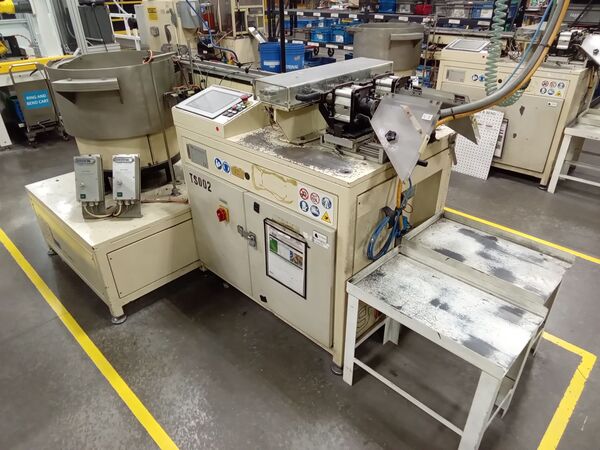

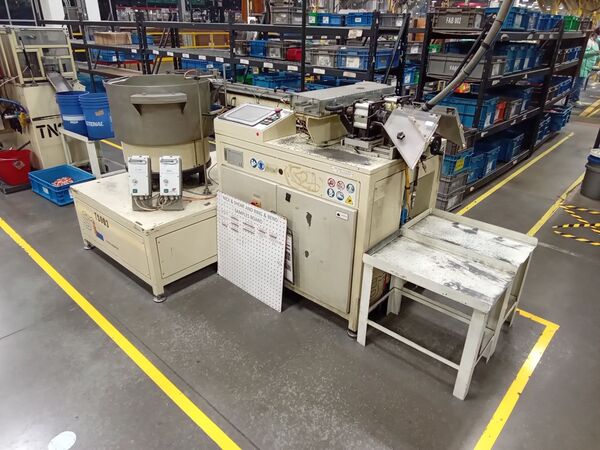

SMI #IPT-5, automatic tube end reducer, 1.575"-5.905" length of tube, 0.197" dia., .0169" thickness, 2012

SMI Automatic Tube End Reducer
Model: IPT 5
Year: 2012

Specifications:
Material: Light Alloys: Copper
Diameter: Ø 0.197 ” Thickness 0.0169 ” (Ø 5 Mm Thickness 0.43 Mm)
Minimum Length Of Tube: 1.575 ” (40 Mm)
Maximum Length Of Tube: 5.905 ” (150 Mm)
Format Guides
(By Length Of Tube)
1.977 ” And 2.800 ” (50.2 Mm And 71.1 Mm)

Technical Features:
Overall Dimensions And Weight:
(Refer To The Machine Layout In The Attachments):
Length 4197 Mm
Width 1375 Mm
Height Of The Operating Axis 1141 Mm
Height 1927 Mm

Technical Data:
Electrical Power Supply 480 V Three-Phase, 60Hz
Pneumatic Supply 6 Bar (0.6 Mpa)
Conveyor Belt Hopper Capacity 150 L
Vibrating Base Capacity 25 L
Total Installed Power 2.5 Kw
Weight Of Machine 975 Kg
Weight Of Conveyor Belt 180 Kg
Overall Weight 1155 Kg
