Description

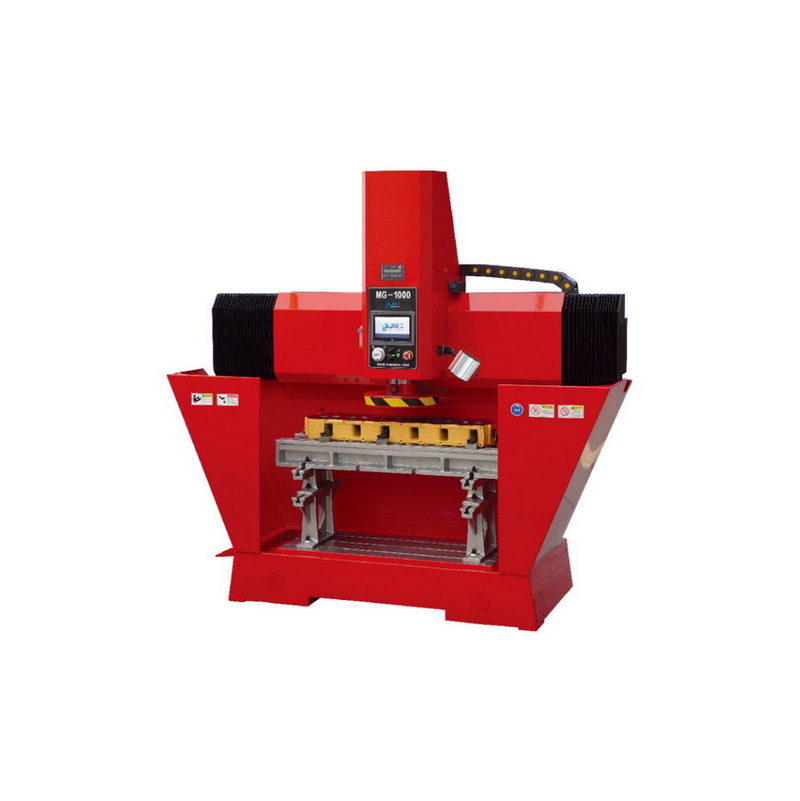

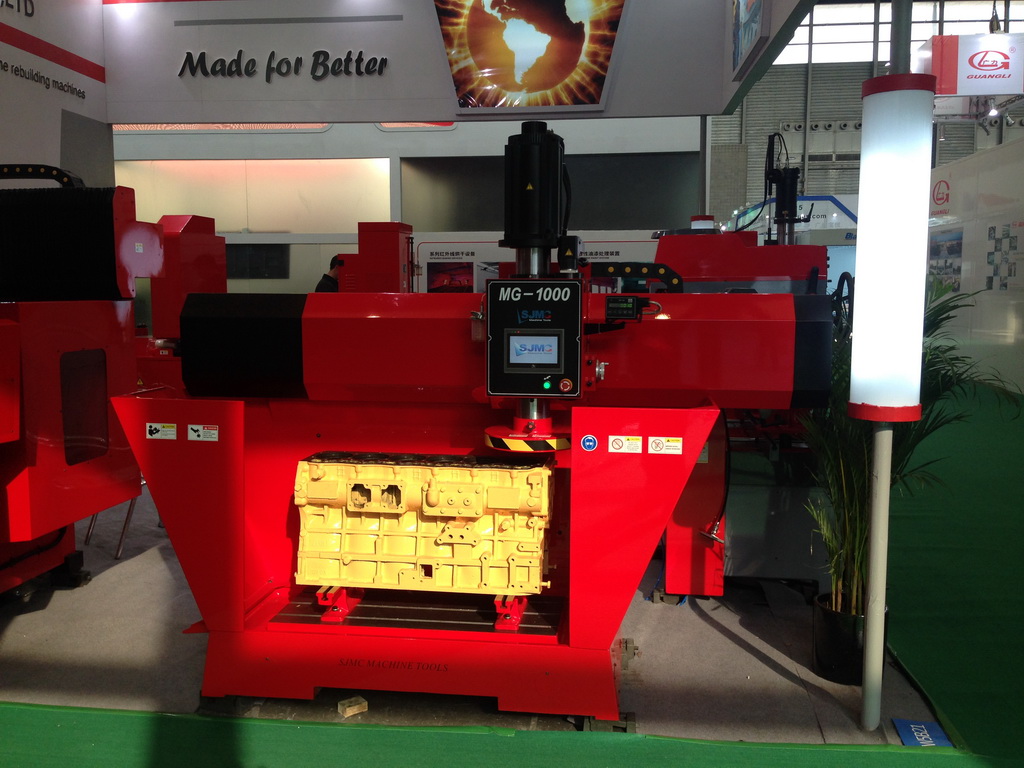

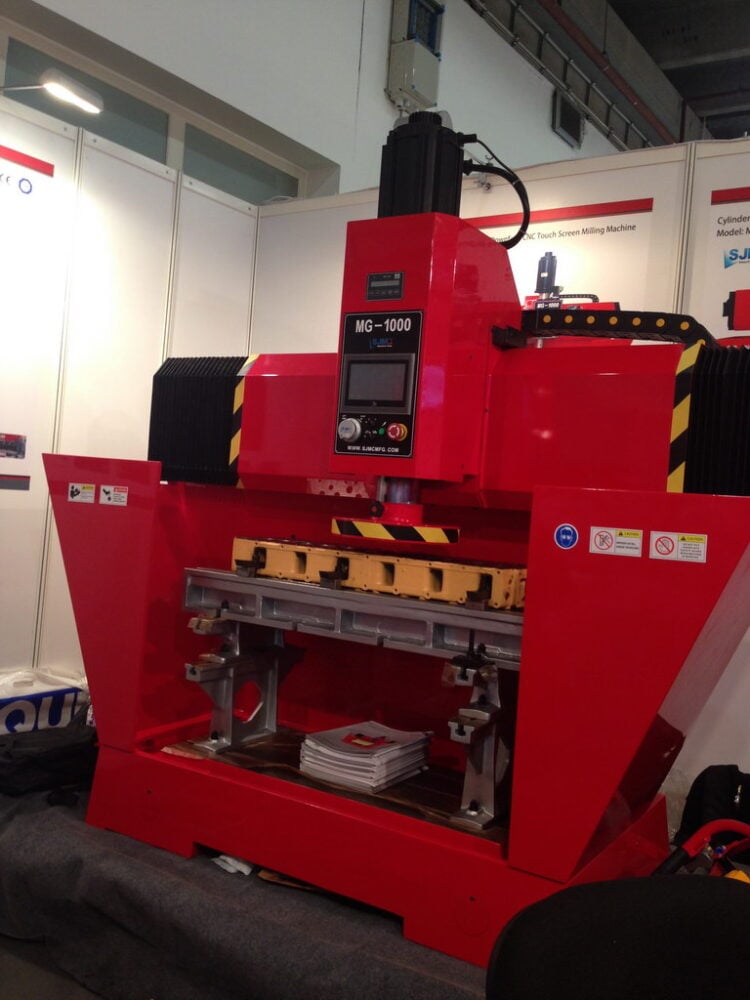

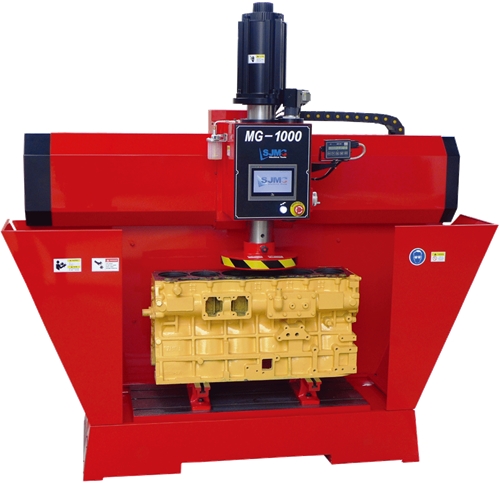

Automatic Downfeed CNC Touch Screen Milling Machine Model: MG-1000

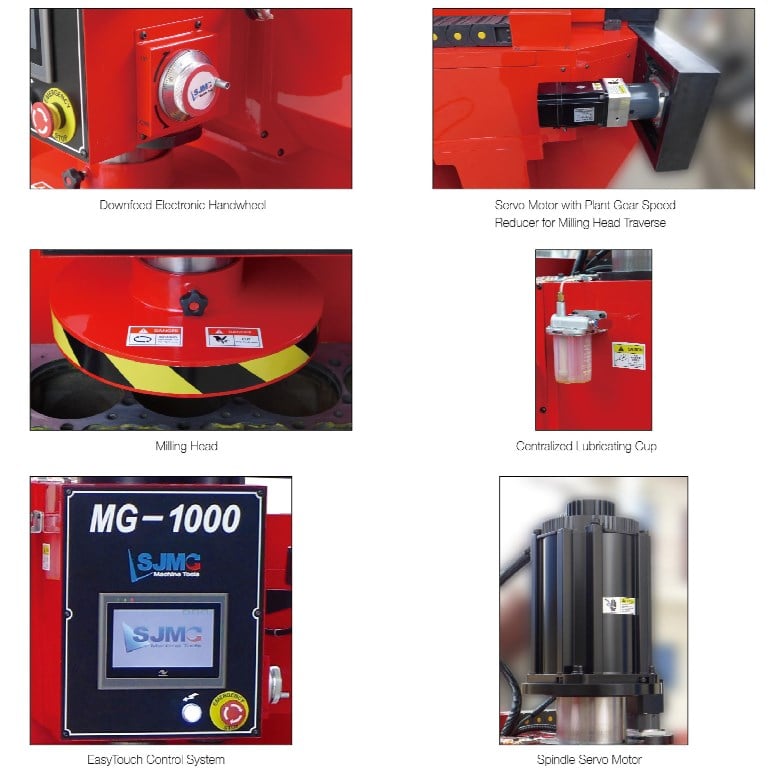

It is Mech-Electrical highly integrated machine uses touch key and screen display. The milling plate longitudinal movement by servo motor, the spindle vertical movement and rotation controlled by servo motor, three axis linkage control, high precision, high efficiency. This machine has a nice looking, stability, and supermatic, easy to use interface of EasyTouch control system, you can achieve the effect of finishing at RA1.6, flatness can reach to 0.01mm/300mm , same as the grinding. It is suitable for middle size, small size cylinder head, cylinder block and other Industrial parts required high-precision, high finish.
| Weight | 1500 kg |
|---|---|
| Dimensions | 210 × 112 × 198 cm |
| Manufacturer | SJMC |
| Model | MG1000 |

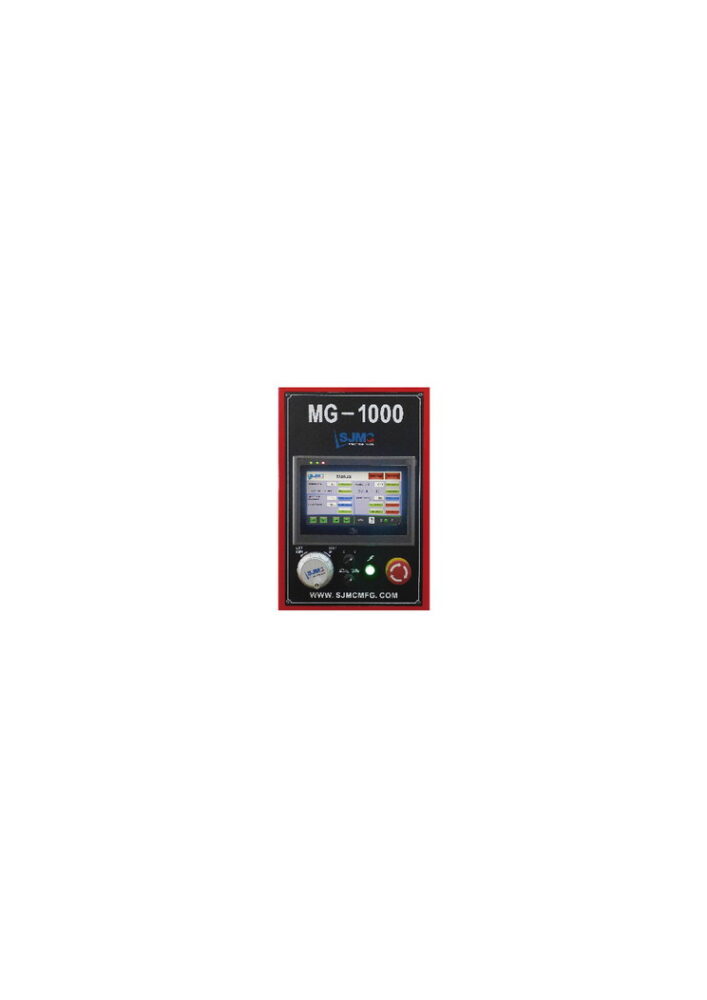

| Control System | EasyTouch 3 Axis |
| Spindle Speed | 200 – 1400 rpm stepless |
| Milling Plate Motor | 4 kW |
| Milling Plate Traverse Motor | 0.75 Kw |

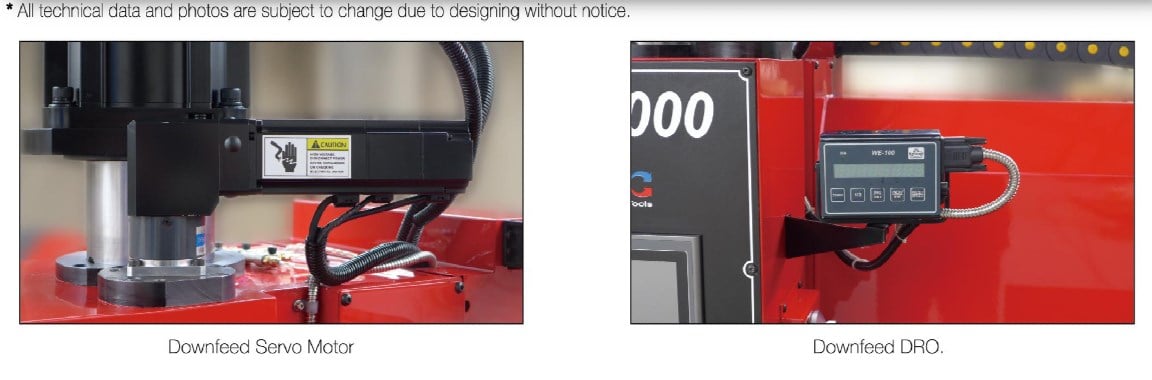

| Downfeed Motor | 0.4 kW |
| Max. Milling Length | 1000*300*650 |
| Working Table Surface ( L×D ) | 1400*400 mm |
| Milling Plate Dia. | 300 mm |

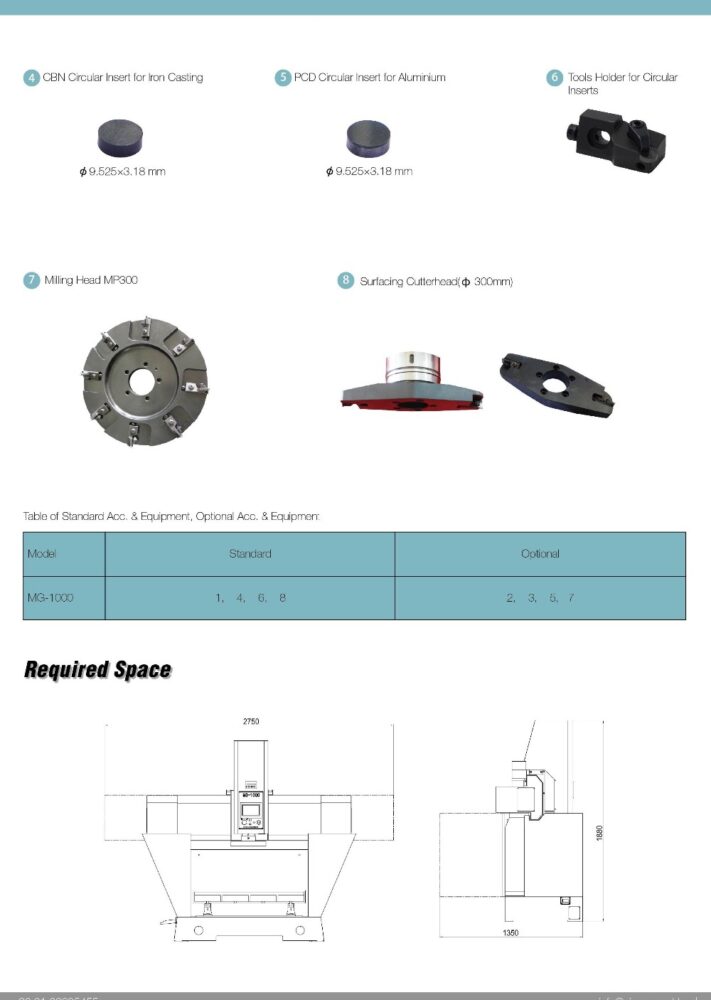

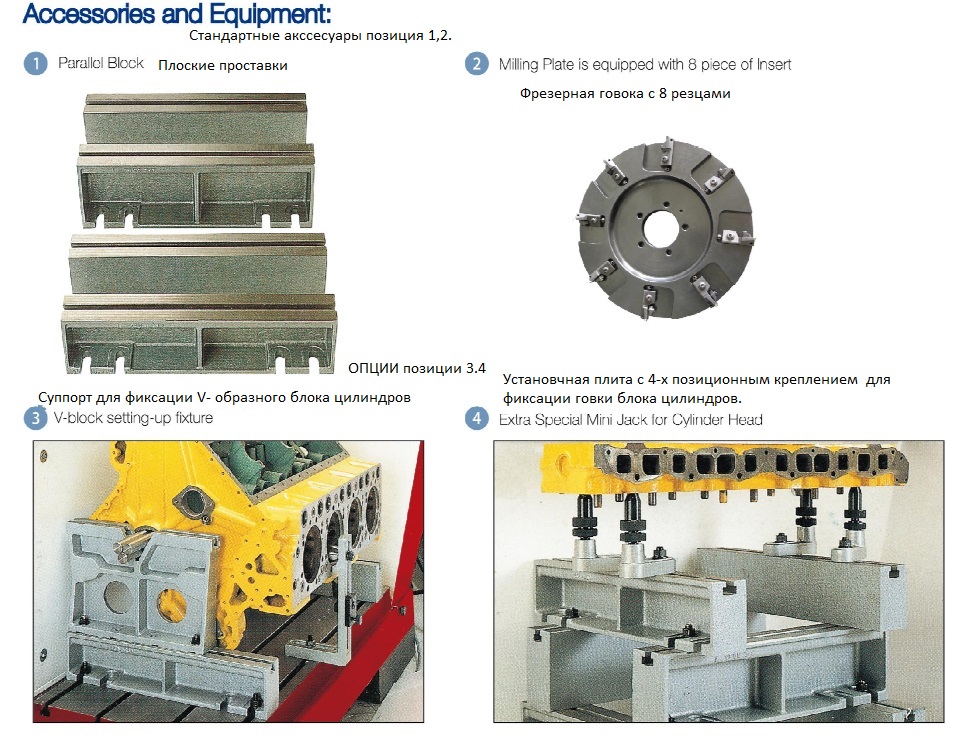

| Number of Milling Insert | 8 piece |
| Vertical Movement of Milling Plate | 150 mm |
| Milling Plate Traverse Speeds , Stepless | 200 ~ 1800 mm / min |

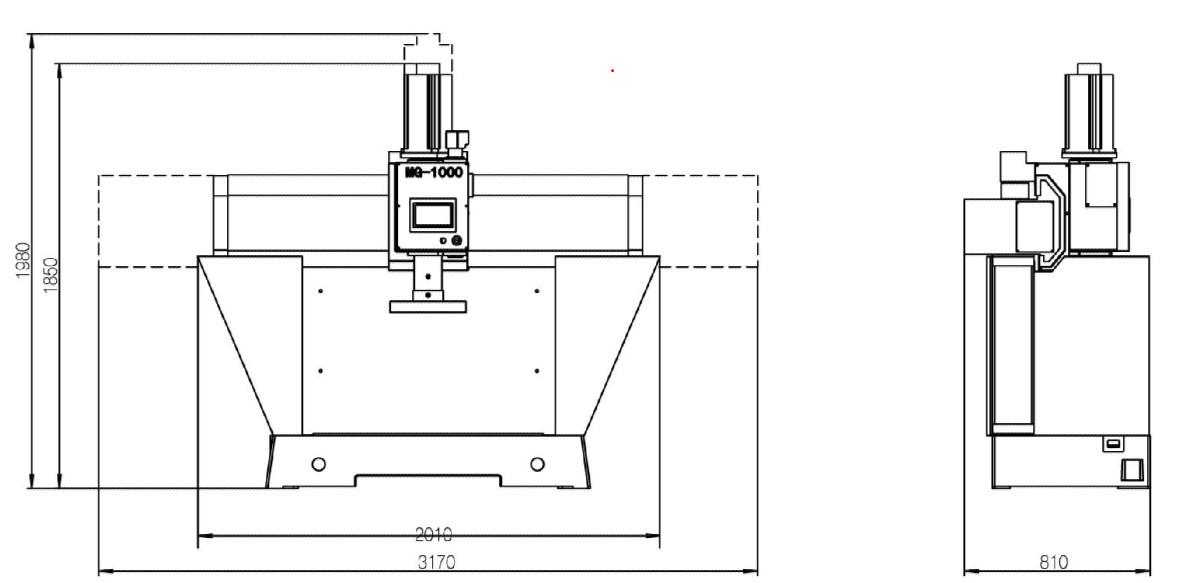

| Machine dimensions (L*W*H), mm | 2010*810*1980 |
| Flatness for Grinding | 0.01 mm / 300 mm |
| Surface Roughness for Grinding | 0.63 Ra |
| Package Size ( L×D×H ) | 2250*1100*2200 |
| N.W./ G.W. | 1500/1800 |
| Production time, working days | 60 |
