Sinpro Switching Power Supply SPU60-105

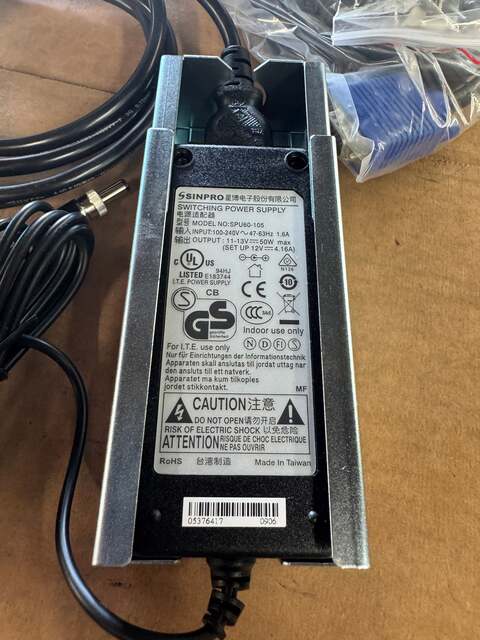

The Sinpro SPU60-105 is a 50W desktop switching power supply manufactured by Sinpro Electronics in Taiwan. The nameplate identifies an input range of 100 to 240 VAC at 47 to 63 Hz with a current draw of 1.6A, and a DC output of 11 to 13V at up to 50W maximum, with a set up rating of 12V at 4.16A. The unit is housed in a slim aluminum chassis with mounting brackets and carries UL Listed E183744 I.T.E. Power Supply certification, along with CE, GS geprufte Sicherheit, CB, CCC S and E, and RoHS markings. The product label notes For I.T.E. use only and Indoor use only. The barcode on the bottom of the unit reads 05376417 0906. The output side terminates in a coaxial DC plug with a threaded retention collar, and the input side accepts an IEC style detachable AC cord. The SPU60 series is designed for use with information technology equipment, industrial controls, point of sale terminals, monitors, instrumentation, and automation systems that require a regulated 12 VDC source within the rated current envelope. This model is listed by Sinpro and several aftermarket sources as discontinued by the manufacturer. Part number SPU60-105 is the manufacturer part number used for cross referencing OEM equivalents.

Stock # 0526-02413
