Siemens, medium voltage motor cont, 4160 Volt, 1000 amp MCC Panel, 3PH

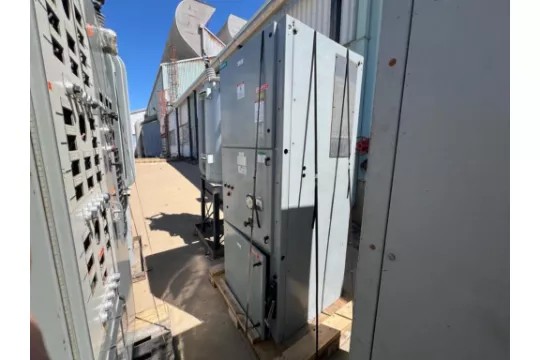

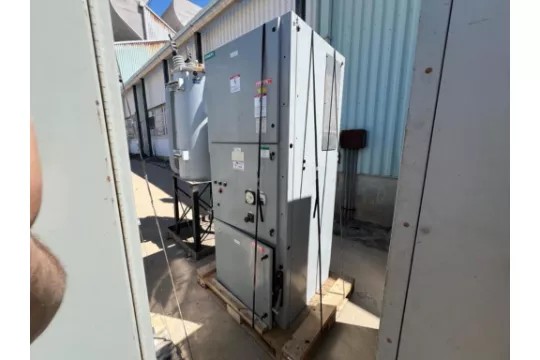

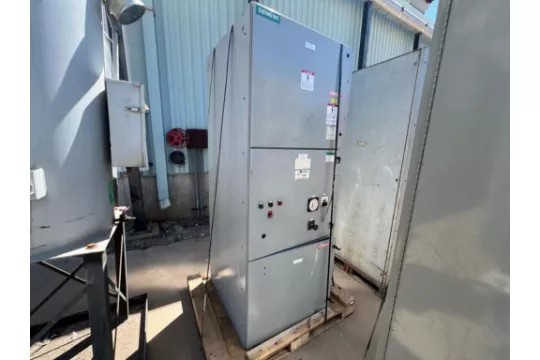

Siemens Medium Voltage Motor Control Center 4160V 3PH 1000A MCC Panel Serial 02-1942-89966; Siemens medium voltage motor control center (MCC) cabinet configured for industrial motor starting and control applications. Unit is labeled for machine cooling wind starter service and features integrated switching, protection, and monitoring components within a metal-enclosed structure. Manufacturer & Identification: • Manufacturer: Siemens Energy & Automation, Inc. (Raleigh, NC, USA) • Type: Medium Voltage Motor Control Center (MCC) • Serial Number: 02-1942-89966 • Part Number: 25-324-223-501 Electrical Specifications (from nameplate): • Voltage: 4160V • Phase: 3 • Frequency: 60 Hz • Horizontal Bus Rating: 1000 Amps • Impulse Test Voltage: 60 kV • Short Circuit Rating: 50,000 Amps RMS Symmetrical • MVA Rating: 350 MVA RMS Symmetrical Configuration & Components: • Multi-compartment metal-enclosed cabinet • Incoming line compartment (labeled) • Motor starter configuration (labeled: “B3 Machine Cooling Wind 2400V Starter”) • Internal fuse / contactor assembly with insulated phase barriers • Control interface with pushbuttons and analog ammeter • External ON/OFF disconnect handle • Arc flash and high voltage warning labeling • Mounted on pallet base
