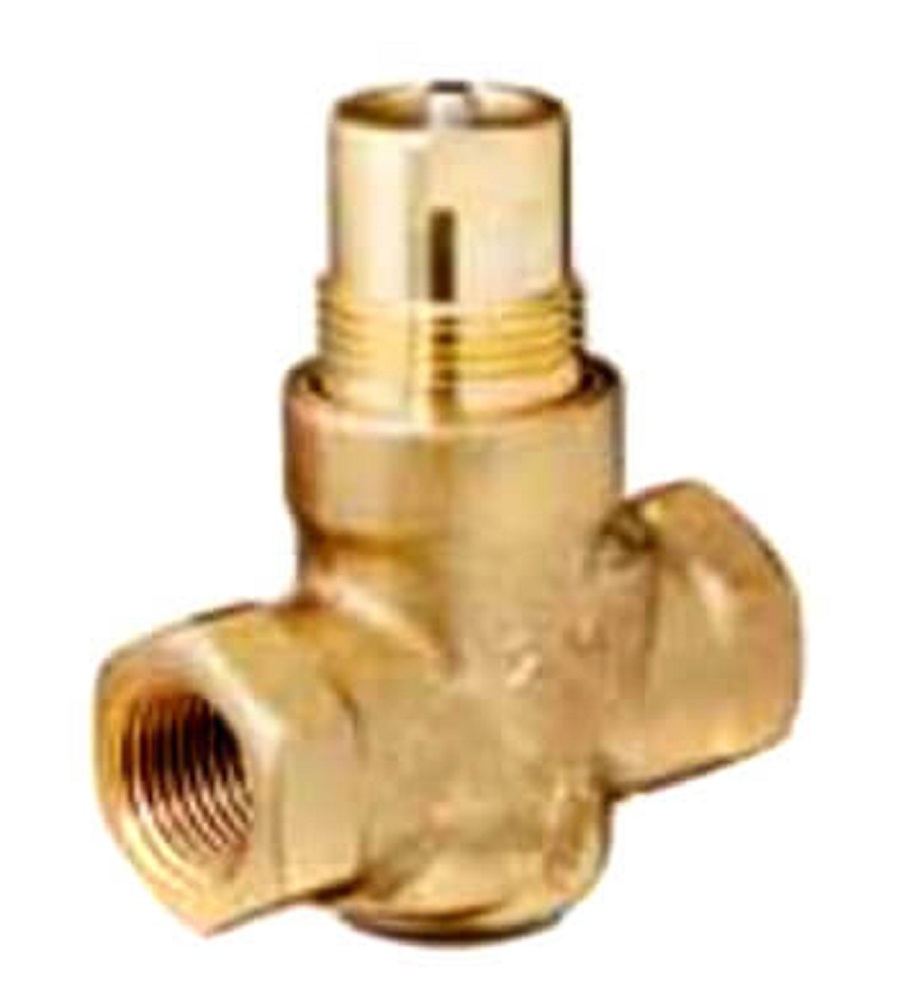

Siemens 599-02006 1/2" 2-Way N/C Brass Globe Valve Body, Female x Female 1.6 Cv

$69 USD

Request Formal Quote

Siemens 599-02006 1/2" 2-Way N/C Brass Globe Valve Body, Female x Female 1.6 Cv - Siemens 599-02006 1/2" 2-Way N/C Brass Globe Valve Body, Female x Female 1.6 CvThe Powermite MT Series Globe Valves are designed to work with either a pneumatic or electronic actuator with a 7/32-inch (5.5 mm) stroke. Compatible actuators deliver a minimum of 67 lbf. (300 N) of force.Features:Direct-coupled universal bonnet/no tools required for installationChoice of brass or stainless steel trimANSI Leakage Class IV (0.01% of Cv)ANSI Class 250Available in 3 to 8 psi, 8 to 13 psi, or 10 to 15 psi spring ranges with pneumatic actuationAvailable with spring return and non-spring return 0-10 and floating control electronic actuatorsGreater than 100:1 rangeability for Cv> 1.0Rated for 15 psi steam with stainless steel trimInterchangeable pneumatic or electronic actuatorsApplications :Typical applications include control of hot or chilled water, glycol solutions up to 50%, or steam up to 15 psi (103 kPa).Recommendation:Only use the MT Series Valve Actuators. When using this valve with a pneumatic actuator, note that MT valve bodies have the spring in the body, rather than the actuator. To order the correct valve body, select the proper spring range. Alternate spring ranges for pneumatic sequencing are available as valve and actuator factory assemblies only. - Siemens - Siemens - 599-02006 - 599-02006
