For Sale by Westbrook Engineering Co
Surplus Record Dealer Since 1977
Location: Warren, MI
Contact Sales Dept.
Phone Number: 866...> Show Phone Number 866-367-7297
Let the seller know you found their listing on Surplus Record!
Description

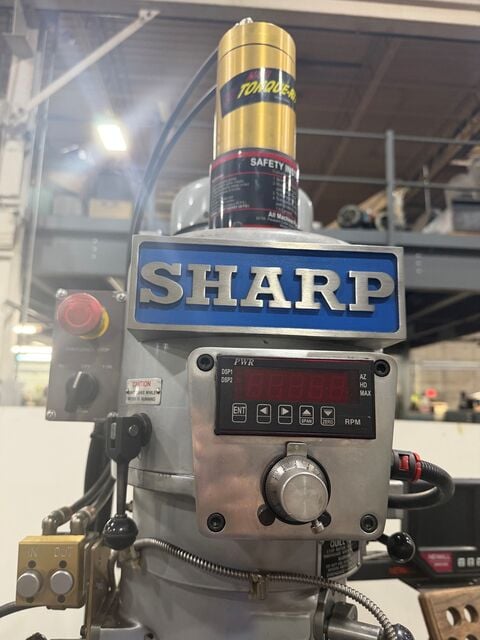

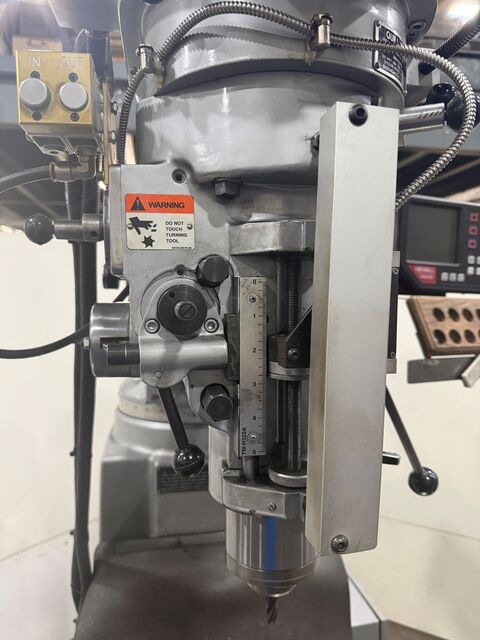

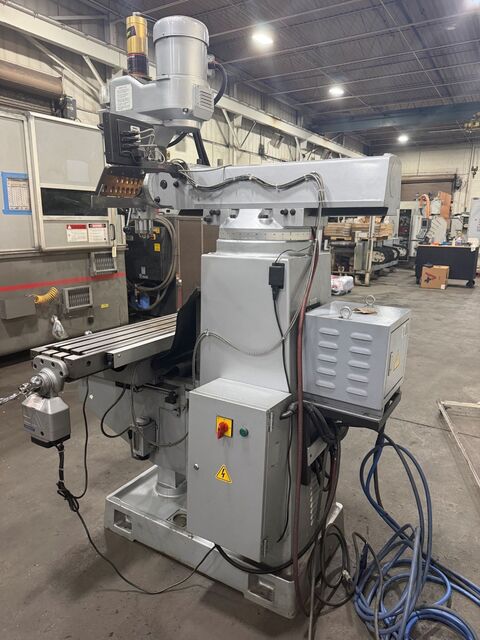

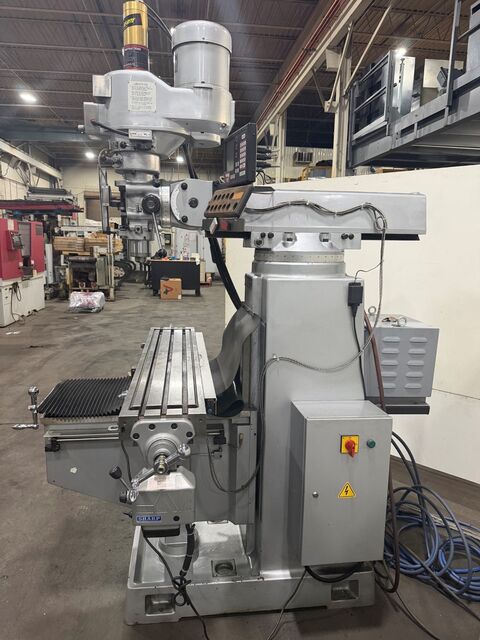

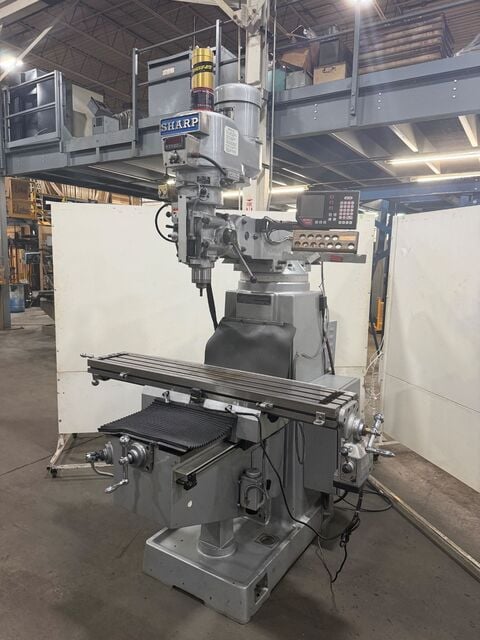

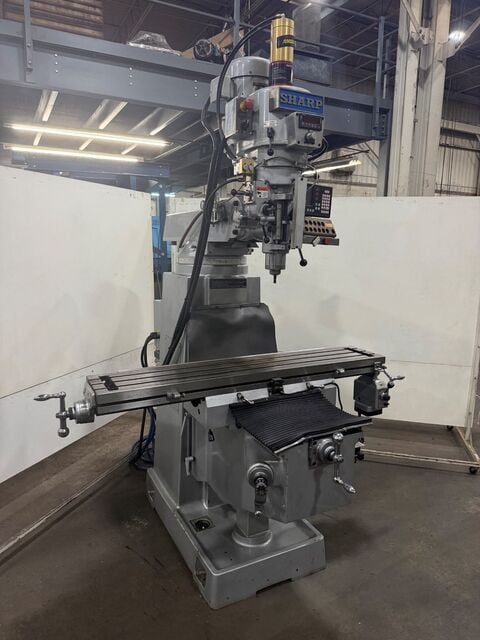

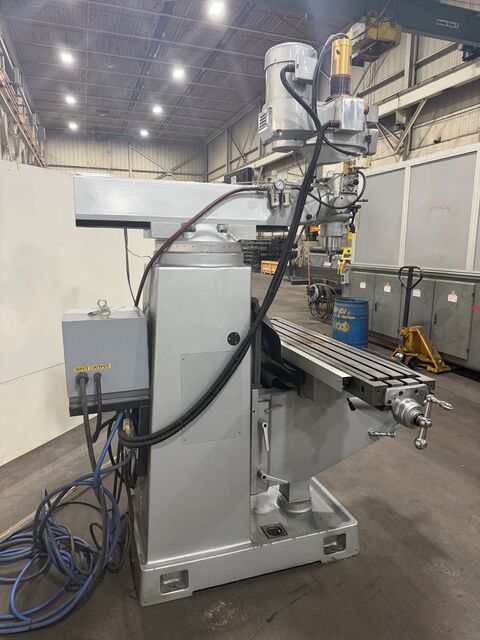

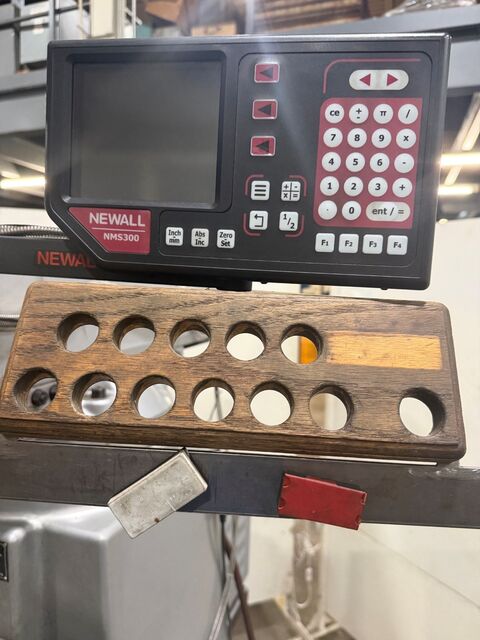

Used 2020 Sharp TMV-K-N Knee Mill featuring a 10" x 54" table, 3.375" quill diameter, 3-axis Newall NMS 300 digital readout, Maxi Torque-Rite power draw bar, variable speed, and powerfeed on X-axis. Enhanced with dual cooling fans and precision bearings.
Brand: Sharp
Model: TMV-K-N
Specifications:

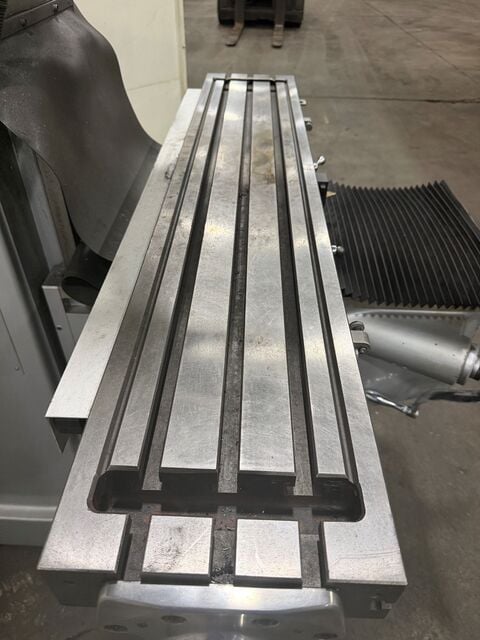

Table Size: 10 x 54 in.
T-Slots (No., Size, Pitch): 3, 5/8, 2.5 in
Table Travel X: 39 in.
Tabe Travel Y: 16.3
Quill Travel Z: 5 in.
Ram Travel: 18.5 in.
Knee Travel: 15.3 in.
Spindle Center to Column: 9.8 28.3 in.
Spindle Nose to Table Top: 5.375 x 16.9 in.
Spindle Nose Taper: R-8
Spindle Variable Speed Range: 60-4500 rpm
Quill Feed (Inch/Min) (3 speeds): .0015, .003, .006 in.
Quill Diameter: 3.375 in.
Head Tilt Angle (L/R): 90
Head Tilt Angle (Up/Down): 45
Spindle motor: 3 H.P.
Voltage: 220 / 440 volt 3-phase
Dimensions: 70" x 71" x 94"
Weight: 3,000 Lbs.
Brand: Sharp
Model: TMV-K-N
Specifications:
Table Size: 10 x 54 in.
T-Slots (No., Size, Pitch): 3, 5/8, 2.5 in
Table Travel X: 39 in.
Tabe Travel Y: 16.3
Quill Travel Z: 5 in.
Ram Travel: 18.5 in.
Knee Travel: 15.3 in.
Spindle Center to Column: 9.8 28.3 in.
Spindle Nose to Table Top: 5.375 x 16.9 in.
Spindle Nose Taper: R-8
Spindle Variable Speed Range: 60-4500 rpm
Quill Feed (Inch/Min) (3 speeds): .0015, .003, .006 in.
Quill Diameter: 3.375 in.
Head Tilt Angle (L/R): 90
Head Tilt Angle (Up/Down): 45
Spindle motor: 3 H.P.
Voltage: 220 / 440 volt 3-phase
Dimensions: 70" x 71" x 94"
Weight: 3,000 Lbs.
Get Your Price from Westbrook Engineering Co!
