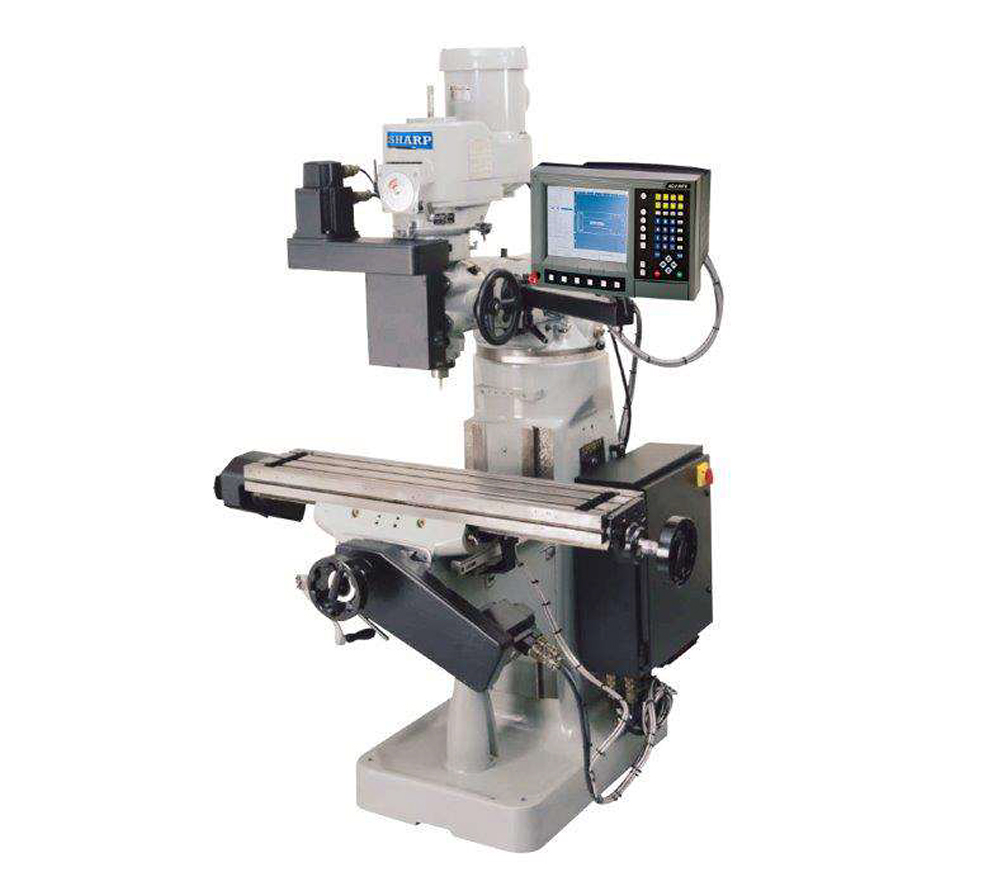

Sharp #LMV/TMV, 2 & 3 Axis CNC knee mill, 9"/10" x 42"/50" table, 3 HP, new, #14558-14562 (8 available)

• Vertical Knee Mill with MILLPWR-G2 2 axes (table, and saddle) CNC system by ACU-RITE.
• Digital Servo drive systems for X ,Y and Z axes travel.
• Able to perform 3-D contour work.
• Precision-ground ball screws with preloaded ball nut assemblies.
• 3 axis (table, saddle, quill) digital readout system.
• Automatic lubrication system.
• Safety hand wheels.
• Machine construction features same as SHARP Models LMV, LMV-50

MILLPWR-G2 CNC SYSTEM FEATURES

HARDWARE

• 12.1” flat-panel high resolution display with 3 D graphics, color keypad
• Simplified navigation that eliminates multiple menu screens
• RS-232 port, USB (2), Ethernet
• 1.4 GHz processor, 2.5 GB Flash internal storage
• Programmable speed (with optional DVS head)

SOFTWARE

• User friendly conversational programming format. No prior programming experience is necessary.
• Standardized menus make it easy to program common features like lines, arcs, pockets, bolt hole patterns, islands, spirals and ellipses. To add a feature to the program, simply press a function key and then follow the prompts.
• Perform complex calculations to solve geometry and trigonometry problems.
• Edit individual steps or merge whole or partial programs already created by using functions such as:
• Mirror/repeat/rotate, Explode, Reverse step, Reverse path, Change steps, Delete steps, Copy/move steps.
• Import geometry directly from a CAD file using the MILLPWR’s DXF file input-for faster programming and fewer errors.
• Preview each step with immediate-part- view graphics – the console automatically shows a graphic representation of each step once it is created in a program.
• Program to mill at or to a specified depth automatically.
• Able to import and run G-code files from CAD/CAM programs to machine full 3-D contoured parts.
• Automatically control spindle’s speed and/or direction of the machine (machine has to be equipped with the DVS head-an optional item, plus the programmable speed option).

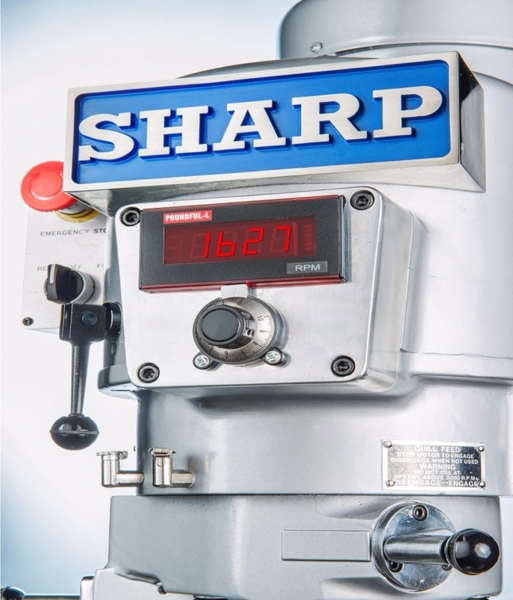

Why DVS (Digital Variable Speed) head ? (Optional)

• High reliability with fewer moving parts than regular variable speed head
• Programmable speed (must include MILLPWR-G2 programmable speed option)
• Dynamic brake, Low voltage control, Large Digital rpm display
• Dependable Inverter Drive System
• Machine can run on single phase or 3 phase electricity
• Safety device prevents machine from self starting after power failure or after emergency stop being pushed

STANDARD ACCESSORIES:

• Hard-chromed ways
• One-shot lube system
• Front and rear rubber way covers
• Tool kit

OPTIONAL ACCESSORIES:

• Digital Variable Speed (DVS) head
• Power feeds for table, saddle and knee
• R-8 collet set
• Milling vise
• Clamping kit
• Coolant system with chip pan
• Right angle milling attachment
• Riser block (4”, 7”)
• Digital Readout systems
• Power drawbar
• Auto lube system
• Halogen work light
