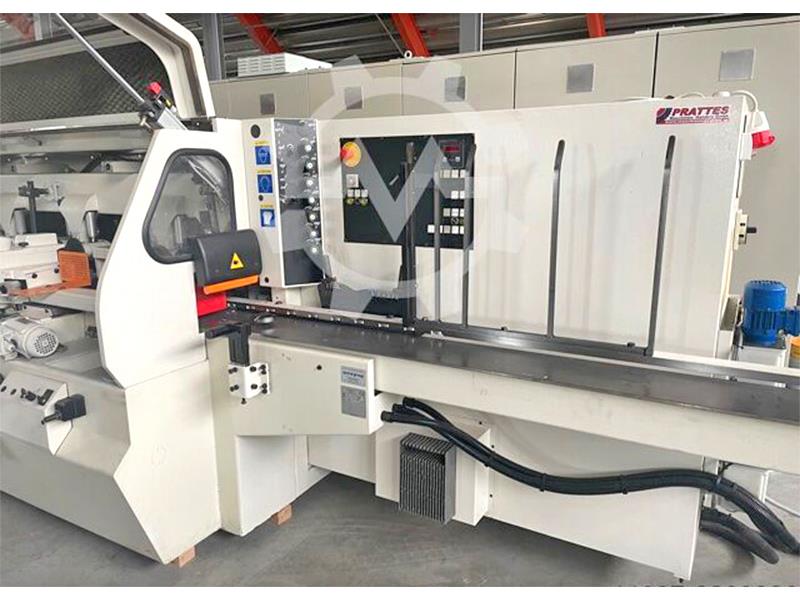

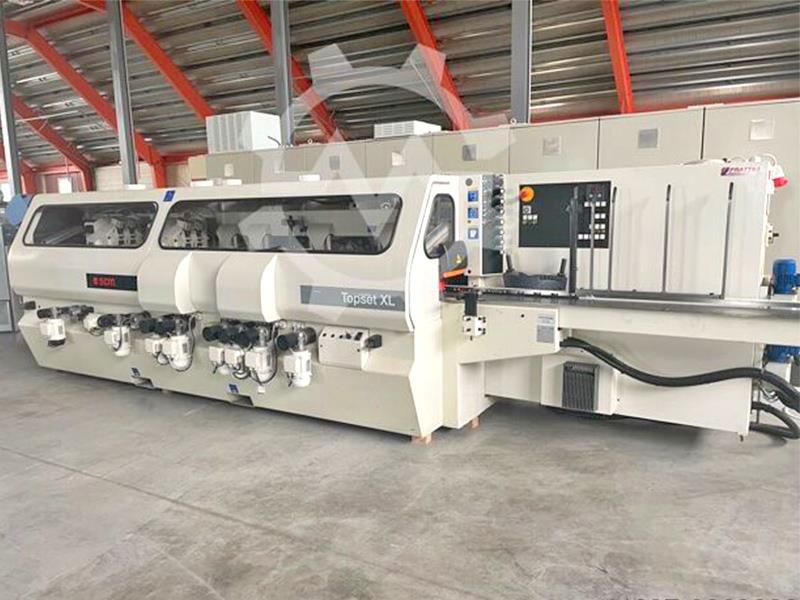

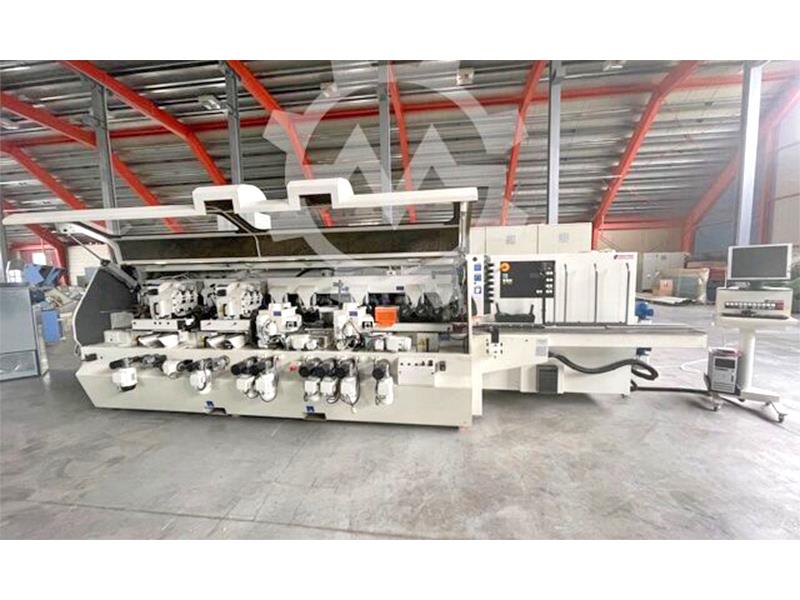

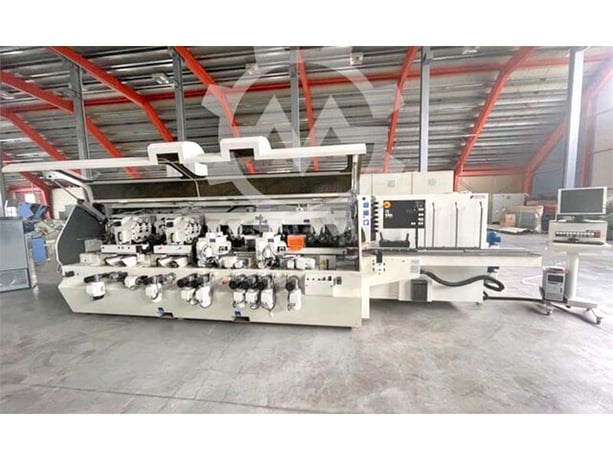

SCM #Topset-23XL, feed through moulder, 9-head, 9-7/16" x 4-3/4" capacity, 1-1/2" spindle diameter, 19-118 FPM, 2005

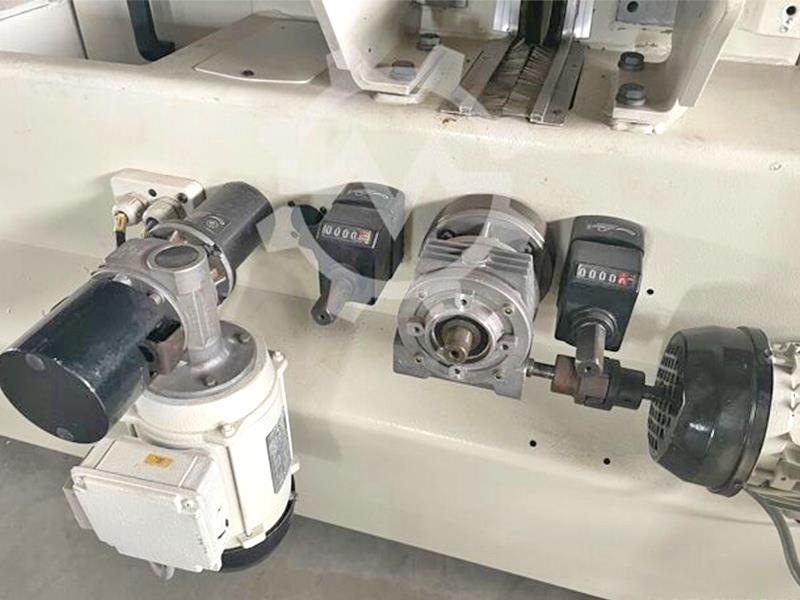

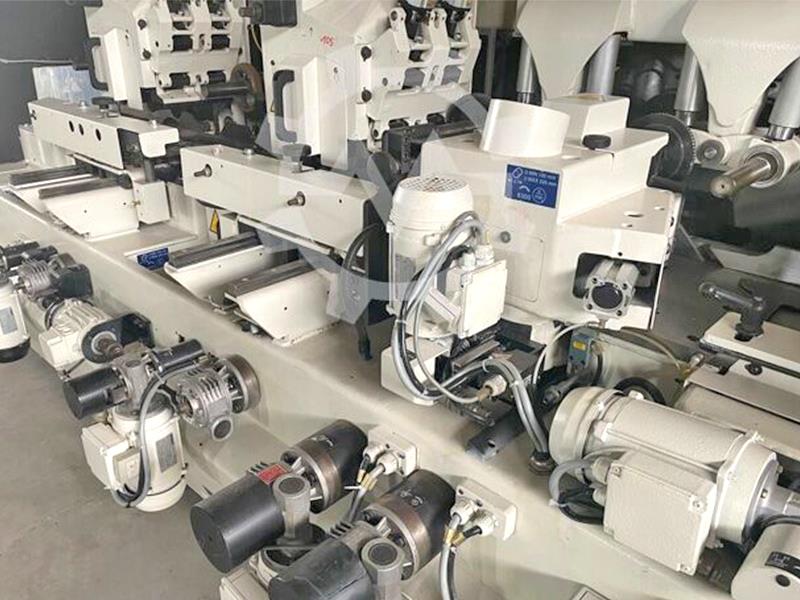

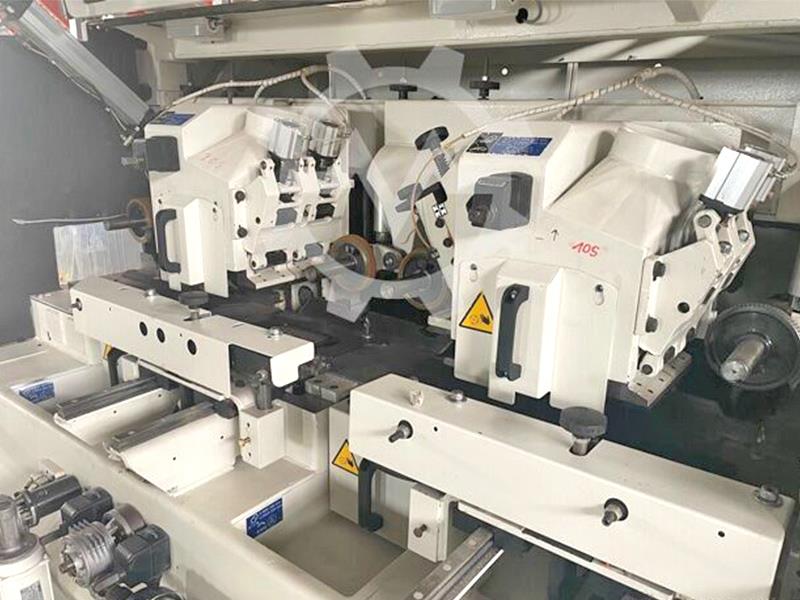

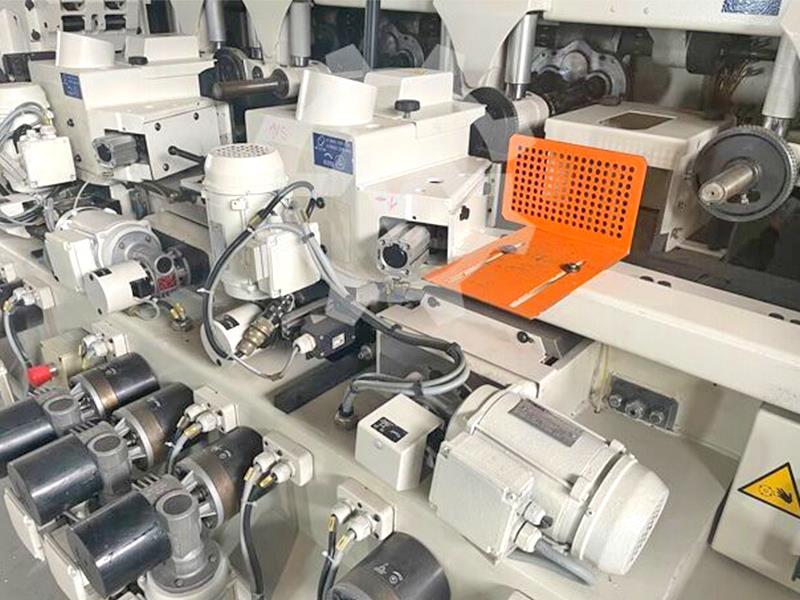

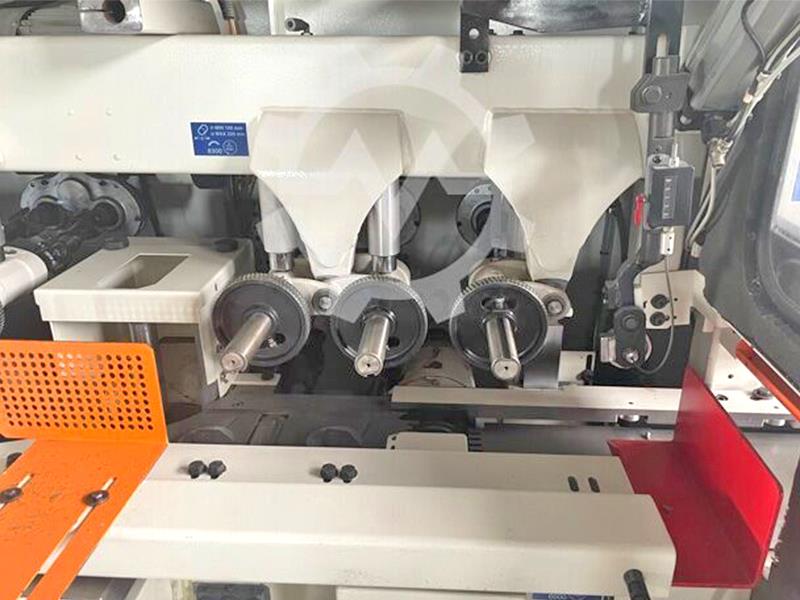

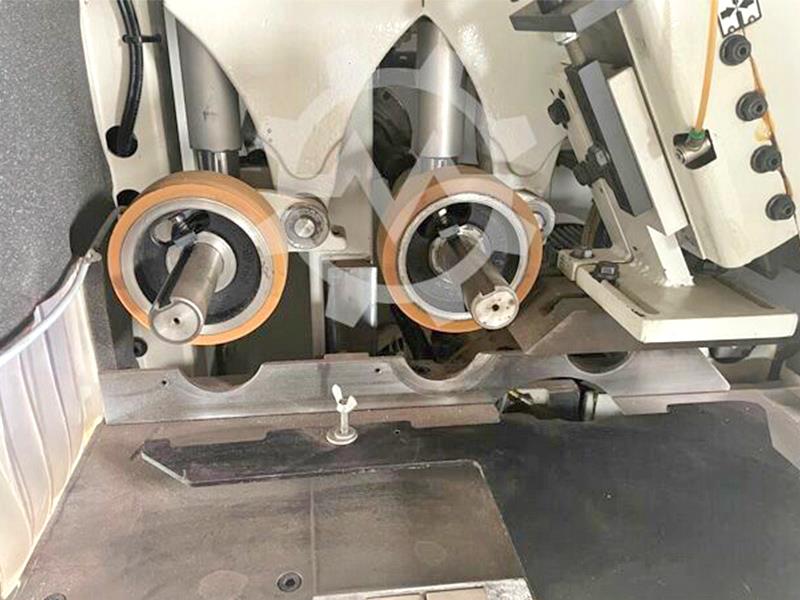

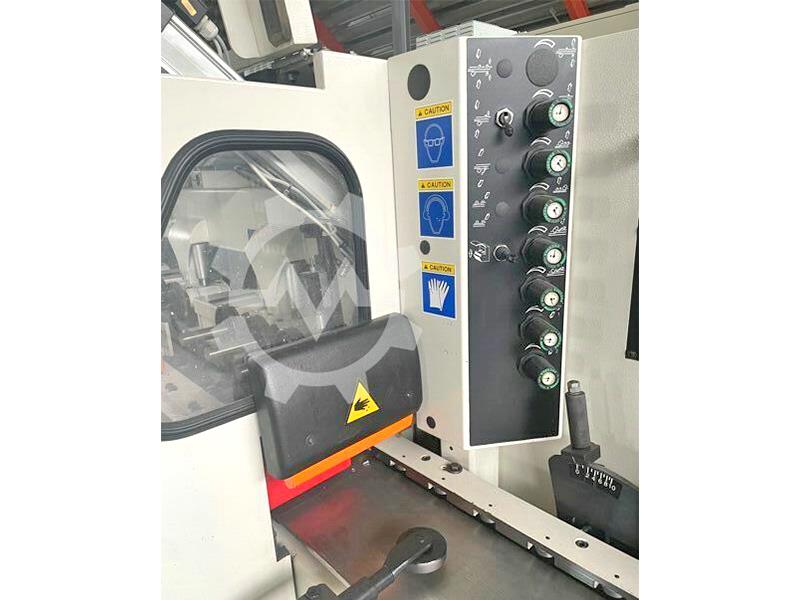

SCM TOPSET 23 XL Feed Through Moulder.Heavy solid machine base in monoblock steel.9-Head (B-R-L-R-L-T-U-T-B), max. working cap. of 240 mm x 120 mm (9-7/16" x 4-3/4"), min 25 mm x 10 mm (1" x 3/8"). -- Head sequence: 1. Bottom 11 kW (15 HP), 6,000 rpm. 2. Right 7.5 kW (10 HP), 8,300 RPM. 3. Left 7.5 kW (10 HP), 8,300 RPM. 4. Right 7.5 kW (10 HP), 8,300 RPM. 5. Left 7.5 kW (10 HP), 8,300 RPM. 6. Top 11 kW (15 HP), 8,300 RPM. 7. Bottom 12 kW (16 HP), 8. Top 11 kW (15 HP), 8,300 RPM. 9. Bottom 7.5 kW (10 HP), 8,300 RPM. -- Spindle diameter: 40 mm (1-1/2"). Useful length of horizontal spindles 250 mm (9-13/16"), vertical spindles 140 mm (5-1/2"). All spindles with mechanical digital readouts for height and width adjustments. -- Motorized height/feed beam adjustment. In combination with SCM SetUp - Quick-set-up-system on SCM moulders. Simultaneously to the setting of the tool diameter, the working height and width, the feed rollers and the pressure elements are adjusted. -- Feed system: Infinitely variable feed speeds from 6 - 36 m/Min (19 - 118 FPM), driven by 5.5 kW (7.5 HP) motor. Chainless feed system with constant velocity joints. Overhead feed wheels 140 mm (5-1/2") with pneumatic pressure. Spring-tensioned pressure roller at infeed table prior to first spindle. Outfeed table with micrometric adjustment. -- Infeed table: 2,500 mm (8'); 10 mm quick-adjustment of fence and infeed table. (3) driven table rollers in the bed. -- Machine management: SCM CONTROL 100 PC ● features: IPC (Industry-PC), operating system WINDOWS, miscellaneous Ports, i.e. USB, software NEXT. Operated from a free-standing pedestal. ● Variable programming, report of operating errors, required actions for problem-solving, localization of malfunctions, manufacturing statistics, machine downtime, motor control with automatic star-delta-switch, control of the automatic lubrication device, remote maintenance. -- Complete with: Full safety/sound enclosure. Emergency stop buttons. Load meters. Central lubrication. Various spacers for spindles, measuring stand, anti-kickback plate at infeed. CE Marked compliance. -- Required compressed air capacity 6-10 bar (87-145 PSI). Dust extraction capacity 7,500 m3/h (4,415 ft3/Min). -- Space requirements: L x W x H = 6300 x 1620 x 1655 mm (20' x 5' x 5'). Weight approx. 6,000 kG (13,230 Lbs).Actual model is SCM TOPSET 23 XLNote: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full Service Logistics"; from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
