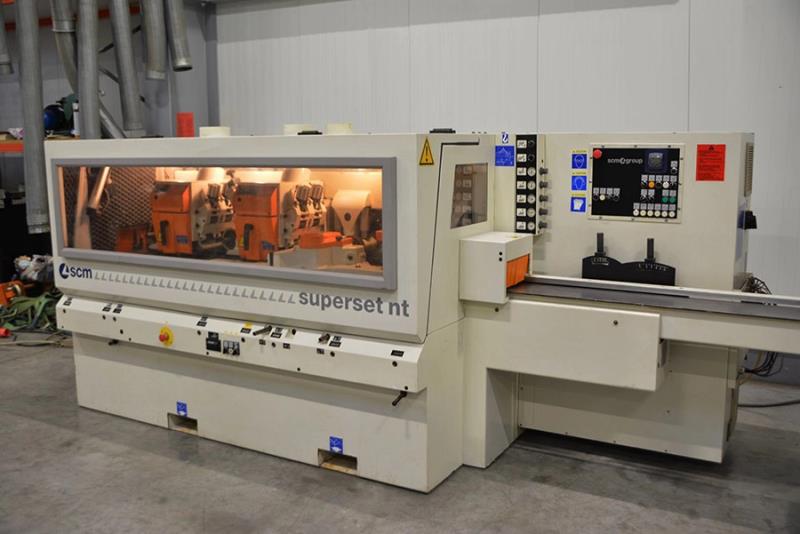

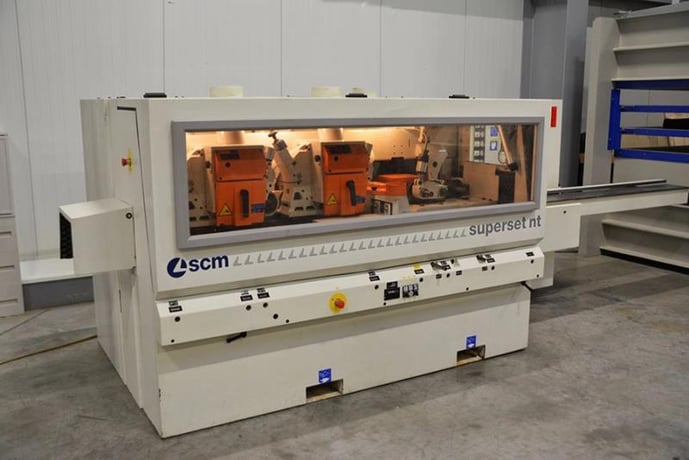

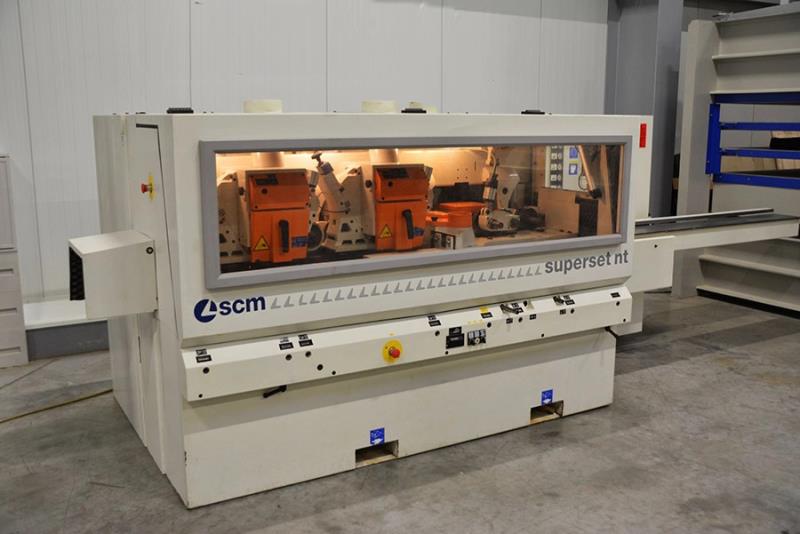

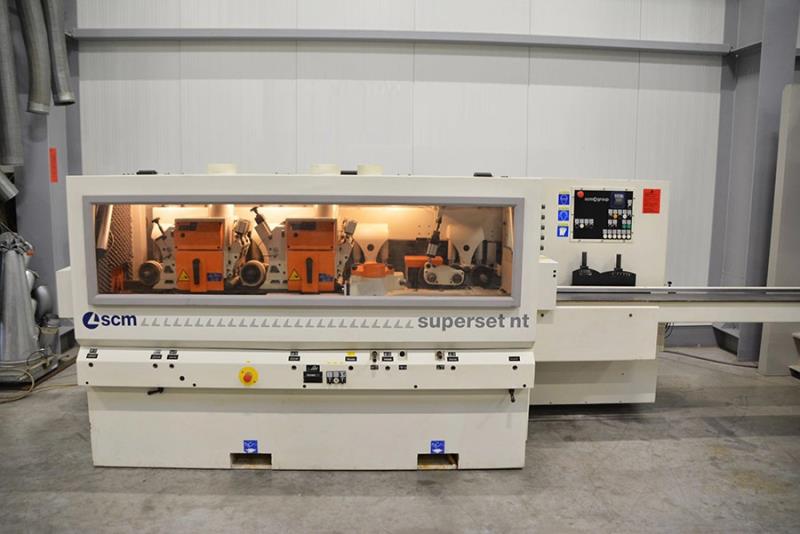

SCM #Superset-NT, feed through moulder, 6-head, 9-7/16" x 4-3/4" capacity, 1.5" spindle diameter

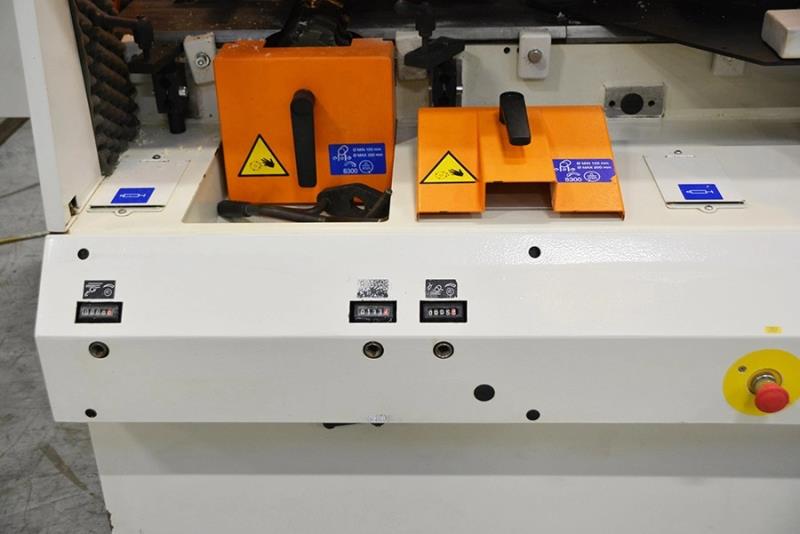

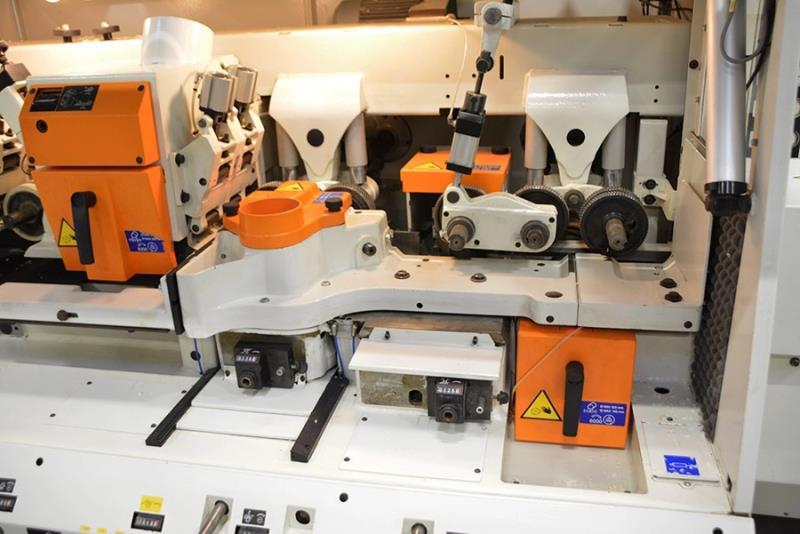

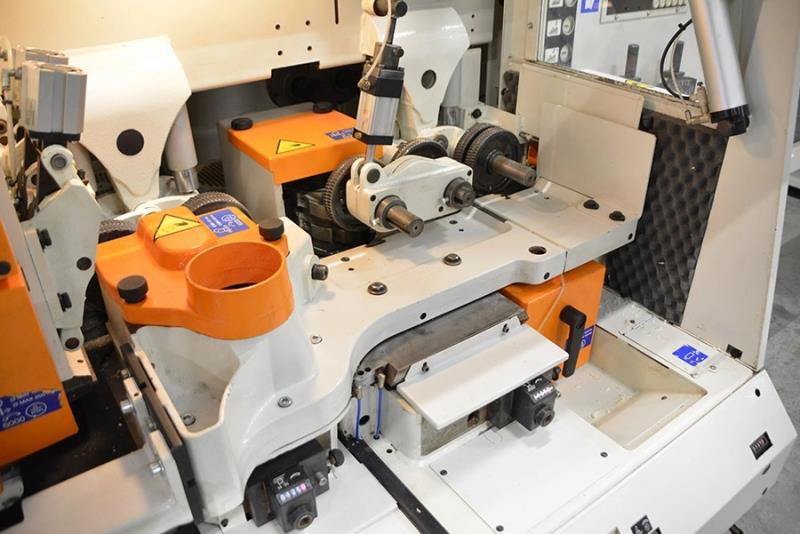

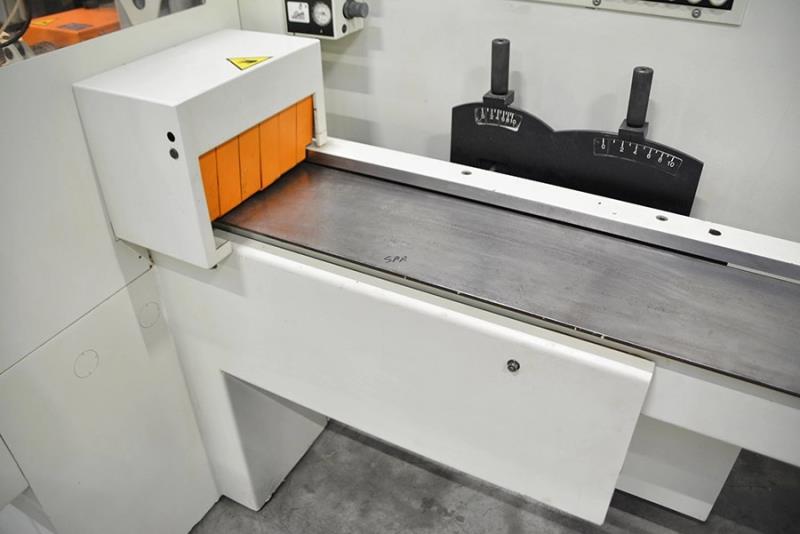

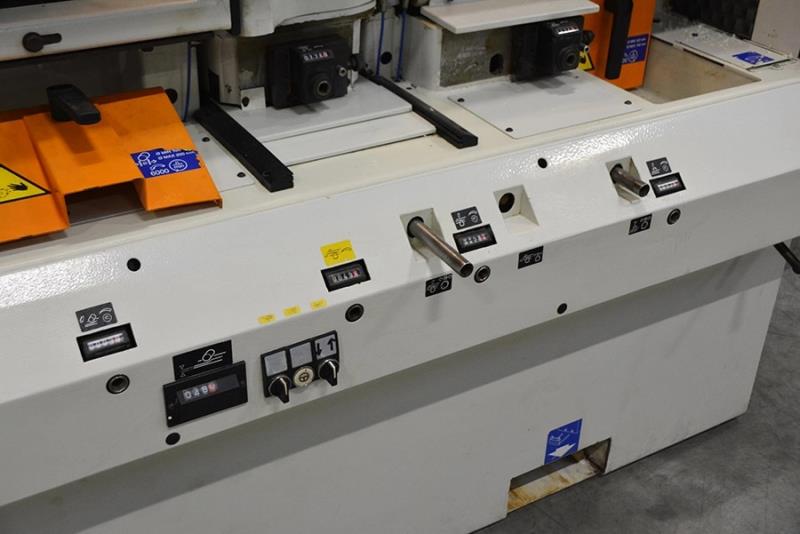

SCM SUPERSET NT ... Feed Through Moulder, with 6 heads (B-R-L-T-T-B). -- Machine Structure: Machine bed and top beam are monobloc constructions in thick steel, ensuring high rigidity to achieve a high quality finished product. -- Working Capacity: Max. width 240 mm x height 120 mm (9-7/16" x 4-3/4"). -- Head Sequence: 6-Head (B-R-L-T-T-B).1.Bottom 7.5 kW (10 HP), 2. Right 7.5 kW (10 HP), 3. Left 7.5 kW (10 HP), 4. Top 7.5 kW (10 HP), 5. Top 7.5 kW (10 HP), 6. Bottom 4 kW (5.5 HP). -- Spindles: Diameter 40 mm (1-1/2"), 6,000 RPM, heads 5&6 8,300 RPM. Mechanical digital read-outs on all spindles. -- Motorized height/feed beam adjustment. -- Feed System: ● Infinitely variable feed speeds from 5 - 25 m/Min (16 - 82 FPM), driven by 4 kW (5.5 HP) motor. ● Chainless feed system with constant velocity joints. ● Overhead feed wheels 140 mm (5-1/2") with pneumatic pressure. ● Horizontal top spindles with pneumatic pressure in angular position on hold downs. ● Short stock device. -- Machine tables: Infeed table length 2,000 mm (6'). Machine bed consists of 1-piece hardened steel, machined in its entirety on a CNC machining center. -- Complete with: Full safety/sound enclosure with illumination inside, with automatic opening/closing of the cover. (3) Emergency stop buttons. Automatic pump for central lubrication. -- CE Marked compliance. Actual model is SCM SUPERSET NT ... Feed Through Moulder with 6 heads (B-R-L-T-T-B)Note: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full Service Logistics"; from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
