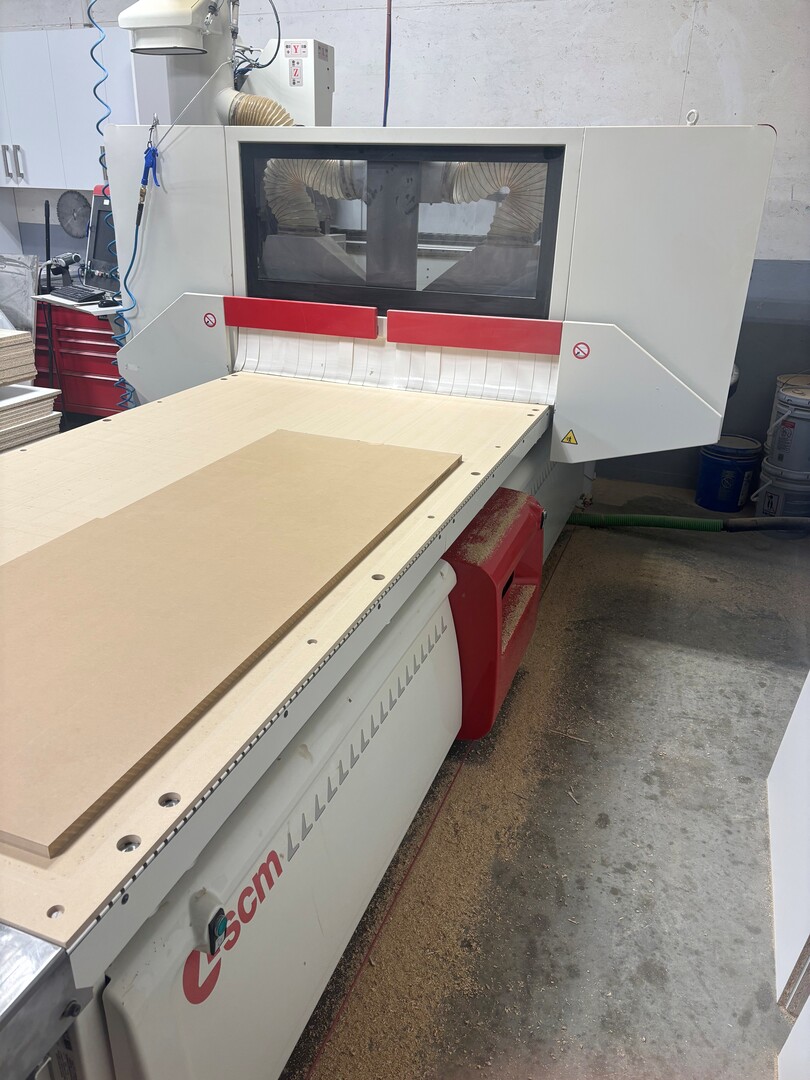

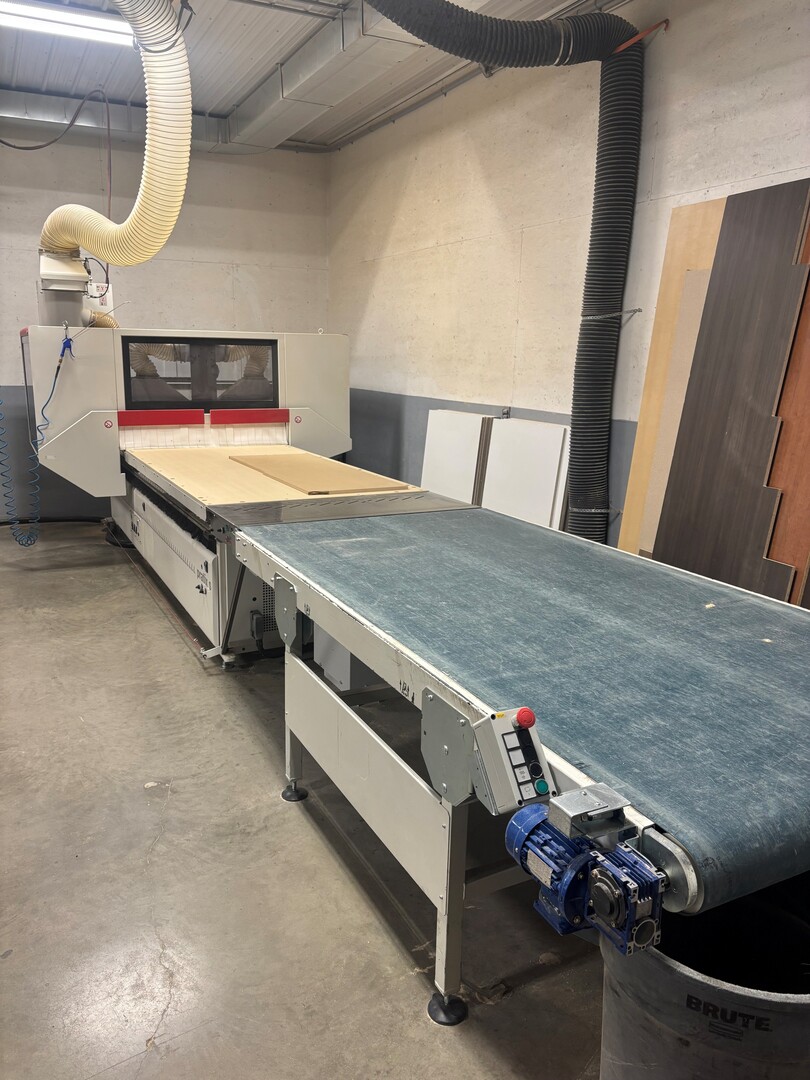

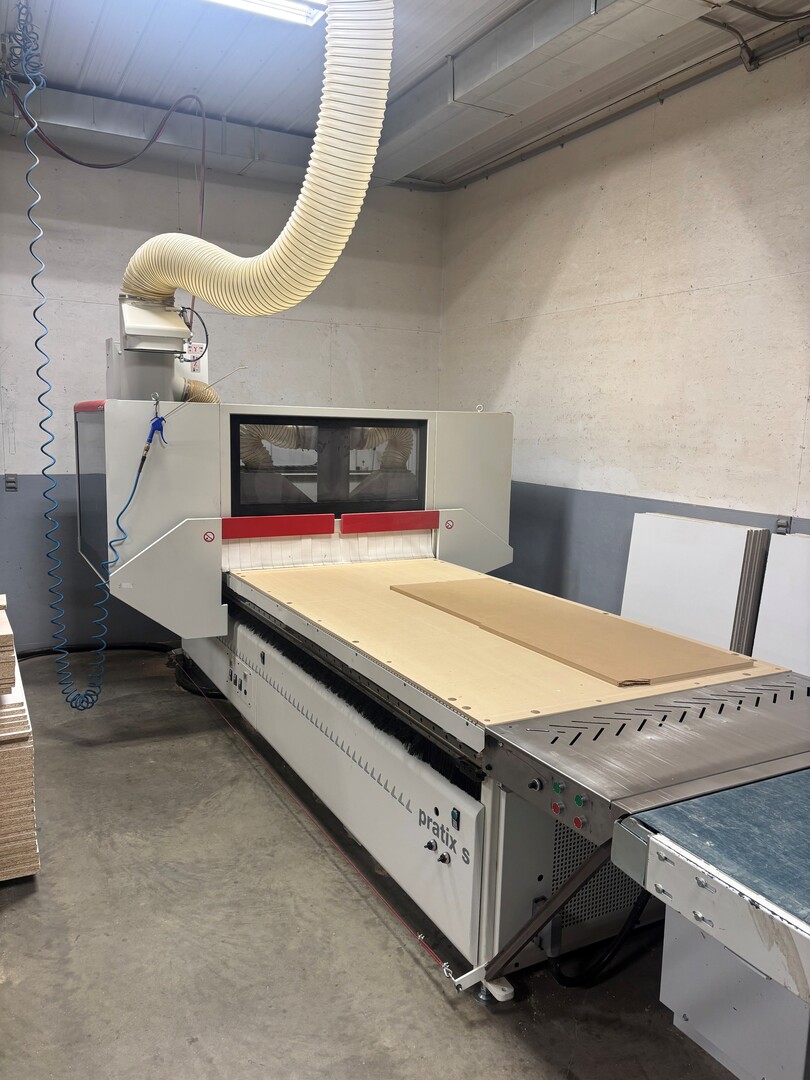

SCM #Pratix-S-12C, CNC Router, 97.6" X, 49.2" Y, 3.9" Z, 4' x 8' table, 7.5 HP electrospindle, 3 HP motor, 4000 RPM, 8 ATC, 400 Volts, 1PH, 2015

Estimated monthly payment valid upon approved credit.

Request Formal Quote

SKU: 156664
Model: Pratix S 12C
Year: 2015
Condition: Used

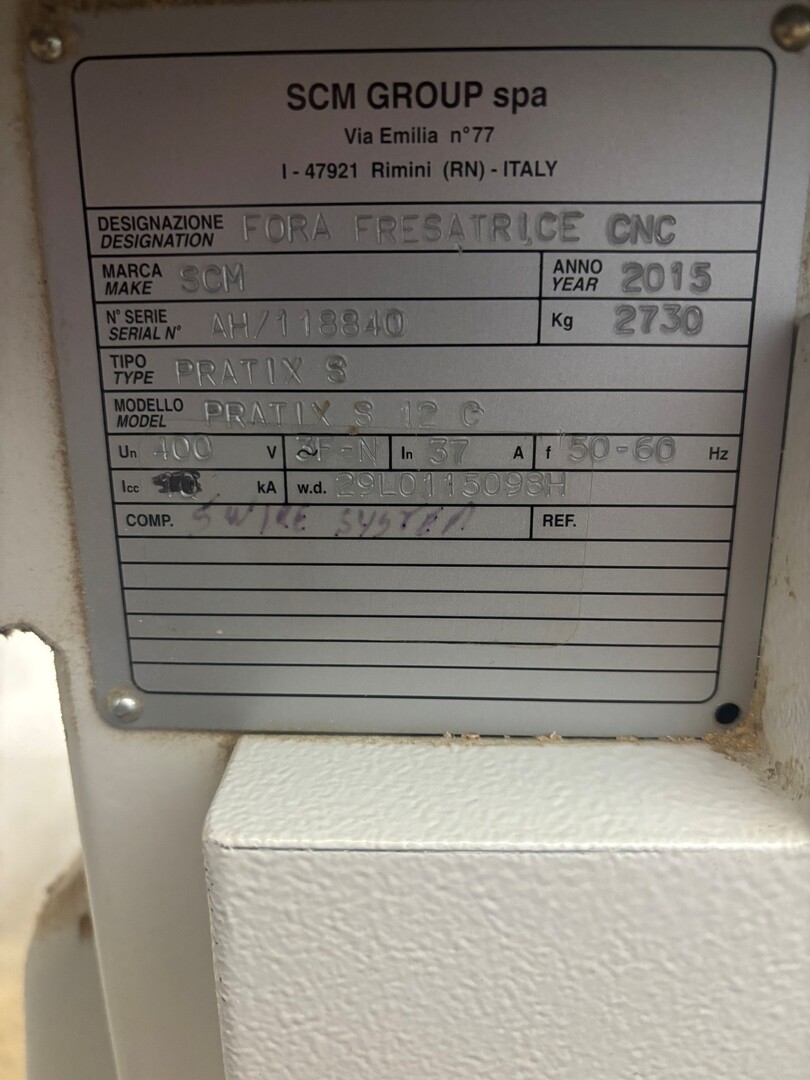

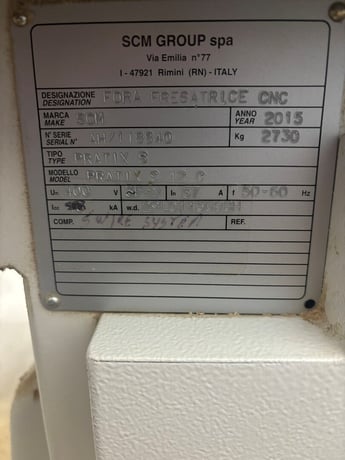

S/N: AH/118840
General Specifications:
Table Size: 4'x8'
CNC: Yes
Electrical Specifications:
Voltage: 400 volts
Phase: Single-phase
Dimensions: 103.00 (H) x 110.00 (W) x 233.00 (L) inches
Additional Description:
Axes
Working area X-Y-Z: 2480 x 1250 x 100 mm // 97.6 x 49.2 x 3.9 in
Stroke X-Y-Z: 3035 x 1745 x 240 mm // 119.5 x 68.7 x 9.4 in
Vectorial speed X-Y axes: 35 m/min // 114.8 ft/min
Working Table
Type: Multifunction, aluminum
No. of stops for A area: 3
Boring Head
Vertical spindles: 7 spindles, 4000 rpm - 5X + 3Y
Motor power: 2.2 kW // 3 HP
Electrospindle
Standard motor power S6: 5.5 kW // 7.5 HP
Max speed: 24,000 rpm
Side tool changer: 8 places
Installation
Installed motor power: 23-28.5 kW // 30.8-38.2 HP
Compressed air consumption: 400 NL/min
Extraction air consumption: 5300 m3/hr
Exhaust air speed: 30 m/sec // 98.4 ft/sec
Exhaust outlet diameter: 250 mm // 9.8 in
