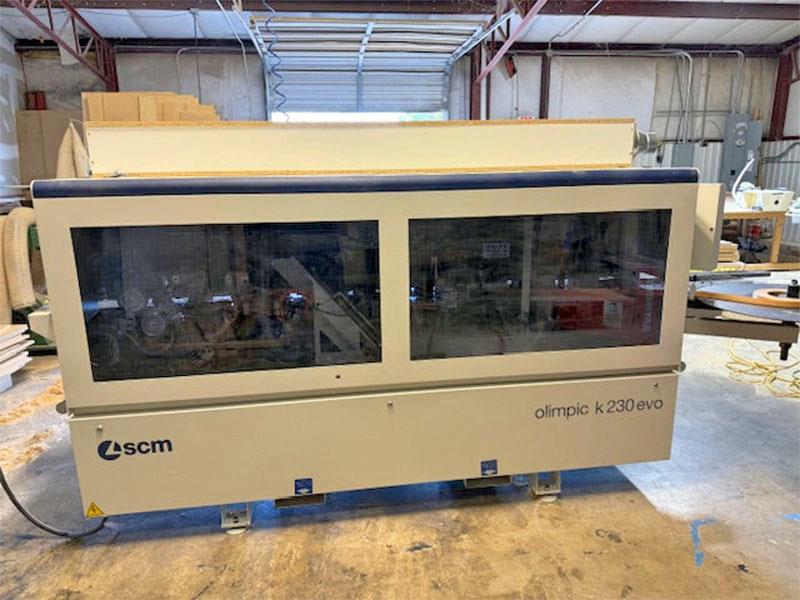

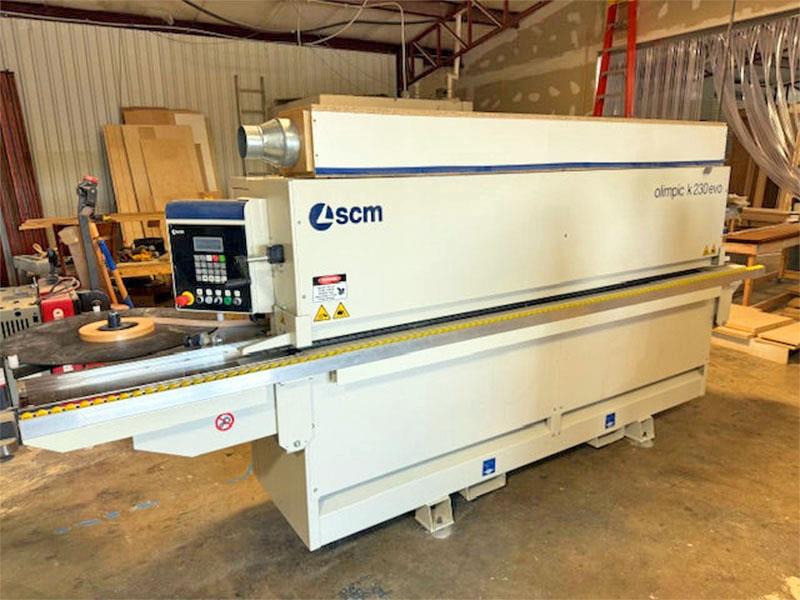

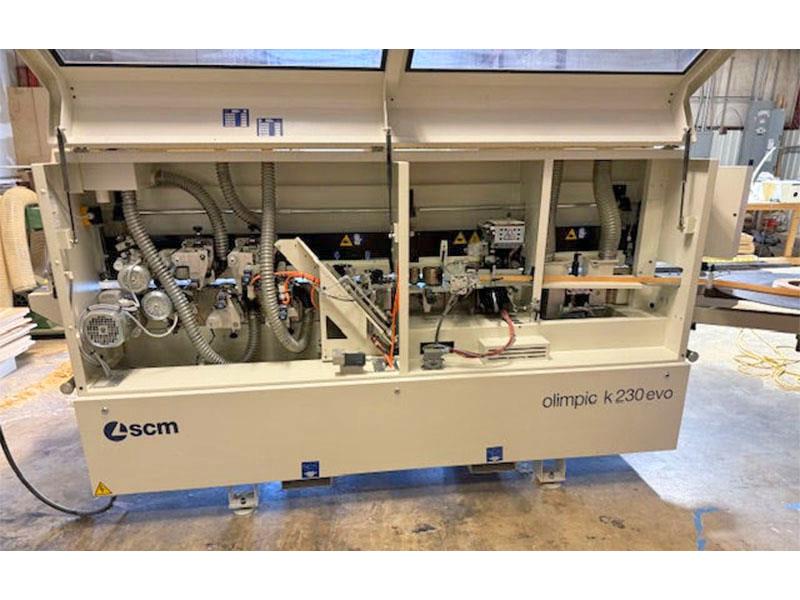

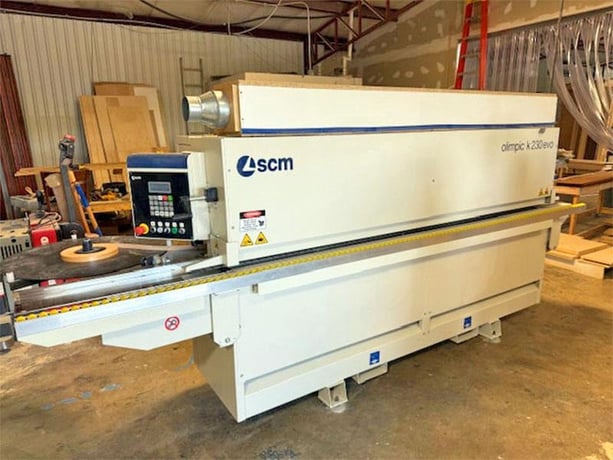

SCM #Olimpic-K230R-EVO, edgebander w/ pre-mill, 2022

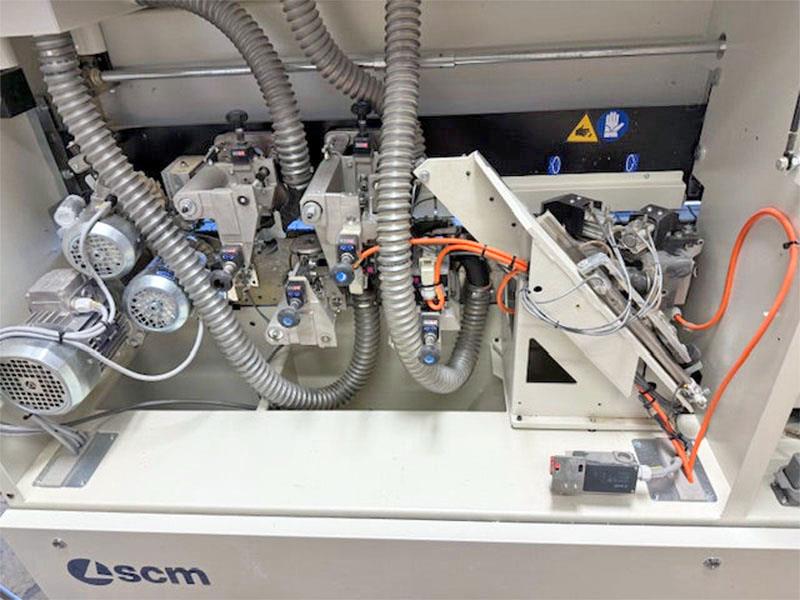

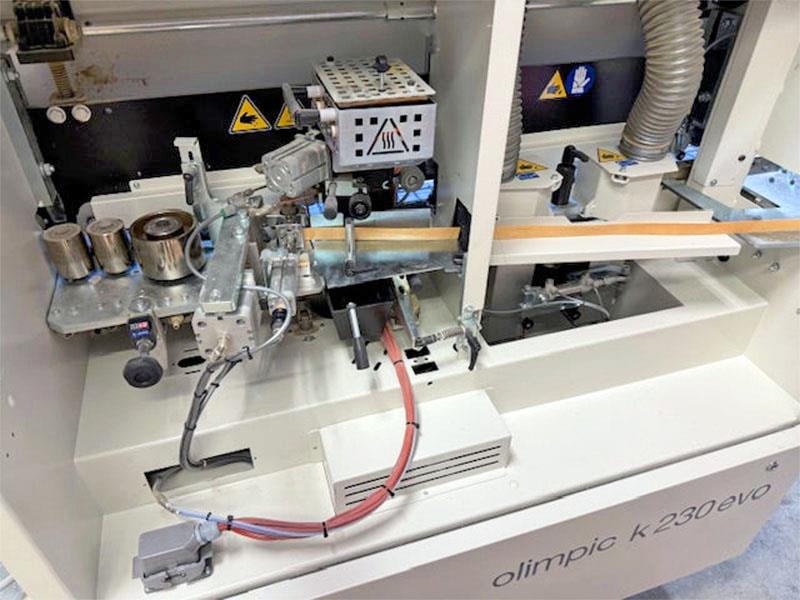

SCM - OLIMPIC K230R EVO: Edgebander (w/Premilling) -- Specifications0.4mm to 3mm Edge thickness; panel thickness 8 mm to 50 mm (0.3" to 1.96"); minimum part width 60mm (2.36"); minimum part length 160 mm (6.30").Minimum distance between panels: 559 mm (22";); 29-1/2 FPM (98 MPM) Fixed feed speed; 1.0 HP (0.75 kW) feed drive.Premilling Station(2) 2.0 HP (1.5 kW) Motors to rectify/clean panels already sized. -- Adjustable infeed fence: Manually preset with digital indicator, pneumatic in/out positioning.Equipped with: 1.5 kG TEFLON Coated glue pot; glue roller application system complete with: Automatic recycling device for unused glue.Digital thermostat adjustment for temperature control; pneumatic guillotine; heating time approx. (8 - 10) Min.3-Roll pressure unit with: Pneumatic controls for all pressure rollers. -- Automatic strip & coil feed magazine.Workstations2-Motor front & rear End Trimming (1/2 HP - 12,000 RPM ea. motor.); tilts 0 - 15; end trimmers mounted on THK guide. -- Top & bottom flush & bevel trims with: Quick release mount and plug-in motors for quick tooling changes.0.5 HP - 12.000 RPM Motor ea.; bevels 0 - 15 with: Precision digital indicators for quick setup. -- Top & bottom scraping unit with: Manual positioning. -- Top & bottom buffing unit (1/4 HP - 3,000 RPM motors); tilts up to 12. Operator & Machine Control"ORION 1 Plus" Controller: Located at the infeed of the machine; capable of operating all the work units via soft touch buttons.It pneumatically tilts the end trim unit from the Control Panel; eliminates the use of micro switches, as well as controls the temperature of the glue.Control is tilted slightly upward for a more ergonomically friendly position for the Operator. -- Actual Model is: SCM OLIMPIC K230R EVO
