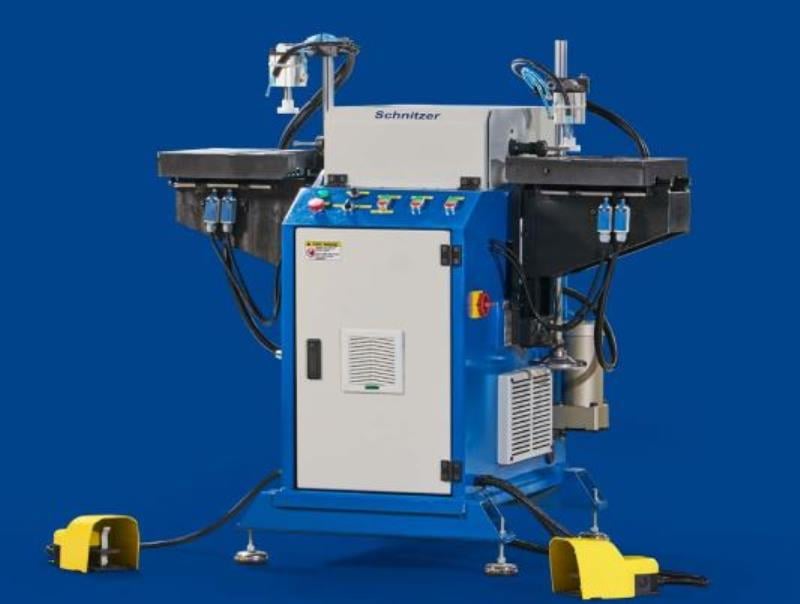

Schnitzer #Female, oscillating slot mortiser, double table, 1.97" slot depth, 4.72" slot width, 4.72" slot height, 4 HP, 3,600 RPM, 2026

Estimated monthly payment valid upon approved credit.

Request Formal Quote

SCHNITZER 'FEMALE' Oscillating Slot Mortiser, Double Table. Automatic double table slot mortiser. Mortises or bores holes on chair, furniture or case goods.Technical Specifications: -- (2) Tables & spindles, (1) table on each side to eliminate dead cycle time (load one side while machining on other). -- 50 mm (1.97") Max. slot depth; 120 mm+2R (4.72" +2R") Max. slot width; 120 mm (4.72") Max slot height. -- 3 KW (4) HP) -3,600 RPM Motor, spindles belt driven, (1.0 HP), 3600 RPM oscillation geared motor with (120) Oscillations/Min,Features: -- Spindle movement with ball bushings sliding on hardened ground guides. -- Table assemblies hydraulically feed into spindles, in-and-out table adjustment between table & spindle to reduce spindle engagement time (side-to-side); adjustable cut speed; overhead pneumatic clamp cylinders. -- Made with high quality SMC pneumatics & PMI Linear motion slides. -- Heavy duty spindles with approx. 16 mm chucks. -- Overall dimensions: 1390 mm wide by 1165 mm depth by 1270 mm height. -- Can be coupled with SCHNITZER MALE Tenoner, see TE-300042
