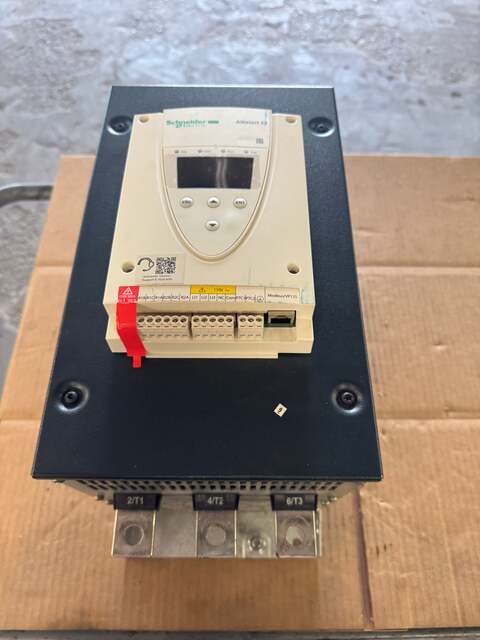

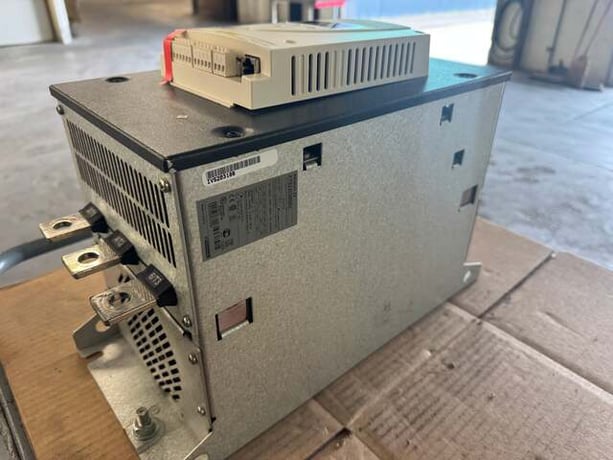

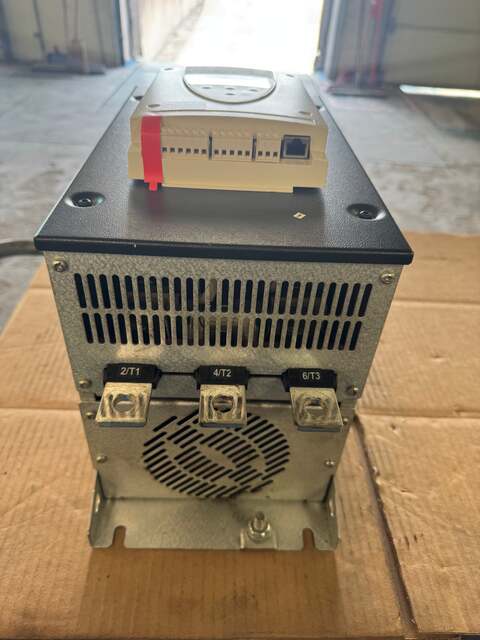

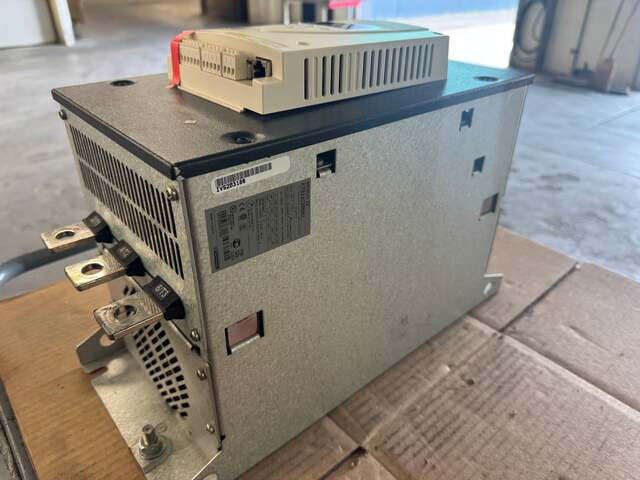

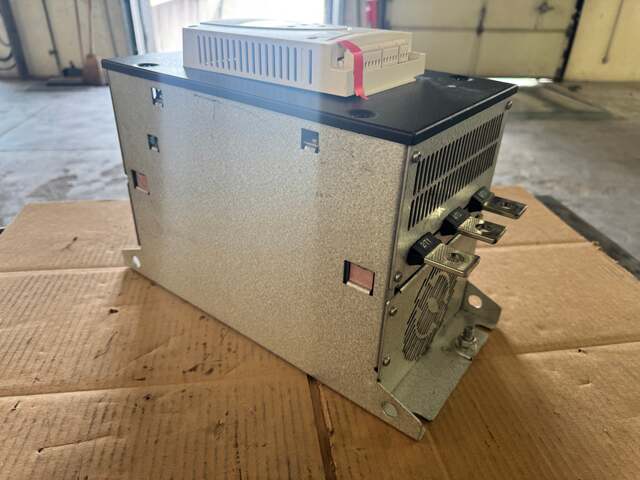

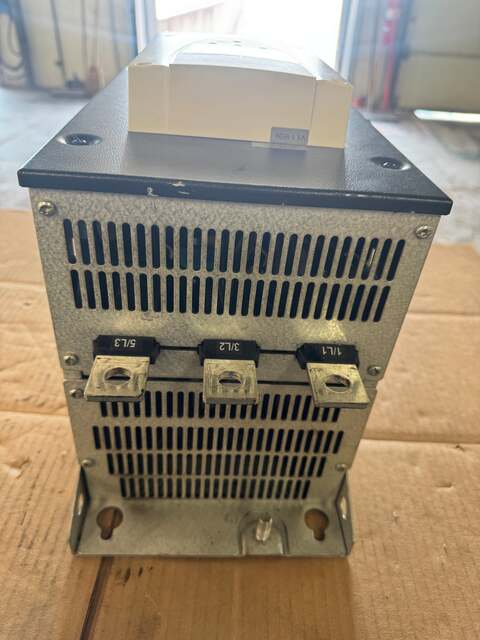

Schneider Electric ATS22C25S6U Soft Starter Untested Surplus

Product Specifications

• Manufacturer: Schneider Electric
• MPN / Model: ATS22C25S6U
• Product Series: Altistart 22
• Product Type: Soft Starter
• Current Rating: 250A
• Power Voltage: 208-600V AC, 3-Phase, 50/60Hz
• Control Voltage: 110-115V AC, 1-Phase, 50/60Hz
• Motor HP Range: 75 HP at 208V / 100 HP at 230V / 200 HP at 460V / 250 HP at 575V
• Motor kW Range: 75 kW at 230V / 132 kW at 400V / 132 kW at 440V / 160 kW at 500V
• IEC Rating: IEC60947-4-2, 250A, AC53a, 3.5-20:90-4
• Motor Overload Protection Class: Class 10
• Communication: Modbus / VP12S (RJ45)
• Wire Range (Control): Cu AWG12, 75 degrees C, 4.5 lb-in / 0.5 Nm
• Wire Range (Power): Cu 350 MCM, 75 degrees C, 503 lb-in / 57 Nm
• Certifications: UL Listed (E184727), CE, CSA (224330), CCC (A039565), PCT, KC (KCC-REI-SeK ATS22C25S6U)
• Country of Origin: China
• Barcode: 8812358370009
• Serial / Reference: IVS203186

Product Description

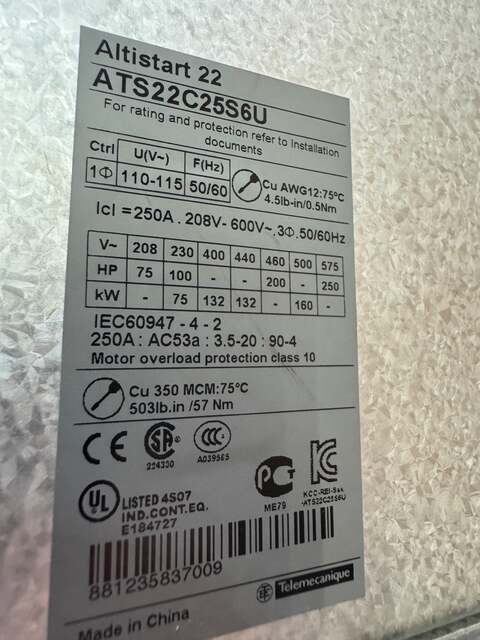

The Schneider Electric ATS22C25S6U is a 250A soft starter from the Altistart 22 series, rated for 3-phase asynchronous motors across a supply voltage range of 208-600V AC at 50/60Hz, with a 110-115V AC single-phase control circuit. Motor horsepower coverage spans 75 HP at 208V through 250 HP at 575V, corresponding to 75-160 kW depending on voltage. The unit includes an integrated bypass and an RJ45 Modbus/VP12S communication port. IEC rating is 250A AC53a 3.5-20:90-4 per IEC60947-4-2, with motor overload protection class 10. Certifications visible on the nameplate include UL (E184727), CE, CSA, CCC, PCT, and KC. The item is listed as Surplus / Untested. Serial reference IVS203186 is visible on the unit label. The nameplate also carries the Telemecanique logo, consistent with Schneider Electric product identity.
